Assemble the inlet nozzle (5).
Assemble the guide wheel (6)
and tighten its screw.
Install the blade first (7),
then mount the blade clamp
(8) onto the same axis and
tighten the screw.
Caution: handle the blade
carefully to avoid injury.
Finally, insert the guide tube
set (9).
Counter
Wheel
Axis,
Flat Side
Allen Key
inserting here
Assemble first the counter wheel (1). Make sure that its thread entry
for the set screw is aligned with the flat side of the axis (2). If not,
the set screw will protrude, which may cause difficulties for the wire
transportation.
Inserting the Allen key through the front opening will make it easier
to tighten the screw (3).
Afterward, insert the intermediate nozzle (4) until its collar rests against
the housing and tighten its screw.
Inlet
Nozzle
Interm.
Nozzle *
2
Counter
Wheel
Guide Tube
Set
Guide
Wheel *
1
Blade
Blade Clamp
*
1
Guide wheel bears diameter marking.
*
2
Intermediate
nozzle assembly

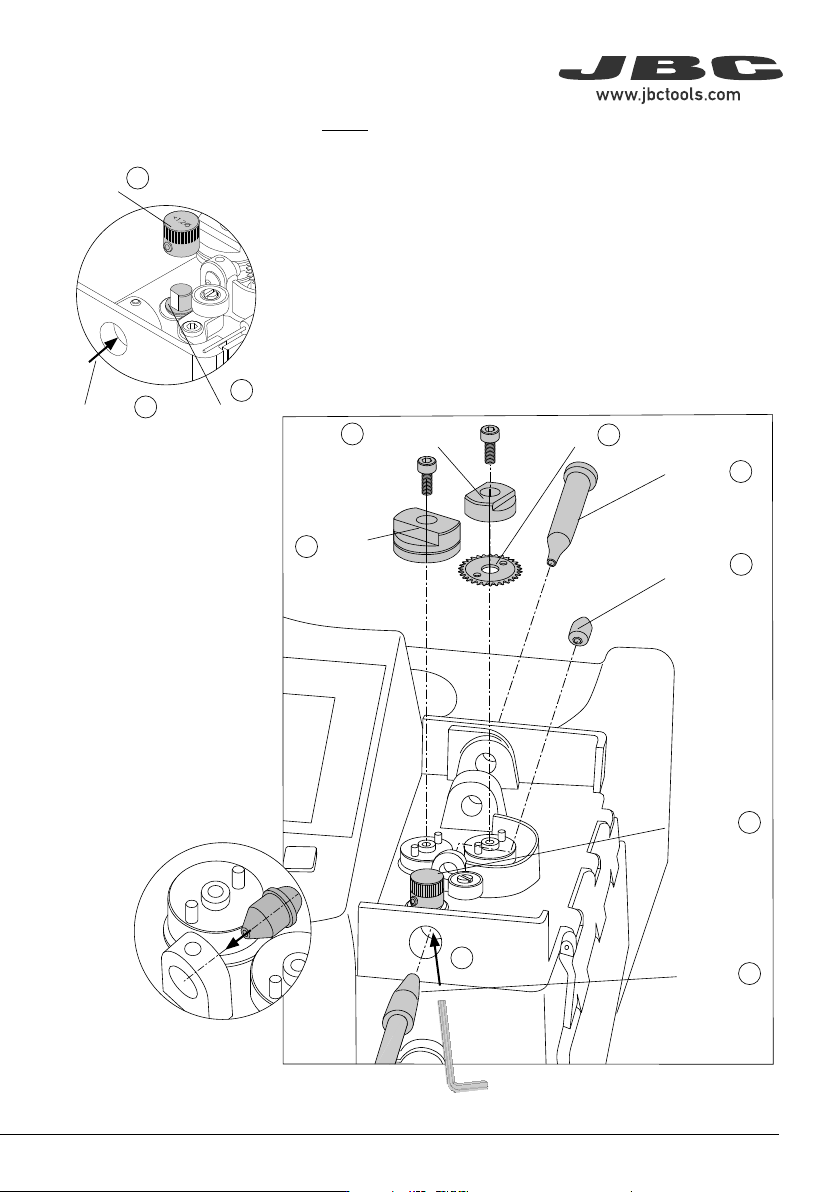

Guide Kits Assembly - with Solder Wire Perforation:
EARTH FUSE F1.25 A
USE ONLY WITH A 250 V FUSE
EARTH FUSE F1.25 A
SFR-B
GSFR
TRA
CLR
EXTRACCIÓN
22220
EXTRACCIÓN
26842
26843
EXTRACCIÓN
26846
26847
26848
EXTRACCIÓN
26844
VERMELL
NEGRE GROC
VERMELL
BLAU
VERMELL
BLAU
BLAU
VERD
VERMELL
BLAU
VERD
VERMELL
NEGRE GROC
VERMELL
BLAU
BLAU
VERD
2
3
4
5
1
6
14
Assemble first the counter wheel (1) in the same way as shown on the previous page (see (1), (2) and
(3) on the page before).
Afterwardas insert the intermediate nozzle (2) until its collar rests against the housing and tighten
its screw.
Assemble the inlet nozzle (3).
Assemble the support wheel* (4) and the traction wheel (5) on the corresponding axis and tighten
the respective screws
Finally insert the guide tube set (6) and tighten the screw.
Support
Wheel *
1
Traction
Wheel
Interm.
Nozzle*
2
Inlet
Nozzle
Counter
Wheel
Guide
Tube Set
*
1
Support wheel bears diameter marking.
*
2
Intermediate nozzle
assembly
Guide Kits Assembly - without Solder Wire Perforation:
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
ALE250
6
1
2
3
4
5
7
15
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - negro plano
200 mm
300 mm
Place a new cartridge into the automatic-feed
iron (4).
Important: It is essential to insert the cartridge
up to the mark for a good connection (5).
2. Removing
1. Unlocking
Loosen the cartridge fixing screw (1) to release
the cartridge (2).
Place the cartridge in the cartridge exchanger
and pull the tool to remove the cartridge (3).
3. Inserting
Changing Cartridges
For a safe cartridge change, unplug the tool or turn off the station before following these guidelines
and wait for the equipment to cool down.
Mark
4. Adjusting
The alignment of the cartridge with the outlet
nozzle (6) can be precisely adjusted by using
the upper tab (7). Make sure the tab is set in
the middle when inserting the cartridge to allow
room for movement to both sides.
5. Fixing
Finally, tighten the cartridge fixing screw to fix the
cartridge in place.
Tab
