Barcode-Scanner Installation 6.2.1 Datalogic Scanner’s Cradl e BC-8030 (Narrowband) Datalogic Scanner Installation Manual SIPLACE Setup Center 6.3 SP2 53 ► If the green LED of the s canner blinks, put the scanner into th…
Barcode-Scanner Installation
Datalogic Scanner 6.2.1 Datalogic Scanner’s Cradle BC-8030 (Narrowband)
52 Installation Manual SIPLACE Setup Center 6.3 SP2
Steps to configure the cradle to the USB-COM interface
The device may be configured to a different interface ex factory, the following steps switch to USB-COM
port.
► Please scan the following barcodes in the order they are printed:
The standard configuration of the scanner is restored.
► Scan the barcode “0” four times.
The scanner must have an address (temporary "0000"), so that it can get connected to the cradle. This
address will be changed / set again later by Setup Center with the automatic configuration.
In order to configure the cradle a scanner needs to be bound to the cradle with the barcode "Bind".
► Scan the barcode "Bind" now.
Barcode-Scanner Installation
6.2.1 Datalogic Scanner’s Cradle BC-8030 (Narrowband) Datalogic Scanner
Installation Manual SIPLACE Setup Center 6.3 SP2 53
► If the green LED of the scanner blinks, put the scanner into the cradle.
► The green LED is now switched off and the scanner is already registered on the cradle.
The interface of the cradle can be set up now with the following barcodes.
► Scan the barcode "Restore BC-80X0 Default" to restore the standard configuration of the cradle.
► Scan the barcode "USB-COM" to set the interface to USB.
The cradle is now ready for use with Setup Center.
The communication over the USB-COM interface requires at least the firmware version 610001601 for
the scanner cradle.
NOTICE
USB-COM interface
Barcode-Scanner Installation
Datalogic Scanner 6.2.2 Datalogic Scanner`s Cradle BC-9030 (Narrowband)
54 Installation Manual SIPLACE Setup Center 6.3 SP2
6.2.2
6.2.2 Datalogic Scanner`s Cradle BC-9030 (Narrowband)
Datalogic Scanner`s Cradle BC-9030 (Narrowband)
The Datalogic scanner’s cradle BC-9030 needs to be connected to the Setup Center PC. The cradle in-
corporates a multi-standard interface, which can be connected via USB or RS-232 to a PC.

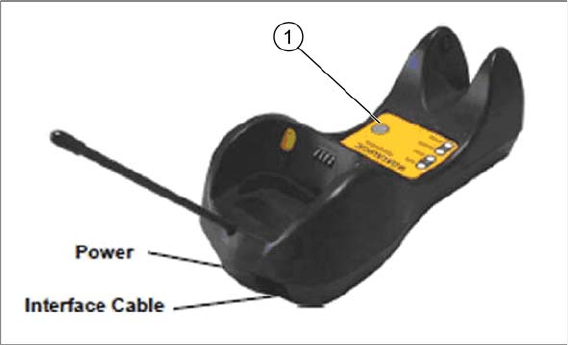

The label on the cradle contains LED indicators and a multi-function button (1). When the multi-function
button is pressed for less than 5 seconds, the cradle will transmit a “broadcast” message. When the
broadcast is sent, all properly configured and online scanners that are linked to that cradle and within
radio range will emit a beep and blink within 5 seconds. This functionality is useful to:
▪ Verity which scanners are linked to a certain cradle
▪ Detect a scanner forgotten somewhere
When the multi-function button is pressed for longer than 5 seconds, all paired scanners will be unpaired.
