1 Introduction
1.2 Preparatory Work...
36 Maintenance Manual / Instandhaltungsanleitung Vacuum Pump / Vakuumpumpe Becker VX25 06/2017
► Lock out the machine.
ð Attach a lock wherever possible:

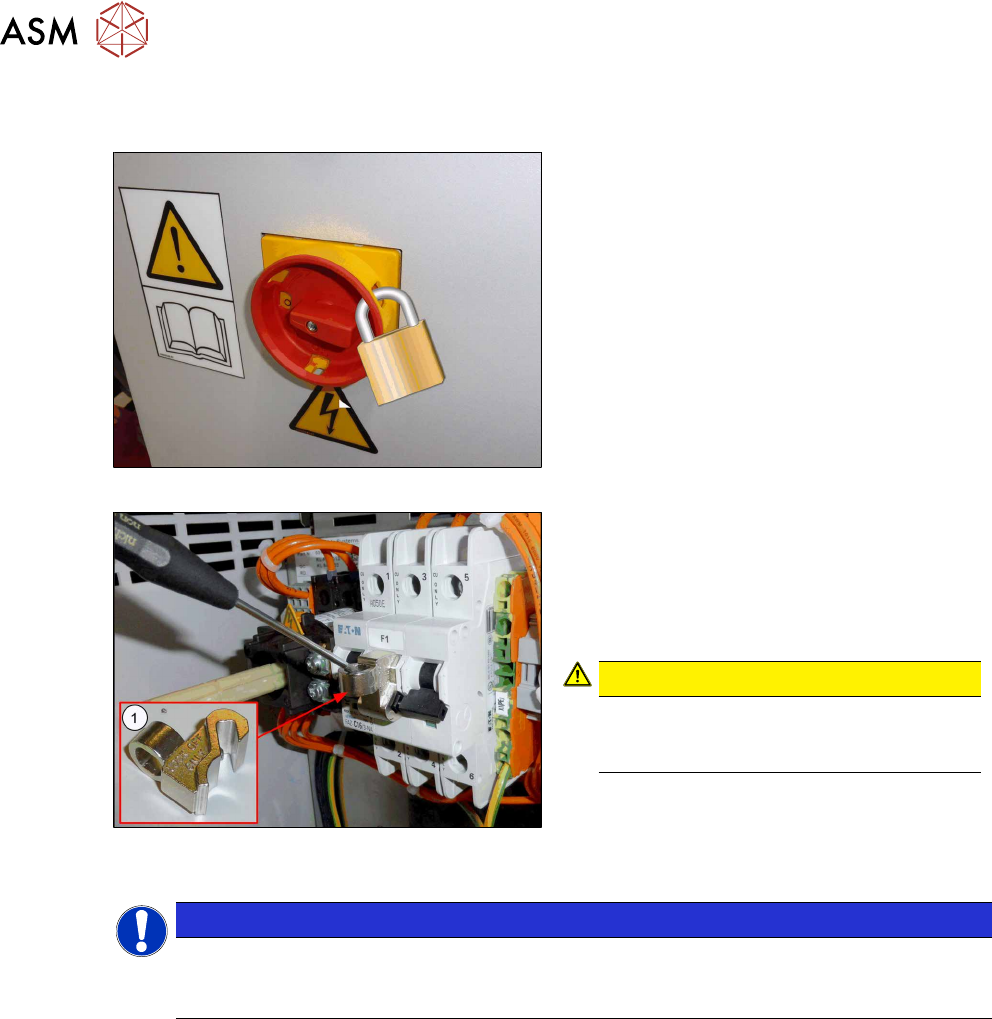

Fig.4: Attaching a padlock to the main power switch
Secure Main Switch
► Secure the main switch with a padlock.
Fig.5: Attaching the lockout attachment Z-IS/SPE-1TE
[03123101-xx]
Secure Circuit Breaker
The lockout attachment can prevent the
machine from being switched on inadvertently.
► Switch off the machine.
► Set the circuit breaker to OFF.
CAUTION!
The lockout attachment may only be at-
tached when the machine is switched
off!
.
► Attach the lockout attachment(1) to the
circuit breaker.
► Secure the circuit breaker with a padlock.
NOTICE
Lockout attachment in the service box of your machine
On machines that are delivered from June 2016, the lockout attachment [03123101‑xx] is
located in the service box.
1 Introduction
1.2 Preparatory Work...
Maintenance Manual / Instandhaltungsanleitung Vacuum Pump / Vakuumpumpe Becker VX25 06/2017 37
Fig.6: Lockout attachment Z-IS/SPE-1TE [03123101-xx]

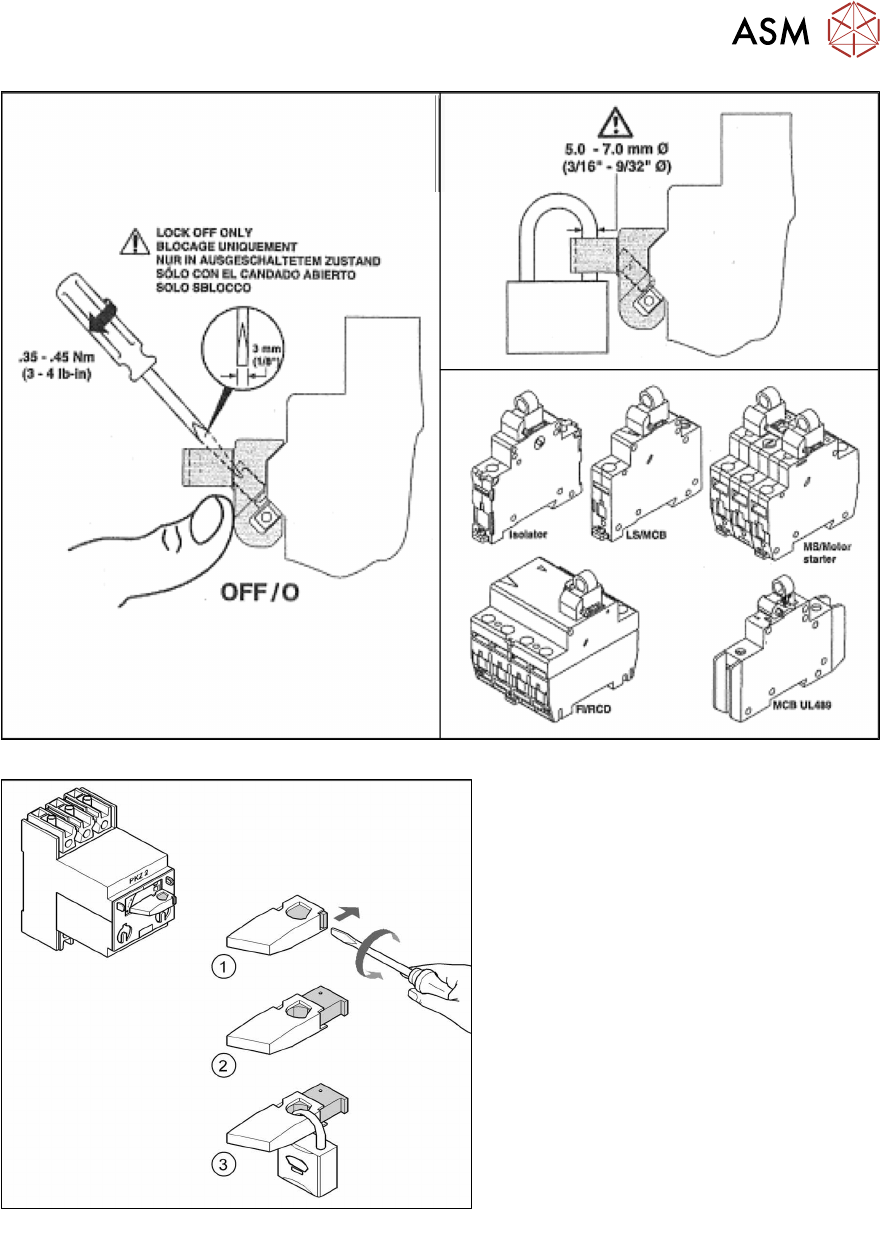

Fig.7: Attaching a padlock to the motor contactor
Secure Motor Circuit Breaker
► Turn the operating lever(1) counter-
clockwise.
► Use the screwdriver to push the lock-
ing lug(2) out of the operating
lever(1).
► Secure the operating lever with a pad-
lock (3).
► Alternative: Attaching warning signs:
If a machine can be locked, it must be.
However, there are situations where energy isolating devices cannot accommodate locks. In
these cases, the energy isolating devices must be tagged to warn employees that the
machine is de-energized for servicing. The tag or label must be securely fastened, it must be
placed in a position visible to all and it may only be removed by the person who attached it.
1 Introduction
1.2 Preparatory Work...
38 Maintenance Manual / Instandhaltungsanleitung Vacuum Pump / Vakuumpumpe Becker VX25 06/2017
► Release of stored energy:
Energy stored as compressed air in the compressed air supply or electrical energy stored in
electrolytic capacitors must be released by appropriate means.
After switching off the machine, wait until the voltages have discharged and the compressed
air has released, so that work can be performed without any risk.
DANGER
Checking for absence of voltage!
► Before you start working, check the power supply for absence of voltage and observe
the waiting times!
► Testing the lock out:
The lock can be easily tested by pressing the START button.
The following steps must be taken to restore the machine to operation.
► Check the workspace. Authorized employees should remove all of their tools and reinstall all
safety features.
► Notify all affected employees.
► Before removing even one lock or tag, inform all workers in the affected area that the machine
is going to be restarted.
► Remove all locks/tags.
Every authorized employee must remove his own lock and shut it away.
► Switch on the machine. Make sure that authorized staff check the equipment in operation to
ensure that all repairs were performed correctly.
Testing
Service personnel may test circuits by energizing them briefly without suspending the Lock Out /
Tag Out Procedure. This may only be done when no other work is being performed by any other
person on the equipment being tested.
It is extremely important that all remote START switches are tagged with the "Do Not Operate" tag
to prevent inadvertent operation of the equipment during these periods.
Responsibilities
●
It shall be the responsibility of the maintenance and service personnel to make sure this pro-
cedure is adhered to.
●
It shall be the responsibility of the maintenance and service personnel's immediate supervisor
to instruct their personnel on this procedure.
●
It shall be the responsibility of the Safety Officer to administer the Lock Out / Tag Out Proced-
ure.
