2 Maintenance Tasks for Vacuum Pump
2.4 Performing Maintenance Tasks
Maintenance Manual / Instandhaltungsanleitung Vacuum Pump / Vakuumpumpe Becker VX25 06/2017 47

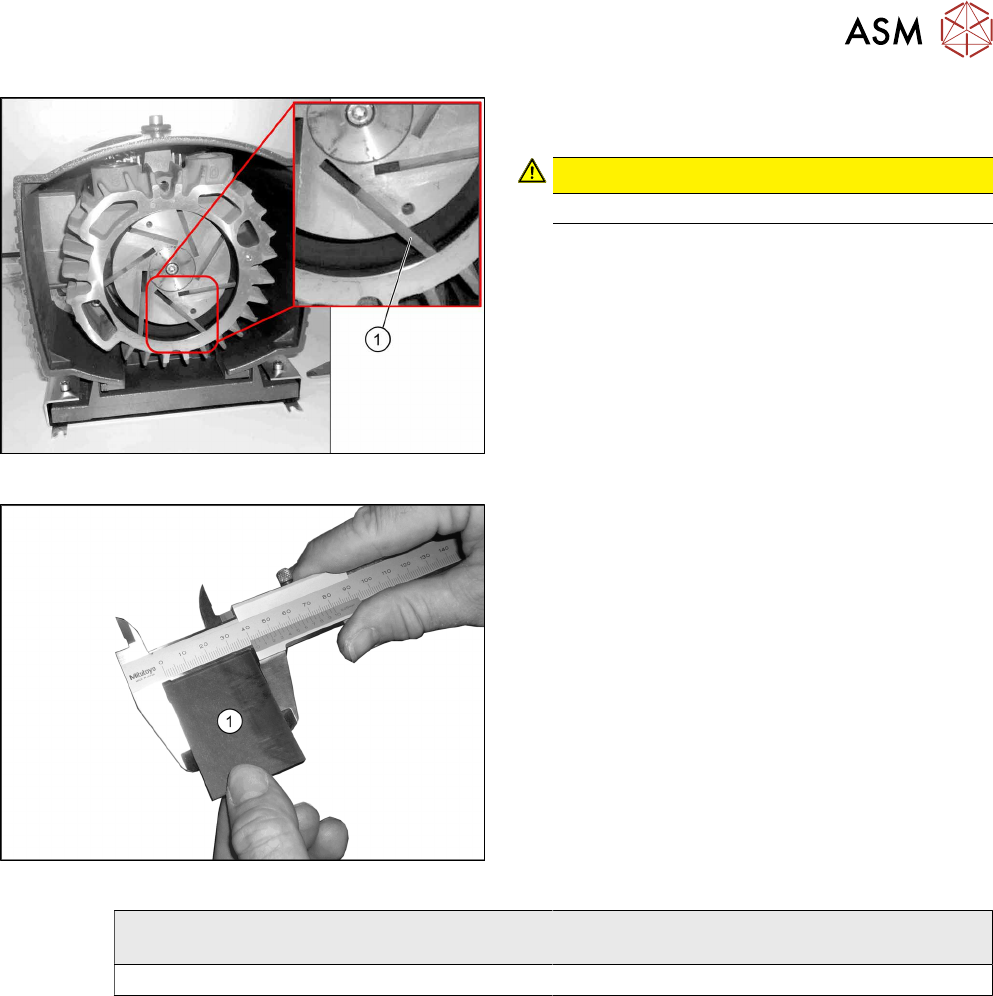

Fig.15: Sliders
► Carefully lever the slides (1) out of the pump. (7
pieces)
CAUTION!
The slides are sensitive.
.
► Check the condition of the slides and replace the
slides, if required.
Fig.16: Measuring the width of the slides
► Measure the width of the slides. Replace a slide if
it doesn't reach the required minimum width (see
the following table).
Pump type
(see type label at the front cover)
Minimum allowed width of the slide
DX / VX / T 4.25 Min. 28 mm
2 Maintenance Tasks for Vacuum Pump
2.5 Final work
48 Maintenance Manual / Instandhaltungsanleitung Vacuum Pump / Vakuumpumpe Becker VX25 06/2017
2.5 Final work
► Installation is performed by following the above instructions in the reverse order. Also observe
the following instructions:

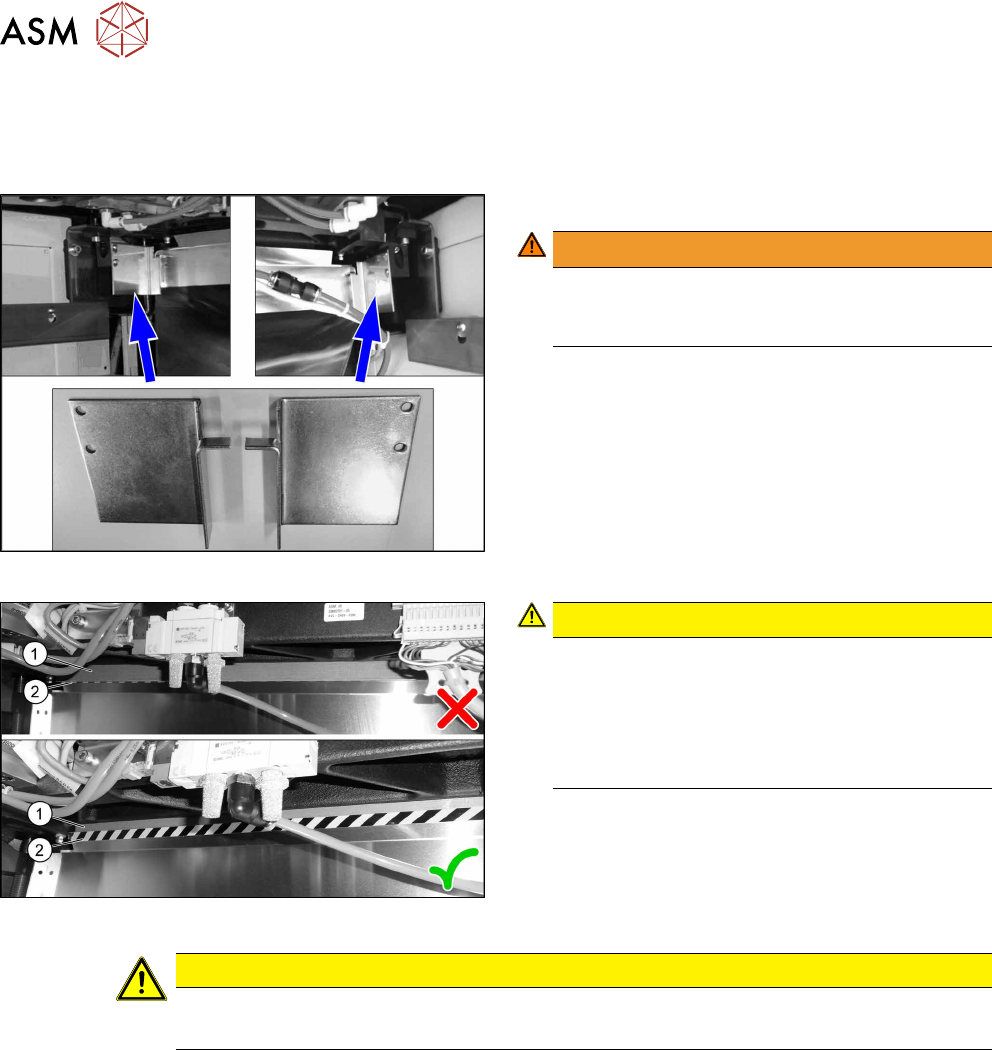

Fig.17: Protections on the manual tables
Manual tables only:
WARNING!
There is a risk of injury on manual tables without
the two protections.
.
► Fit the two protections.
Fig.18: Plastic strips on SIPLACE SX1/SX2
CAUTION!
Make sure that the plastic strips (1) (if present)
are located behind the plate (2) when you hook
up the used tape chute.
The black-yellow hatched label must be com-
pletely visible.
.
CAUTION
Waste slide
► Install the waste slide.
