INFINITY
EX
RAIL SYSTEM MODULE
MODULE OVERVIEW
Chapter Issue 2 Jan 04 Technical Reference Manual 15.1
CHAPTER 15 RAIL SYSTEM MODULE
MODULE OVERVIEW
Purpose The rail system is a programmable width conveyor system which sets the rail
width and transports the board through the machine using belts.
The machine is available with front rail justification only.
Elements The main components of the rail system are as follows:
• Board Transport Belts (2 positions)
• Board Transport Belt Drive Motors (2 positions)
• Moving Rail
• Fixed Rail
• Board at Left and Right Diffuse Optos
• Rail Lift Sensors (2 positions)
• Moving Rail Drive Motor
• Rail Home Through Beam Opto
• Board Clamps
• Board Snuggers (optional)
Operation The rail system transports the board using belts from the upline machine, into
this machine, where the board is positioned, clamped and printed. After printing
the board is transferred using the same belts to the downline machine.
The rail system sets the rail width from the current board product file in the
MMI.
NOTE
Refer to the Camera System Module Chapter of this manual for information on
the board stop mechanism.
Refer to the Rising Table Module Chapter of this manual for information on the
remote board stop mechanism.
INFINITY
EX
RAIL SYSTEM MODULE
MODULE OVERVIEW
15.2 Technical Reference Manual Chapter Issue 2 Jan 04

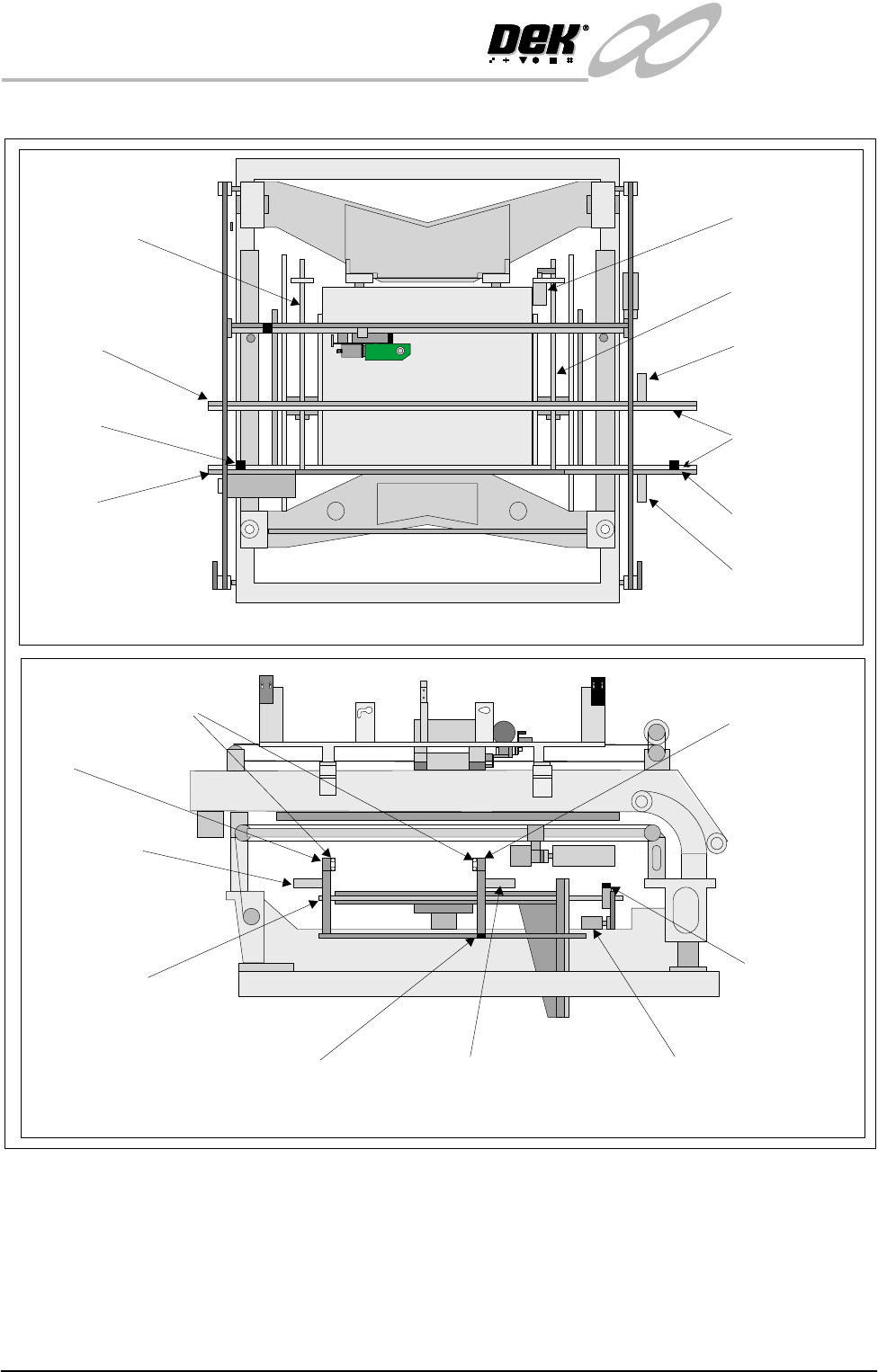

Figure 15-1 Rail System Overview
FixedRail
Motorized Rail
BoardTransportBelts
Motorized Rail
DriveShaft
FrontTransport
Belt Motor
Rear Transport Belt Motor
Rail Lifted Left Sensor
(Right Hand Side Similar)
Moving Rail DriveMotor
Rail Home
Sensor
BoardTransport
Belt Drive Motor
8M04
BoardTransport
Belt Drive Motor
8M03
BoardTransport
Belts
Boardat Right
Sensor
Boardat Left
Sensor
Moving Rail
FixedRail
Moving Rail
DriveMotor
8M02
Moving Rail DriveShaft
Moving Rail
DriveShaft
Plan View on Machine - Printhead Removed
View on Right Hand Side of Machine
PULNIX
TM-6EX
INFINITY
EX
RAIL SYSTEM MODULE
MODULE SCHEMATIC
Chapter Issue 2 Jan 04 Technical Reference Manual 15.3

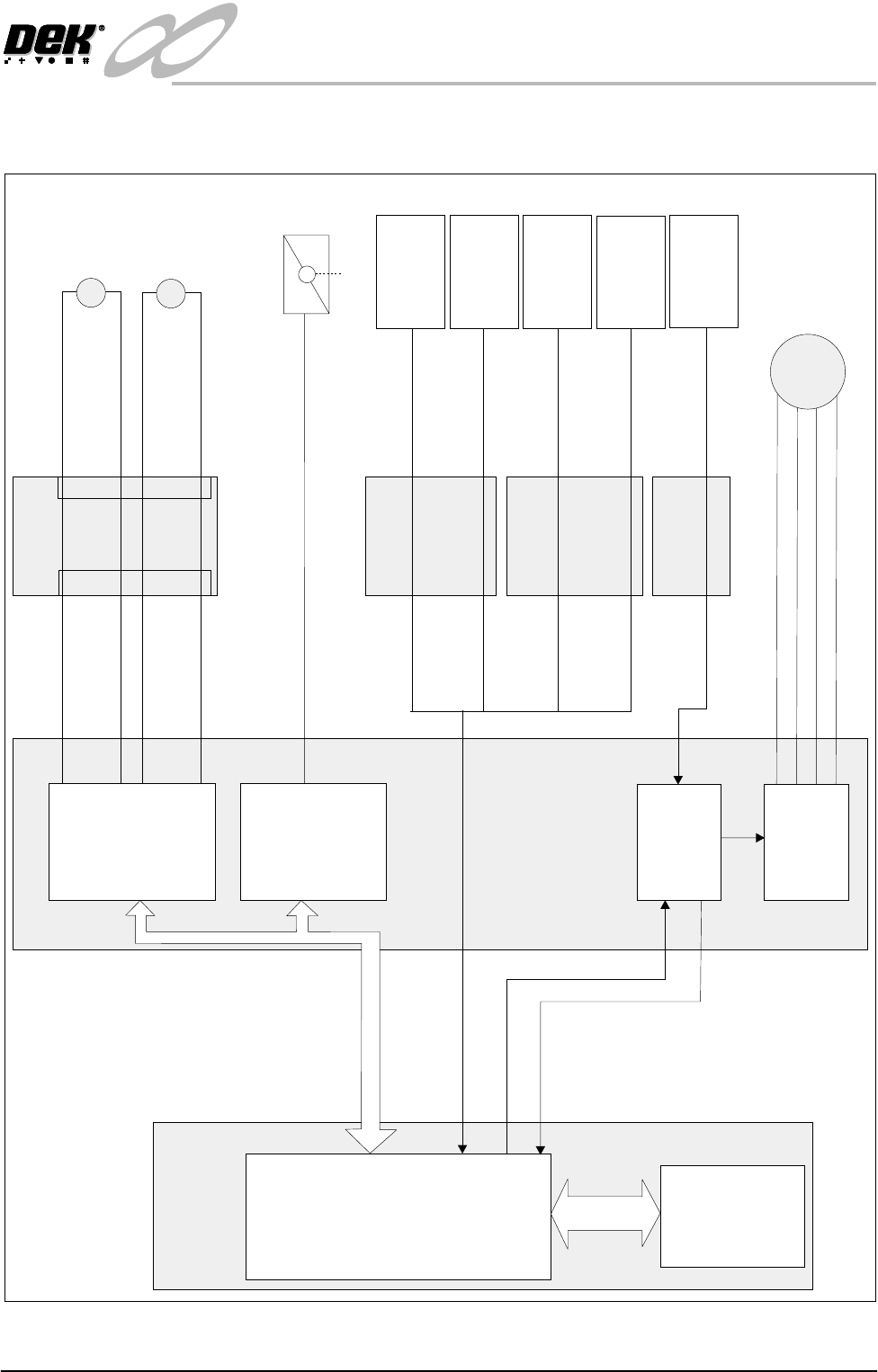

MODULE SCHEMATIC
Breakout D
DPL1 DSK5
Machine PC
NextMove
Processor
ISA
BUS
CAN BUS
MUX Axis Home
Machine Controller
Front Belt
Drive
(8M03)
24V dc Motors
Rear Belt
Drive
(8M04)
8M2
Moving Rail
Stepper
Home
Motor 2B-
Motor 2A-
Motor 2B+
Motor 2A+
Stepper Direction
Breakout C
M
M
Board Clamp/
Snugger Solenoid
(16SOL10)
Source 3
Totem 0 (Fwd)
Totem 1 (Rev)
Totem 2 (Fwd)
Totem 3 (Rev)
CSK7
CSK2
Manual Operation
Board at Right
Sensor
(8SE7)
Board at Left
Sensor
(8SE8)
Rail Lift
Right
(8SE4)
Rail Lift
Left
(8SE5)
DIG IN 16
DIG IN 17
Breakout B
BPL1 BSK3
Breakout A
APL1 ASK4
DIG IN 3
DIG IN 4
Stepper
Multiplexer
MultiMove
(X12)
MultiMove
(X13)
Moving Rail
Home
(8SE6)
Dual Stepper
X4
