01-Jun-26 page 22 of 29 QS18 Series Sensor Product Manual © Banner Engineering Corp. All rights reserved. www .bannerengineering.com Chapter Contents Cordsets ........................................................…
01-Jun-26 page21of29
QS18 Series Sensor Product Manual
© Banner Engineering Corp. All rights reserved.
www.bannerengineering.com
Chapter Contents
Sensor Sensitivity Adjustment ............................................................................................................................................................................ 21
Sensor Sensitivity Adjustment
After the sensor and retroreflector have been properly installed, the sensor is ready to be adjusted to ensure detection of the
desired object. Sensor sensitivity is adjusted with the single turn adjuster.
Operating Instructions
Chapter 3
01-Jun-26 page22of29
QS18 Series Sensor Product Manual
© Banner Engineering Corp. All rights reserved.
www.bannerengineering.com
Chapter Contents
Cordsets ............................................................................................................................................................................................................. 22
Sensor Status Indicators .................................................................................................................................................................................... 23
QS18 Brackets ................................................................................................................................................................................................... 23
Retroreflective Targets ....................................................................................................................................................................................... 23
Plastic and Glass Fiber Optics ........................................................................................................................................................................... 23

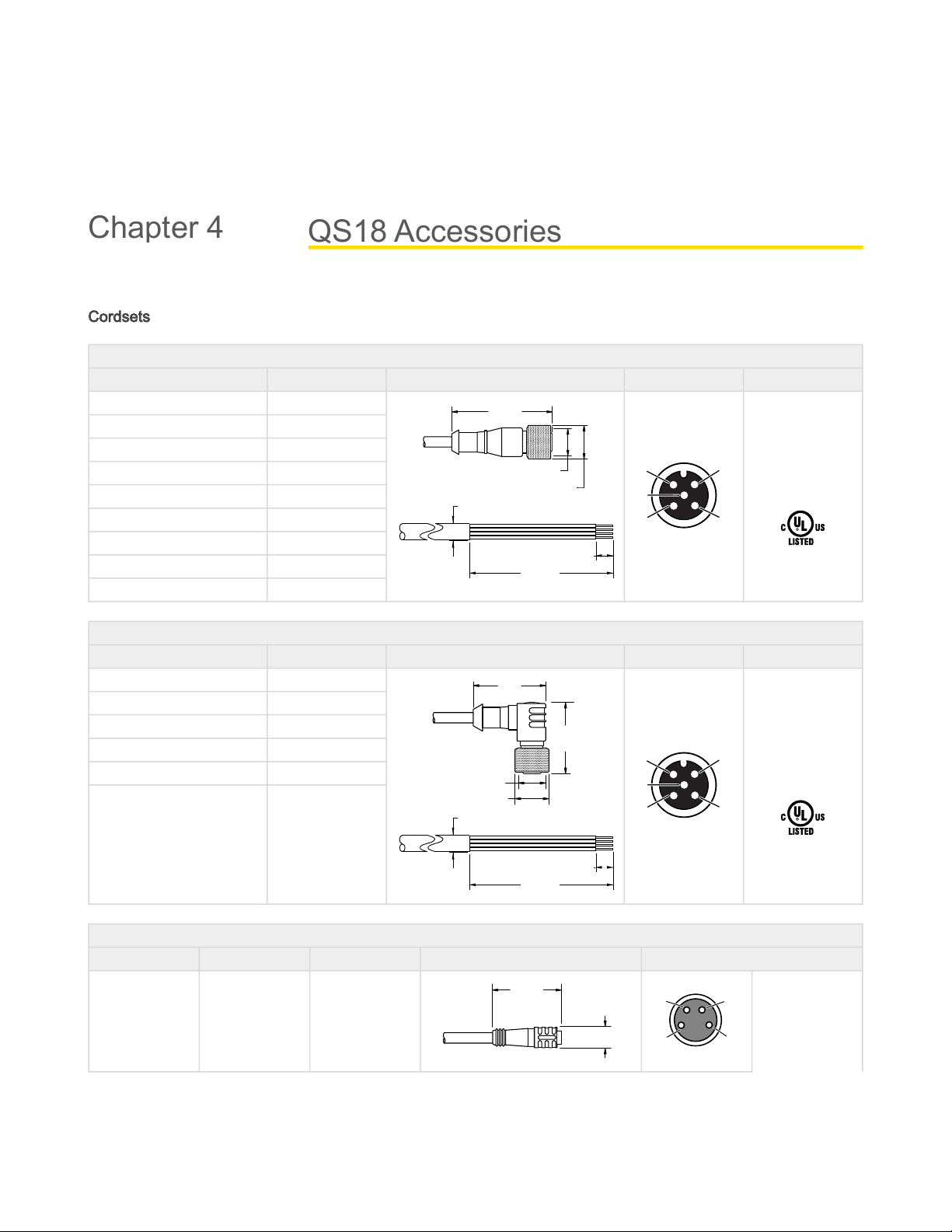

Cordsets
4-pin Single-Ended M12 Female Cordsets (datasheet p/n 235937)
Model Length Dimensions (mm) Pinout (Female)
BC-M12F4-22-1 1 m (3.28 ft)
44 Typ.
ø 14.5
M12 x 1
7 mm
58 mm
Ø5.2 mm
1 2
34
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Unused
BC-M12F4-22-2 2 m (6.56 ft)
BC-M12F4-22-5 5 m (16.4 ft)
BC-M12F4-22-8 8 m (26.25 ft)
BC-M12F4-22-10 10 m (30.81 ft)
BC-M12F4-22-15 15 m (49.2 ft)
BC-M12F4-22-20 20 m (65.61 ft)
BC-M12F4-22-25 25 m (82.02 ft)
BC-M12F4-22-30 30 m (98.42 ft)
4-pin Single-Ended M12 Female Right-Angle Cordsets (datasheet p/n 235937)
Model Length Dimensions (mm) Pinout (Female)
BC-M12F4A-22-1 1 m (3.28 ft)
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
7 mm
58 mm
Ø5.2 mm
1 2
34
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Unused
BC-M12F4A-22-2 2 m (6.56 ft)
BC-M12F4A-22-5 5 m (16.4 ft)
BC-M12F4A-22-8 8 m (26.25 ft)
BC-M12F4A-22-10 10 m (30.81 ft)
BC-M12F4A-22-15 15 m (49.2 ft)
4-Pin Single-Ended Snap-on M8 Female Cordsets
Model Length Style Dimensions Pinout (Female)
PKG4-2 2.03 m (6.66 ft) Straight
ø 9.0
32 Typ.
4
3
1
2
1 = Brown
2 = White
3 = Blue
4 = Black
Continued on page 23
QS18 Accessories
Chapter 4
QS18 Accessories QS18 Series Sensor Product Manual
01-Jun-26 page23of29© Banner Engineering Corp. All rights reserved.
www.bannerengineering.com
•
•
•
•
•
•
•
Continued from page 22
4-Pin Single-Ended Snap-on M8 Female Cordsets
Model Length Style Dimensions Pinout (Female)
PKW4Z-2 2 m (6.56 ft) Right-Angle
ø 10.9
29 Typ.
15 Typ.
4
3
1
2

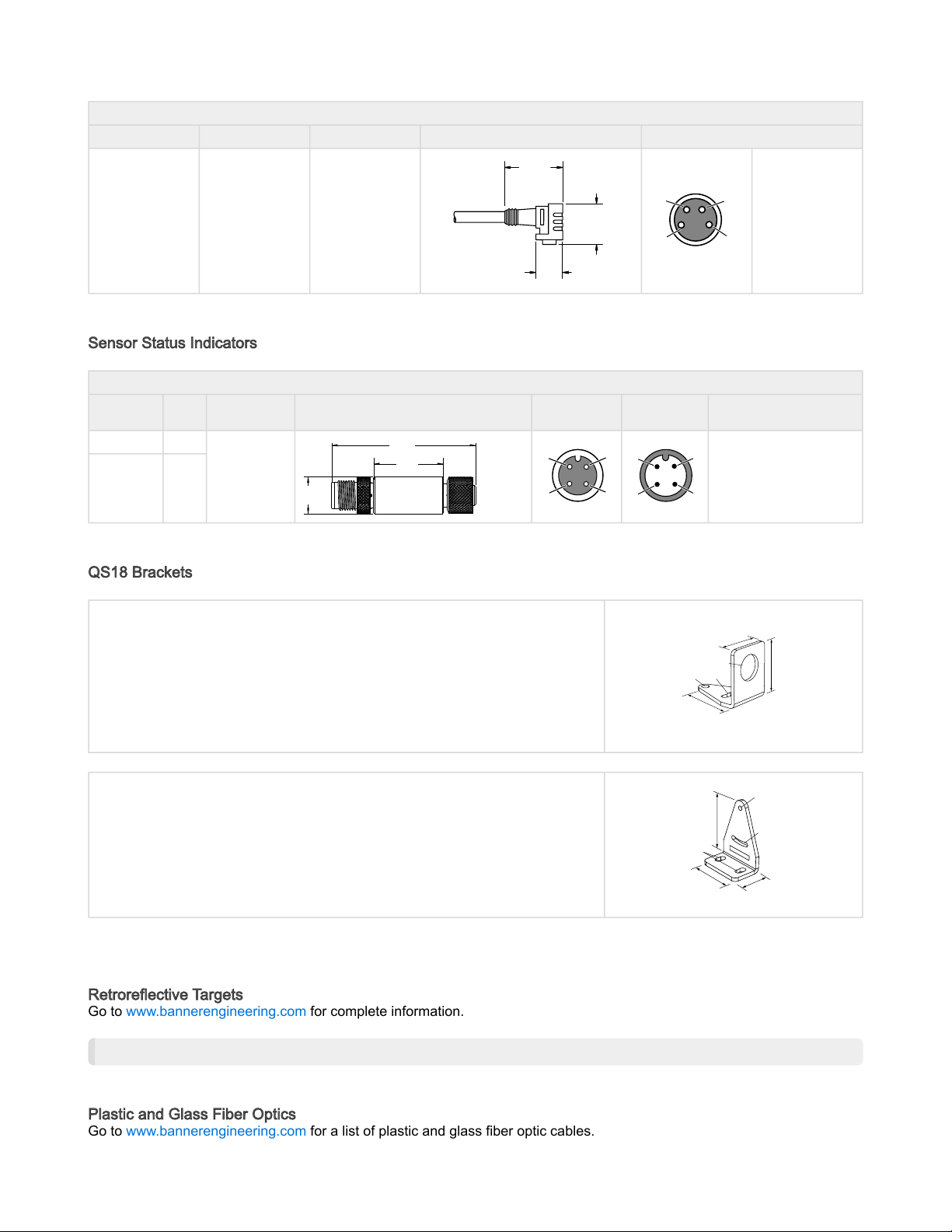

Sensor Status Indicators
S15L Series In-Line Sensor Status Indicator
Model
Input
Type
LED Color Dimensions Female Male Wiring
S15LGYPQ PNP
Power ON =
Green
Input Active =
Yellow
57.8
[2.27]
27.9
[1.1]
15.0
[0.59]
1
2
3
4
1
2
3
4
1=Brown,10to30VDC
2=White
3=Blue,DCcommon
4=Black,SensorInput
S15LGYNQ NPN
QS18 Brackets
SMB18A
Right-angle mounting bracket with a curved slot for versatile orientation
12-ga. stainless steel
18 mm sensor mounting hole
Clearance for M4 (#8) hardware
CAD Files: DXF, PDF, IGS, STP
Hole center spacing: A to B = 24.2
Hole size: A = ø 4.6, B = 17.0 × 4.6, C = ø 18.5
30
41
46
A
B
C
SMB312S
Stainless steel 2-axis, side-mount bracket
CAD Files: DXF, PDF, IGS, STP
A = 4.3 × 7.5, B = diam. 3, C = 3 × 15.3
46
B
C
A
32
20
All measurements are in millimeters.
Retroreflective Targets
Go to www.bannerengineering.com for complete information.
NOTE: Polarized sensors require corner cube-type retroreflective targets only.
Plastic and Glass Fiber Optics
Go to www.bannerengineering.com for a list of plastic and glass fiber optic cables.
