10

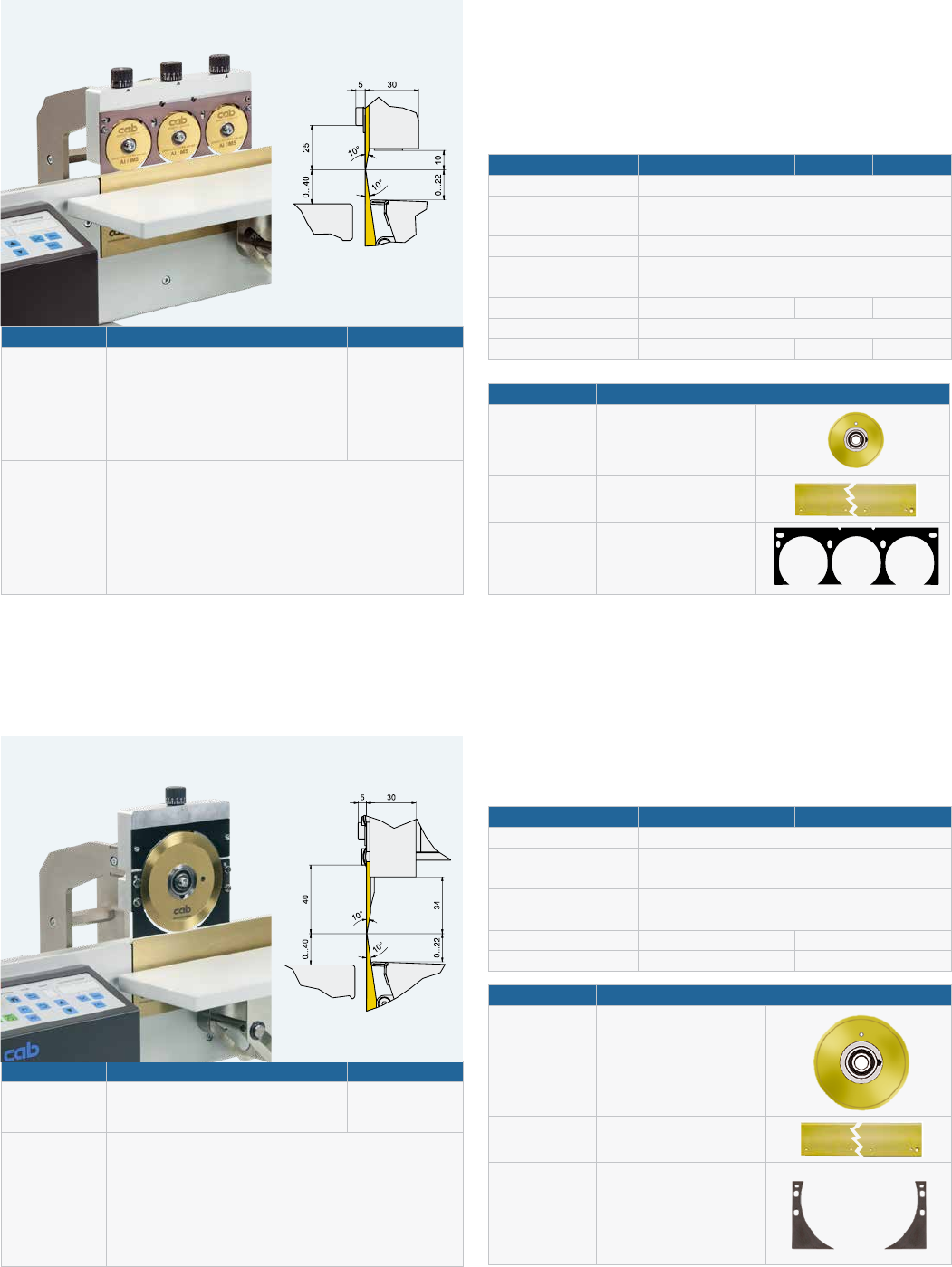

MAESTRO 6/X03
Separation of FR4, CEM3 and aluminum PCBs
up to lengths of 1,500 mm
Simple and quick change of FR4/CEM3 blades to aluminum blades
or the other way round
Height of circular blades to the linear blade to be set individually
Technical data 6/603 6/903 6/1203 6/1503
Circular blade diameter 60 mm
Separation speed up to 500 mm/s
up to 250 mm/s with aluminum
Materials FR4, CEM3, aluminum
Component height Component side up to 10 mm
Solder side up to 22 mm
Width 1,150 mm 1,450 mm 1,750 mm 2,050 mm
Height x Depth 350 x 450 mm
Weight 50 kg 55 kg 60 kg 65 kg
PCB separator MAESTRO 6
Part no. Product Sep. length
8936510
8936500
8936490
8936570
8936xxx.520
PCB separator MAESTRO 6/603
PCB separator MAESTRO 6/903
PCB separator MAESTRO 6/1203
PCB separator MAESTRO 6/1503
PCB separator MAESTRO 6/xx03 alu
up to 600 mm
up to 900 mm
up to 1.200 mm
up to 1.500 mm
Scope
of delivery
PCB separator
Power cable Type E+F, length 1.8 m
Foot switch
Allen key 2 mm
Dial gauge
Operator's manual DE/EN
Part no. Wear parts
8936446.001
8936507.001
Circular blade 60 FR4
Circular blade 60 alu
8936593.001
8936592.001
Linear blade 450
Linear blade 600
8936437.001 Blade protection X03
MAESTRO 6/X01
Separation of FR4 and CEM3 PCBs up to lengths of 900 mm;
further lengths on request
Technical data 6/601 6/901
Circular blade diameter 125 mm
Separation speed up to 500 mm/s
Materials FR4, CEM3
Component height Component side up to 34 mm
Solder side
up to 22 mm
Width x Height x Depth 1,150 x 410 x 450 mm 1,450 x 410 x 450 mm
Weight 50 kg 55 kg
Part no. Product Sep. length
8936560
8936580
PCB separator MAESTRO 6/601
PCB separator MAESTRO 6/901
up to 600 mm
up to 900 mm
Scope
of delivery
PCB separator
Power cable Type E+F, length 1.8 m
Foot switch
Allen key 2 mm
Dial gauge
Operator's manual DE/EN
Part no. Wear parts
8930509.001 Circular blade 125 FR4
8936593.001
8936592.001
Linear blade 450
Linear blade 600
8936614.001
8936615.001
Blade protection 1 X01
Blade protection 2 X01
0...40 70
630...22
10°
11

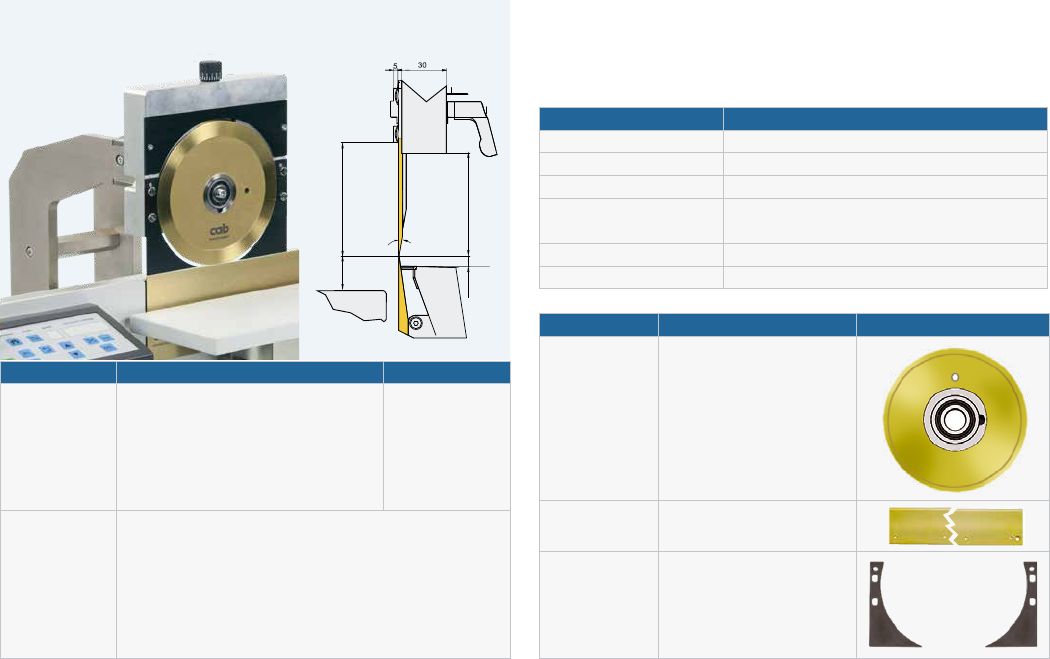

PCB separator MAESTRO 6
MAESTRO 6/601.70
Separation of FR4 and CEM3 PCBs up to lengths of 600 mm
and component heights of 70 mm; further lengths on request
Technical data 6/601.70
Circular blade diameter 185 mm
Separation speed up to 500 mm/s
Materials FR4, CEM3
Component height Component side up to 63 mm
Solder side up to 22 mm
Width x Height x Depth 1,150 x 410 x 450 mm
Weight 50 kg
Part no. Product Sep. length
8936590 PCB separator MAESTRO 6/601.70 up to 600 mm
Scope
of delivery
PCB separator
Power cable Type E+F, length 1.8 m
Foot switch
Allen key 2 mm
Dial gauge
Operator's manual DE/EN
Part no. Wear parts
8933933.001 Circular blade 185
8936593.001
8936592.001
Linear blade 450
Linear blade 600
8936583.001
8936584.001
Blade protection 1 X01/70
Blade protection 2 X01/70
17 mm
12

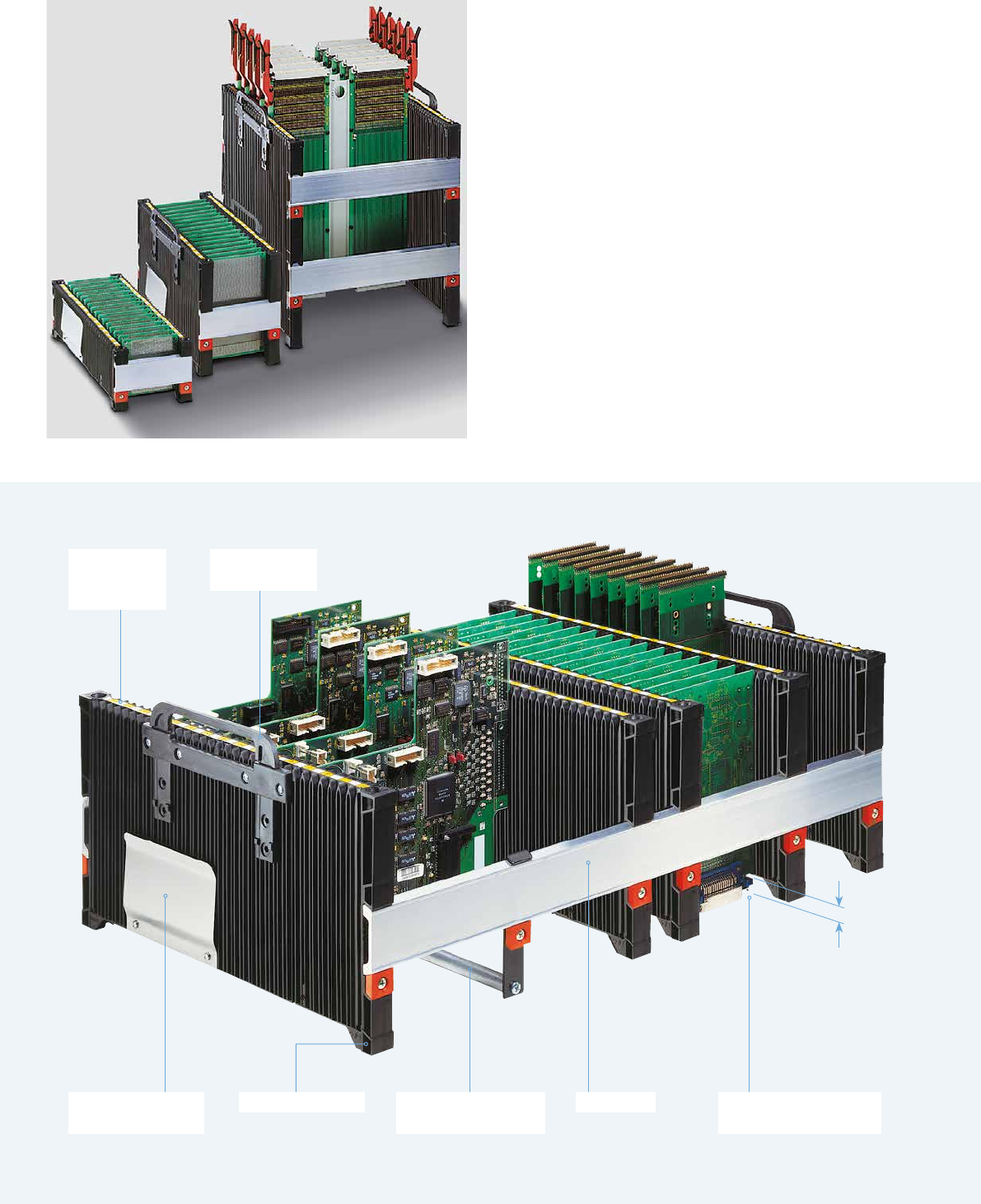

To be equipped both in vertical and horizontal orientation
The system's variable width enables individual assembly
according to any PCB size.
Magazines 100, 180 and 300 mm in height
are oered for the various PCBs.
32 slots in gaps of of 10 mm oer maximum packing density.
Safe guidance
Funnel-shaped slot entries ensure safe PCB insertion.
Yellow position stickers indicate the exact positions
and prevent from falsely inserting PCBs diagonally by hand.
PCB magazine series 100, 180, 300
Consecutive
numbers
and markings
Carry handle
to be retracted
Bracket for accom-
panying documents
Support rail
to secure heavy PCBs
Prole rail
Free space to protect
protruding components
Doubled side wall
providing 32 PCB slots
