8 PCB separator MAESTR O 5L It can be use d economi cally whe n large quantit ies of milled P CBs have to b e separ ated . Up to 15 PCBs arr ange d nex t to one anothe r can be separ ated simulta neo usly. 31 0 mm i s th…
7
30°
0,8 -1,5
max. 0,3
min. 0,25
30°
0,8 - 3,2
max. 0,8
min. 0,25
FR4
27 21,5
3434
400...40
10°
10°
Protruding components
need a recessed linear blade.
Contact us, if required
The milled groove may be interrupted by cutouts.
Accessory
Conveyor belt
to deposit separated PCBs individually and further
transport them aside. The speed adapts to the size of the PCB.
Incoming PCBs are detected by a light barrier and the belt stops.
Technical data 450 600
Conveyor belt material antistatic
Direction of movement to the right
Belt speed 5, 6, 7, 8, 9 m/min
Light barrier to be activated to stop the belt moving
Vertical distance
to the linear blade
5 - 17 mm
PCB depth up to 200 mm
Belt width 170 mm
Length 1,200 mm 1,350 mm
Power supply 100 - 240 VAC, 50/60 Hz
Temperature / Operation
+ 10 - 35°C / 10 - 85 %
humidity Stock
0 - 60°C / 20 - 80 %
not condensing
T r a n s p o r t
– 25 - 60°C / 20 - 80 %
Weight 14 kg
Approvals CE, FCC Class A
Part no. Product
8931240 Conveyor belt 450
Lieferumfang Power cable Type E+F, length 1.8 m
Assembly kit
Operator's manual DE/EN
PCB separator MAESTRO 4S
Separating aluminum
To separate aluminum with MAESTRO 4S,
special adjustment is needed for the standard circular blade.
For information see the operator's manual
Component height
Outside dimensions increased
aer separation: typically 0.2 mm
Aluminum PCBs are manufactured in various alloys.
Sample PCBs added to a request help with adjusting
the circular blade and optimizing the cutting geometry.
alu
8
PCB separator MAESTRO 5L
It can be used economically when large quantities
of milled PCBs have to be separated.
Up to 15 PCBs arranged next to one another can be separated
simultaneously. 310 mm is the maximum passage width.
The distances and the number of circular blades are adapted
to the PCB. Solid and precisely manufactured blade shas ensure
smooth PCB separation. The hardened and ground and titanium-
coated circular blades achieve a high running performance.
PCBs are inserted to the guide manually or are fed automatically
by a loader resp. an external conveyor belt. When separated,
the PCBs are deposited on the built-in conveyor belt.
A SMEMA interface provided, installation in an assembly line
is possible (for information see the operator's manual).
With the help of a base frame vertically adjustable, MAESTRO 5L
can be adapted to any application. A possibility to connect
an extraction and lter device is in preparation.
Technical data
Separation method Component side Circular blade
Solder side
Circular blade
Operation motor-driven
Separation speed 100 - 220 mm/s
to be set in ten steps
PCB length
light barrier activated
light barrier deactivated
100 - 570 mm
up to 2,000 mm
PCB width up to 310 mm
Residual o-cut width at least 3 mm
Component height Component side up to 30 mm
Solder side
up to 10 mm
Number of circular blades up to 16 per blade sha
Programming
Display - Separation speed
- Separation length
resp. number of PCBs
Control buttons - Start, Stop, Reverse
Programming button - Separation speed setting
Monitoring
- Detection of separation length
- Accumulation
before / behind the blades
- Conveyor belt nally stopping
Interfaces - external start / stop
- SMEMA (round, 14 pins)
Power supply 230/115 VAC, 50/60 Hz
Temperature / Operation
+ 10 - 35°C / 10 - 85 %
humidity Stock
0 - 60°C / 20 - 80 %
not condensing Transport
– 25 - 60°C / 20 - 80 %
Width x Height x Depth 440 x 750 - 1,000 x 1,100 mm
Weight 63 kg
Approvals CE, FCC Class A
Part no. Product
8934520
893xxxx
893xxxx
PCB separator MAESTRO 5L
neither circular blade or protective cover
The blade sha has to be ordered separately.
It is assembled to the device and adjusted
ex factory by the manufacturer.
Blade sha assembled
Device-specic parts
Scope of delivery PCB separator, base frame
Power cable Type E+F, length 1.8 m
Service tool
Warning light
Auxiliary device for blade sha
Rest, entirely
End piece for extraction
Operator's manual DE/EN
Part no. Wear parts
8934803.001 Circular blade, width 8 mm
893xxxx.001 Circular blade, customer-specic
Outside dimensions increased
aer separation: typically 0.2 mm
The milled groove
may be interrupted by cutouts.
30°
0,8 - 3,2
max. 0,8
min. 0,25
30°
0,8 -1,5
max. 0,3
min. 0,25
30°
0,8 - 3,2
max. 0,8
min. 0,25
FR4
9

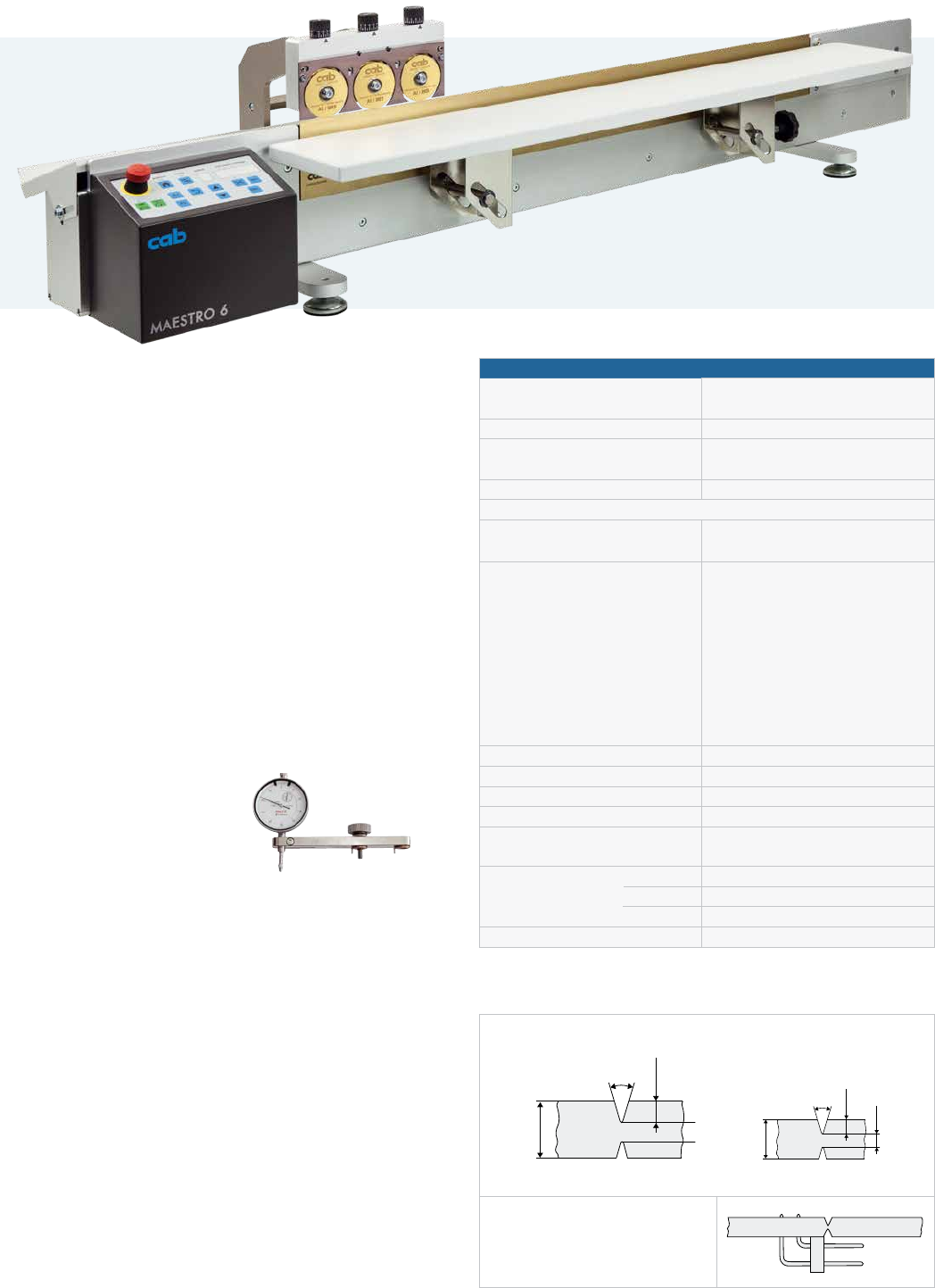

PCB separator MAESTRO 6
Separation of milled PCBs up to a length of 1,500 mm
with a minimum of stress on the components
The MAESTRO 6 is the consequent further development
of the proven cab PCB separators. Even very lengthy PCBs
can be separated fast, economical and without stress.
The carriage power unit is assembled behind the linear blade.
This crucially simplies the separation and removal of the PCBs.
Overall technical data
Separation method
Component side Circular blade
Solder side Linear blade
Operation path-optimized
Separation speed
up to 500 mm/s
up to 250 mm/s with aluminum
Support table depth 160 mm
Operation panel
Control buttons - Home / Position
- Carriage moving to and fro
Programming buttons - Carriage start / stop position
- Carriage moving to and fro
with or without interruption
- Separation speed
- "Number of cuts" or
"Separation length" selection
- Deletion of selection
- Conveyor belt activation
- Belt speed
Power switcher ON/OFF
Foot switch START separation
Safety switch E-stop
Power supply 100 - 240 VAC, 50/60 Hz
Emmission
sound pressure level
LpA < 70 dB (A)
Temperature / Operation
humidity Stock
not condensing
Transport
+ 10 - 35°C / 10 - 85 %
0 - 60°C / 20 - 80 %
– 25 - 60°C / 20 - 80 %
Approvals CE, FCC Class A
Outside dimensions increased aer separation: typically 0.2 mm
Protruding components
need a recessed linear blade.
Contact us, if required
The milled groove may be interrupted by cutouts.
Dial gauge
In order to separate without
stress and to achieve a long
service life, the circular and
linear blades have to be guided
along the entire separation.
The dial gauge setting and regu-
larly checking the parallelism
is assembled to the carriage.
alu
