16 PCB magazine series 600, 700, 800 * as measured on the side w all to frame Ty p e Sid e wall material Surface resistance 60X .1 70 X .1 80 X.1 Polys t yr ene according to DIN EN 613 4 0 - 5 - 1 < 10 9 60X . 2 70 X …
15
Safe stacking
All the magazines can be stacked safely
and in a space-saving manner with the help
of our knobs provided on the upper plate.
Perfecting operation
Its vertical symmetry allows the magazines
to be turned upside down if use is in
perfecting mode. To be operated only
without stacking knobs
Metal magazine
In the case of high mechanic force
and high thermal force up to 200°C,
metal side walls are provided.
PCB magazine series 600, 700, 800
5
Transport lock
A bar is mounted as a standard
on the front and back sides.
Slots locked Slots unlocked
1
Knobs
for magazine stacking
3
Numbering
along the PCB slots simplies
manual insertion.
4
Side walls
made of conductive plastic or metal
to be operated in ambient temperatures
of 50 to 200°C
2
Base and cover plates
made of cast aluminum or sheet steel
Automation requires precision when magazines are in use in assembly lines.
16
PCB magazine series 600, 700, 800
*
as measured on the side wall to frame
Type
Side wall
material
Surface resistance
60X.1 70X.1 80X.1 Polystyrene
according to
DIN EN 61340-5-1 < 10
9
60X.2 70X.2 80X.2 Polycarbonate
60X.3 70X.3 80X.3 Metal*

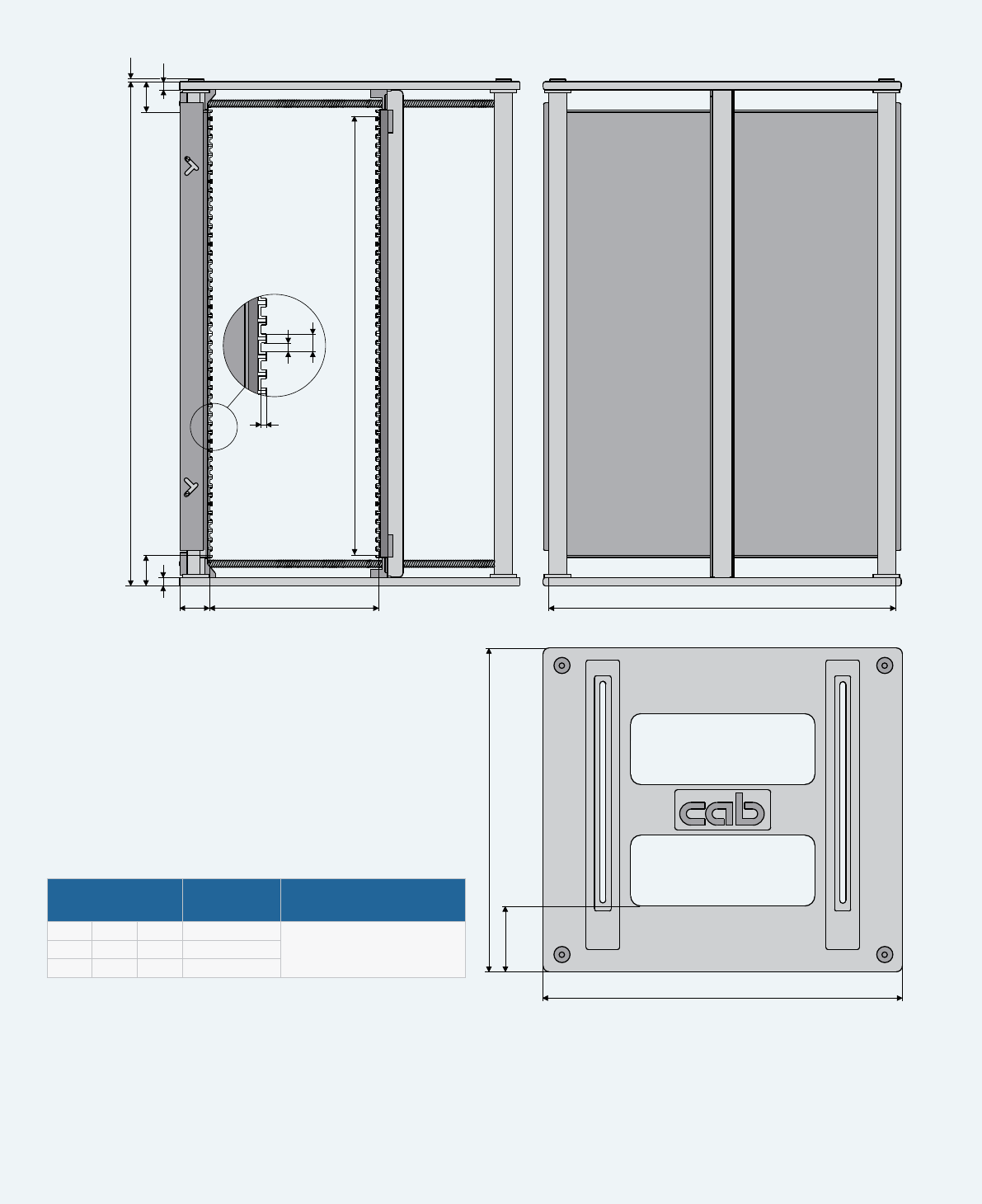

Dimensional drawing
65
W
L
D
34
34
49 x 10,0
H 3,4
10
5
3
C
9
9
34
17
PCB magazine series 600
further sizes on request
DL31001
assembled with
stacking knobs
DL 31002
assembled for
perfecting operation
The PCB magazines 60X.1 and 60X.2
are delivered partially assembled.
Assembled magazines to be ordered
with an additional part no.:

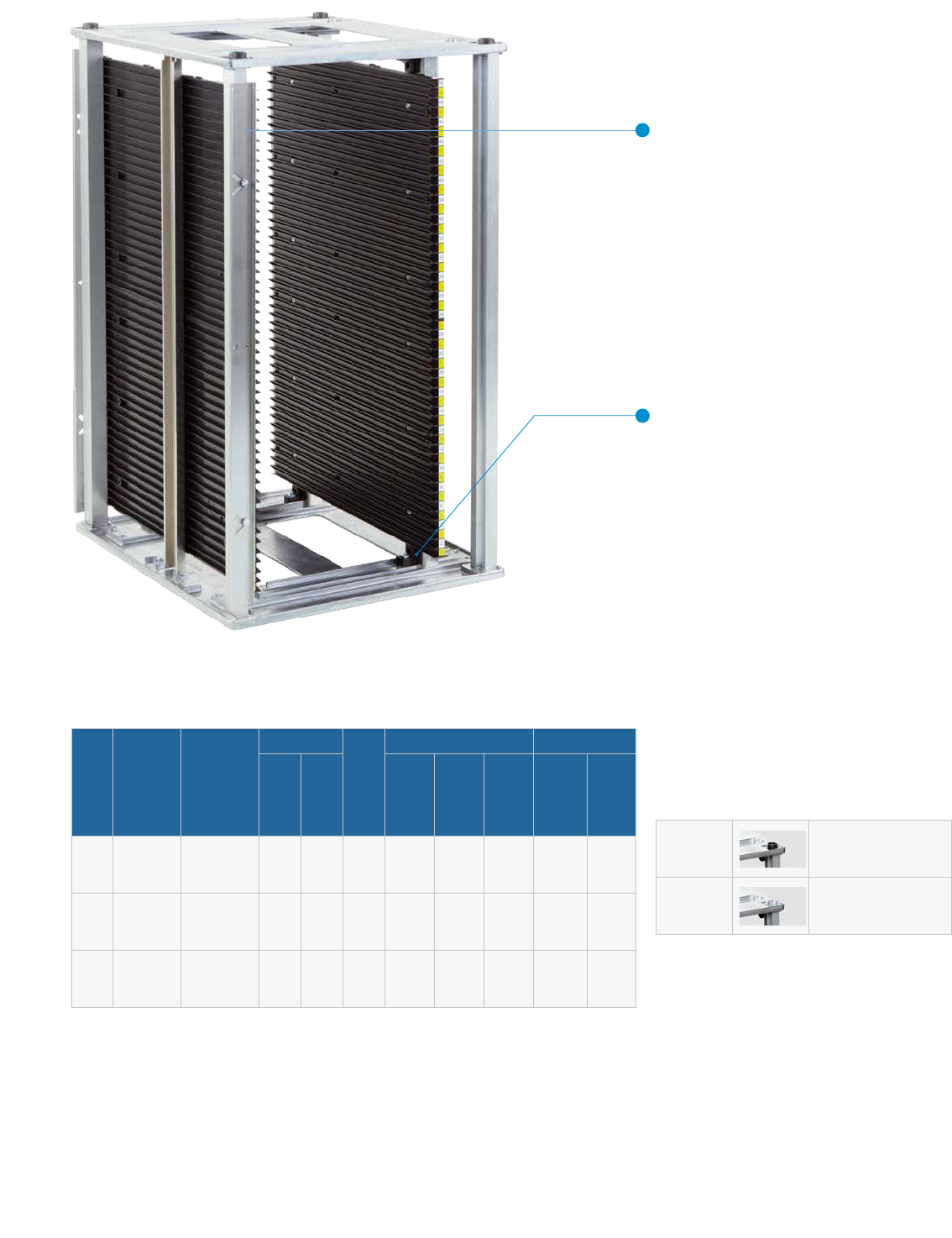

1
Transport lock
A bar is mounted as a standard on the front
and back sides. At liing, the bar is moved
to the outside and locks in upper position.
The PCBs can be inserted or removed.
When liing again, the slots are locked.
Screw-clamped width setting
2
Screw clamps
Series 600 magazines are cost-eective.
With the help of four screw clamps,
the side wall can be set to the PCB width.
Type Part no. Side wall
material
Temperatur e °C
Outside dimensions
PCB
Insertions
Surrounding
Weight kg
Width
W
Length
L
Height
H
Width
D
Length
C
mm mm mm mm
up to
mm
601.1
601.2
601.3
8917601
8916601
8915601
Polystyrene
Polycarbonate
Metal
60
130
200
50
80
200
5.6
5.9
6.9
320 355 563 40 - 250 342
602.1
602.2
602.3
8917602
8916602
8915602
Polystyrene
Polycarbonate
Metal
60
130
200
50
80
200
5.8
6.1
7.2
320 400 563 40 - 250 387
603.1
603.2
603.3
8917603
8916603
8915603
Polystyrene
Polycarbonate
Metal
60
130
200
50
80
200
6.2
6.5
7.6
380 400 563 40 - 310 387
The PCB magazines 60X.3
are delivered assembled with stacking knobs.
