100 m m 35 9 mm 83 m m 18 0 mm 163 mm 35 9 mm 30 3 mm 28 5 mm 357 m m 14 PCB magazine series 100, 180, 300 Par t n o. Product Weight 891 0 0 50 8910102 891 3 91 3 Side wall 10 0 Side wall 10 0 reinfor ced Side wall 10 0 …
x = 36 + D1 x = 52 + D1 + D2 x = 69 + D1 + D2 + D3 x ≥ 73 + D1 + D2 x ≥ 110 + D1 + D2 + D3
13
PCB magazine series 100, 180, 300
Technical data 100 180 300
Material Polypropylene
Color black
Surface resistance accord. to DIN EN 61340-5-1 < 10
9
Slot width 2.8 mm 4 mm 3.5 mm
Slot depth 2 mm 2.5 mm 2.5 mm
Number of slots 32
Distance between the PCBs 10 mm
Length of prole rails D = PCB width x = prole rail width

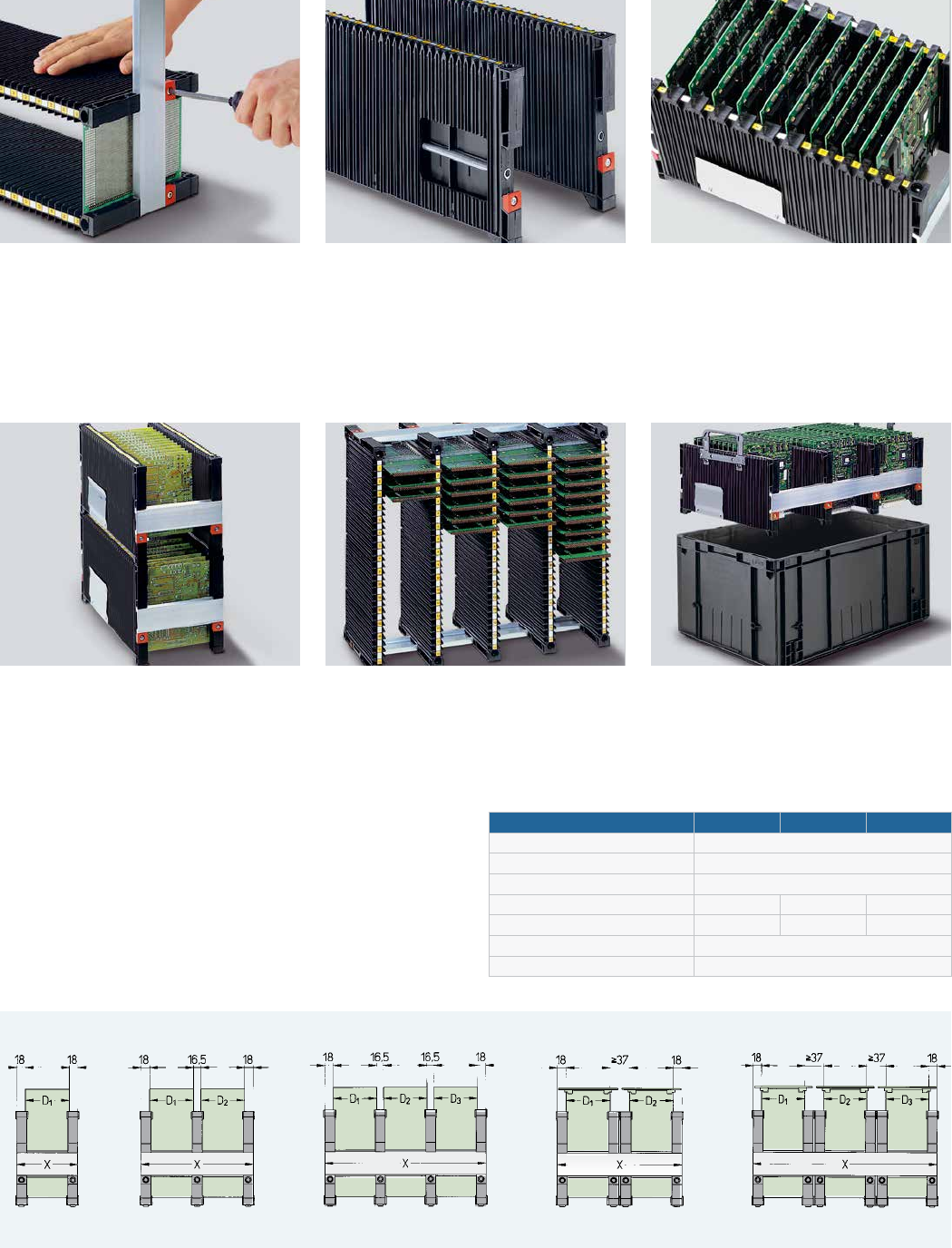

Quick and simple assembly
The side walls are adjustable with the help
of the prole rails. Two PCBs are inserted
in the outer adjusting grooves. The upper
side wall has to be pressed against the PCBs
and be xed with screws.
Solid and resistant to torsion
The double-wall construction makes the
side walls extremely solid. A metal tube is
provided to further stien a side wall in the
case of high mechanic and thermal forces.
Slot lock
To prevent from component damage
when inserting PCBs in a magazine,
slots that are not in use can be covered.
Stackable
Boreholes and pins on the outer margins
allow the magazines to be stacked.
On the bottom of the side walls, molded
recesses simplify the liing.
Upright position
Assembled PCBs need horizontal storage
before soldering. For this purpose,
the magazines are set upright.
Transport boxes
The magazines can be inserted into
standard 600 x 400 resp. 400 x 300 mm
boxes for transport. Retractable carry
handles simplify the insertion and removal.
100 mm
359 mm
83 mm
180 mm
163 mm
359 mm
303 mm
285 mm
357 mm
14
PCB magazine series 100, 180, 300

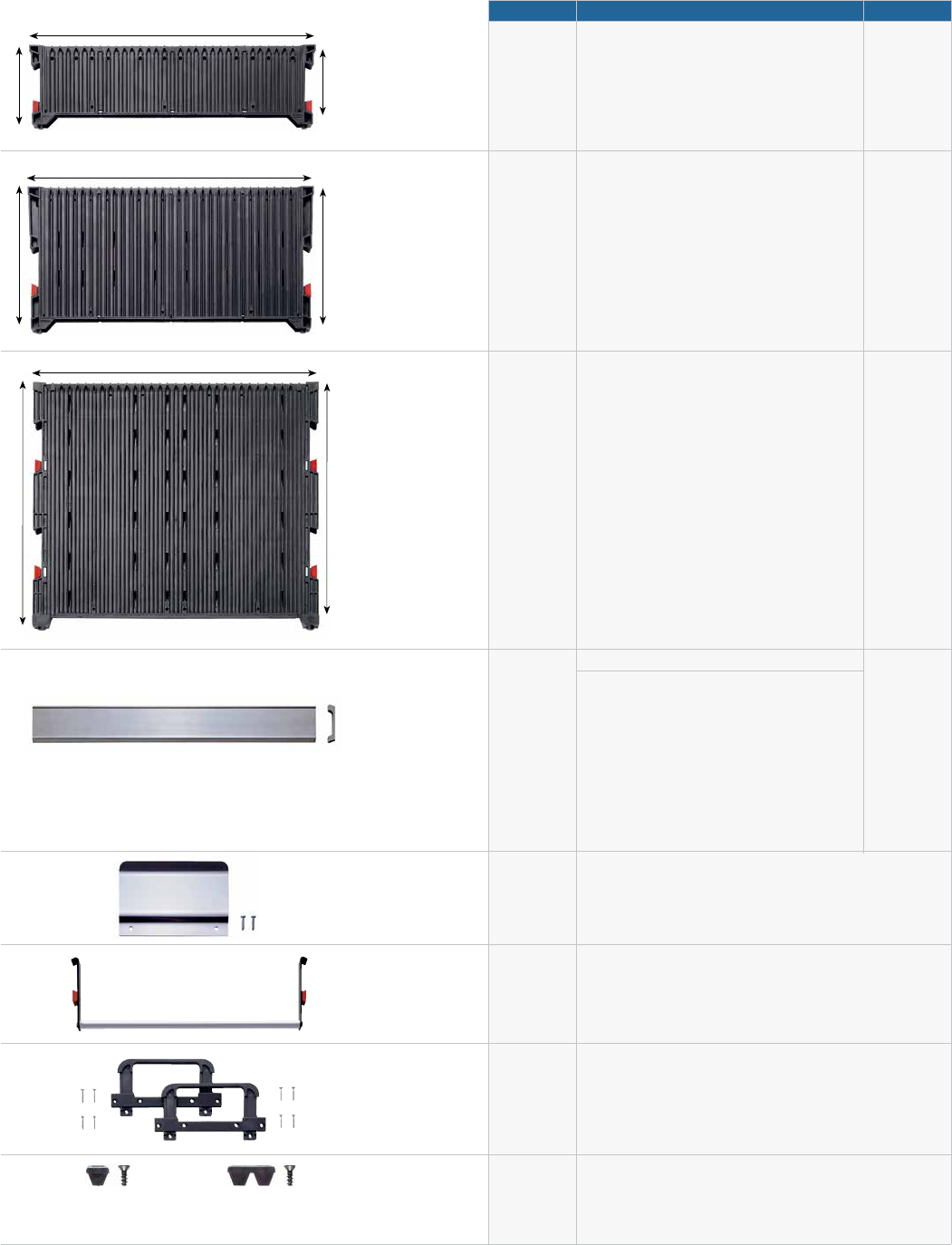

Part no. Product Weight
8910050
8910102
8913913
Side wall 100
Side wall 100
reinforced
Side wall 100
with boreholes for slot locks
0.28 kg
0.40 kg
0.28 kg
8910060
8910104
Side wall 180
Side wall 180
reinforced
with boreholes for slot locks
0.53 kg
0.65 kg
8912049
8913914
Side wall 300
Side wall 300
with boreholes for slot locks
0.7 kg
0.7 kg
Length in mm
8910136
8910252
8910547
8911000
8912000
8913000
891xxxx
Prole rail 0136
Prole rail 0252
Prole rail 0547
Prole rail 1000
Prole rail 2000
Prole rail 3000
Prole rail xxxx
0.06 kg
0.11 kg
0.24 kg
0.45 kg
0.90 kg
1.35 kg
8910009 Bracket for accompanying documents
8912004
8912005
8912006
Support rail 100
Support rail 180
Support rail 300
8912007
8910097
Carry handle 100
Carry handle 180/300
Pack unit: 1 set
8913916
8913917
Slot lock 1
Slot lock 2
Pack unit: 100 sets each
enlarged display
The prole rails are cut according to your instructions.
xxxx is the desired length in mm.
Slot lock 1 Slot lock 2
Delivery program
15
Safe stacking
All the magazines can be stacked safely
and in a space-saving manner with the help
of our knobs provided on the upper plate.
Perfecting operation
Its vertical symmetry allows the magazines
to be turned upside down if use is in
perfecting mode. To be operated only
without stacking knobs
Metal magazine
In the case of high mechanic force
and high thermal force up to 200°C,
metal side walls are provided.

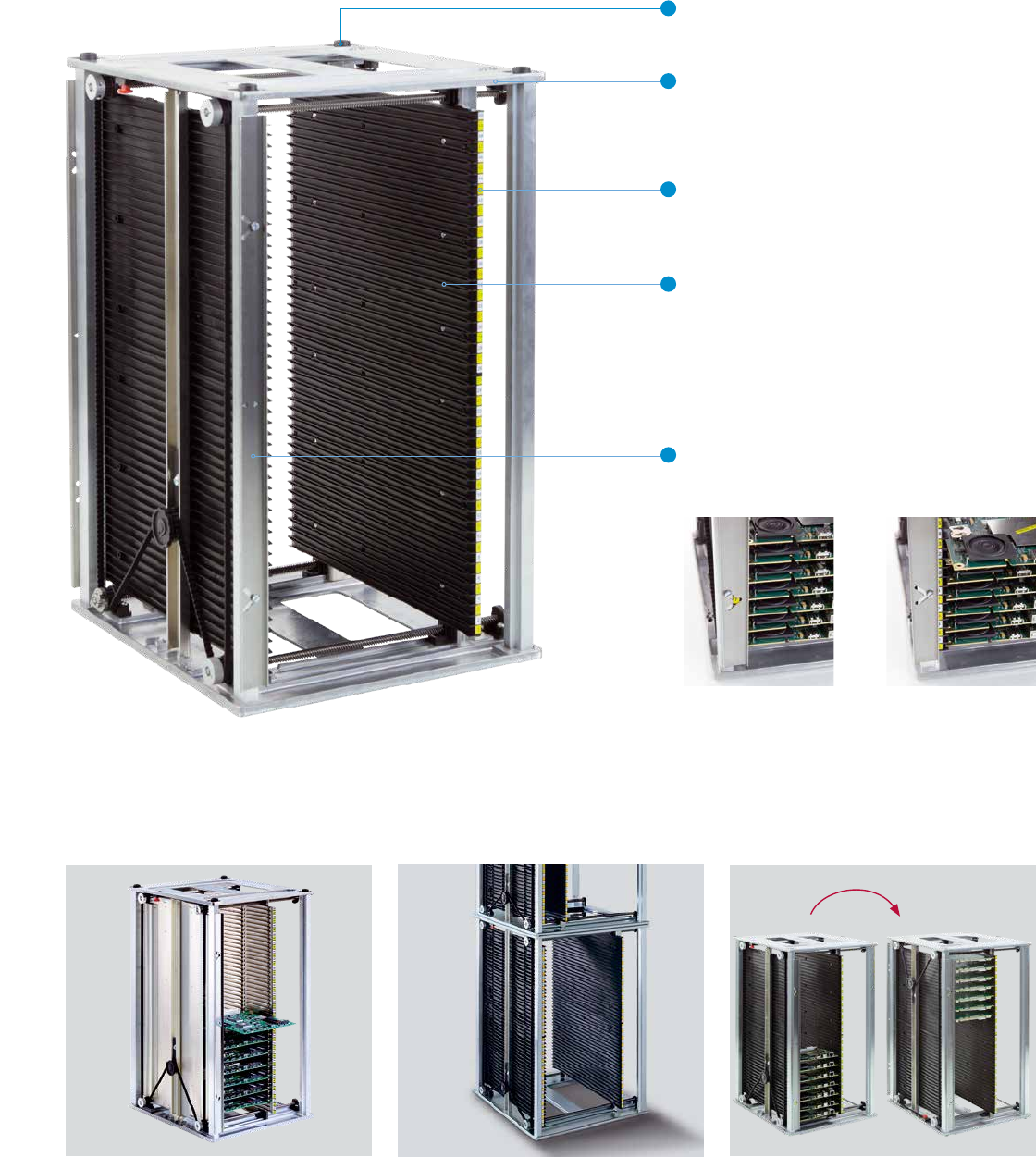

PCB magazine series 600, 700, 800
5
Transport lock
A bar is mounted as a standard
on the front and back sides.
Slots locked Slots unlocked
1
Knobs
for magazine stacking
3
Numbering
along the PCB slots simplies
manual insertion.
4
Side walls
made of conductive plastic or metal
to be operated in ambient temperatures
of 50 to 200°C
2
Base and cover plates
made of cast aluminum or sheet steel
Automation requires precision when magazines are in use in assembly lines.
