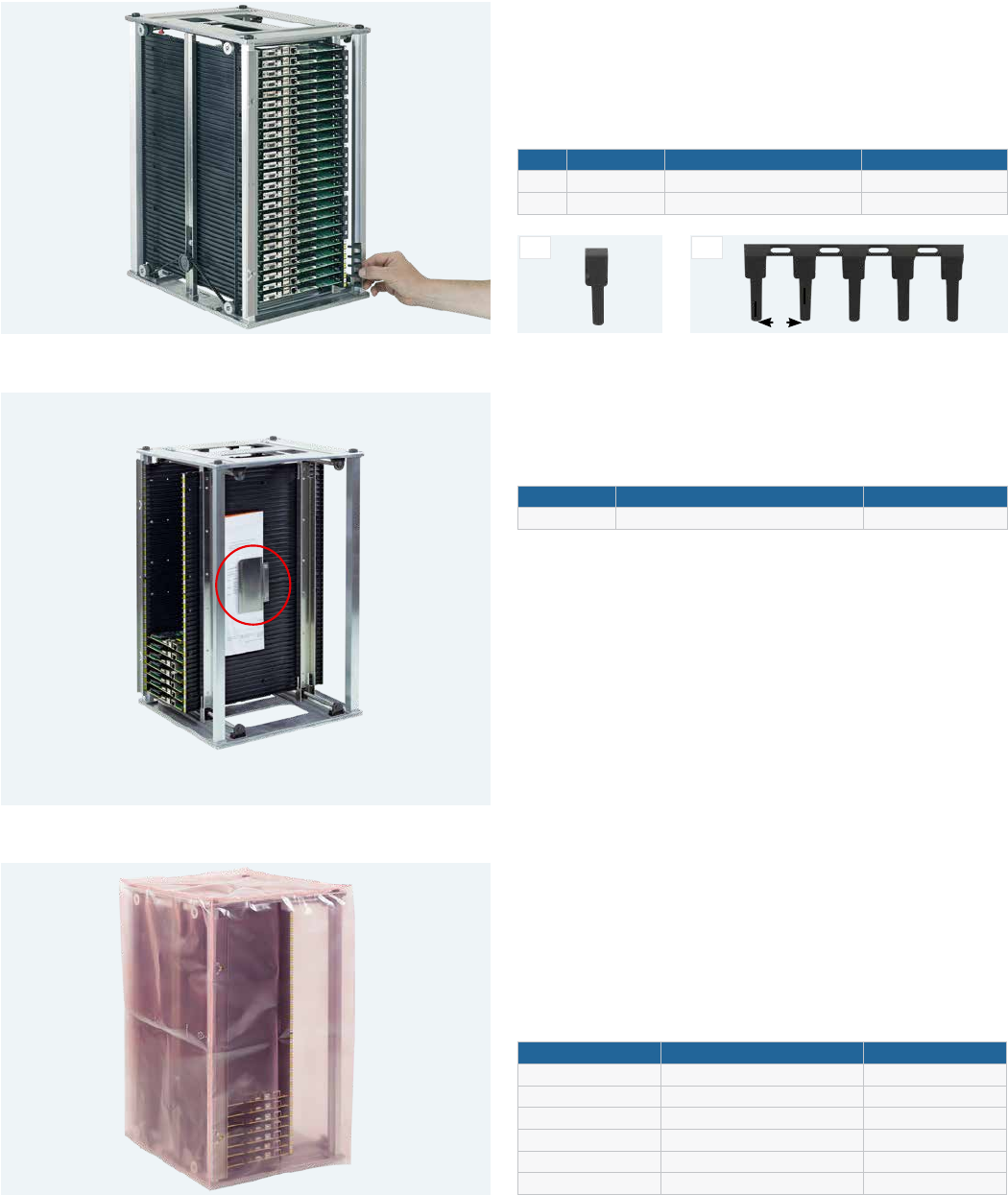

PCB magazine series 600, 700, 800
Protective cover
It prevents PCBs inserted in a magazine from pollution.
conductive, solid, tear-proof
Material: Permastat ESD
Color: pink / thickness: 150 µm
Magazine type Part no. Pack unit
601, 701, 801 8916411 10
602, 702, 802 8916412 10
603, 703, 803 8916413 10
704, 804 8916414 10
716, 816 8916416 10
717, 817 8916417 10
Slot lock
to lock the slots on magazines with plastic side walls.
The clipping on and removal need no additional tools.
A slot lock in use reduces the maximum PCB width setting by 3 mm.
Pos. Part no. Product Pack unit
1.1 8916571 Slot lock 1 (onefold) 100
1.2 8916575 Slot lock 5 (vefold)
20
Bracket
to attach accompanying documents
on magazines with plastic side walls.
Part no. Product Pack unit
8913416 Bracket 1
Accessories
L
D
D
H
21
Special magazines
Twin and triple magazines of the 700 series to process long PCBs
The magazines are assembled torsion resistant.
PCBs up to 1,187 mm in width can be stored safely and transported.
Side wall material: polycarbonate
Twin magazines are delivered fully assembled.
Triple magazines are delivered partially assembled.
Doubled capacity by parallel insertion in series 600 magazines
Up to 100 PCBs put in one magazine; In the case of narrow PCBs,
magazines with two insertion units can be used side by side.
Side wall materials: polystyrene, polycarbonate, metal
Type Part no.
Temperature °C
PCB
Insertions
Surrounding
Outside
dimensions
Width
D
Length
C
L
mm
W
mm
H
mm
min.
mm
up to
mm
up to
mm
601.1-P 8916435 60 50 355 320 563 40 100 342
601.2-P 8915485 130 100 355 320 563 40 100 342
603.2-P 8916425 130 100 400 380 563 40 130 387
603.3-P 8916395 200 200 400 380 563 40 130 387
Type Part no.
Temperature °C
PCB
Insertions
Surrounding
Weight kg
Outside
dimensions
Width
D
Length
C
L
mm
W
mm
H
mm
min.
mm
up to
mm
up to
mm
701.2-2 8916712 130 80 12.3 710 320 563 40 250 697
702.2-2 8916722 130 80 12.7 800 320 563 40 250 787
703.2-2 8916732 130 80 13.5 800 380 563 40 310 787
701.2-3 8916713 130 80 18.7 1,065 320 563 40 250 1,052
702.2-3 8916723 130 80 19.3 1,200 320 563 40 250 1,187
703.2-3 8916733 130 80 20.5 1,200 380 563 40 310 1,187
Low structural height for series 600, 700, 800 magazines
Low height PCB magazines, e.g. in use in annealing furnaces;
Reducing the height also prevents from overload
in the case of heavy PCBs or product carriers in use.
Side wall material: metal; plastic on request
Type Part no.
Temperature °C
Insertions
Screw clamping
Gear belt
Insertions
Surrounding
Weight kg
Outside
dimensions
L
mm
W
mm
H
mm
601.3 8916130 200 200 5.5 355 320 343 28
-
701.3 8916410 200 100 5.9 355 320 263 20 -
701.3 8916175 200 100 6.1 355 320 343 28 -
