Off-cut remover HEKTOR 2
PCBs are separated carefully and quickly, o-cuts are removed
precisely and smoothly. A two-part matrix enables the dierent
blades to be assembled resp. exchanged easily.
O-cuts are punched out with the help of a compressed air cylinder.
The operating pressure can be set on the unit.
Safe operation
PCBs are positioned with their milled groove over the blade onto
the matrix. The o-cut is fed below the punch blade. A foot switch
triggers the punching and the o-cut is collected in the bottom tool.
Technical data
Separation method Punch blade
Operation manual
Material FR4
PCB thickness up to 2.5 mm
Air pressure supply 1/4“ coupling socket
Operating pressure, typical
4 bar
Temperature / Operation + 10 - 35°C / 10 - 85 %
humidity Stock 0 - 60°C / 20 - 80 %
not condensing Transport – 25 - 60°C / 20 - 80 %
Width x Height x Depth
220 x 170 x 255 mm
Weight 2.7 kg
Approvals CE, FCC Class A
Part no. Product
8932145 O-cut remover HEKTOR 2 (no blades)
8932xxx Blade (to be ordered separately)
Scope of delivery O-cut remover with pressure regulator
Foot switch
Allen key 2 mm
Allen key 4 mm
Operator's manual DE/EN
Blade
To prevent from getting stuck
in the PCB, the milled groove
should extend the blade width
by at least 0.15 mm.
Milled groove
width
Blade width
Blade length
Cutting length
Solder side free
of components
Milled groove
length
O-cut width
Part no. A B C D E F G
8932137.001 Blade 1,5 T ≥ 1.5 1.35 17.2 4.7 > 19 > 19 3
8932138.001 Blade 2,0 T ≥ 2.0 1.85 17.2 5.2 > 19 > 19 3
8932191.001 Blade 2,4 T ≥ 2.4 2.25 18 5.7 > 19 > 19 3
8932139.001 Blade 2,5 T ≥ 2.5 2.35 18 5.7 > 19 > 19 3
8932144.001 Blade 3,0 T ≥ 3.0 2.85 18 5.7 > 19 > 19 2.5
8932122.001 Blade 1,5 L ≥ 1.5 1.35 12 4.7 > 15 > 13 3
8932123.001 Blade 2,0 L ≥ 2.0 1.85 12 5.2 > 15 > 13 3
8932141.001 Blade 2,4 L ≥ 2.4 2.25 12 5.7 > 15 > 13 3
8932124.001 Blade 2,5 L ≥ 2.5 2.35 12 5.7 > 15 > 13 3
8932125.001 Blade 3,0 L ≥ 3.0 2.85 12 5.7 > 15 > 13 2.5
8932171.001 Matrix (as a spare part)
T blade
to punch out o-cuts
on the right and le margins.
Turning the PCB is not necessary
L blade
used with small distances
between the o-cuts
Matrix
included in the scope of delivery
PCB bottom side
free of components
Further blade thicknesses
on request
47,5
21,535
10°
10°
43 41
34 34
30°
0,8 - 3,2
max. 0,8
min. 0,25
4
3 1 2 6 4 5
1
2

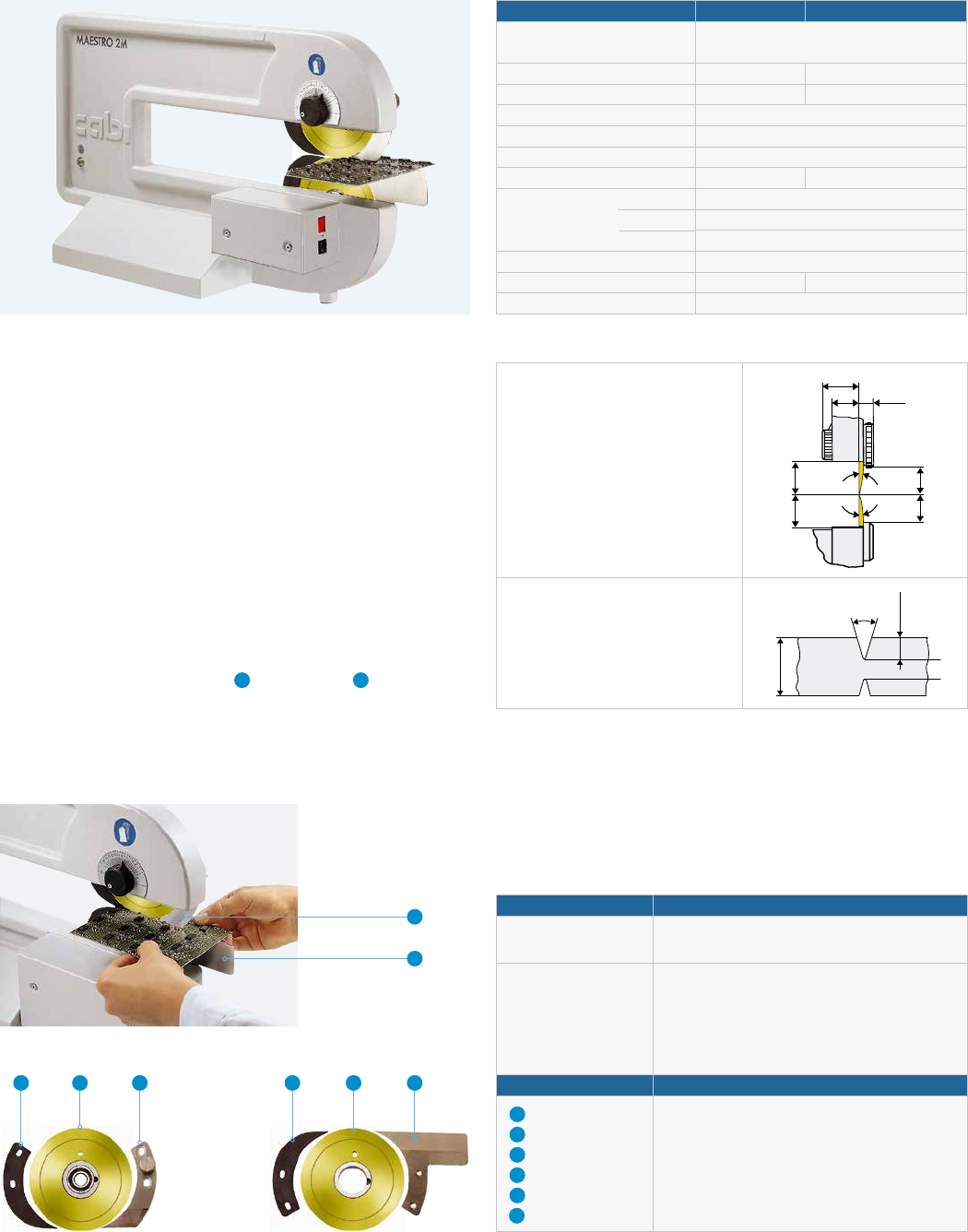

PCB separators MAESTRO 2, 2M
Component height
Outside dimensions increased
aer separation: typically 0.2 mm
The milled groove
may be interrupted by cutouts
to a length of up to 5 mm.
Part no. Product
8933900
8933935
PCB separator MAESTRO 2
PCB separator MAESTRO 2M
Scope
of delivery
PCB separator
Power cable Type E+F, length 1.8 m
(MAESTRO 2M only)
Allen key 2 mm
Operator's manual DE/EN
Pos. Part no. Wear parts
1
2
3
4
5
6
8930509.001
8930522.001
8930744.001
8933661.001
8930514.001
8930745.001
Circular blade FR4
Holder
Upper blade protection
Lower circular blade
Guide
Lower blade protection
Technical data MAESTRO 2 MAESTRO 2M
Separation method Component side Circular blade
Solder side Circular blade
Operation
manual motor-driven
Separation speed - 100, 200, 300 mm/s
Separation length 15 - 300 mm
Material
FR4
Component height
Solder/component side up to 34 mm
Power supply
- 230/115 VAC, 50/60 Hz
Temperature / Operation + 10 - 35°C / 10 - 85 %
humidity Stock 0 - 60°C / 20 - 80 %
not condensing
Transpor t – 25 - 60°C / 20 - 80 %
Width x Height x Depth 195 x 330 x 620 mm
Weight
16 kg 19 kg
Approvals CE, FCC Class A
The compact MAESTRO 2 separates PCBs quickly and economically.
Little footprint is required.
MAESTRO 2
is the aordable entry-level device to handle smaller demands.
PCBs are fed between the circular blades manually to be separated.
MAESTRO 2M, motor-driven
to separate large numbers of PCBs without tiring. The lower circular
blade is motor-driven. The PCB is fed, seized by the circular blade,
transported and separated. The device especially ts with highly
dense assembly or slim margin strips. Three speeds can be selected.
Safe operation
The distance between the holder
1
and the guide
2
is set so the PCB can be fed only in the milled groove.
4
1 32
5
21,527
3...30
1...23
0...40 41
34
10°
10°
30°
0,8 - 3,2
max. 0,8
min. 0,25

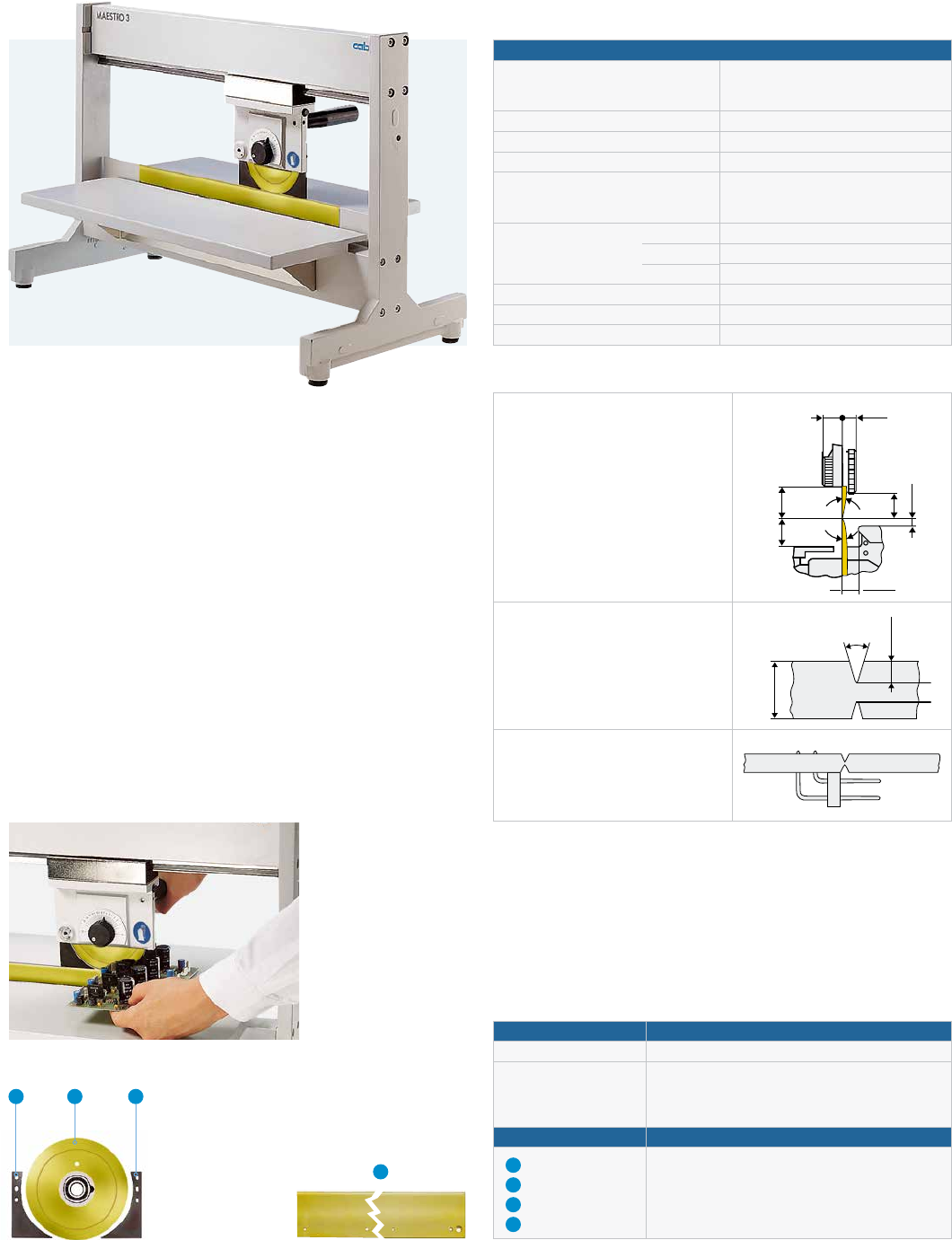

PCB separator MAESTRO 3E
The MAESTRO 3E separates both small and large PCBs.
The support table and the rest can be set continuously
to the best possible operational position.
By adjusting the distance between the linear blade and the rest,
margin strips can fall through and are sorted out.
Safe operation
A PCB is positioned with its milled groove onto the linear blade
and the circular blade is moved manually through the PCB.
The distance between the holder and the linear blade
is set so the PCB can be separated only in the milled groove.
Component height
Outside dimensions increased
aer separation: typically 0.2 mm
The milled groove
may be interrupted by cutouts.
Protruding components
need a recessed linear blade.
Contact us, if required
Technical data
Separation method Component side Circular blade
Solder side Linear blade
Operation manual
Separation length up to 450 mm
Material FR4
Component height Component side up to 34 mm
Solder side
up to 23 mm
Temperature / Operation + 10 - 35°C / 10 - 85 %
humidity Stock 0 - 60°C / 20 - 80 %
not condensing Transport – 25 - 60°C / 20 - 80 %
Width x Height x Depth 350 x 455 x 700 mm
Weight 22 kg
Approvals CE, FCC Class A
Part no. Product
8933945 PCB separator MAESTRO 3E/450
Scope
of delivery
PCB separator
Allen key 2 mm
Operator's manual DE/EN
Pos. Part no. Wear parts
1
2
3
4
8930509.001
8936615.001
8936614.001
8933394.001
Circular blade FR4
Blade protection
Blade protection
Linear blade 450
