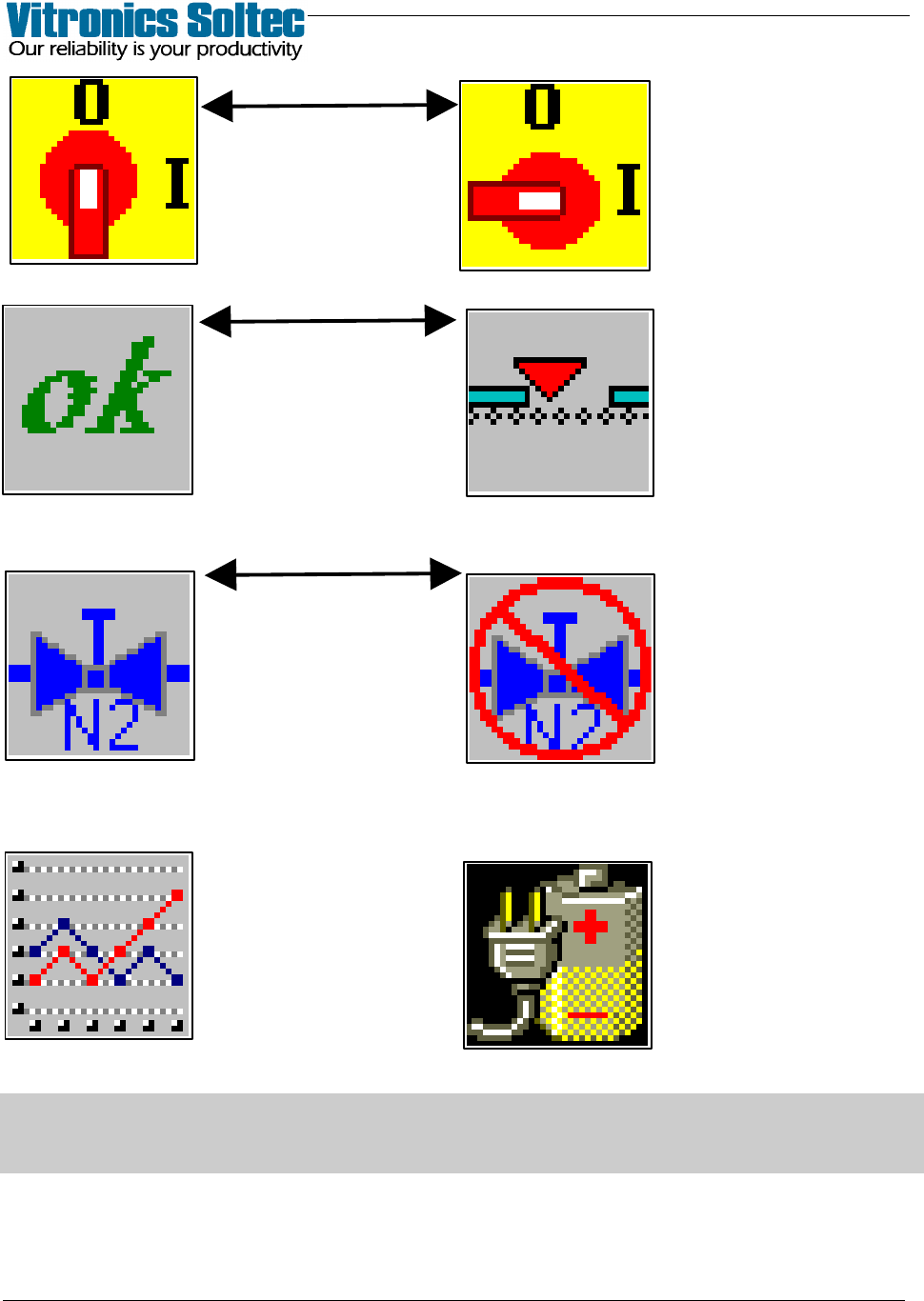

SOME “ ICONS ” MAY NOT BE DISPLAYED
DEPENDING ON OVEN CONFIGURATION
INDICATES
“POWER ON”
SELECT TO TURN
POWER OFF.
INDICATES
“POWER OFF”
SELECT TO TURN
POWER ON.
SYSTEM
“PROCESS NOT
READY”
(NOT O.K.-BLOCKED)
SYSTEM
“PROCESS READY”
NITROGEN IS “OFF”
SELECT TO TURN
NITROGEN “ON”
NITROGEN IS “ON”
SELECT TO TURN
NITROGEN “OFF”
SELECT FOR
UPS BACKUP
SYSTEM
ON / OFF
SELECT TO VIEW
ON-LINE TRENDING
PARAMETERS
OR
OR
OR
VITRONICS REFLOW SOLDERING SYSTEMS
EM 02502-G 15-Nov-00 (c) PAGE Operator’s Manual
14
PRINTING
The Vitronics Oven Control Program will print to a Color Ink-Jet or a Laser printer if the
corresponding printer drivers have been installed.
To install other Printer Drivers: First, it is necessary to select “Tools”, then “Add/View
Printers”, then follow directions install Printer drivers from the MicroSoft Windows™ CD.
Printing is possible at several places in the software for record keeping purposes.

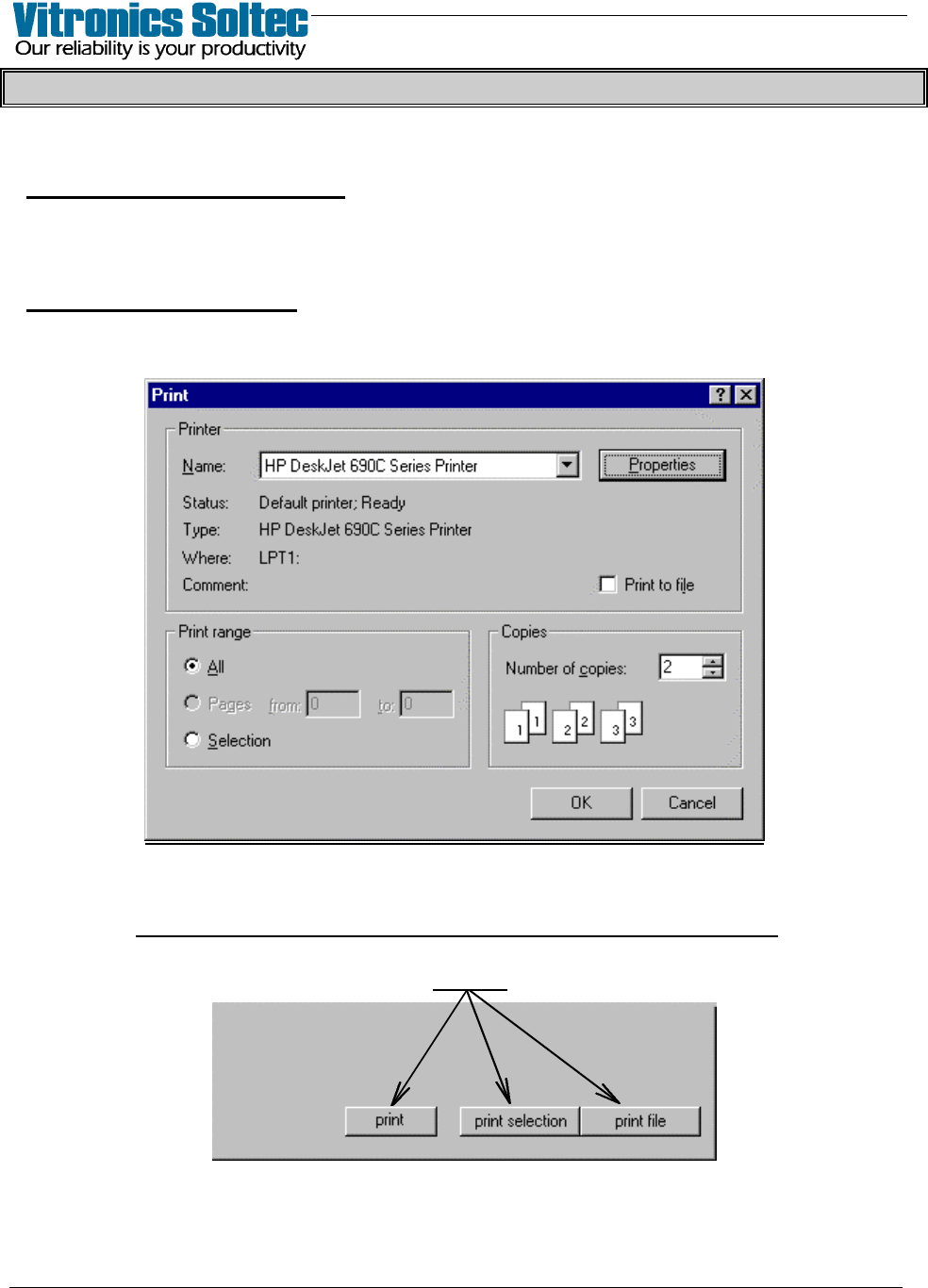

First, Set-up the printer: At the “Pull-down Menu, select “File”, then “Printer
Setup” to display the “Print Dialogue Box”. Depending on the Windows ™ default
printer, the “Print Dialogue Box” shown may not be the same as the one illustrated here.
The “Print Dialogue Box” is used to select the printer, image quality, paper size, copy
quantity , color/no color and other characteristics of the printer output.
It is NOT possible to “print” from this “Print Dialogue Box” .
Printing is available in recipe, product, alarm, trending, and other dialogue boxes.
Printing is done by selecting one of the “buttons” shown below wherever they appear.
(The nature and quantity of the printer output will depend on
“set-up” selections made in the “Print Dialogue Box”)
VITRONICS REFLOW SOLDERING SYSTEMS
EM 02502-G 15-Nov-00 (c) PAGE Operator’s Manual
15
PRODUCTS & RECIPES
PRODUCT AND RECIPE EXPLANATION
Each individual Printed Circuit Assembly to be processed by the oven will have it's
own “unique physical description” ( PRODUCT) and the “unique treatment”
(RECIPE) it will receive when being processed through the oven.
REMEMBER:
A PRODUCT consists of a product (Printed Circuit Assembly) name,
description, the product dimensions and a Recipe.
A RECIPE consists of a Recipe name, description, process set points and
process alarm limits.
A Recipe is referenced in each Product when the Product is “Started”.
