SENSORS AND MOTORS MICROSWITCH SENSOR Chapter Issue 1 Sep 02 Technical Reference Manual 20.17 MICROSWITCH SENSOR Descriptio n The microswitch sensor used in this applicati on is a solid sta te microswitch with no mechani…
SENSORS AND MOTORS
SAFETY SWITCH
20.16 Technical Reference Manual Chapter Issue 1 Sep 02
Testing/
Adjustment
To adjust the safety switch, physically move the body of the switch to ensure
that 6mm of cover movement activates the switch.
Figure 20-14 Voltage Diagram
Cover Closed Open Closed
12V
0V
Closed
Circuit
Closed
Circuit
Open
Circuit
Continuity
Signal
SENSORS AND MOTORS
MICROSWITCH SENSOR
Chapter Issue 1 Sep 02 Technical Reference Manual 20.17
MICROSWITCH SENSOR
Description The microswitch sensor used in this application is a solid state microswitch with
no mechanical contacts. The plunger operates a Hall effect sensor triggering
the transistorized output.
Figure 20-15 Microswitch Sensor and Schematic
Testing/
Adjustment
Testing can be carried out with the microswitch in circuit by measuring the
voltage between pin O and pin
- (0V), Voltage Diagram Figure below, refers.
Figure 20-16 Voltage Diagram
Stepper Multiplexer Digital Input
V+ (User)
Opto-isolator
2K
0V
Squeegee/ProFlow Home Microswitch
o
+
-
s
Voltage
Regulator
Trigger
Circuit
and
Amplifier
Hall Effect
Sensor
Block Diagram of Microswitch
+
o
_
Switch Position
Released Depressed Released
12V
0V
Voltage
Output at O
SENSORS AND MOTORS
PRESSURE SENSOR
20.18 Technical Reference Manual Chapter Issue 1 Sep 02
PRESSURE SENSOR
Description The pressure sensor switch is wired as a normally open (NO) switch which is
closed by the air pressure exceeding the set point.

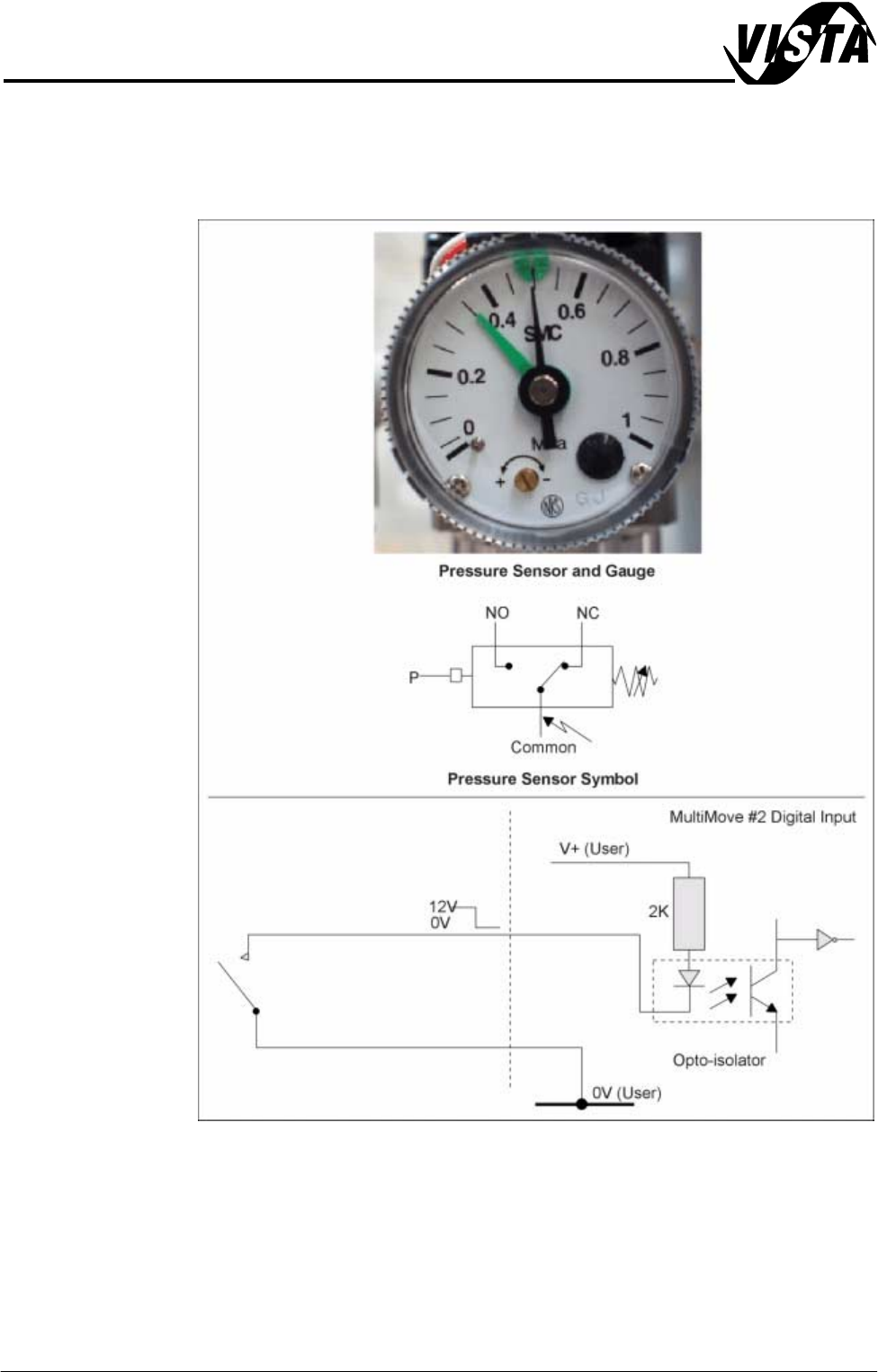

Figure 20-17 Pressure Sensor Schematic
