SENSORS AND MOTORS SENSOR TABLE 20.4 Technical Reference Manual Chapter Issue 1 Sep 02 Solvent L ow Refracti ve Opto Fitted in right hand side of solvent tank 8SE12 Multi Move X13 DIG IN 7 Rear Squ eegee Home Microsw itc…
SENSORS AND MOTORS
SENSOR TABLE
Chapter Issue 1 Sep 02 Technical Reference Manual 20.3
SENSOR TABLE The following table lists all machine sensors in alphabetical order.
Name Type Sensor Location Sensor
Ident
Input Card Signal
Air Pressure Pressure Part of mains air regulator on rear of
machine frame
8SE11 MultiMove X12 DIG IN 0
Board at Left Diffuse Front rail, left side 8SE8 NextMove DIG IN 16
Board at Right Diffuse Front rail, right side 8SE7 NextMove DIG IN 17
Board at Stop
(camera)
Diffuse/Back-
ground
Camera carriage 10SE07 NextMove DIG IN 22
Board at Stop
(remote board
stop)
Diffuse/Back-
ground
Remote board stop 10SE26 NextMove DIG IN 22
Board Stop In
(camera)
Thro’ Beam Opto Mounted on board stop, camera car-
riage
10SE20 NextMove DIG IN 23
Board Stop In
(remote board
stop)
Reed Switch Mounted on rotary actuator, remote
board stop
10SE25 NextMove DIG IN 23
Camera X Home Hall Effect Left on X camera carriage 10SE01 NextMove DIG IN 5
Camera Y Home Hall Effect Rear on Y camera carriage support 10SE02 NextMove DIG IN 15
Front Cover Inter-
lock
Safety Switch Top cover support frame, front left
side
9SW01 MultiMove X13 DIG IN 4
(shared)
Front Squeegee
Home
Microswitch Front of spline support block (right)
squeegee mechanism
9SE04 Multiplexer Front Sqy
Home
Lid Bolt Extended Reed Switch Located on shock bolt solenoid 9SW3 MultiMove X12 DIG IN 2
Moving Rail
Home
Thro’ Beam Opto Right side of rising table at:
rear (front rail justified)
front (rear rail justified)
8SE6 Multiplexer Rail Home
Print Carriage
Home
Hall Effect Right hand side of right print carriage
rail, rear of machine
9SE3 NextMove DIG IN 6
ProFlow Cassette
Low
Reed Switch Left hand side of ProFlow pressure
mechanism unit
M18SE01 MultiMove X12 DIG IN 6
ProFlow Home Microswitch Under motor support plate on the
ProFlow printhead mechanism
9SE05 Stepper Multi-
plexer
Rail Lifted Left Thro’ Beam Opto Left side of rising table attached to
rear rail
8SE5 NextMove DIG IN 3
Rail Lifted Right Thro’ Beam Opto Right side of rising table attached to
rear rail
8SE4 NextMove DIG IN 4
Rear Cover Inter-
lock
Safety Switch Top cover bracket, rear 9SW2 MultiMove X13 DIG IN 4
(shared)
Rising Table
Home
Hall Effect Left side of rising table 8SE01 NextMove DIG IN 0
Rising Table
Interlock
Thro’ Beam Opto Left side of rising table 8SE03 NextMove DIG IN 2
Rising Table Limit Hall Effect Left side of rising table, with upper
and lower limit vanes
8SE02 NextMove DIG IN 1
Screen Clean
Home
Hall Effect Front left hand side of printhead 8SE10 MultiMove X13 DIG IN 5
Front Cover Inter-
lock
Safety Switch Top cover support frame, front left
side
9SW01 MultiMove X13 DIG IN 4
(shared)
Screen at Centre Thro’ Beam Opto Both sides of chase casting 13SE07 MultiMove X12 DIG IN 1
SENSORS AND MOTORS
SENSOR TABLE
20.4 Technical Reference Manual Chapter Issue 1 Sep 02
Solvent Low Refractive Opto Fitted in right hand side of solvent
tank
8SE12 MultiMove X13 DIG IN 7
Rear Squeegee
Home
Microswitch Front of spline support block (left)
squeegee mechanism
9SE05 Multiplexer Rear Sqy
Home
X Forward Fine
Home
Hall Effect
Within X forward screen actuator
9SE7 NextMove DIG IN 10
X Forward
Coarse Home
Hall Effect 9SE8 NextMove DIG IN 11
X Rear Fine
Home
Hall Effect
Within X rear screen actuator
9SE9 NextMove DIG IN 8
X Rear Coarse
Home
Hall Effect 9SE10 NextMove DIG IN 9
Y Actuator Fine
Home
Hall Effect
Within Y screen actuator
9SE16 NextMove DIG IN 12
Y Actuator
Coarse Home
Hall Effect 9SE17 NextMove DIG IN 13
Temperature and
Humidity
Humidity:
capacitive
Temp:
NTC resistive
Print carriage front (left side) beside
squeegee/ProFlow mechanism
9SE20 NextMove
Name Type Sensor Location Sensor
Ident
Input Card Signal
SENSORS AND MOTORS
HALL EFFECT SENSOR
Chapter Issue 1 Sep 02 Technical Reference Manual 20.5
HALL EFFECT SENSOR
Description A Hall effect transducer and magnet are combined in a common package, with
a gap between the transducer and magnet. With power ON and the gap clear,
the output transistor is switched on and the signal voltage is pulled down to 0V.
When a ferrous vane is passed through the gap, the Hall effect is cancelled,
switching off the output transistor and the signal is 12V via the digital input
circuit.

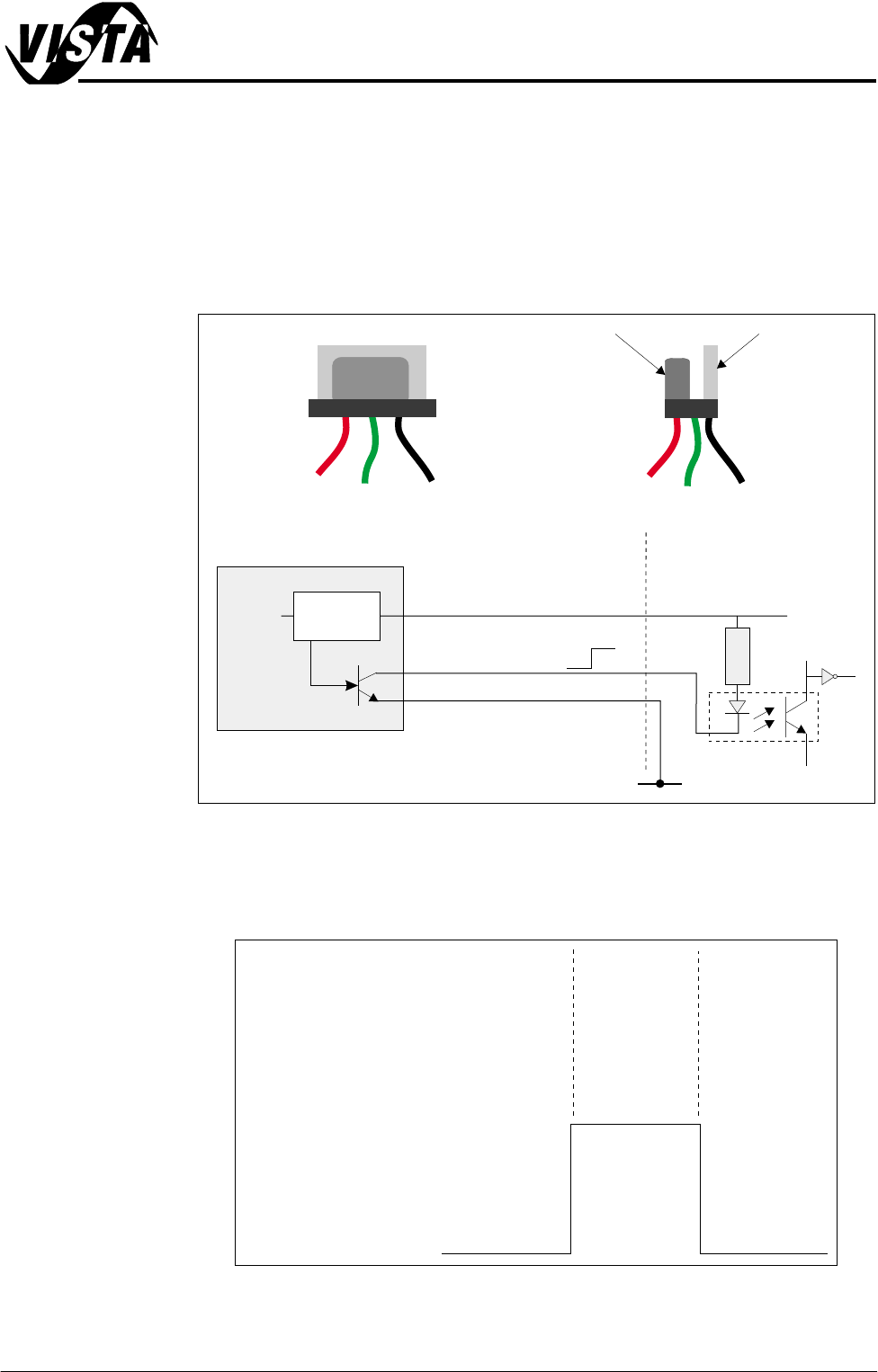

Figure 20-3 Hall Effect Schematic
Testing/
Adjustment
With Power ON and a voltmeter connected with +ve to signal (green) and -ve
to 0V (black), the following results should be obtained:
Figure 20-4 Voltage Diagram
Hall Effect Sensor
Magnet
Transducer
Hall Effect
Magnet
MultiMove / NextMove /
Multiplexer Digital Input
V+ (User)
Opto-isolator
2K
0V (User)
0V
12V
12V
0V
0V
Signal
(Red)
(Green)
(Black)
V+
Control
Circuit
Pin 1
Pin 2
Pin 3
Ferrous Vane
Clear
Present
Clear
12V
0V
On OnOff
Hall Effect
Signal
