1 1 Installation 3-4 P/N 71 19797A 2006 Nordson Corporation LA 302 Issued 06/06 Electrical Connections (contd.) Liquid Adhesive Gun A solenoid valve triggered by the LA 302 opens and closes the adhesive guns. The solenoi…
1
1
Installation
3-3
P/N 7119797A
2006 Nordson Corporation
LA 302
Issued 06/06

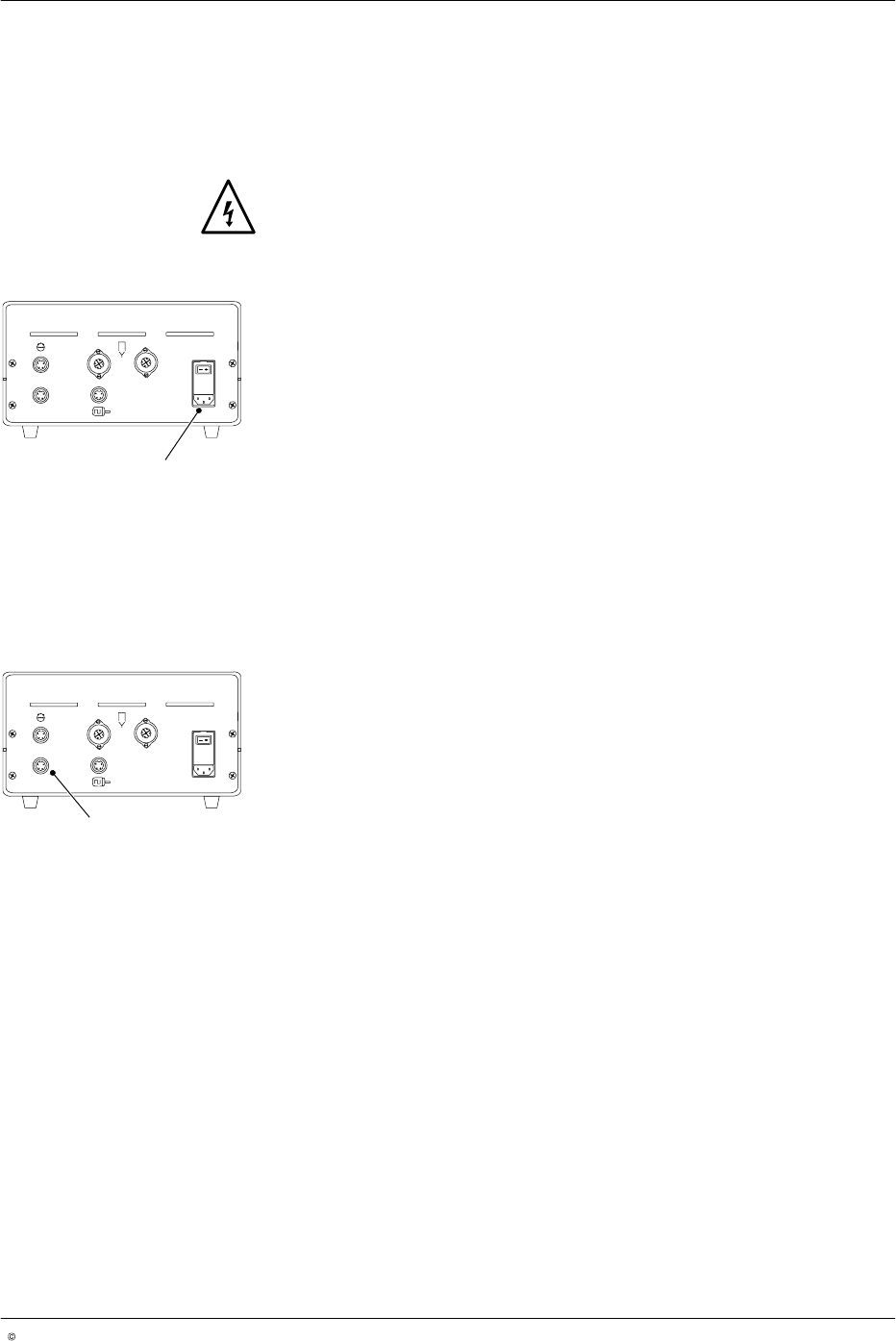

Electrical Connections
Line Voltage
WARNING: The pressure controller LA 302 is designed to accommodate
the voltage stated on the unit port (1). It adapts to any voltage within the
given range.
1. Plug the power cable into the unit port (1) on the back of the pressure
controller.
2. Connect the power cable to the shockproof socket.
Fig. 3-2 Electrical connections
1 Unit port
Encoder
The adhesive pressure is controlled as a factor of the production machine
speed. Thus an encoder (1) must be connected. A gear box connects it to
the production machine, and it delivers a pulse per mm.
Fig. 3-3 Electrical connections
1 Encoder
1
1
Installation
3-4
P/N 7119797A
2006 Nordson Corporation
LA 302
Issued 06/06
Electrical Connections
(contd.)

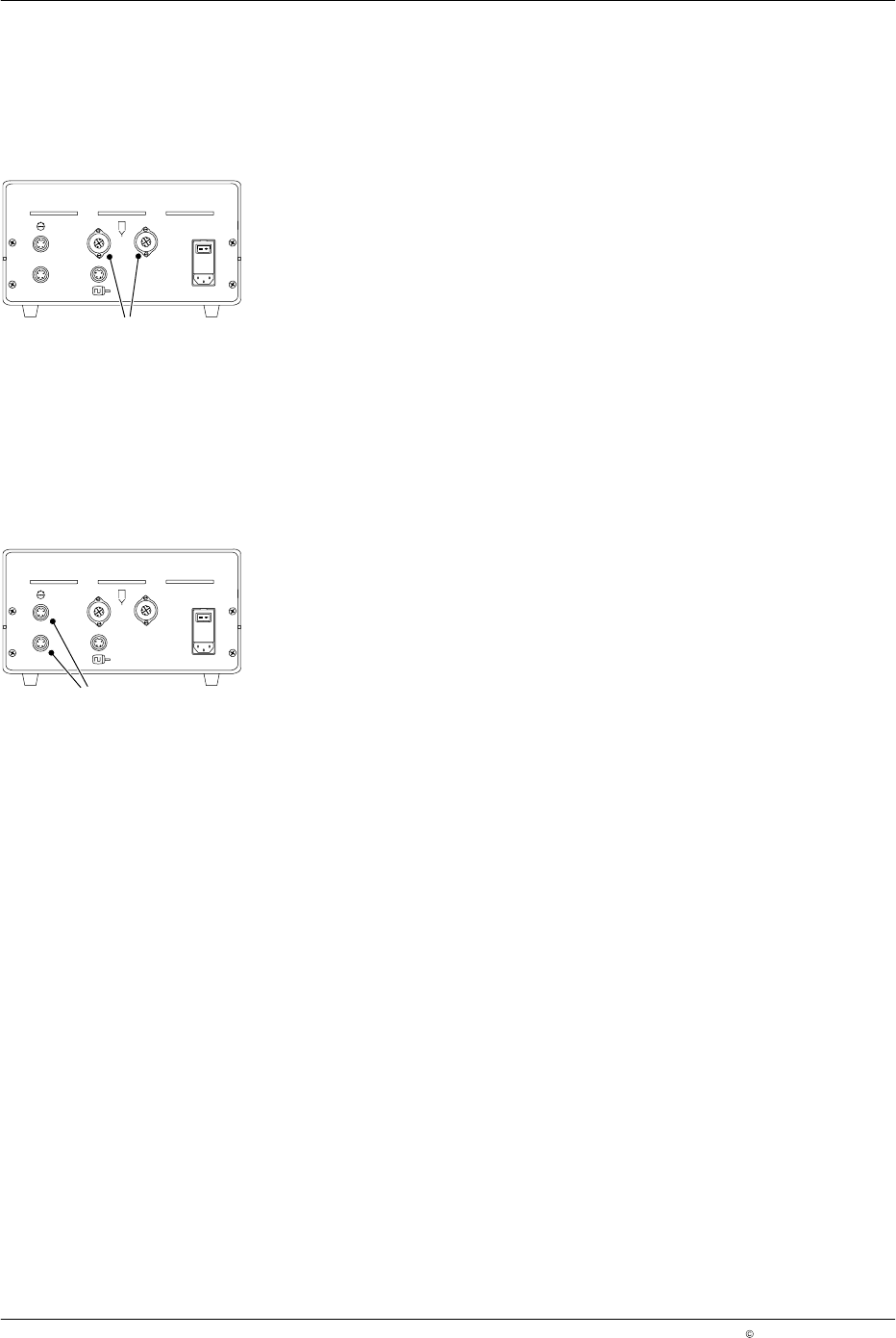

Liquid Adhesive Gun
A solenoid valve triggered by the LA 302 opens and closes the adhesive
guns. The solenoid valve is located on the adhesive gun and is electrically
connected to the pressure controller.
Fig. 3-4 Electrical connections
1 Liquid adhesive guns
Proportional Pressure Control Valve
The glue for the adhesive guns can be fed e.g. by a connected container
pump via a pressure regulator. The pressure regulator is controlled
(pressure rises as production speed increases) via a proportional pressure
control valve supplied by one of the pressure controller outputs. Two
proportional pressure control valves can be connected to these outputs.
Fig. 3-5 Electrical connections
1 Proportional pressure control
valve
Installation
3-5
P/N 7119797A
2006 Nordson Corporation
LA 302
Issued 06/06

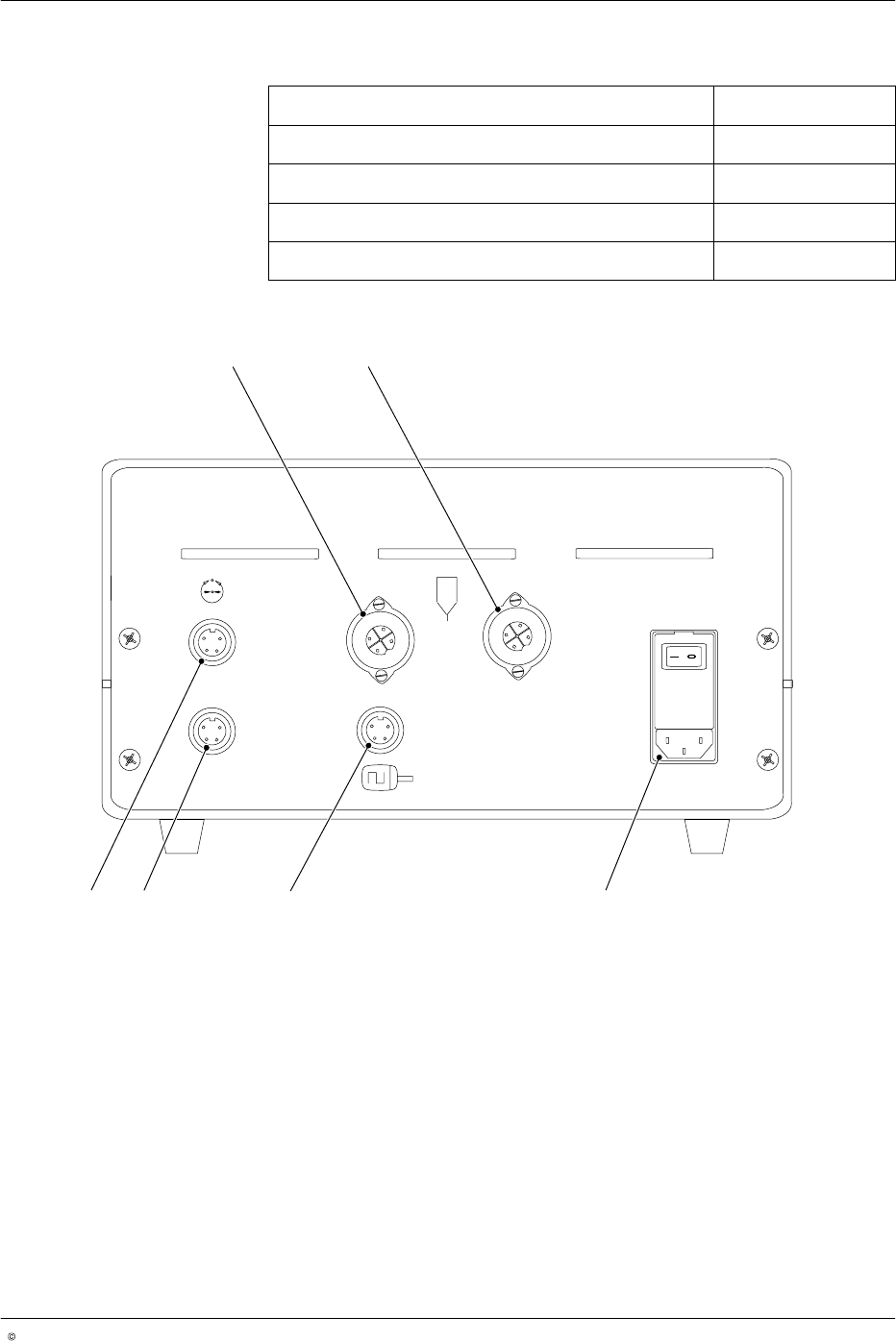

Accessories
Required accessories Sleeve
Encoder with cable 8
Power cable for proportional valve 9, 10
Adhesive gun with cable 2, 4
Power cable 6
2
4
9
10
8 6
Fig. 3-6
