Maintenance
5-2
P/N 7119797A
2006 Nordson Corporation
LA 302
Edition 06/06
Troubleshooting
(contd.)
Problem Possible Cause Corrective Action Refer to
Bead too thin at
low speed
Current for minimum pressure
too low
Increase current Operation
Bead too thin at
high speed
Current for maximum pressure
too low
Increase current Operation
Bead too thick at
low speed
Current for minimum pressure
too high
Reduce current Operation
Bead too thick at
high speed
Current for maximum pressure
too high
Reduce current Operation
Maintenance
5-3
P/N 7119797A
2006 Nordson Corporation
LA 302
Edition 06/06
Repair
NOTE: Repairs to be performed by the customer are limited to replacing
defective fuses. Any other repair work should be performed by Nordson
customer service.
NOTE: Only original Nordson spare parts may be used.
Problem
Possible Cause Corrective Action Refer to
Unit not
functioning
Mains plug not connected Connect mains plug Installation
Unit is not switched on Switch on unit Operation
Mains fuses defective Check mains fuses, replace if
necessary
Below
2
3
1
4

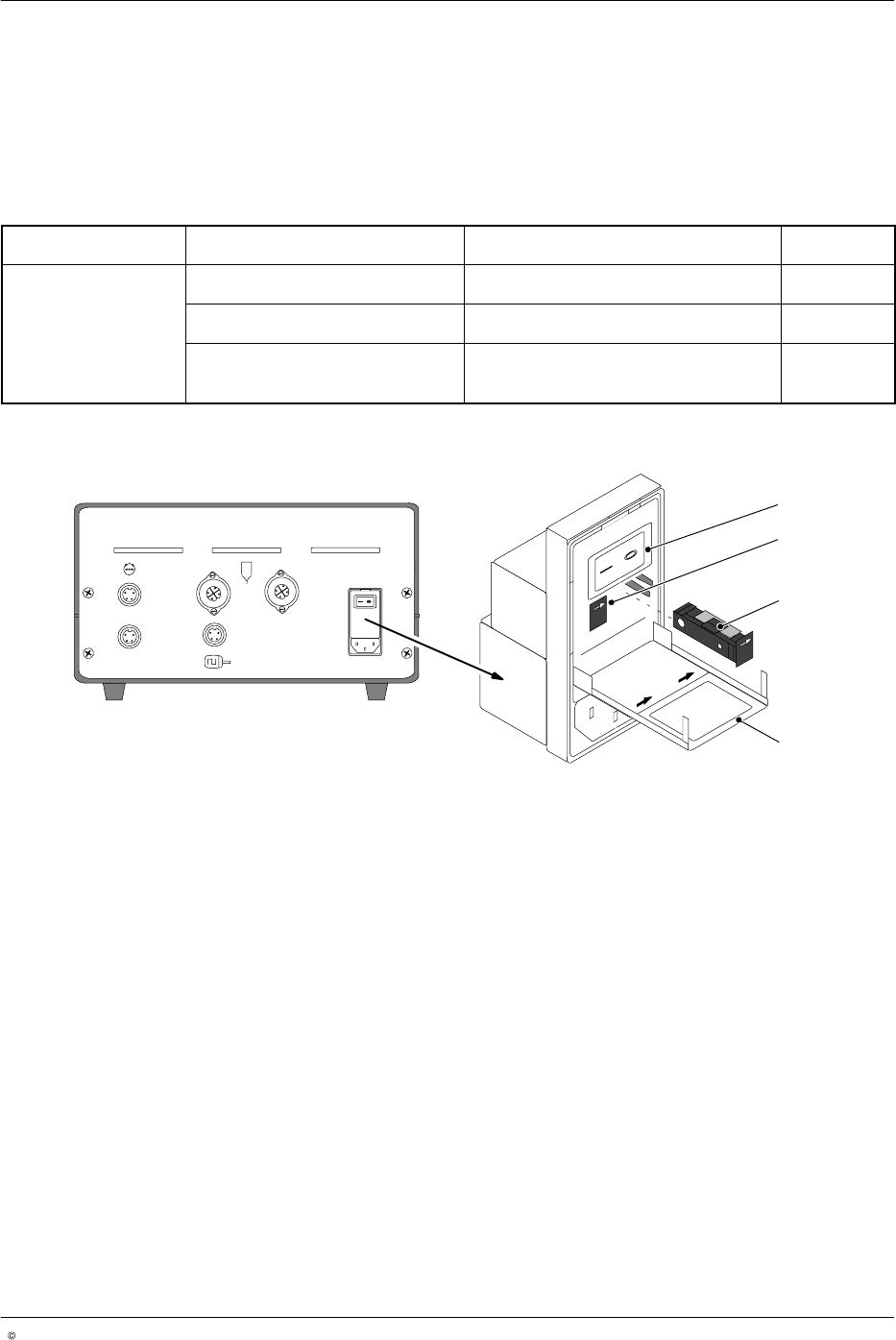

Fig. 5-1 Mains switch and fuses
1 Mains switch
2 Fuse carrier slid into place
3 Fuse carrier 4 Cover for fuse compartment
NOTE: The fuse can be pressed out the side of the fuse carrier.
Maintenance
5-4
P/N 7119797A
2006 Nordson Corporation
LA 302
Edition 06/06
