Installation Manual for Windows XP (unattended setup) for SIPLACE Computers 01/2005 US+DE

6.7 Windows XP Professional Licensing

In the following setup steps you have to enter all necessary parameters for the installation and

configuration of Windows XP Professional, because this Windows XP version is a special version for

Siemens L&A AG.

Fig. 6-7: Licensing

→ Please enter the user name (not the administrator name).

→ Please enter the name of your Company.

→ Click the Next button.

Installation Manual for Windows XP (unattended setup) for SIPLACE Computers 01/2005 US+DE

6.8 Windows XP network settings

Within this dialog, general network parameters of the computer will be configured. The following data

are required:

• Workgroup Name: SIPLACE

You can enter any name you want, except the name of the station computer.

• IP address: not fixed

For the station computers use a unique station IP address number (172.x.x.x)

• IP address Gateway: not fixed

• Sub net mask: not fixed

Please use the default data for the station computer

• System name: should be well defined in the network.

Fig. 6-8: Network settings

→ Please enter the data.

→ Click the Next button.

Installation Manual for Windows XP (unattended setup) for SIPLACE Computers 01/2005 US+DE

6.9 Network settings for communication partners

Here the communication partners of the station computer will be detected. You have to enter the

following data:

• MC Host name: mchost

• MC TCP/IP address: not fixed

Please use an address from the same network segment as the station computer.

• Programming system name (SIPLACE C Pro): Sipro01s01

• SIPLACE C Pro TCP/IP address: not fixed

Please use an address from the same network segment as the station computer.

• GEM Host name: gemhost

• GEM TCP/IP address: not fixed

Don’t change the default data if no GEM option installed

• GEM Sub net mask: not fixed

Don’t change the default data if no GEM option installed

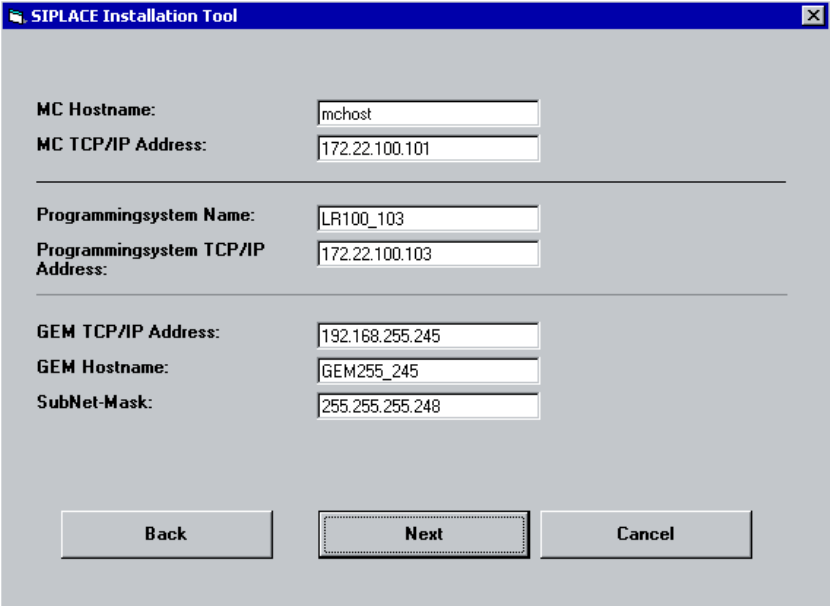

Fig. 6-9: Network settings

→ Please enter the data.

→ Click the Next button.
