6.
Suggestions at upgrading software
Please be advised to read this section when the software is updated from an older version
without this function.
6.1. Mark data setting for guide recognition
As described at “3. Function Details”, guide recognition requires a special mark data registered in
database.
Please use board data that is included in the installation CD of V3.45STDR1.000 or later/ V4.44
STD R1.000 or later through the following procedure.
(1) Copy “PhtMarkData.ygx” from the installation CD to the “No1” folder in the target
machine.
(2) From the [Setup] screen, read the board data “PhtMarkData.ygx”. An error may occur,
but you can ignore it.
(3) Press the [Mark] button. Select mark data of “PHT_BADMARK”, then press the
[Database] button.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50389
17/18
(4) The [Mark database overview] window appears. Press the [New] button.
(5) The [Registration new mark into database] window appears. Enter the mark database
number, and press the [OK] button.
Database number is as follows.
■ Common in all machines
Mark Name Comment Database Number
PHT_BADMARK ForPHT 280
(6) If the following message is displayed when you try to register parts data in the above
number, press [Yes]. If this message is displayed with other than 280, please change the
number.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50389
18/18

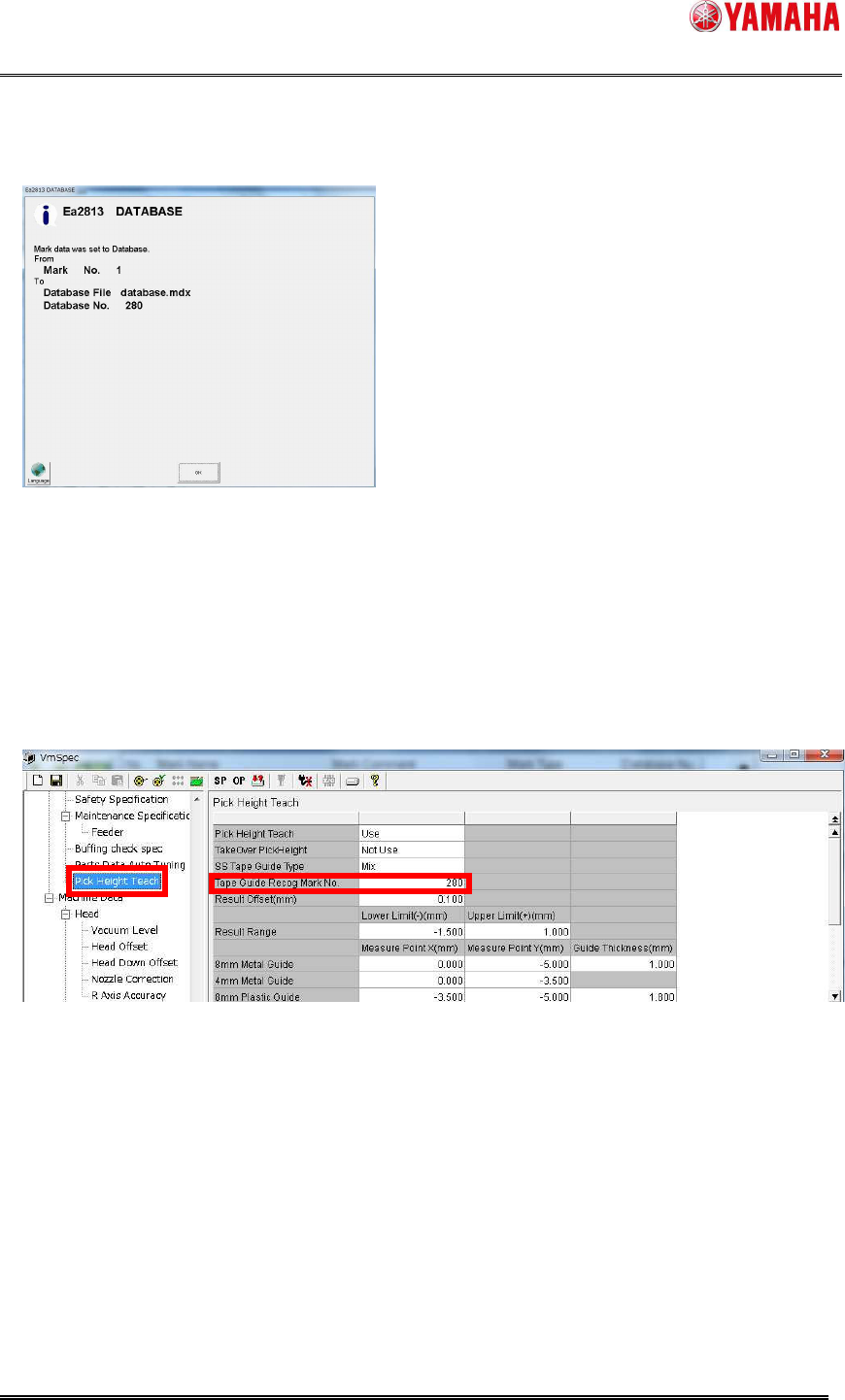

(7) The completion message is displayed. Press [OK].
(8) Confirm that mark data is added to the mark database list.
This is the end of mark database registration.
(9) Next, apply the registered mark database to the pick height teach setting.
Open the machine setting.
(10) Select [Machine] - [Machine Data] - [Specification Information] - [Pick Height Teach]
(11) Enter the registered database number into [Guide Recognition Mark number].
(12) Save the setting, and reload the board data.
