MODEL TCM-X200 0103-001 100 R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION Fig. H-5 ࠦࡦࡌࠕ㚟േㇱ Conveyor Width Control Driver 402 407 406 404 405 403 402 401 416 415 414 407 406 407 406 405 404 408 409 410 408 412 41 1 427 428 431 430 429 409 …
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
99
H-4
302 630 000 0252 SENSOR,PHOTO 2 BPH79,BPH80 696H--110-302
303 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 696H--110-303
304 411 088 9005 WASHER F 3X6X0.5 8 696H--110-304
305 411 086 4408 WASHER SPR 3 4 696H--110-305
306 411 040 7803 SCR PAN 3X12 4 696H--110-306
310 630 001 0237 WASHER 7 696H--110-310
311 411 141 3001 WASHER SPR 6 7 696H--110-311
312 630 000 7886 BOLT,HEX-SCT 3 696H--110-312
313 630 000 7893 BOLT,HEX-SCT 4 696H--110-313
314 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 696H--110-314
316 630 085 6354 BRACKET(TB) 1 696H--110-316
317 630 001 0220 WASHER 4 696H--110-317
318 630 000 7770 BOLT,HEX-SCT 4 696H--110-318
319 411 141 6705 WASHER SPR 5 4 696H--110-319
MODEL TCM-X200
0103-001
100
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION

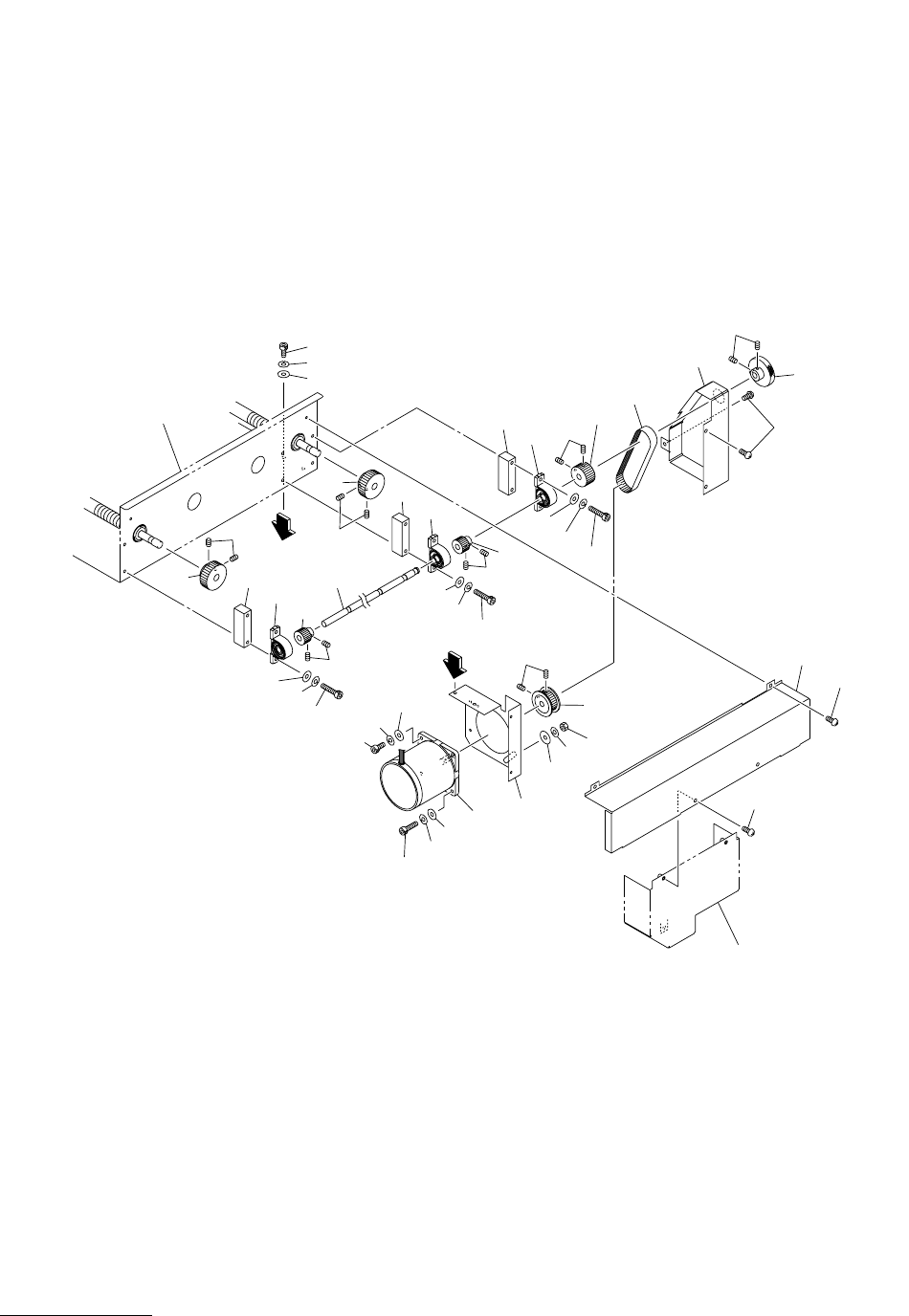

Fig. H-5 ࠦࡦࡌࠕ㚟േㇱ Conveyor Width Control Driver
402
407
406
404
405
403
402
401
416
415
414
407
406
407
406
405
404
408
409
410
408
412
411
427
428
431
430
429
409
410
408
409
410
426
422
413
433
See Fig.H-7
Key No.618
See Fig.H-1
Key No.1
433
432
423
424
421
419
418
417
425
418
419
420
401
A
A
Fig.H-5
TCM-X200
4797A
MODEL TCM-X200
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
101
H-5
401 630 116 4434 GEAR 2 696H--110-401
402 630 000 8951 SET SCREW 4 696H--110-402
403 630 086 2430 SHAFT 1 696H--110-403
404 630 116 4427 GEAR 2 696H--110-404
405 630 008 2296 SET SCREW 4 696H--110-405
406 630 001 1890 BEARING,UNIT 3 696H--110-406
407 630 057 7297 COLLAR 3 696H--110-407
408 411 141 4107 WASHER V 5X10X1 6 696H--110-408
409 411 141 6705 WASHER SPR 5 6 696H--110-409
410 630 000 7800 BOLT,HEX-SCT 6 696H--110-410
411 630 056 3924 PULLEY,TIMING 1 696H--110-411
412 630 000 8951 SET SCREW 2 696H--110-412
413 630 077 4849 BRACKET(MOTOR) 1 696H--110-413
414 411 141 4107 WASHER V 5X10X1 2 696H--110-414
415 411 141 6705 WASHER SPR 5 2 696H--110-415
416 630 000 7749 BOLT,HEX-SCT 2 696H--110-416
417 630 092 9744 ASSY,MOTOR,STEPPING 1 MPM17(RCVW),103-8572-7041
696H--110-417
418 411 141 4107 WASHER V 5X10X1 2 696H--110-418
419 411 141 6705 WASHER SPR 5 2 696H--110-419
420 630 000 7763 BOLT,HEX-SCT 1 696H--110-420
421 630 000 7787 BOLT,HEX-SCT 1 696H--110-421
422 630 001 0220 WASHER 1 696H--110-422
423 411 141 6705 WASHER SPR 5 1 696H--110-423
424 411 141 0505 NUT HEX 5 1 696H--110-424
425 630 056 3917 PULLEY,TIMING 1 696H--110-425
426 630 000 8951 SET SCREW 2 696H--110-426
427 630 048 9668 BELT,TIMING 1 696H--110-427
428 630 077 4856 COVER(R) 1 696H--110-428
429 411 051 1708 SCR TRS 4X6 3 696H--110-429
430 630 035 8384 BOSS(HANDLE) 1 696H--110-430
431 630 000 8920 SET SCREW 2 696H--110-431
432 630 077 4825 COVER 1 696H--110-432
433 411 051 1708 SCR TRS 4X6 4 696H--110-433
