MODEL TCM-X200 021 1-003 202 ࠞࡃㇱ COVER SECTION Fig. MA-3 ⼔ࠞࡃ Protection Cover Fig.MA-3 TCM-X200-003 4797A-003 239 245 246 224 225 224 225
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
201
MA-2
102 630 097 0876 STAY 1 696MA-110-102
103 630 095 3695 STAY 1 696MA-110-103
104 630 095 3701 STAY 1 696MA-110-104
105 630 095 3718 STAY 1 696MA-110-105
106 630 097 0883 FRAME 1 696MA-110-106
107 630 095 3626 FRAME 1 696MA-110-107
108 630 095 3633 FRAME 1 696MA-110-108
109 630 095 3640 FRAME 1 696MA-110-109
111 630 095 3657 FRAME 1 696MA-110-111
112 630 097 7240 BRACKET 1 696MA-110-112
113 630 095 3664 FRAME 1 696MA-110-113
114 630 097 4454 BRACKET 1 696MA-110-114
115 630 095 3480 BRACKET 1 696MA-110-115
116 630 035 6694 SPRING 2 696MA-110-116
117 411 140 4900 BOLT HEX 5X12 1 696MA-110-117
118 630 050 6785 BRACKET 2 696MA-110-118
119 630 097 0852 BLOCK 1 696MA-110-119
120 630 097 0869 BLOCK 1 696MA-110-120
121 630 097 0845 BLOCK 2 696MA-110-121
122 630 038 9609 PIN,HINGE 4 696MA-110-122
126 411 002 4307 SCR FLT 5X10 2 696MA-110-126
127 630 095 3497 BRACKET 3 696MA-110-127
128 630 099 3172 BRACKET 2 696MA-110-128
129 630 099 3189 BRACKET 2 696MA-110-129
130 630 097 7257 BRACKET 1 696MA-110-130
131 630 098 7126 FRAME 1 696MA-110-131
132 630 099 0126 BRACKET 1 696MA-110-132
133 630 029 1391 WASHER 10 696MA-110-133
135 630 000 7909 BOLT,HEX-SCT 8 696MA-110-135
136 630 000 7930 BOLT,HEX-SCT 2 696MA-110-136
138 630 000 7787 BOLT,HEX-SCT 4 696MA-110-138
139 630 000 7770 BOLT,HEX-SCT 4 696MA-110-139
140 630 000 7756 BOLT,HEX-SCT 38 696MA-110-140
141 630 000 7763 BOLT,HEX-SCT 2 696MA-110-141
143 630 000 8944 SET SCREW 6 696MA-110-143
146 411 141 6705 WASHER SPR 5 45 696MA-110-146
147 411 141 4107 WASHER V 5X10X1 35 696MA-110-147
148 411 141 3001 WASHER SPR 6 10 696MA-110-148
149 411 141 4305 WASHER V 6X12.5X1 10 696MA-110-149
MODEL TCM-X200
0211-003
202

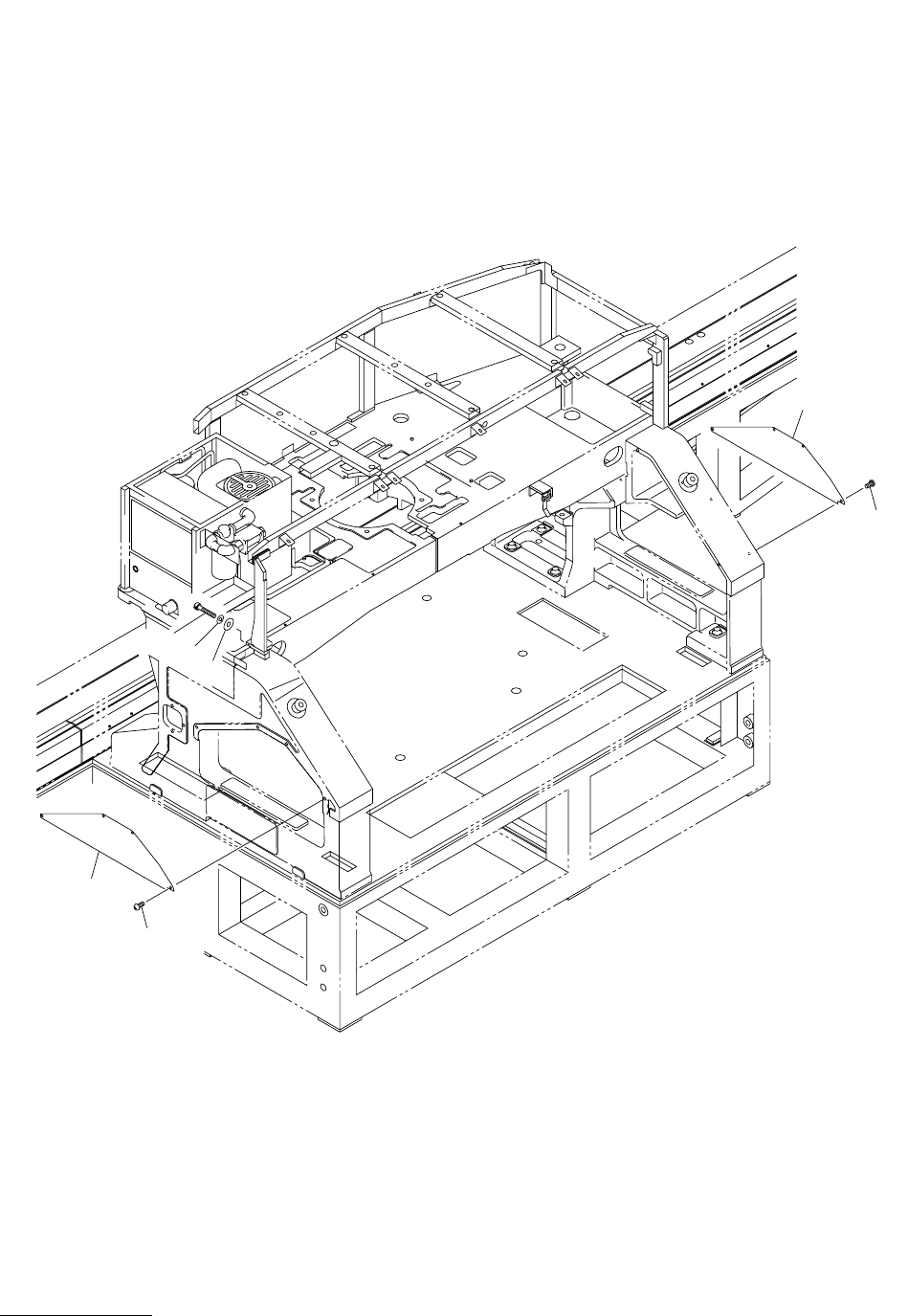

ࠞࡃㇱ COVER SECTION
Fig. MA-3 ⼔ࠞࡃ Protection Cover
Fig.MA-3
TCM-X200-003
4797A-003
239
245
246
224
225
224
225
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
203
MA-3
224 630 089 1195 COVER 2 696MA-110-224
225 411 113 9109 SCR TRS 5X10 8 696MA-110-225
239 630 000 8050 BOLT,HEX-SCT 1 696MA-110-239
245 411 141 3100 WASHER SPR 8 1 696MA-110-245
246 630 001 0244 WASHER 1 696MA-110-246
