MODEL TCM-X200 021 1-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 295 SB-5 45 1 630 109 4465 ASSY ,CORD (BPH 2.5M) 1 X CN05(H1)- 696SB-1 10-451 45 2 630 109 4458 ASSY ,CORD (BPH 3.0M) 1 X CN06(H1)- 696SB-1 10-45…
MODEL TCM-X200
0203-001
294

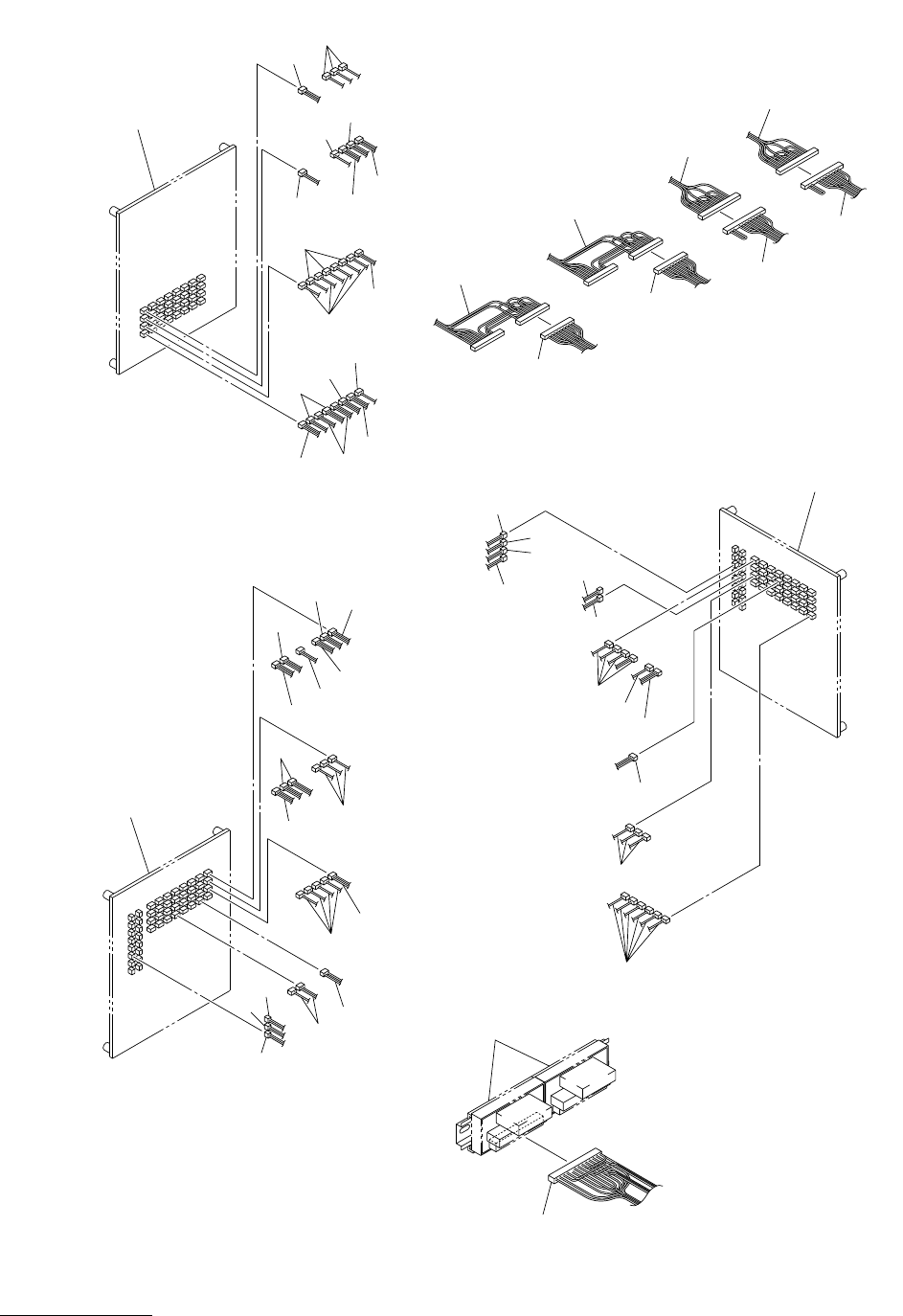

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-5 H2,H3 ၮ᧼ޔH1 ၮ᧼ H2,H3 P.C.B., H1 P.C.B.
Fig.SB-5
488
487
465
464
466
463
489
464
468
469
471
473
469
464
469
471
474
473
466
463
467
470
469
472
471
466
481
480
482
476
478
475
478
478
477
479
451
452
486
455
458
459
454
460
462
461
459
483
458
457
453
454
455
See Fig.RM-1
Key No.66
H2 PCB
H3 PCB
See Fig.RM-1
Key No.66
See Fig.RM-4
Key No.353
H1 PCB
See Fig.SB-2
Key No.172
TCM-X200-002
4797A-002
MODEL TCM-X200
0211-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
295
SB-5
451 630 109 4465 ASSY,CORD (BPH 2.5M) 1 XCN05(H1)- 696SB-110-451
452 630 109 4458 ASSY,CORD (BPH 3.0M) 1 XCN06(H1)- 696SB-110-452
453 630 109 4489 ASSY,CORD (BPH 1.5M) 1 XCN07(H1)- 696SB-110-453
454 630 092 4572 ASSY,CORD(X200SB401) 1 XCN09,33,34(H1)- 696SB-110-454
455 630 092 4589 ASSY,CORD(X200SB405) 1 XCN12,13,14,15(H1)- 696SB-110-455
457 630 092 4602 ASSY,CORD(X200SB408) 1 XCN18,19(H1)- 696SB-110-457
458 630 092 4862 ASSY,CORD(X200SB423) 1 XCN20,21(H1)- 696SB-110-458
459 630 092 4619 ASSY,CORD(X200SB409) 1 XCN22,23,24,25,30(H1)-
696SB-110-459
460 630 109 4540 ASSY,CORD (YSV 1.0M) 1 XCN42(H1)- 696SB-110-460
461 630 109 4540 ASSY,CORD (YSV 1.0M) 1 XCN41(H1)- 696SB-110-461
462 630 109 4526 ASSY,CORD (YSV 2.0M) 1 XCN40(H1)- 696SB-110-462
463 630 092 4732 ASSY,CORD(X200SB412) 1 XCN05,25(H2)- 696SB-110-463
464 630 092 4749 ASSY,CORD(X200SB413-1) 1 XCN06,08,26(H2)- 696SB-110-464
465 630 092 4763 ASSY,CORD(X200SB414-1) 1 XNC111(H2)- 696SB-110-465
466 630 092 4756 ASSY,CORD(X200SB413-2) 1 XCN07,09,27(H2)- 696SB-110-466
467 630 092 4770 ASSY,CORD(X200SB414-2) 1 XNC112(H2)- 696SB-110-467
468 630 109 4472 ASSY,CORD (BPH 2.0M) 1 XCN10(H2)- 696SB-110-468
469 630 092 4800 ASSY,CORD(X200SB418-1) 1 XCN12,14,18,16,28(H2)-
696SB-110-469
470 630 092 4787 ASSY,CORD(X200SB417-1) 1 XNC250(H2)- 696SB-110-470
471 630 092 4817 ASSY,CORD(X200SB418-2) 1 XCN13,15,19,17,29(H2)-
696SB-110-471
472 630 092 4794 ASSY,CORD(X200SB417-2) 1 XNC251(H2)- 696SB-110-472
473 630 092 4824 ASSY,CORD(X200SB419) 1 XCN20,21(H2)- 696SB-110-473
474 630 092 4831 ASSY,CORD(X200SB420) 1 XCN32,33,34(H2)- 696SB-110-474
475 630 109 4472 ASSY,CORD (BPH 2.0M) 1 XCN06(H2)- 696SB-110-475
476 630 092 4848 ASSY,CORD(X200SB421) 1 XCN09,10,11,12(H3)- 696SB-110-476
477 630 092 4855 ASSY,CORD(X200SB422) 1 XCN17(H3)- 696SB-110-477
478 630 092 4879 ASSY,CORD(X200SB424) 1 XCN26,27,28,29,30,31,32,33,34,07
(H3)- 696SB-110-478
479 630 109 4526 ASSY,CORD (YSV 2.0M) 1 XCN42(H3)- 696SB-110-479
480 630 109 4533 ASSY,CORD (YSV 1.5M) 1 XCN41(H3)- 696SB-110-480
481 630 109 4519 ASSY,CORD (YSV 3.0M) 1 XCN40(H3)- 696SB-110-481
482 630 092 4893 ASSY,CORD(X200SB426) 1 XCN49(H3)- 696SB-110-482
483 630 092 4343 ASSY,CORD(X200XCN200) 1 XCN200- 696SB-110-483
486 630 109 4366 ASSY,CORD (2.0M) 1 XCN11(H1)- 696SB-110-486
487 630 109 4526 ASSY,CORD (YSV 2.0M) 1 XCN39(H3)- 696SB-110-487
488 630 109 4533 ASSY,CORD (YSV 1.5M) 1 XCN48(H3)- 696SB-110-488
489 630 109 4342 ASSY,CORD (2.0M) 1 XCN11(H2)- 696SB-110-489
MODEL TCM-X200
0203-001
296
ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-6
H ゲޔCZ ゲޔMZ ゲ࠼ࠗࡃ
H Axis, CZ Axis, MZ Axis Driver
Fig.SB-6
553
551
553
551
See Fig.RM-2
Key No.157
ASMD10
(CZ)
ASMD9
(CZ)
See Fig.RM-1
Key No.54
ASMD1(H)
TCM-X200-002
4797A-002
554
552
