MODEL TCM-X200 0203-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 213 MA-9 80 1 41 1 1 13 9109 SCR TRS 5X1 0 4 696MA-1 10-801 80 2 630 103 2733 PL A T E 1 696MA-1 10-802 80 3 630 098 7430 ME C H P AR TS (R OT AR …
MODEL TCM-X200
0211-002
212
ࠞࡃㇱ COVER SECTION
Fig. MA-9 ࠠࡏ࠼ Keyboard
Fig.MA-9
805
805
801
806
803
804
806
804
803
802
820
821
826
821
819
823
818
825
820
821
826
821
819
825
824
817
823
807
824
TCM-X200-003
4797A-003
807-01
807-04
807-03
807-14
807-12
807-13
807-15
807-09
807-13
807-12
807-11
807-06
807-07
807-08
807-05
807-09
807-10
807-02
MODEL TCM-X200
0203-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
213
MA-9
801 411 113 9109 SCR TRS 5X10 4 696MA-110-801
802 630 103 2733 PLATE 1 696MA-110-802
803 630 098 7430 MECH PARTS(ROTARY DAMPER) 2 696MA-110-803
804 411 051 1708 SCR TRS 4X6 4 696MA-110-804
805 630 097 6861 MECH PARTS(PUSH LATCHES) 2 696MA-110-805
806 411 034 7208 SCR FLT 3X8 4 696MA-110-806
807 630 110 6601 ASSY,SWITCH,KEYBOARD 1 696MA-110-807
807 -01 630 105 3509 COVER(U-KEYBOARD) 1
807 -02 630 105 3516 COVER(B-KEYBOARD) 1
807 -03 630 101 1349 BUSH,LOCATE 2
807 -04 630 103 1835 HOLDER 1
807 -05 630 097 7165 HINGE(DUMPER HINGE) 1
807 -06 630 000 7749 BOLT,HEX-SCT 2
807 -07 411 141 6705 WASHER SPR 5 2
807 -08 411 141 4107 WASHER V 5X10X1 2
807 -09 630 013 8986 MECH PARTS(RUBBER CUSHION 2
807 -10 630 106 4802 SHEET 1
807 -11 411 040 6202 SCR PAN 3X10 4
807 -12 411 086 4408 WASHER SPR 3 8
807 -13 411 119 1909 WASHER V 3X7X0.5 8
807 -14 411 041 8908 SCR PAN 3X6 4
807 -15 630 106 6837 SWITCH,KEYBOARD 1 #KI-05
817 630 102 4912 SUPPORT(L) 1 696MA-110-817
818 630 102 4929 SUPPORT(R) 1 696MA-110-818
819 630 101 0885 COVER 2 696MA-110-819
820 630 100 9254 GUIDE,SLIDE 2 696MA-110-820
821 411 147 6808 SCR TRS 3X5 8 696MA-110-821
823 630 000 7626 BOLT,HEX-SCT 2 696MA-110-823
824 630 105 3554 CLAMP(BALL CATCHERS) 2 696MA-110-824
825 411 002 2600 SCR FLT 3X6 4 696MA-110-825
826 411 108 7103 SCR FLT 3X10 4 696MA-110-826
MODEL TCM-X200
0211-003
214
ࡈࠖ࠳ࠠࡖ࠶ࠫࠞࡃㇱ FEEDER CARRIAGE COVER SECTION

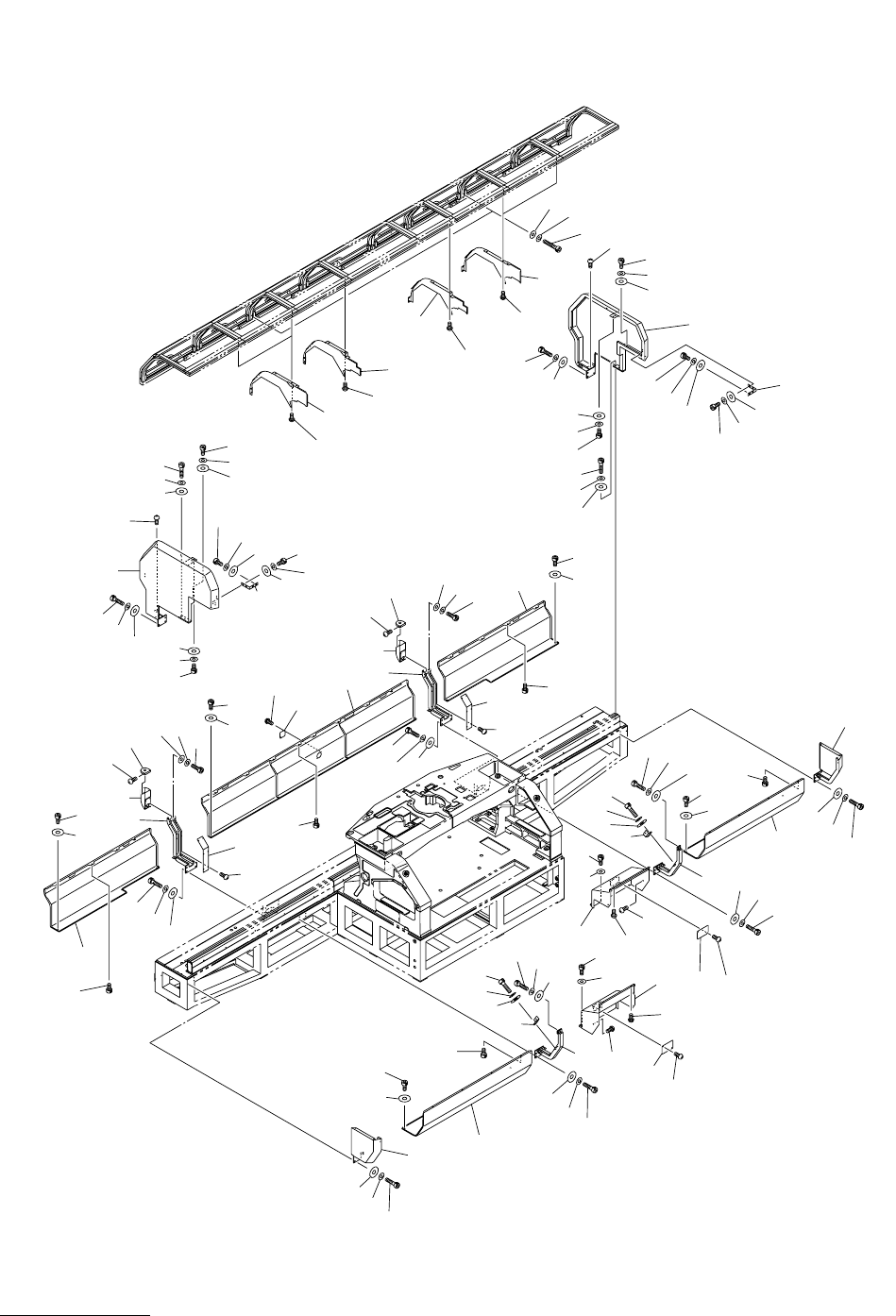

Fig. MB-1 ᓟ㕙ࠞࡃ Rear Cover
Fig.MB-1
TCM-X200-003
4797A-003
40
41
42
49
45
39
1
47
45
46
46
45
47
40
41
42
18
44
19
44
47
24
46
45
47
38
28
20
38
49
45
43
21
46
29
30
32
6
7
21
6
7
21
8
38
40
41
42
21
46
46
45
47
21
46
21
21
46
17
21
42
21
46
48
48
45
46
34
45
46
44
27
44
38
38
37
5
48
45
46
34
16
12
42
41
40
21
46
42
21
41
40
48
45
46
26
38
37
38
4
41
40
13
42
41
40
45
43
49
38
20
8
38
42
40
41
40
41
42
40
41
42
45
46
46
24
45
47
36
44
44
43
45
46
44
43
45
46
35
44
46
21
2
