MODEL TCM-X200 021 1-003 252 200V ޔ 100V 㔚Ḯㇱ 200V ,100V POWER SUPPL Y SECTION F i g . R F - 1 200V ޔ 100V 㔚Ḯ 200V ,100V Power Supply 91 90 80 89 Fig.RF-1 4797L TCM-X300 89 90 91 69 69 54 66 59 61 60 . 62 63 . 65 51 . 51 …
MODEL TCM-X200
0103-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
251
RE-3
251 402 061 5206 WIRE WOUND 100 JB 80W 1 696RE-110-251
252 630 057 2735 COVER 1 696RE-110-252
253 630 083 5465 TERMINAL 14 696RE-110-253
254 630 083 5533 ACCESSORY,WIRING 1 696RE-110-254
255 630 072 8408 ACCESSORY,WIRING 1 696RE-110-255
256 630 083 5564 ACCESSORY,WIRING 2 696RE-110-256
257 630 049 3672 BRACKET,WIRING 2 696RE-110-257
258 630 091 2111 RAIL,WIRING 1 696RE-110-258
259 630 058 8460 ACCESSORY,WIRING 2 696RE-110-259
296 411 113 7501 SCR TRS 4X10 2 696RE-110-296
297 411 043 5004 SCR PAN 4X8 4 696RE-110-297
298 411 008 1706 WASHER SPR 4 4 696RE-110-298
299 411 119 2104 WASHER V 4X9X0.8 4 696RE-110-299
MODEL TCM-X200
0211-003
252

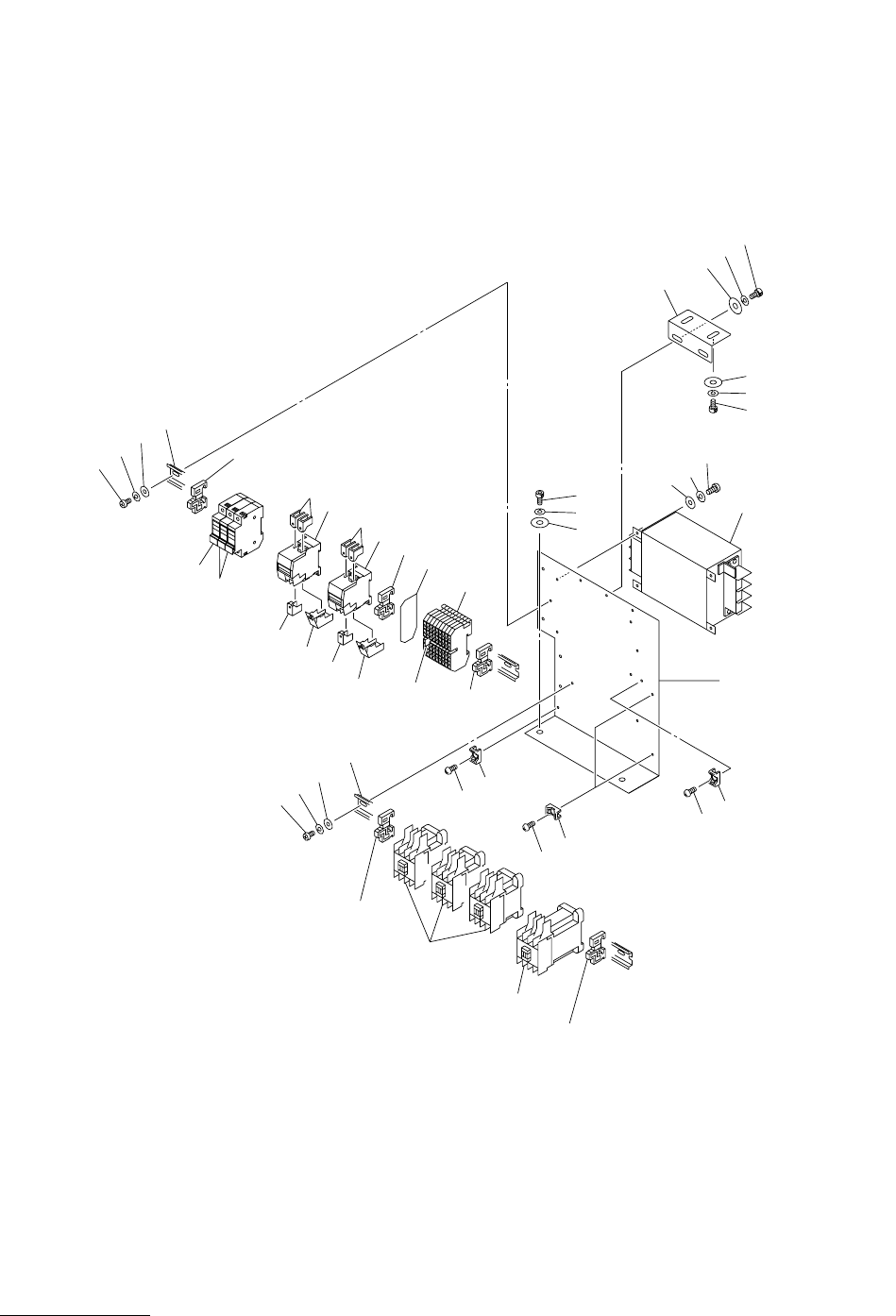

200Vޔ100V 㔚Ḯㇱ
200V,100V POWER SUPPLY SECTION
Fig. RF-1 200Vޔ100V 㔚Ḯ 200V,100V Power Supply
91
90
80
89
Fig.RF-1
4797L
TCM-X300
89
90
91
69
69
54
66
59
61
60
.
62
63
.
65
51
.
51
.
67
59
88
89
90
74
73
76
.
56
74
91
75
72
88
72
88
72
97
99
96
68
95
93
92
69
70
69
70
71
59
55
97
96
99
64
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
253
RF-1
51 630 109 1488 FUSE HOLDER 3 696RF-110-051
54 630 085 7917 CIRCUIT PROTECTOR 1 Q205 696RF-110-054
55 424 005 9408 FUSE 600V 20A 1 F120 696RF-110-055
56 630 053 8618 EM-CONTACTOR 1 KM2 696RF-110-056
59 630 049 3672 BRACKET,WIRING 3 696RF-110-059
60 630 083 5465 TERMINAL 9 696RF-110-060
61 630 083 5533 ACCESSORY,WIRING 1 696RF-110-061
62 630 072 8408 ACCESSORY,WIRING 1 696RF-110-062
63 630 058 8460 ACCESSORY,WIRING 1 696RF-110-063
64 630 106 1818 PANEL 1 696RF-110-064
65 424 005 9309 FUSE 600V 12A 2 F201,F203 696RF-110-065
66 630 085 7917 CIRCUIT PROTECTOR 1 Q206 696RF-110-066
67 630 083 5564 ACCESSORY,WIRING 1 696RF-110-067
68 630 105 2793 BRACKET 1 696RF-110-068
69 630 071 3343 COVER 6 696RF-110-069
70 630 071 3350 COVER 2 696RF-110-070
71 630 089 6510 RAIL,WIRING 1 696RF-110-071
72 630 048 3833 MECH PARTS(MOUNTING BASES 4 696RF-110-072
73 630 053 8588 EM-CONTACTOR 3 KM3,KM4,KM9 696RF-110-073
74 630 049 3672 BRACKET,WIRING 2 696RF-110-074
75 630 089 6503 RAIL,WIRING 1 696RF-110-075
76 630 100 1357 COMP,CR 3 696RF-110-076
80 630 086 3871 FILTER,NOISE 1 ZNF1 696RF-110-080
88 411 113 7501 SCR TRS 4X10 4 696RF-110-088
89 411 043 5004 SCR PAN 4X8 8 696RF-110-089
90 411 008 1706 WASHER SPR 4 8 696RF-110-090
91 411 119 2104 WASHER V 4X9X0.8 8 696RF-110-091
92 630 000 7626 BOLT,HEX-SCT 2 696RF-110-092
93 411 141 2905 WASHER SPR 4 2 696RF-110-093
95 630 001 0213 WASHER 2 696RF-110-095
96 630 000 7756 BOLT,HEX-SCT 4 696RF-110-096
97 411 141 6705 WASHER SPR 5 4 696RF-110-097
99 630 001 0220 WASHER 4 696RF-110-099
