P-206-001.pdf - 第242页
MODEL TCM-X200 021 1-003 240 200V 㔚Ḯㇱ 200V POWER SUPPL Y SECTION F i g . R C - 2 200V 㔚Ḯ㧞 200V Power Supply 2 155 154 166 . 166 . 166 . 153 166 . 157 151 155 166 . 151 166 . 151 166 . 151 Fig.RC-2 4797L-002 TCM-X200-003 …
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
239
RC-1
54 630 092 8600 CIRCUIT PROTECTOR 4 Q211,Q212,Q213,Q214
696RC-110-054
55 630 106 6875 CIRCUIT PROTECTOR 1 Q202 696RC-110-055
56 630 092 8624 CIRCUIT PROTECTOR 1 Q207 696RC-110-056
57 630 085 8792 ACCESSORY,WIRING 1 696RC-110-057
59 630 117 7137 CIRCUIT PROTECTOR 1 Q203 696RC-110-059
60 630 049 3672 BRACKET,WIRING 2 696RC-110-060
61 630 116 5912 PANEL 1 696RC-110-061
62 630 092 8594 CIRCUIT PROTECTOR 1 Q210 696RC-110-062
63 630 092 8617 CIRCUIT PROTECTOR 2 Q215,Q216 696RC-110-063
64 630 092 8624 CIRCUIT PROTECTOR 3 Q217,Q218,Q219 696RC-110-064
65 630 092 8648 WIRE PARTS 2 696RC-110-065
68 630 085 7481 RELAY 6 K11,K12A,K12B,K13A,K13B,K14
696RC-110-068
69 630 071 3343 COVER 5 696RC-110-069
70 630 071 3350 COVER 1 696RC-110-070
93 630 000 7756 BOLT,HEX-SCT 4 696RC-110-093
94 411 141 6705 WASHER SPR 5 4 696RC-110-094
96 630 001 0220 WASHER 4 696RC-110-096
MODEL TCM-X200
0211-003
240
200V 㔚Ḯㇱ 200V POWER SUPPLY SECTION

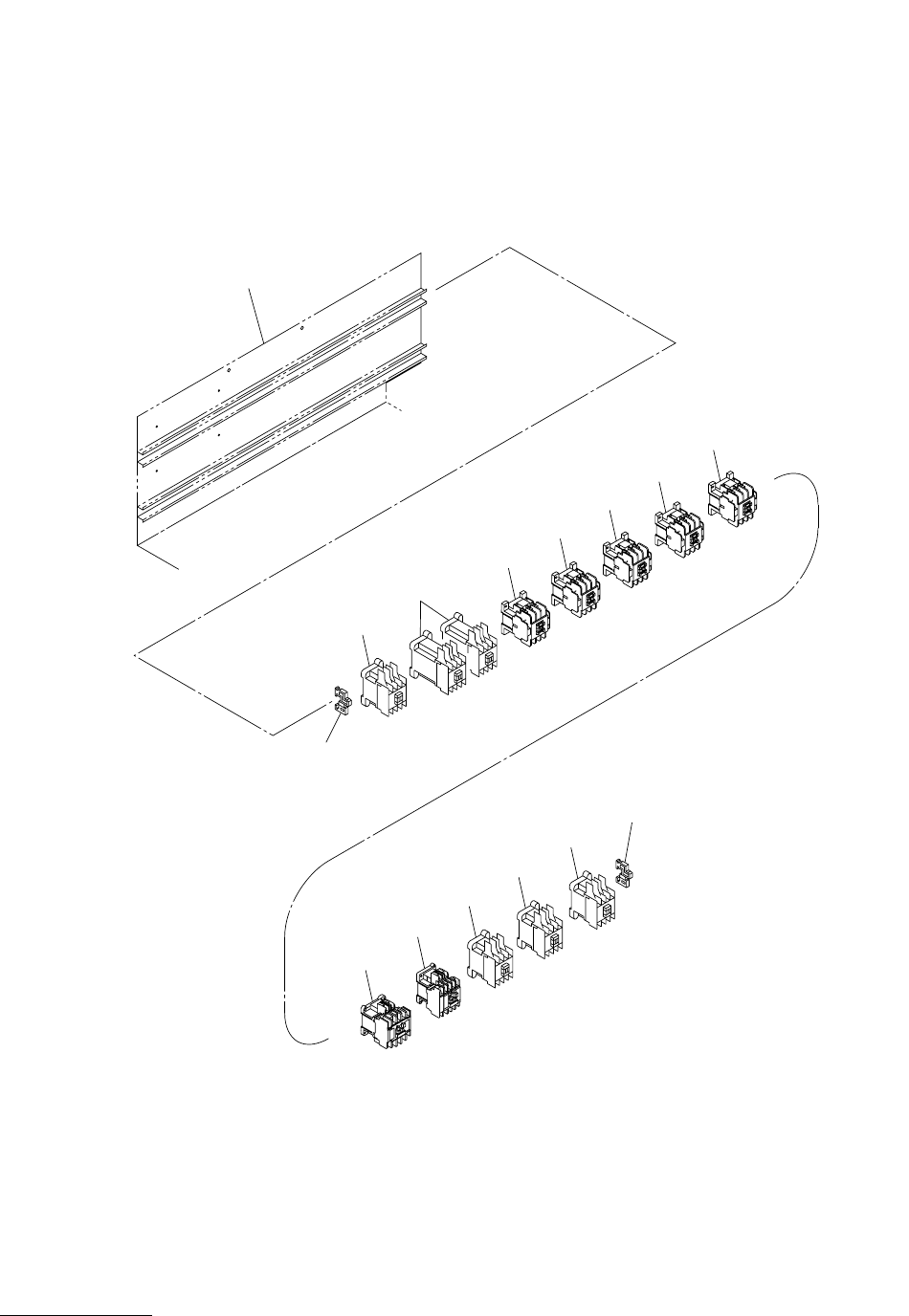

Fig. RC-2 200V 㔚Ḯ㧞 200V Power Supply 2
155
154
166
.
166
.
166
.
153
166
.
157
151
155
166
.
151
166
.
151
166
.
151
Fig.RC-2
4797L-002
TCM-X200-003
TCM-X300-002
TCM-X100-002
4797A-003
162
166
.
162
166
.
162
166
.
166
.
159
166
.
160
See Fig.RC-1
Key No.61
MODEL TCM-X200
0211-003
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
241
RC-2
151 630 116 5738 EM-CONTACTOR 4 KM11,KM12,KM13,KM14
696RC-110-151
153 630 053 8588 EM-CONTACTOR 1 KM5 696RC-110-153
154 630 049 2200 EM-CONTACTOR 2 KM6,KM7 696RC-110-154
155 630 049 3672 BRACKET,WIRING 2 696RC-110-155
157 630 116 5738 EM-CONTACTOR 1 KM10 696RC-110-157
159 630 116 5721 EM-CONTACTOR 1 KM15 696RC-110-159
160 630 116 5714 EM-CONTACTOR 1 KM16 696RC-110-160
162 630 053 8588 EM-CONTACTOR 3 KM17,KM18,KM19 696RC-110-162
166 630 100 1357 COMP,CR 17 696RC-110-166
