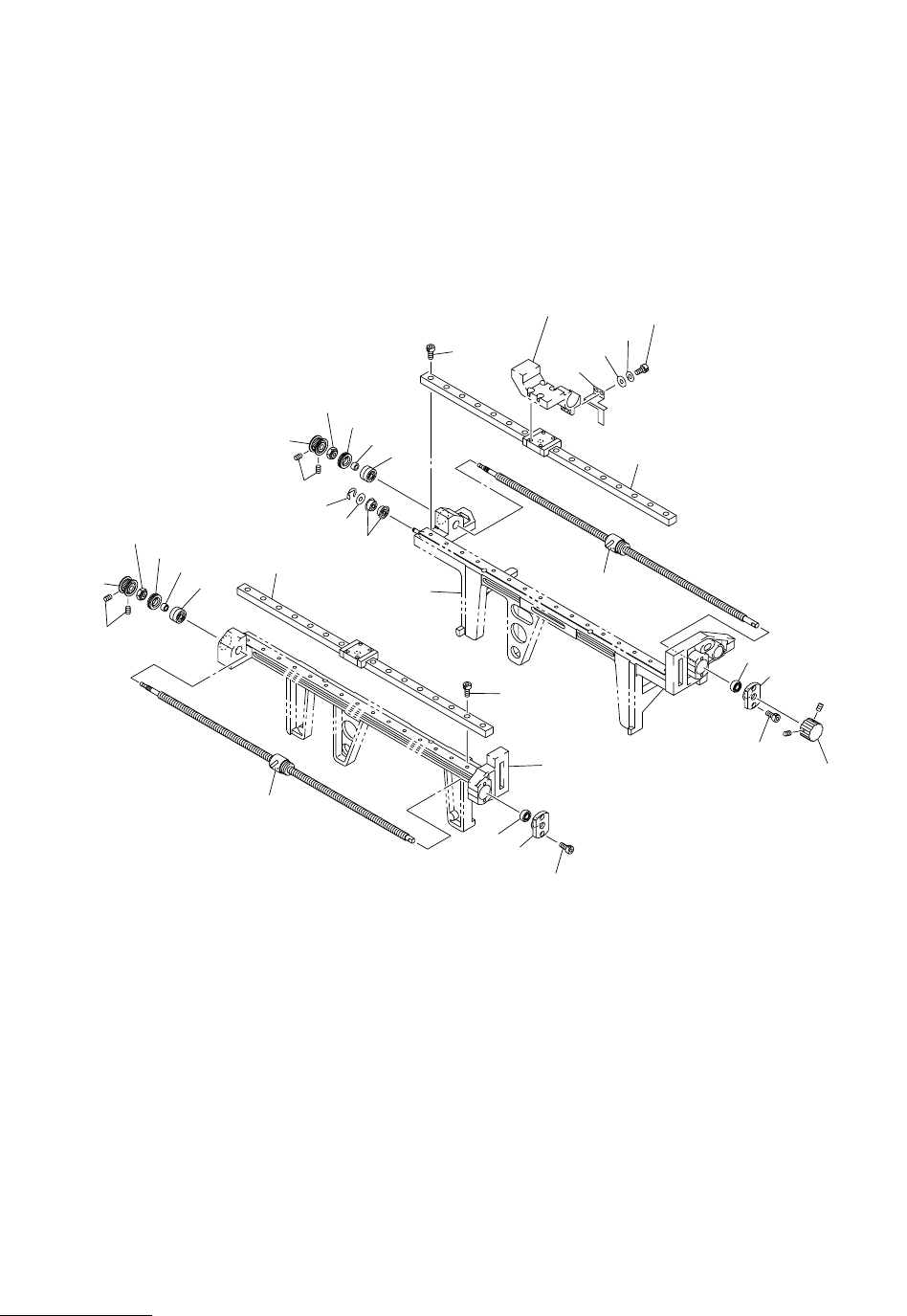

MODEL TCM-X200 0203-002 136 XY ࠹ࡉ࡞ㇱ XY T ABLE SECTION Fig. JD-7 X Y ࠪࡘ࠻ᄌᦝㇱ XY Chute Width Changer 625 622 See Fig.JD-4 Key No.306 See Fig.JD-4 Key No.303 See Fig.JD-4 Key No.307 615 624 609 614 624 636 637 617 616 61 …
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
135
JD-6
501 630 093 5875 BRACKET 1 696JD-110-501
502 630 059 6762 PULLEY,TIMING 1 696JD-110-502
503 630 008 1053 SET SCREW 2 696JD-110-503
504 630 092 9805 ASSY,MOTOR,STEPPING 1 MPM14(CHW),103H6701-0440
696JD-110-504
505 630 093 7015 BELT,TIMING 1 696JD-110-505
506 630 000 7626 BOLT,HEX-SCT 3 696JD-110-506
508 630 000 7756 BOLT,HEX-SCT 2 696JD-110-508
509 411 141 2905 WASHER SPR 4 3 696JD-110-509
510 411 141 6705 WASHER SPR 5 2 696JD-110-510
512 411 141 4107 WASHER V 5X10X1 2 696JD-110-512
514 411 141 5906 WASHER F 4X8X0.8 3 696JD-110-514
515 630 061 1434 SHEET 2 696JD-110-515
MODEL TCM-X200
0203-002
136
XY ࠹ࡉ࡞ㇱ XY TABLE SECTION
Fig. JD-7 XY ࠪࡘ࠻ᄌᦝㇱ XY Chute Width Changer
625
622
See Fig.JD-4
Key No.306
See Fig.JD-4
Key No.303
See Fig.JD-4
Key No.307
615
624
609
614
624
636
637
617
616
611
612
623
622
609
626
626
625
635
623
612
611
616
637
617
632
618
613
633
630
625
Fig.JD-7
TCM-X200-002
4797A-002
MODEL TCM-X200
0203-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
137
JD-7
609 630 093 2560 HOLDER 2 696JD-110-609
611 630 076 3072 RING 2 696JD-110-611
612 630 076 3089 COLLAR 2 696JD-110-612
613 630 093 1792 PLATE 1 696JD-110-613
614 630 059 6779 GRIP 1 696JD-110-614
615 630 085 8655 BALL SCREW 1 696JD-110-615
616 630 059 6809 NUT 2 696JD-110-616
617 630 059 6755 PULLEY,TIMING 2 696JD-110-617
618 630 093 7008 BEARING,RADIAL 2 696JD-110-618
622 630 085 8679 GUIDE,LINEAR 2 696JD-110-622
623 630 071 0359 BEARING,RADIAL 2 696JD-110-623
624 630 007 1719 BEARING,RADIAL 2 696JD-110-624
625 630 000 7503 BOLT,HEX-SCT 34 696JD-110-625
626 630 000 7510 BOLT,HEX-SCT 4 696JD-110-626
630 411 141 2806 WASHER SPR 3 2 696JD-110-630
632 411 141 5906 WASHER F 4X8X0.8 1 696JD-110-632
633 411 141 3902 WASHER V 3X7X0.5 2 696JD-110-633
635 411 001 0201 RING E 5 1 696JD-110-635
636 630 093 5905 BALL SCREW 1 696JD-110-636
637 630 094 3528 SET SCREW 4 696JD-110-637
