SAFETY FEATURES
HIGH VOLTAGE PROTECTION
Chapter Issue 6, Jun 18 Technical Reference Manual 2.11
HIGH VOLTAGE PROTECTION
Access Where incoming supply voltages are present, protection is afforded by
controlling access to the enclosures that house the supply. The machine is
fitted with a mains isolator switch that cuts power to all circuits located beyond
the switch.
Hazard Warning
Labels
Hazard warning labels are placed on the outside of enclosures where
dangerous voltage (100V-240V) terminations are present within.

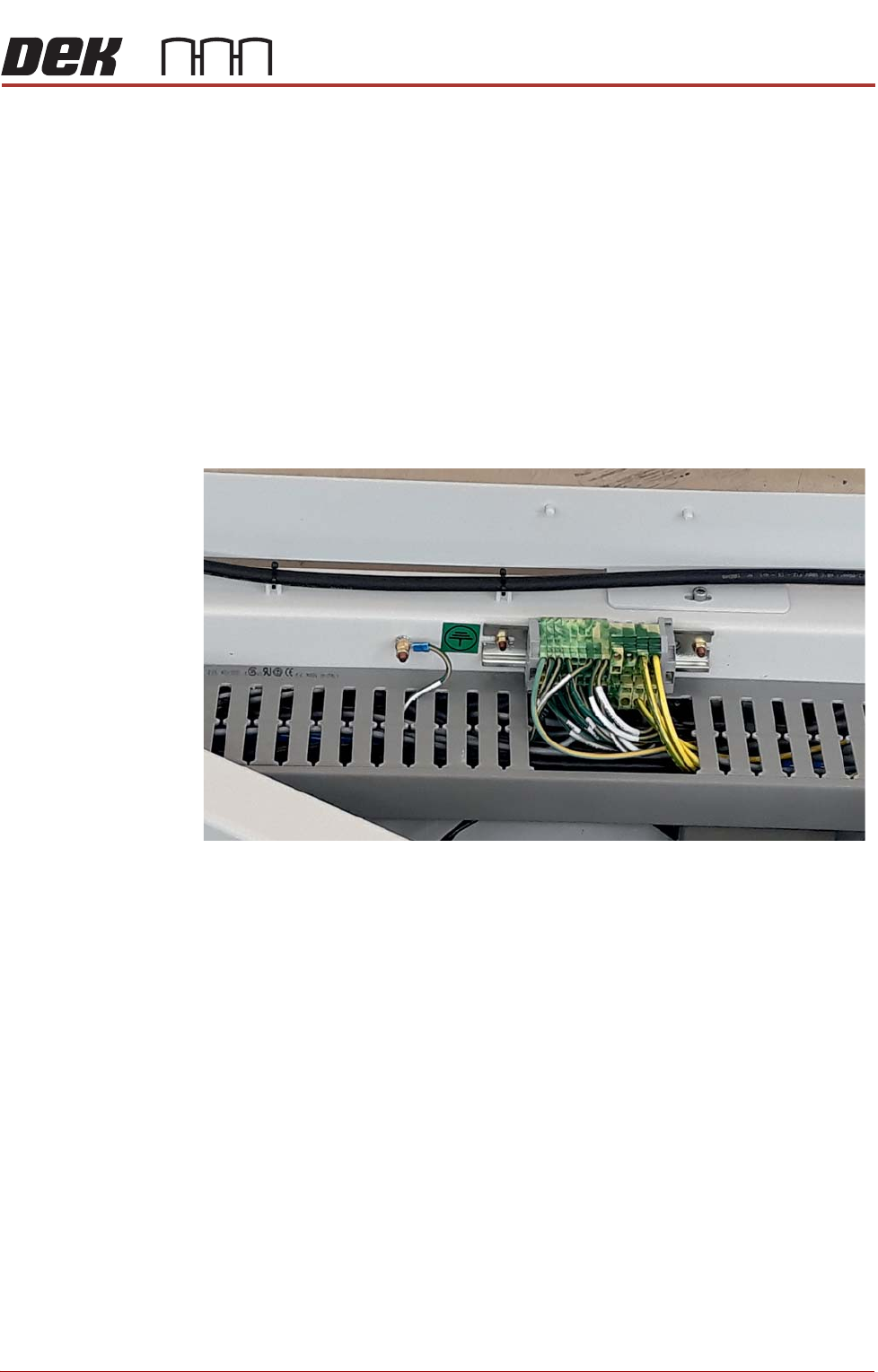

Earth Bonding All external metal surfaces are mechanically and electrically bonded to the
printer’s earth point. The bonding wire used is identified by its green and
yellow insulation and is commonly used to earth bond throughout. Care should
be taken when removing these links that when they are replaced they are
secured tightly and cleanly.
SAFETY FEATURES
HIGH VOLTAGE PROTECTION
2.12 Technical Reference Manual Chapter Issue 6, Jun 18

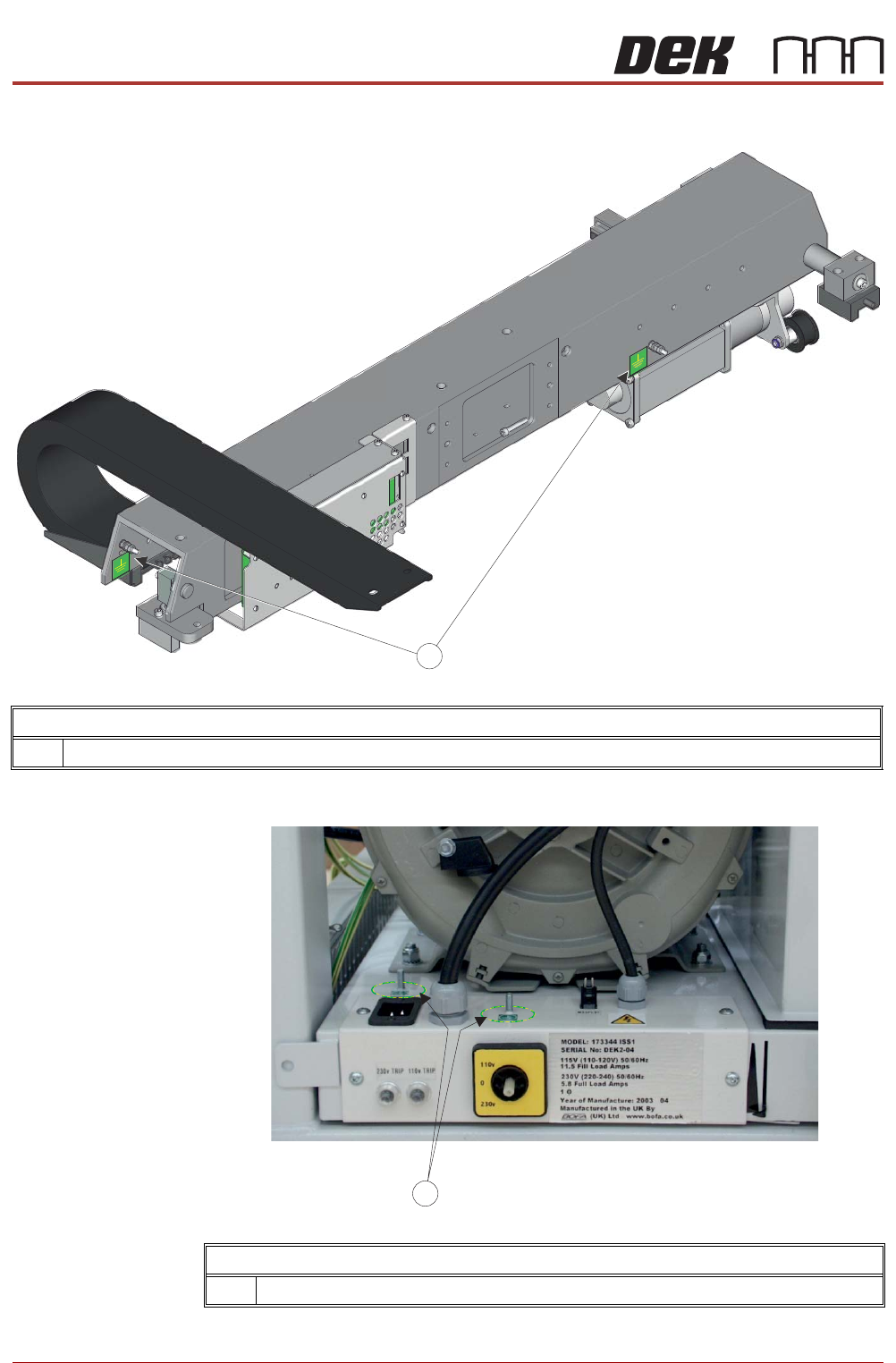

Earth Studs and Labels on the Print Carriage
1 Earth Studs and Labels
Earth Studs and Labels on the Vacuum Pump
1 Earth Studs and Labels
SAFETY FEATURES
HIGH VOLTAGE PROTECTION
Chapter Issue 6, Jun 18 Technical Reference Manual 2.13

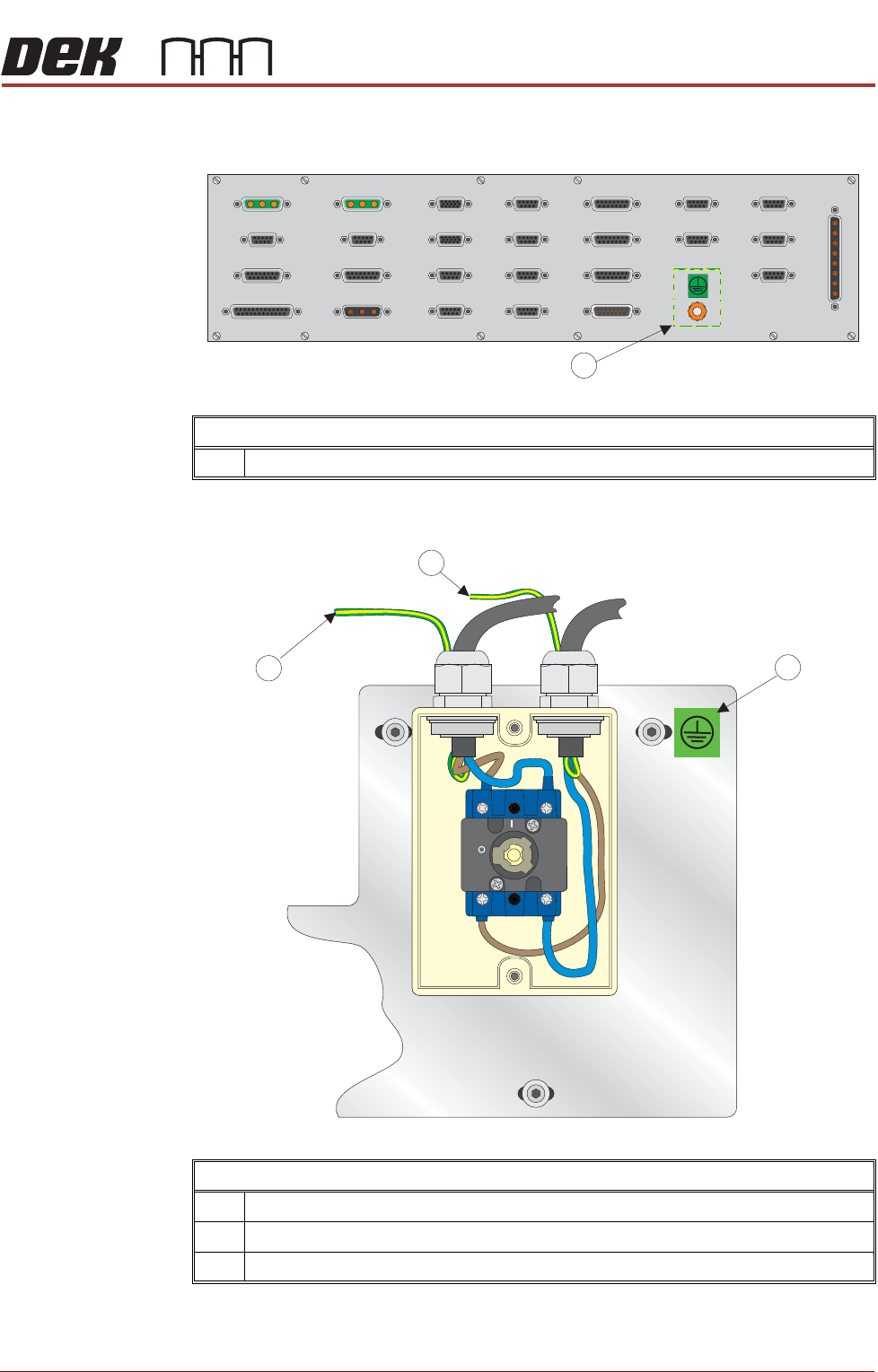

Typical Module Earth Stud and Label
1 Earth Studs and Labels
Mains Isolator (cover removed) Showing Earth Loom Arrangement
1 Earth lead (Green/Yellow) to printer’s earth bonding point (M5 Stud)
2 Earth Label
4 Earth lead (Green/Yellow) to printer’s earth bonding point (M6 Stud)
