SA FETY FEA TU RES MACHINE SAFETY FEATURES Ch apte r Is sue 6, Jun 18 Tech ni cal Ref erenc e Manual 2.3 Cau tion Noti ces Cau tion not ice s draw the a t tent ion of u sers /m aint ain er s to a pot en tially haz ard ou…
SAFETY FEATURES
MACHINE SAFETY FEATURES
2.2 Technical Reference Manual Chapter Issue 6, Jun 18
injury. The following table displays the warning labels affixed to the machine
and/or displayed in the machine documentation:
Symbol Definition
WARNING
BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN
WORKING IN THE TOOLING AREA OF THE MACHINE TO AVOID
INJURY. THE FOILS ON THE FRONT AND REAR BOARD CLAMPS
ARE VERY SHARP.
WARNING
MOVING PARTS. MOVING PARTS ARE PRESENT IN THE VICINITY
OF THIS WARNING LABEL, THESE PARTS HAVE THE POTENTIAL
TO CAUSE INJURY.
WARNING
FLAMMABLE. FLAMMABLE SUBSTANCES ARE PRESENT. KEEP
AWAY FROM HEAT, SOURCES OF IGNITION AND STATIC DIS-
CHARGES. USE IN A WELL VENTILATED AREA.
WARNING
RADIATION. RISK OF INJURY TO THE EYES DUE TO LASER LIGHT
BEING PRESENT IN THE VICINITY OF THE LABEL. DO NOT LOOK
AT THE LIGHT SOURCE OR REFLECTIONS FROM A SURFACE.
WARNING
LETHAL VOLTAGE. DANGEROUS VOLTAGES EXIST IN THIS EQUIP-
MENT. ENSURE ALL ELECTRONIC COVERS AND MAIN MACHINE
COVERS ARE FITTED BEFORE OPERATING THIS EQUIPMENT.
WARNING
HOT SURFACES. THE SURFACE OF THIS COMPONENT OR SUR-
ROUNDING AREA MAY BECOME HOT DURING PROLONGED OPER-
ATION. CARE TO BE TAKEN WHEN WORKING IN THE VICINITY OF
THIS COMPONENT.
WARNING
STRONG MAGNET FIELD. A STRONG MAGNETIC FIELD EXISTS IN
THE VICINITY OF THE CAMERA LINEAR MOTORS. THIS MAY PRES-
ENT A HAZARD TO PERSONNEL OR EQUIPMENT.
SAFETY FEATURES
MACHINE SAFETY FEATURES
Chapter Issue 6, Jun 18 Technical Reference Manual 2.3
Caution Notices Caution notices draw the attention of users/maintainers to a potentially
hazardous situation which, if not avoided may result in minor or moderate
injury. The following table displays the caution labels affixed to the machine
and/or displayed in the machine documentation:
WARNING
COMPRESSED AIR. COMPRESSED AIR SHOULD NEVER IMPINGE
UPON THE BODY. PORTS, PIPES, ETC MUST NEVER BE BLOCKED
BY HAND. BEFORE CONNECTING OR DISCONNECTING ANY
PNEUMATIC COMPONENTS, ENSURE THE COMPRESSED AIR
SUPPLY HAS BEEN DISSIPATED AND DISCONNECTED FROM THE
MACHINE.
WARNING
E STOP CIRCUIT. THE E STOP CIRCUIT FITTED TO THE MACHINE
ONLY ISOLATES THE 24V AND 42V SUPPLIES TO THE MAIN CON-
TACTORS. LETHAL VOLTAGES ARE STILL PRESENT WITHIN THE
MACHINE AFTER THE E STOP HAS BEEN ACTIVATED.
WARNING
HARMFUL SUBSTANCES. CLEANING WIPES AND CLEANING
SOLUTIONS MAY CONTAIN SUBSTANCES HAZARDOUS TO
HEALTH. OBSERVE ALL MANUFACTURERS’ HEALTH AND SAFETY
GUIDELINES. ALWAYS WEAR APPROVED PROTECTIVE CLOTHING
WHEN CLEANING THE MACHINE.
WARNING
MACHINE LIFTING. TO PREVENT SERIOUS INJURY TO PERSON-
NEL, DURING LIFTING AND TRANSPORTATION OPERATIONS,
ENSURE THE MACHINE IS LIFTED AND TRANSPORTED IN ACCOR-
DANCE WITH INSTRUCTIONS DETAILED IN THIS SECTION.
WARNING
SOLVENT SPRAY. THE UNDERSCREEN CLEANER SPRAYS A FINE
JET OF SOLVENT SOLUTION ON TO THE CLEANER. APPROVED
PROTECTIVE CLOTHING SHOULD BE WORN.
Symbol Definition
Symbol Definition
CAUTION
RECOMMENDED SOLVENTS. ANY SOLVENTS USED MUST COM-
PLY WITH LOCAL ENVIRONMENTAL GUIDELINES. ASM RECOM-
MEND USING SOLVENTS THAT ARE ENVIRONMENTALLY
FRIENDLY, IE CFC FREE AND WATER BASED. SOLVENTS USED
MUST HAVE FAST EVAPORATION RATES AND FLASHPOINT SPEC-
IFICATIONS GREATER THAN 39ºC.
CAUTION
SOLDER PASTE AND SOLVENTS. WHEN USING OR HANDLING ANY
SOLDER PASTE OR SOLVENT FORMULATION THE MANUFACTUR-
ERS’ RECOMMENDED SAFETY PRECAUTIONS MUST BE STRICTLY
ADHERED TO.
SAFETY FEATURES
MACHINE SAFETY FEATURES
2.4 Technical Reference Manual Chapter Issue 6, Jun 18

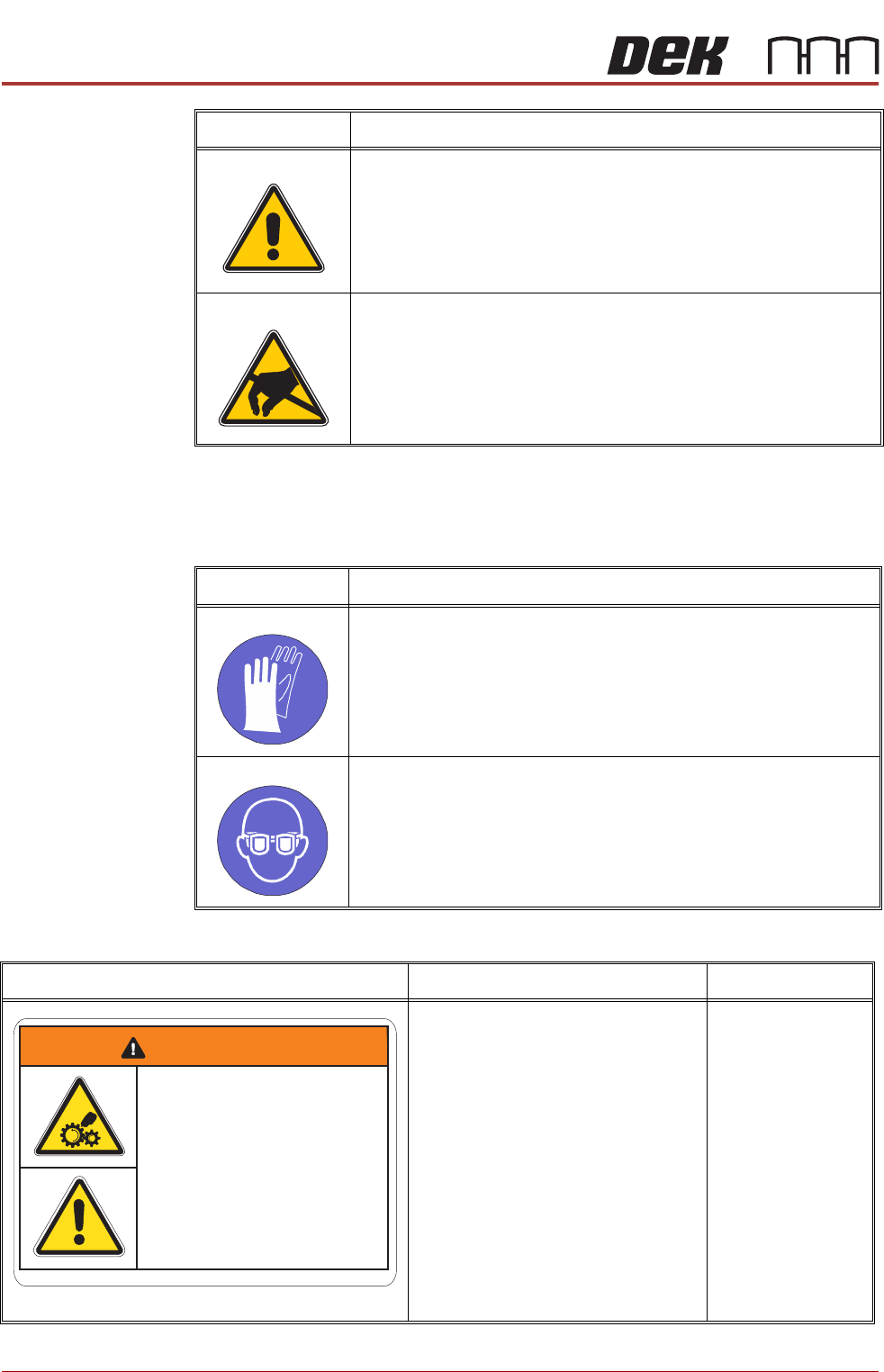

Mandatory Notices Mandatory notices draw the attention of users/maintainers to the prescribed
behaviour to be adhered whilst engaged in this activity. The following table
displays the mandatory labels affixed to the machine and displayed in the
machine documentation:
SEMI Labelling The following table displays the SEMI labelling applied to the machine:
CAUTION
SOLVENT SOLUTION. DO NOT MIX SOLVENT SOLUTIONS. FLUSH
THE SOLVENT TANK THOROUGHLY WHEN CHANGING TO A DIF-
FERENT SOLVENT SOLUTION.
CAUTION
ANTI- STATIC HANDLING. STANDARD PRECAUTIONS MUST BE
ADHERED TO WHEN HANDLING ELECTRONIC CARDS AND CON-
FIGURING AND INSERTING INTO THE ENCLOSURES.
Symbol Definition
Symbol Definition
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE
WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE
WORN.
Warning Definition Location
MOVING MECHANICAL PARTS
Removing this cover exposes moving
mechanical parts that have the potential
to cause serious injury. Disconnect and
lock out the system power before
removing this cover. Refer to the Lock-
out procedure at the end of this chapter.
GENERAL WARNING
Refer to the Operator manual or the
front of this chapter for a list of all warn-
ings and their definitions.
Left Hand Upper
Side Panel
WARNING
Moving Mechanical PartsMoving Mechanical Parts
Removing covers could result
in serious injury
Removing
covers could result
in
serious injury
Disconnect and lock out system power
before servicing refer to the
Technical Reference manual
Disconnect
and lock out system power
before
servicing refer to the
Technical
Reference manual
