6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
260
6.1.1.4 Assembly
In E by SIPLACE machines, the nozzle changers are installed on the machine frame.
6

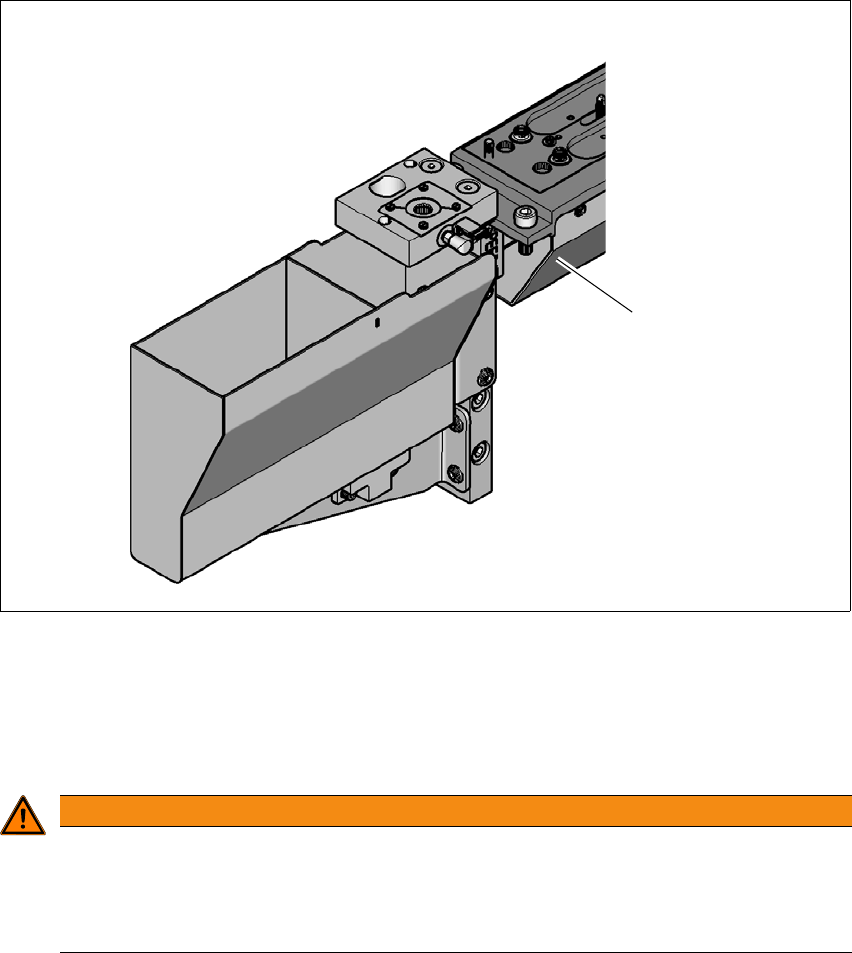

Fig. 6.1 - 4 Assembly position
(1) Sloping side points towards the changeover table COT insert
Align the nozzle changer so that the sloping side points towards the changeover table COT
insert.
6
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
(1)
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.1 Nozzle changer
261
6.1.1.5 Notes on operation
When you fill a magazine with a certain nozzle type for the first time, attach an adhesive label
to identify the type.
6
Open the locking plate and place the nozzles in the nozzle holders.
Close the locking plate so that the nozzles cannot drop out of the magazines.
6
6
Programming the nozzle changer is described in the SIPLACE Pro user manual.
6.1.1.6 Changing the magazine
Press the lever (item 1 in fig. 6.1 - 5, page 262), to release the magazine from the balls of the
snap fasteners (item 5 in fig. 6.1 - 5, page 262
). Lift the magazine off the base.
6
PLEASE NOTE
Fill the magazines off the machine and always replace complete magazines.
CAUTION
Filling up magazines!
Before you fill magazines, make sure that all the nozzles on the SIPLACE CP14 have
been returned to their magazines.
PLEASE NOTE
Risk of jamming!
If components fall onto magazines, there is a risk that the locking plate could jam.
Do not allow components to drop onto the magazines.
You should therefore regularly clean the magazines and free locations.
WARNING
Risk of head crashes with protruding lever
Any lever that is protruding over the magazine (item 1 in fig 6.1 - 5) can result in a head
crash.
You should therefore make sure that the lever does not protrude over the magazines.
6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
262
6
Fig. 6.1 - 5 Nozzle changer for the SIPLACE CP14 - changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) Spring pin (3 x) for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Magazin
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 5, page 262).
(1)
(3)
(4)
(5)
(7)
(6)
(2)
