User manual E by SIPLACE 6 Station extensions From software version SC 712.1 Edition 05/2019 6.1 Nozzle change r 277 Place the ma gazine on the snap fastener ba lls (item 5 in fig. 6.1 - 5 , page 262 ). Press the mag…
6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
276
6

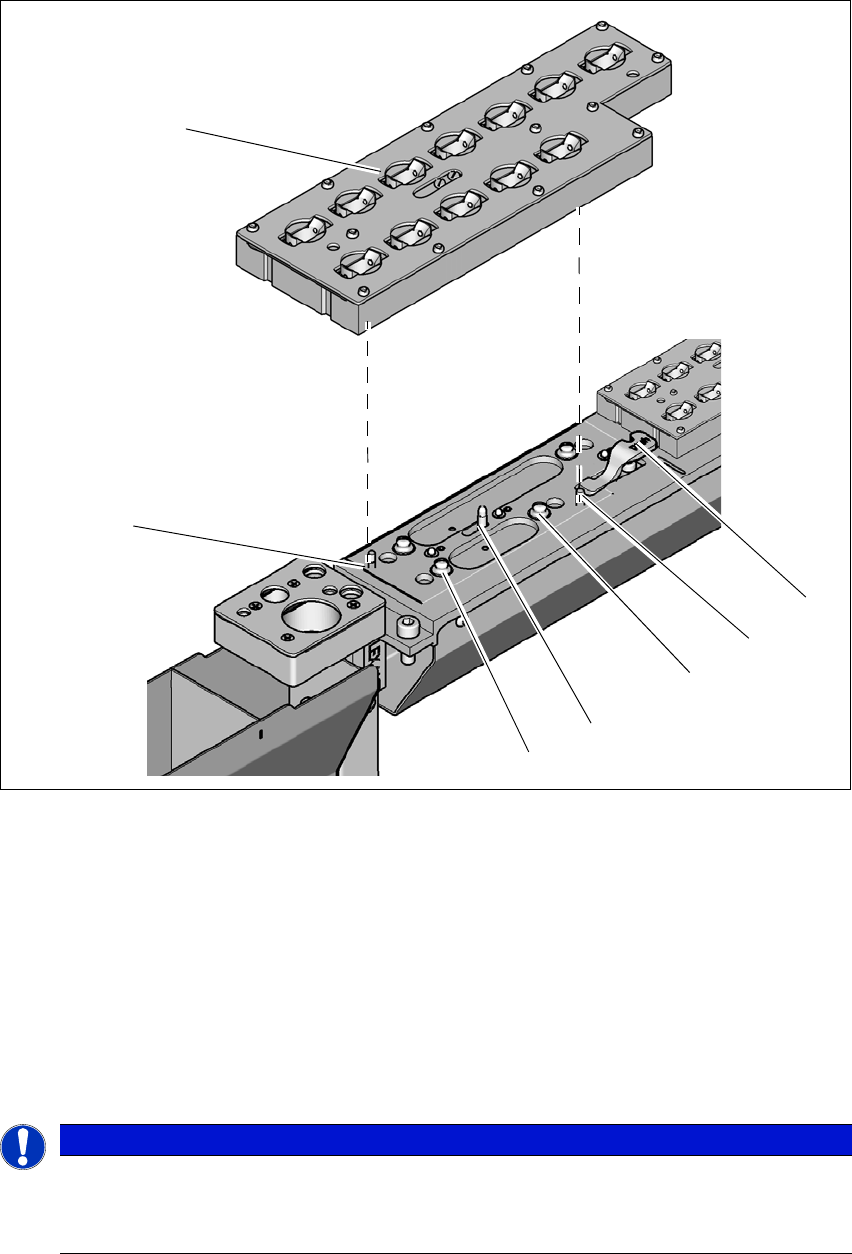

Fig. 6.1 - 14 Nozzle changer for the SIPLACE CP12 - changing the magazine
(1) Lever for raising the magazine
(2) Parallel pin, engages in the hole in the magazine
(3) Spring pin (3 x) for triggering the microswitch
(4) Pin of the slide mechanism, moves the locking plate
(5) Ball of snap fastener
(6) Parallel pin, engages in the slot in the magazine
(7) Magazin
6
PLEASE NOTE
Move the locking plate into the "Magazine locked" position.
Before inserting, align the magazine so that the centering pins (items 2 and 6 in fig.
6.1 - 5, page 262) slide into the centering holes and slot.
(1)
(3)
(4)
(5)
(7)
(6)
(2)
User manual E by SIPLACE 6 Station extensions
From software version SC 712.1 Edition 05/2019 6.1 Nozzle changer
277
Place the magazine on the snap fastener balls (item 5 in fig. 6.1 - 5, page 262).
Press the magazine down evenly so that the snap fastener balls engage in all the snap fas-
teners at the same time.
6 Station extensions User manual E by SIPLACE
6.1 Nozzle changer From software version SC 712.1 Edition 05/2019
278
6.1.4 Nozzle changer for the SIPLACE CP6
Item no. 03113131-xx Nozzle changer E by SIPLACE, CP6, location 1
Item no. 03113126--xx Nozzle changer E by SIPLACE, CP6, location 2
Item no. 03105864-xx Magazine for 1 x 12 nozzles for nozzle type 39xx
Item no. 03106048-xx Magazine for 1 x 6 nozzles for nozzle type 38xx
6
Fig. 6.1 - 15 Nozzle changer for the SIPLACE CP6
(1) Nozzle changer magazin (38xx)
(2) Nozzle changer
(3) Component reject bin
(2)
(3)
(1)
