5OM-1604-002_w.pdf - 第55页
5OM-1604 1-2 气路图及实际贴装图 13 1 1 12 12 13 13 1 1 1 1 2 1 12 12 22 2-7 2-1 2-6 2 1 1 2-2 2-3 2-4 1 1 19 16 16 20 17 15 7 6 1 19 19 19 Nozzle Stocker (1) Positioning (2) Feeder Base (2) Cart Collective Connector Multi Layer T…
5OM-1604
1-1
气路图及实际贴装图
1011-002-

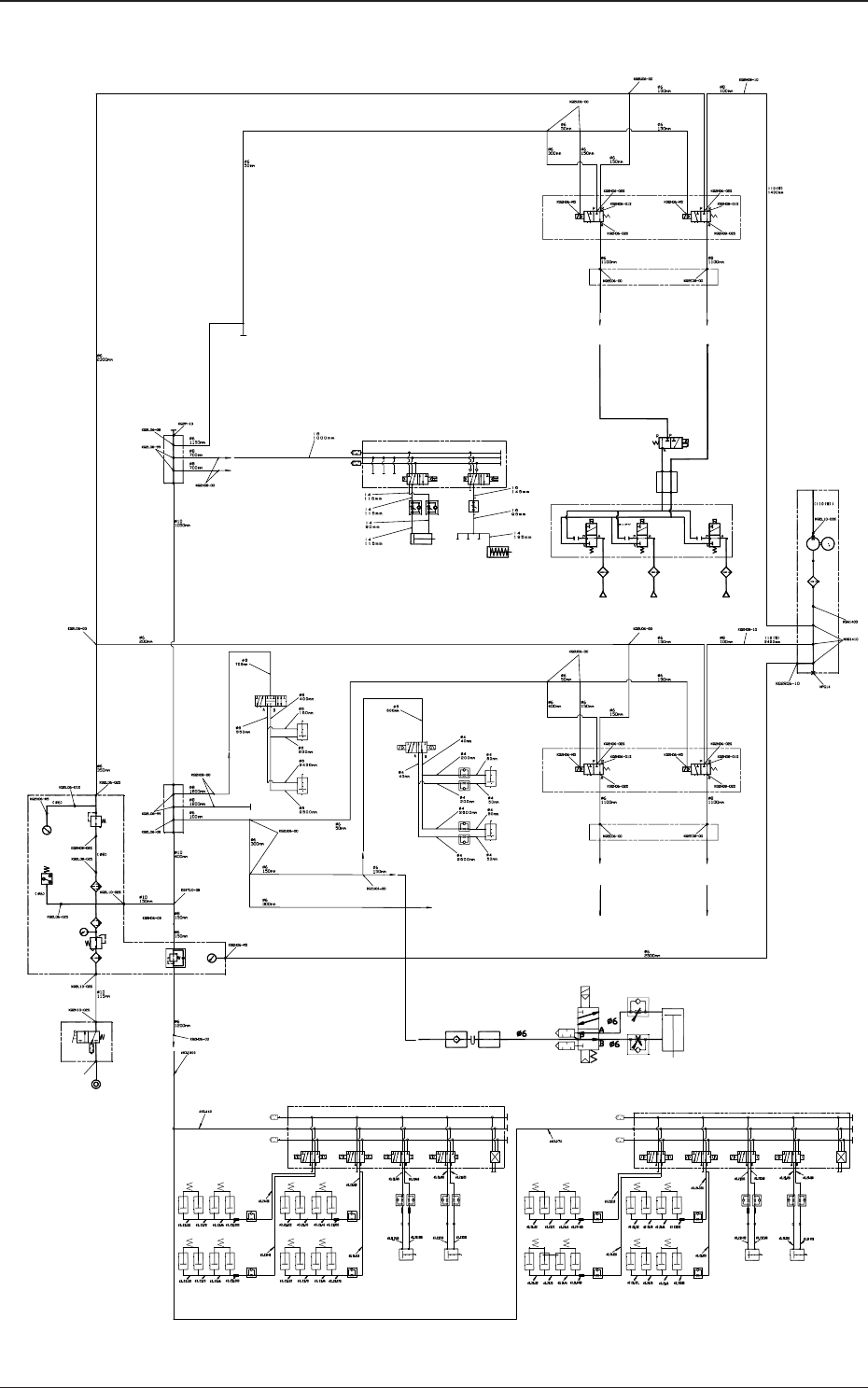

装置整体 ( 气路图 )
Feeder Clamp 2 Open / Close
Positioning U/D (2)
Positioning Unit
Lowering Prevention (2)
Multi Layer Tray Feeder (2)
Beam Relay Panel
Right Side
Cylinder
Left Side Cylinder
Stocker 1 U/D
Shutter 1 Open / Close
Head (1)
Nozzle1 Nozzle2 Nozzle15
Stocker 2 U/D
Shutter 2 Open / Close
Head (2) Head (2)
Beam Relay Panel
Right Side
Cylinder
Left Side
Cylinder
Exhaust
Setup
0.05MPa
Setup
0.35MPa
Setup
0.45MPa
Setup
0.4MPa
PCB Stopper AL
Dual Transfer Conveyor
robot Cable robot Cable
robot Cable robot Cable
Movable Chute 1Z Clamp R
Movable Chute 3Z Clamp R
Movable Chute 2Z Clamp R
Fixed Chute Z Clamp R
PCB Stopper BL
PCB Stopper AR PCB Stopper BR
Movable Chute 1Z Clamp L
Movable Chute 3Z Clamp L
Movable Chute 2Z Clamp L
Fixed Chute Z Clamp L
Hose Nipple
5OM-1604
1-2
气路图及实际贴装图
13
1 1
12
12
13
13
1 1
1 1
2 1
12
12
22
2-7
2-1
2-6
2
1 1
2-2
2-3
2-4
1 1
19
16
16
20
17
15
7
6
1
19
19
19
Nozzle Stocker (1)
Positioning (2)
Feeder Base (2)
Cart Collective Connector
Multi Layer Tray Feeder (2)
Transfer
(PCB Z Clamp and PCB Stopper)
Setup
0.05MPa
Hose NippleY
Positioning (2)
Setup
0.35MPa
Setup
0.45MPa
Setup
0.4MPa
Nozzle Stocker (2)
1011-002-(1091301500)
主机 ( 气路图 )
5OM-1604
1-3
气路图及实际贴装图
19 19
18
19 19
18
Beam Relay Panel
Head (1)
Head (1)
Y0938 Air/Vacuum Head Change-Over Valve
Y0939 High-Speed/Multi-Functional Head
Change-Over Valve
Specification 8
Specification 9
Beam Relay Panel
Specification 9
Head (2)
Head (2)
Y0638 Air/Vacuum Head Change-Over Valve
Y0639 High-Speed/Multi-Functional Head
Change-Over Valve
Specification 7
(Blue)
(Blue)
(Blue)
Exhaust
Specification 6
3-1
5
5-15-1
4-14-1
4
3
1011-002-(1091301500)
主机 ( 气路图 )
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Air Supply Unit 1 4 Solenoid Valve Unit 1 15 Straight 1
2 Air Supply Unit 1 4-1 Solenoid Valve 2 16 Straight 4
2-1 Vacuum Gauge 1 5 Solenoid Valve Unit 1 17 Different Straight 1
2-2 Combination Unit 1 5-1 Solenoid Valve 2 18 Different Straight 2
2-3 Pressure Switch 1 6 Manifold Unit 1 19 Union Y 11
2-4 Pressure Gauge 1 7 Manifold Unit 1 20 Different Cheese 1
2-6 Regulator 1 11 Tube
φ
6 1 21 Plug 1
2-7 Regulator 1 12 Tube
φ
8 1 22 Plug 1
3 Vacuum Pump Unit 1 13 Tube
φ
10 1
3-1 Vacuum Pump 1 14 Tube
φ
10BU 1
