5OM-1604 1-20 气路图及实际贴装图 101 1-002-(3091908303) 多功能吸嘴储料器 ( 气路图 ) No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty 1 Tube φ 4 1 2 Solenoid V alve 1 3 Speed Controller 2 4 Cylinder 1 5 Cylinder 1 4 5 2 3 1 Shutter 1 …

100%1 / 215
5OM-1604
1-19
气路图及实际贴装图
1011-002-(2091603G00)
多功能安装头部 ( 实际贴装图 )
NOZZLE1 NOZZLE2 NOZZLE3
7
10
11
12
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
7 Regulater 1
10 Solenoid Valve Unit 3
11 Vacuum Sensor 3
12 Vacuum Filter 3
5OM-1604
1-20
气路图及实际贴装图
1011-002-(3091908303)
多功能吸嘴储料器 ( 气路图 )
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
4 1
2 Solenoid Valve 1
3 Speed Controller 2
4 Cylinder 1
5 Cylinder 1
4
5
2
3
1
Shutter 1 Open / Close
Stocker 1 U/O
From the Inside of Whole Base
5OM-1604
1-21
气路图及实际贴装图
1011-001-(3091908303)

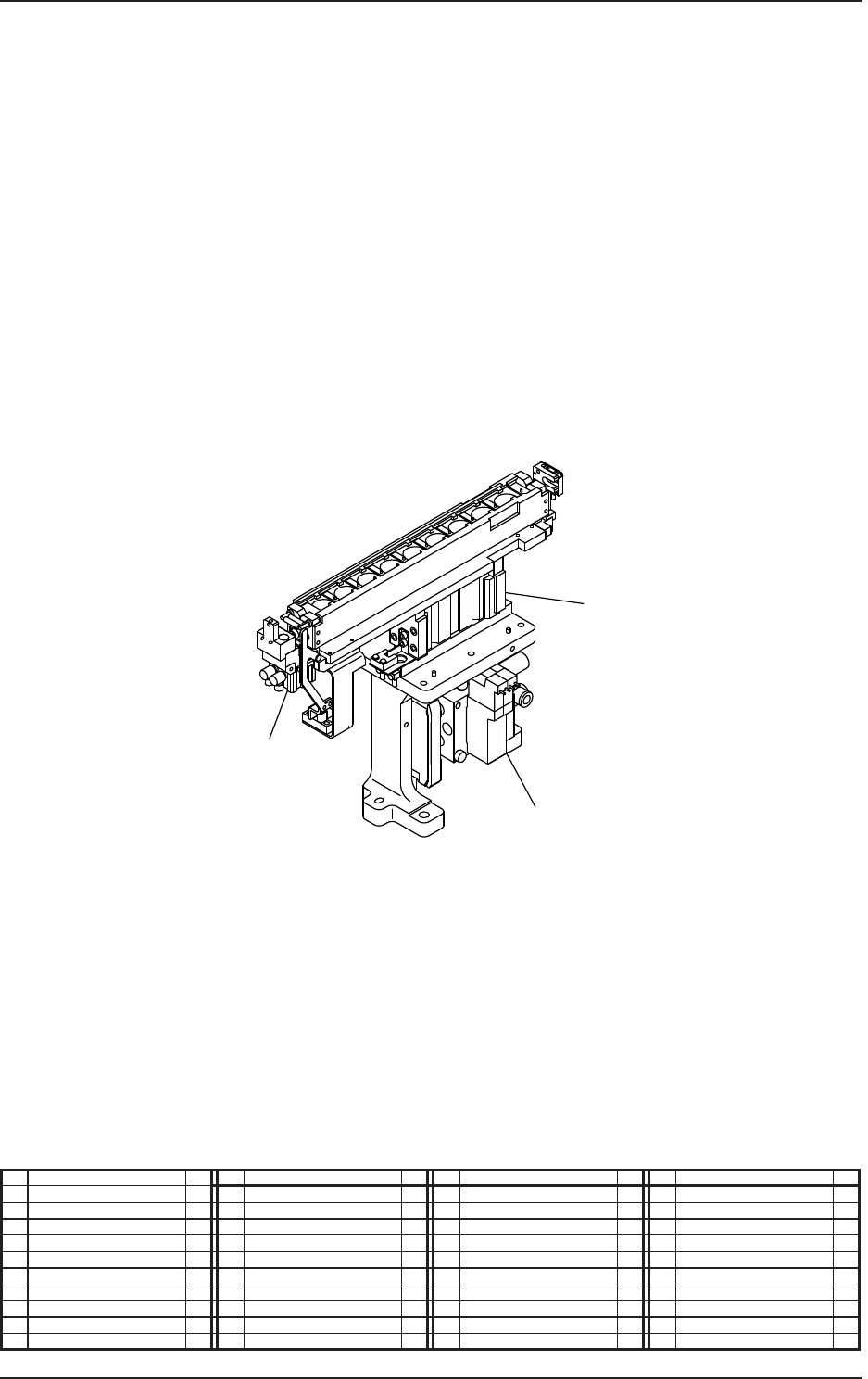

多功能吸嘴储料器 ( 实际贴装图 )
4
2
5
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
2 Solenoid Valve 1
4 Cylinder 1
5 Cylinder 1
