5OM-1604 2-6 传感器及负载配置图 101 1-002 送料器推车布局 Y6908 B6302 M63 B6904,B6906 Cutter Feeder Base Symbol Name Symbol Name M63 Cutter Axis Motor B6302 Cutter Origin (-) Y6908 Feeder Clamp B6904 Feeder Clamp Lower Limit (Clamping) B…
5OM-1604
2-5
传感器及负载配置图
1011-002

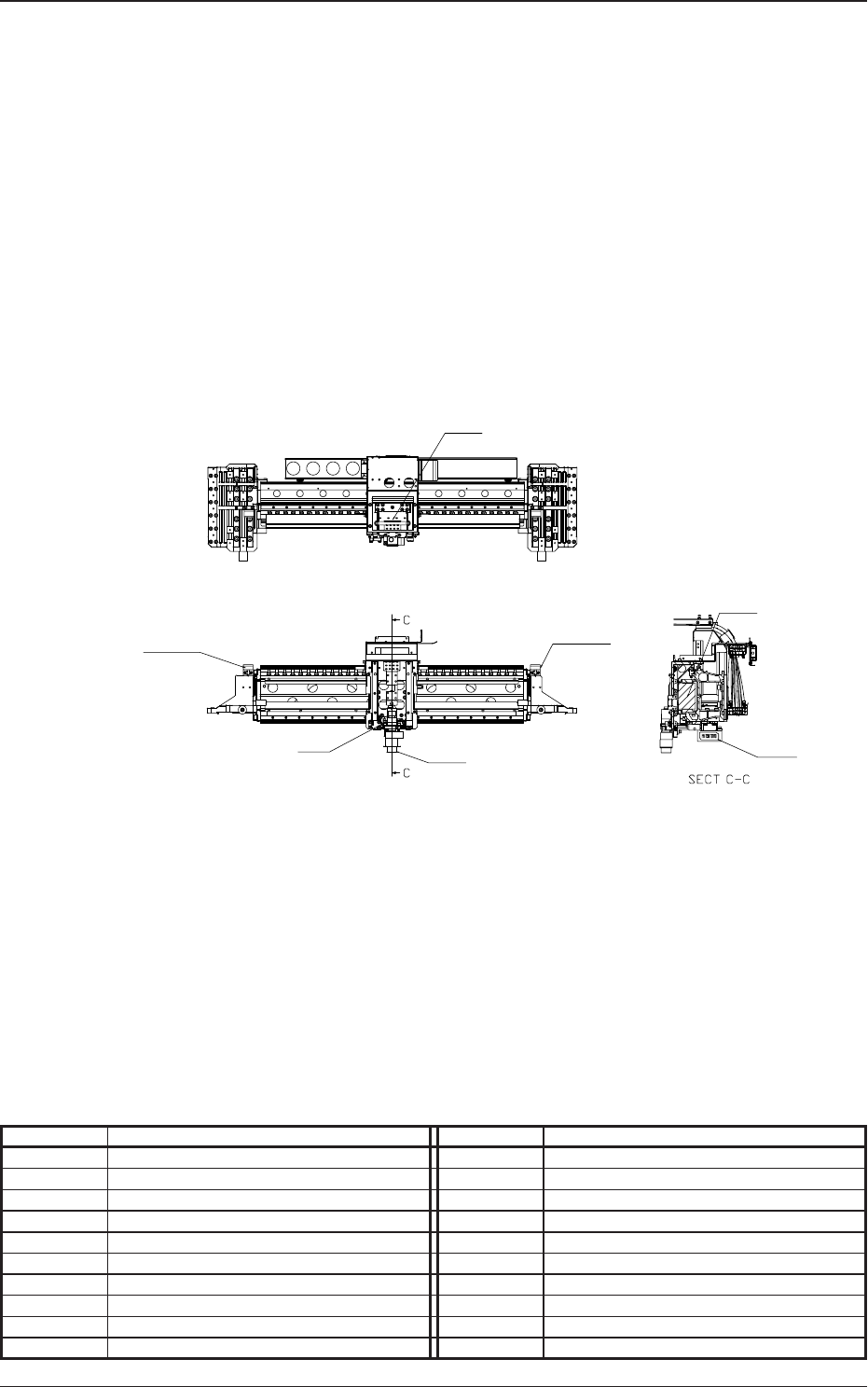

横梁 X 轴布局
U21
B2101
B2102
B36
E39
U21
M21
Symbol Name Symbol Name
M21 X1-Axis Motor
U21 Linear Scale Head (Converter)
B2101 X-Axis Limit (+)
B2102
X-Axis Limit (-)
B36 PEC Recognition Camera
E39 PEC Recognition Lighting
5OM-1604
2-6
传感器及负载配置图
1011-002

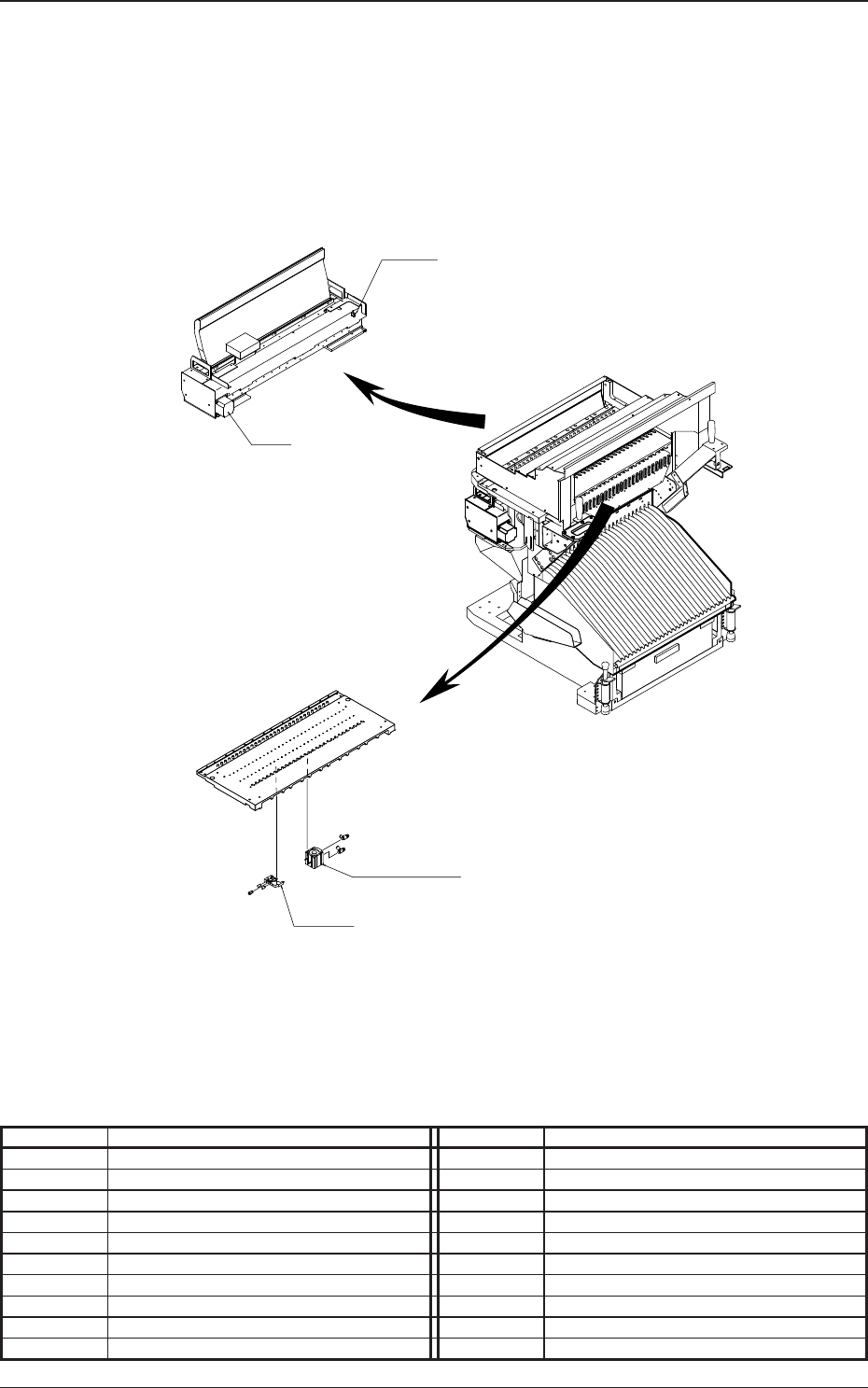

送料器推车布局
Y6908
B6302
M63
B6904,B6906
Cutter
Feeder Base
Symbol Name Symbol Name
M63 Cutter Axis Motor
B6302
Cutter Origin (-)
Y6908 Feeder Clamp
B6904 Feeder Clamp Lower Limit (Clamping)
B6906 Feeder Clamp Upper Limit (Unclamping)
5OM-1604
2-7
传感器及负载配置图
1011-002

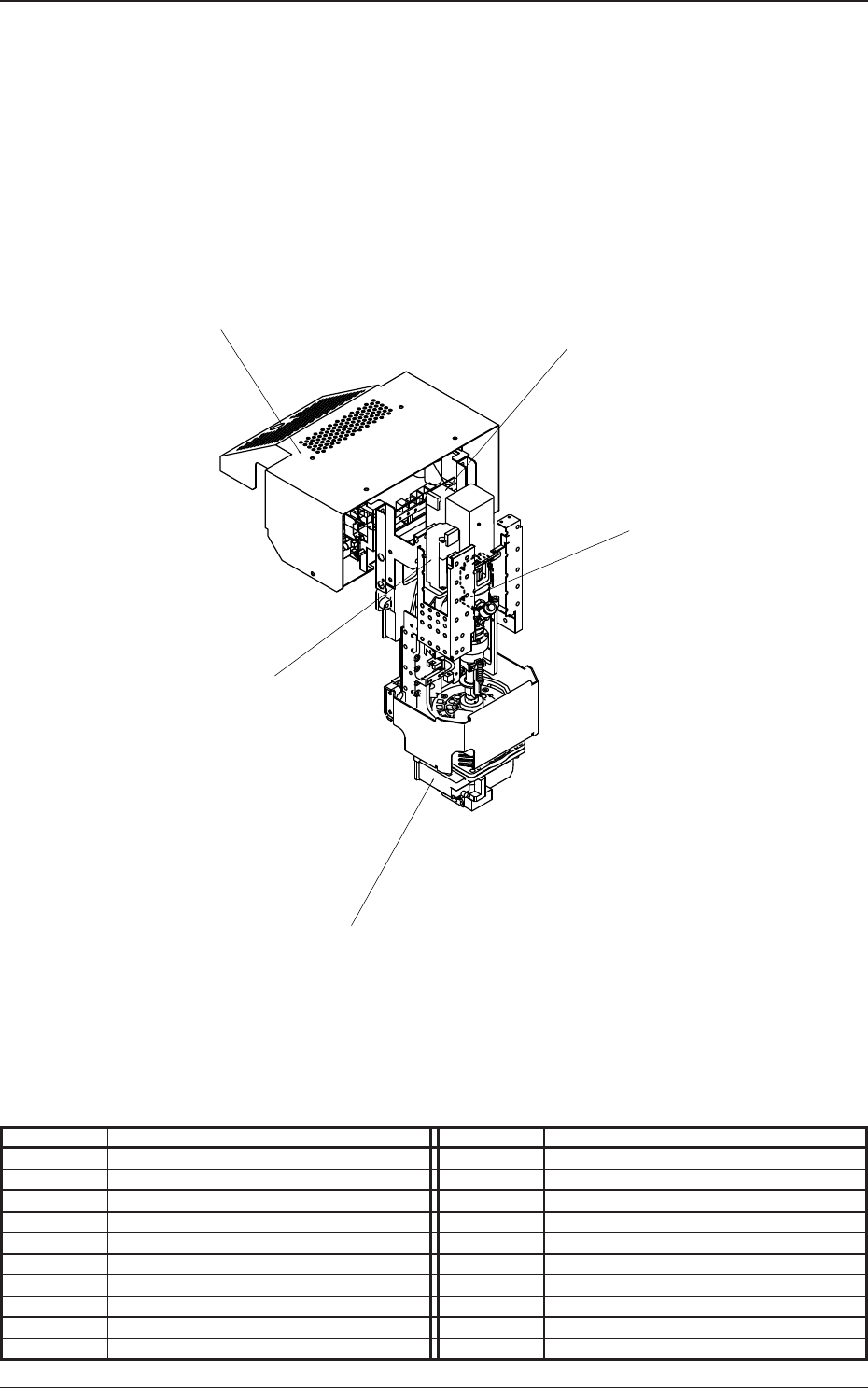

高速安装头部布局 ( 整体 )
Electric Box Inside
Head Rotation Section
Head U/D Section
Nozzle U/D Section
Nozzle Selection Section
Symbol Name Symbol Name
