5OM-1604
2-18
传感器及负载配置图
E194
E191
E193
E192
B61
1002-001

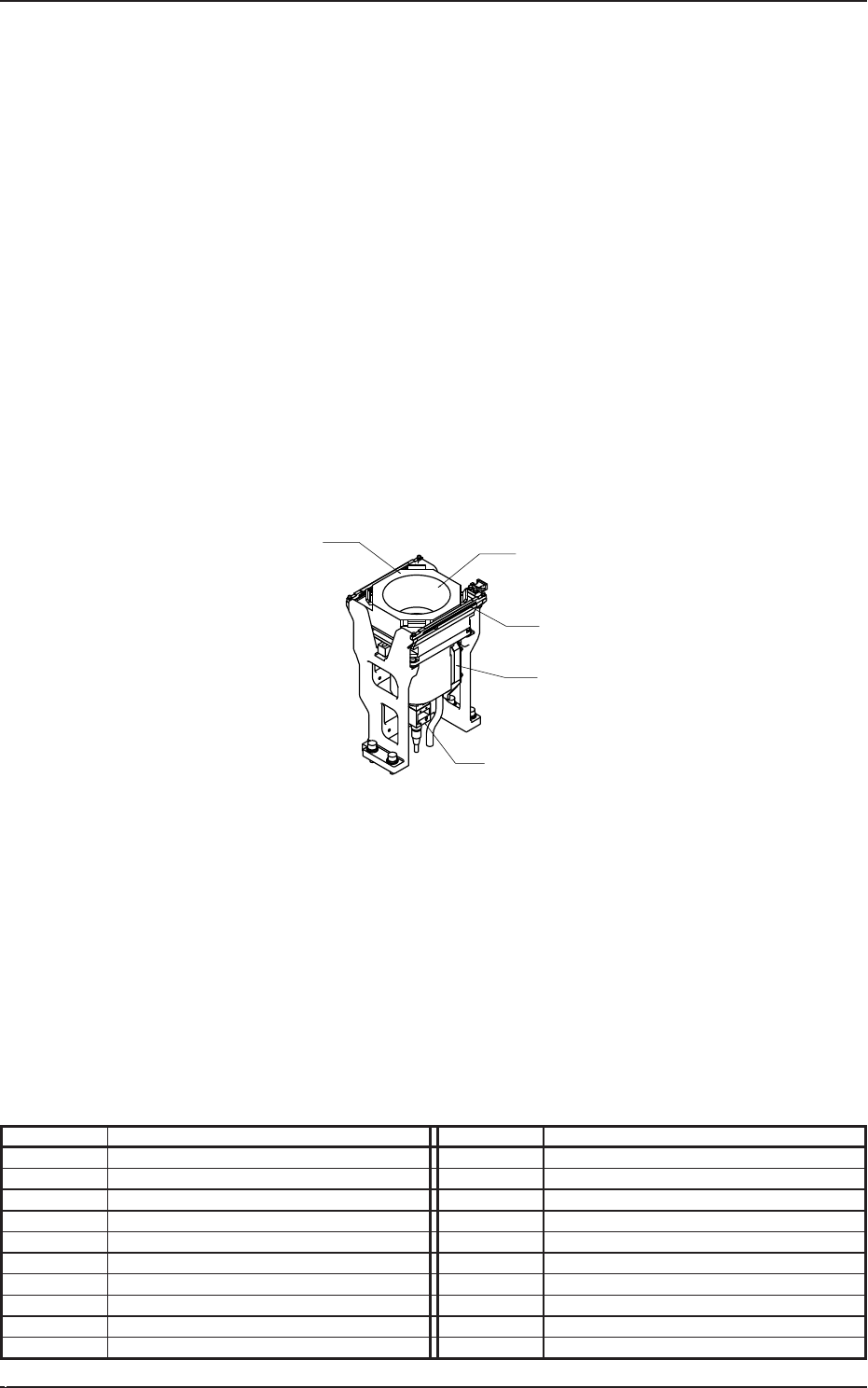

元件识别照相机布局
Symbol Name Symbol Name
B61 Component Recognition Camera
E191 Component Recongnition Ring Lighting
E192 Component Recongnition Coaxial Lighting
E193 Standard Mark Lighting A
E194 Standard Mark Lighting
B
5OM-1604
2-19
传感器及负载配置图
1011-002
定位部布局
Symbol Name Symbol Name
Y0632 Feeder Base 2 Ascending
Y0633 Feeder Base 2 Descending
Y0642 PCB Positioning Unit Drop Prevention Stopper 2
B0515 Pick-up Error Detection (Front)
B0521 Feeder Disengaged Latch Detection (Front)
B0515,0521Amp
Amplier
B0610 Feeder Base 2 Y Direction Positioning Check 1
B0611 Feeder Base 2 Y Direction Positioning Check 2
B0612
Positioning Unit Drop Prevention Lock Check 2 (L)
B0613
Positioning Unit Drop Prevention Lock Check 2 (R)
B0614 Cylinder Upper Limit Detection (Front)
B0615 Cylinder Lower Limit Detection (Front)
B0521
B0515
B0612
Y0632,Y0633
B0614,B0615
B0611
B0613
B0515,0521 Amp
Y0642
B0610
B0521
B0515
5OM-1604
2-20
传感器及负载配置图
1011-002
多功能安装头部布局
Symbol Name Symbol Name
M141 Nozzle Z-Axis Motor B01 L-Axis + Limit
M142 Nozzle L-Axis Motor B02 L-Axis - Limit
Y1719
Vacuum Valve B04 L-Axis Pass Line
Y1718 Vacuum Breaker B05 Excessive Pushing Detection
B07 Vacuum Sensor
Y1719
M142(1L,2L,3L)
M141(1Z,2Z,3Z)
B02
B04
B01
B05
NOZZLE1 NOZZLE2 NOZZLE3
B07
Y1718
