5OM-1604 2-14 传感器及负载配置图 101 1-002 传送带部布局 ( 外侧 :A 轨道 ) Symbol Name Symbol Name M41 NL-LA1 B4101 Lane A Deceleration Sensor (L Flow), M42 NL-LA2 STOP Sensor (R Flow) M43 NA-LA1 B4102 Lane A Stop Sensor A Mounting Section 1…
5OM-1604
2-13
传感器及负载配置图
1002-001
高速吸嘴储料器部布局
B0622
B0922
B0618
B0918
B0620
B0920
Y0636
Y0936
Y0635
Y0935
Upper Stage: Front View
Lower Stage: Rear View
Symbol Name Symbol Name
Y0635 Nozzle Stocker 2 Shutter Open/Close 1 Y0935 Nozzle Stocker 1 Shutter Open/Close 1
Y0636 High-speed Nozzle Stocker 2 Ascending 1 Y0936 High-speed Nozzle Stocker 1 Ascending 1
B0618 High-speed Nozzle Stocker 2 B0918 High-speed Nozzle Stocker 1
Unit Lower Limit Detection 1 Unit Lower Limit Detection 1
B0620 High-speed Nozzle Stocker 2 B0920 High-speed Nozzle Stocker 1
Shutter Close Check 1 Shutter Close Check 1
B0622 High-speed Nozzle Stocker 2 Clamp Check 1 B0922 High-speed Nozzle Stocker 1 Clamp Check 1
5OM-1604
2-14
传感器及负载配置图
1011-002

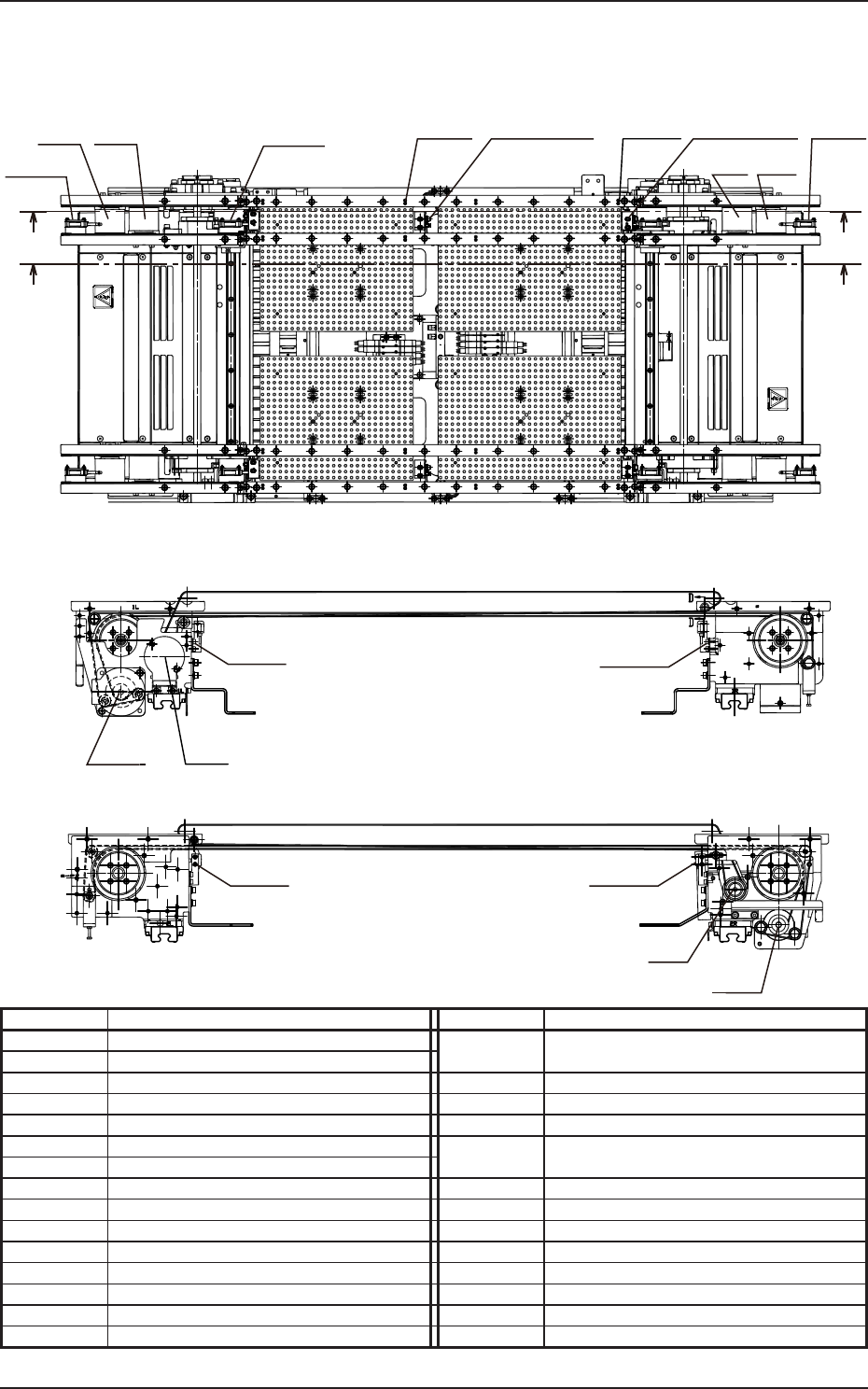

传送带部布局 ( 外侧 :A 轨道 )
Symbol Name Symbol Name
M41 NL-LA1 B4101 Lane A Deceleration Sensor (L Flow),
M42 NL-LA2 STOP Sensor (R Flow)
M43 NA-LA1 B4102 Lane A Stop Sensor A Mounting Section 1
M44 NA-LA2 B4301 Lane A Stop Sensor A Mounting Section 1
M49 NR-LA1 B4401 Lane A Stop Sensor A Mounting Section 2
M50 NR-LA2 B4901 Lane A Stop Sensor (L Flow),
M161 NA Chute Width Changeable (1) Deceleration Sensor (R Flow)
M162 NA Chute Width Changeable (2) B1410 PCB Stopper AL Upper Sensor
B1411 PCB Stopper AL Origin Sensor
B1412 PCB Stopper AR Upper Sensor
B1413 PCB Stopper AR Origin Sensor
B0818
Movable Chute Backup Pin Sensor 1 (Light Reception)
B0818T
Movable Chute Backup Pin Sensor 1 (Light Emission)
B0819
Movable Chute Backup Pin Sensor 2 (Light Reception)
B0819T
Movable Chute Backup Pin Sensor 2 (Light Emission)
VIEW“A”
A
VIEW“B”
B4101
B4102
B4301
B4401
B1410,1411
B1412,1413
M41
M50
M49
B4901
B0819
B0819T
M42
A
B
B
B0818
B0818T
M43
M162
M44
M161
5OM-1604
2-15
传感器及负载配置图
1002-001

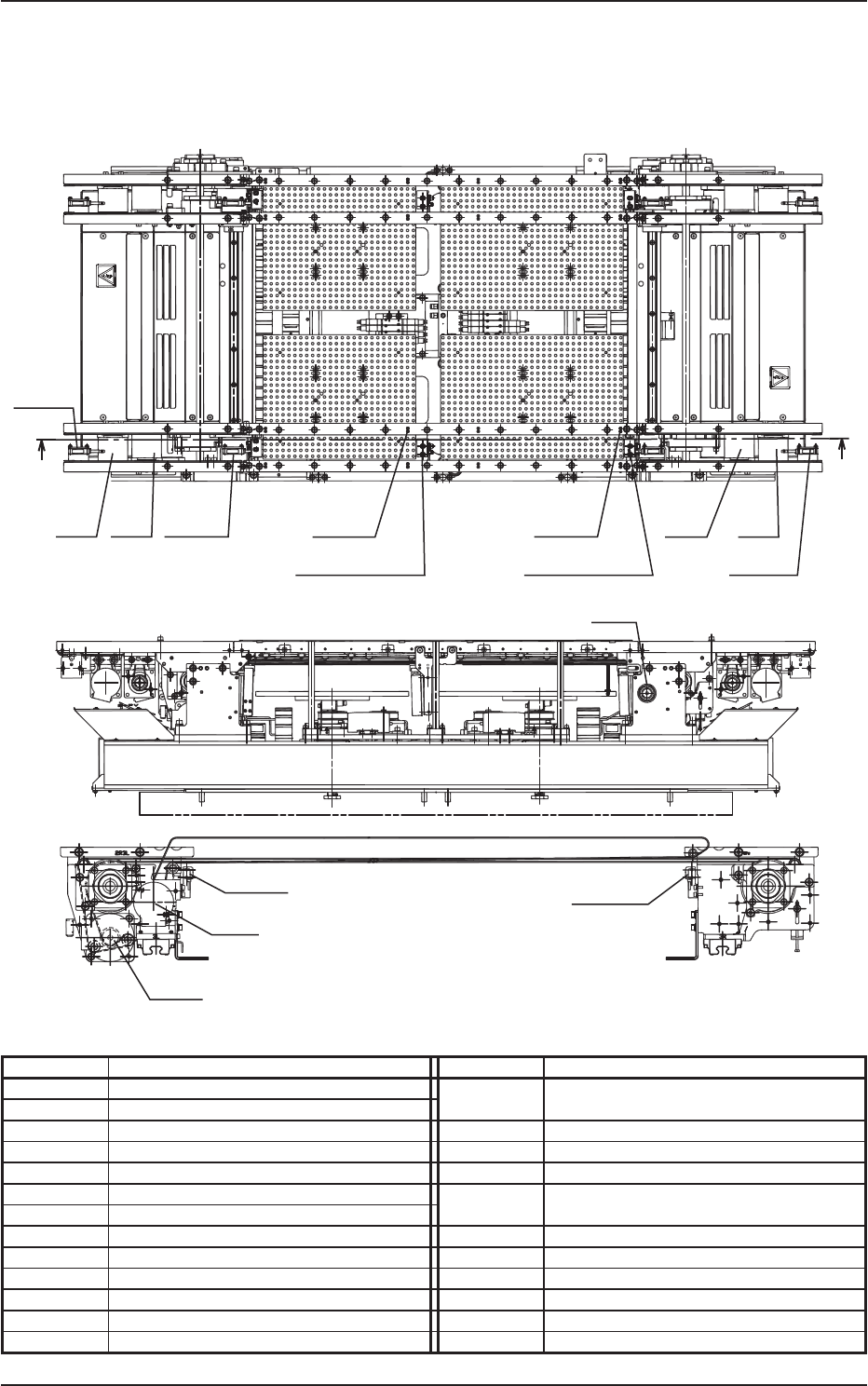

传送带部布局 ( 外侧 :B 轨道 )
Symbol Name Symbol Name
M45 NL-LB1 B4501 Lane B Deceleration Sensor (L Flow),
M46 NL-LB2 STOP Sensor (R Flow)
M47 NA-LB1 B4502 Lane B Stop Sensor Mounting Section 1
M48 NA-LB2 B4701 Lane B Stop Sensor Mounting Section 1
M51 NR-LB1 B4801 Lane B Stop Sensor Mounting Section 2
M52 NR-LB2 B5101 Lane B Stop Sensor (L Flow),
M163 NA Chute Width Changeable (3) Deceleration Sensor (R Flow)
B1414 PCB Stopper BL Upper Sensor
B1415 PCB Stopper BL Origin Sensor
B1416 PCB Stopper BR Upper Sensor
B1417 PCB Stopper BR Origin Sensor
B0820
Movable Chute Backup Pin Sensor 3 (Light Reception)
B0820T
Movable Chute Backup Pin Sensor 3 (Light Emission)
M163
B0820
B0820T
M48
VIEW“C”
M47
B4501
B4502
B4701 B4801
B1416,1417 B5101
B1414,1415
C
C
M45
M46
M52 M51
