5OM-1604 1-18 气路图及实际贴装图 101 1-002-(2091603G00) 多功能安装头部 ( 气路图 ) No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty 1 Tube φ 6 1 11 V acuum Sensor 3 2 Tube φ 6 1 12 V acuum Filter 3 3 Tube φ 6 1 4 Tube φ 6 1 5 Tube φ …

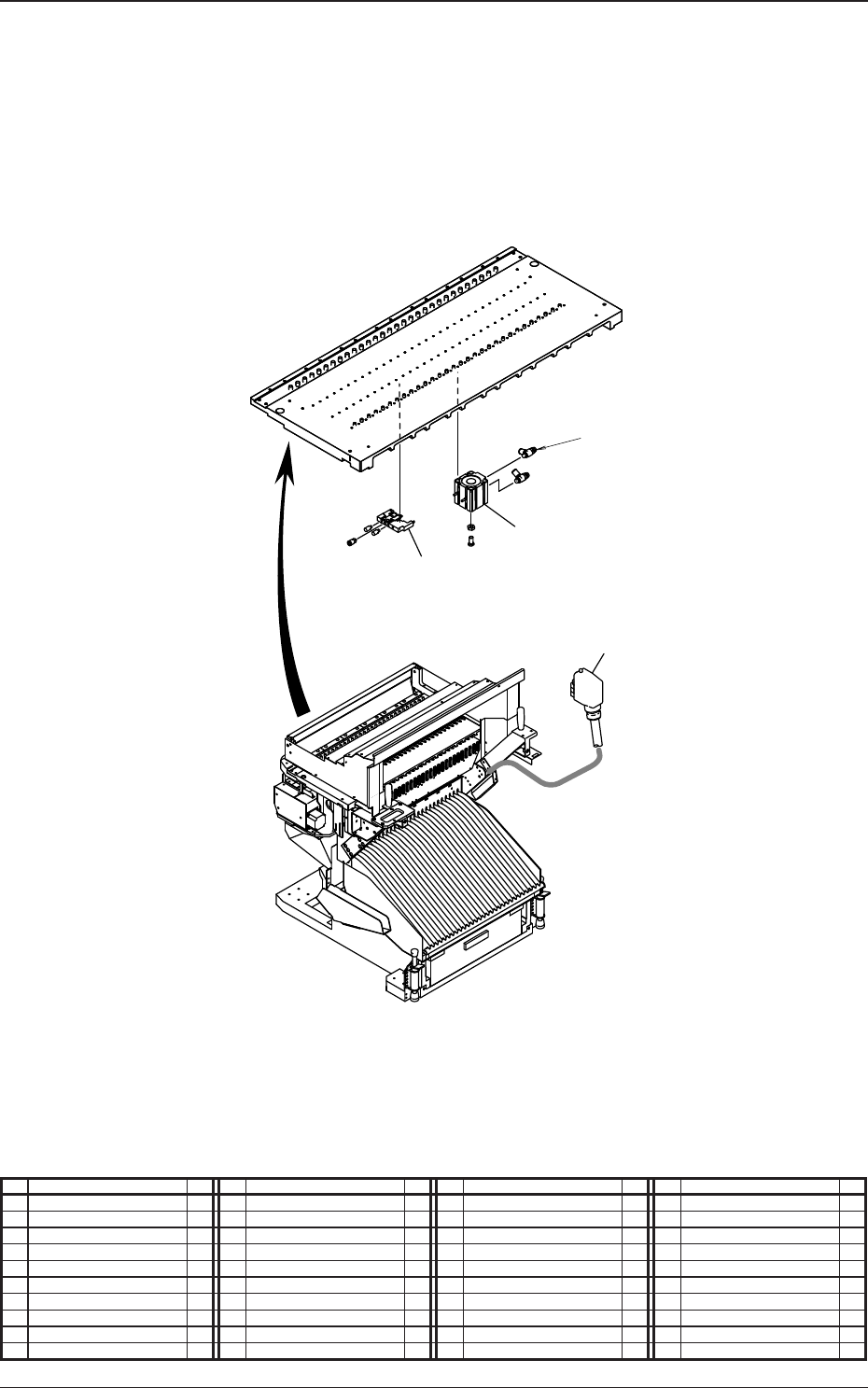

5OM-1604
1-17
气路图及实际贴装图
1011-002-
送料器安装台 ( 实际贴装图 )
3
4
2
6
5
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
2 Solenoid Valve 2
3 Speed Controller 4
4 Cylinder 2
5 Modular Unit 2
6 Air Connector Pin 2

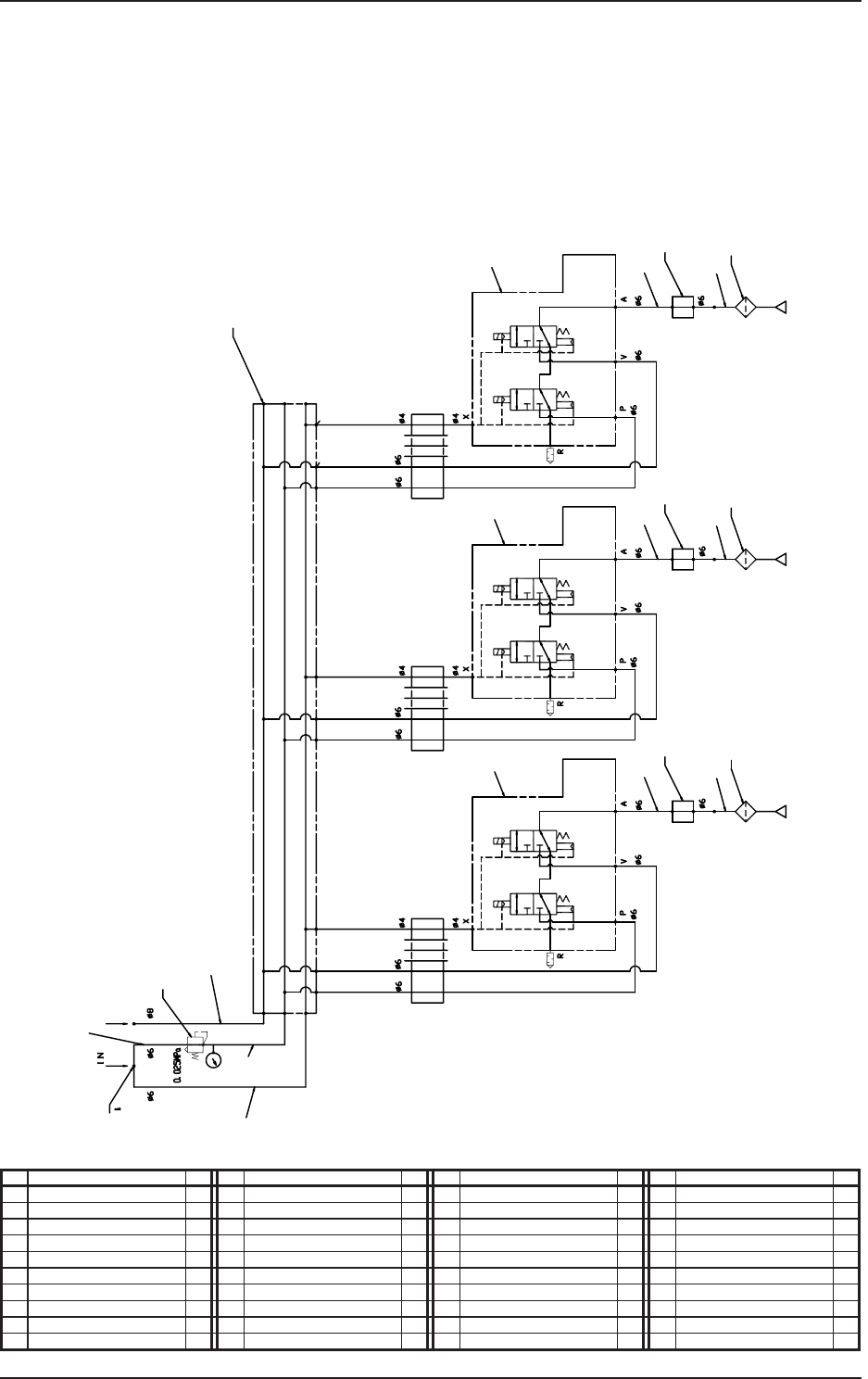

5OM-1604
1-18
气路图及实际贴装图
1011-002-(2091603G00)
多功能安装头部 ( 气路图 )
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
6 1 11 Vacuum Sensor 3
2 Tube
φ
6 1 12 Vacuum Filter 3
3 Tube
φ
6 1
4 Tube
φ
6 1
5 Tube
φ
6 1
6 Tube
φ
8 1
7 Regulater 1
8 Union Y 1
9 Manifold Unit 1
10 Solenoid Valve Unit 3
5
5
6
9
2
11
10
10
10
1
2
11
12
12
1
2
11
12
1
7
8
3
Nozzle 1
Nozzle 2
Setup
Vacuum
Air
Nozzle 3

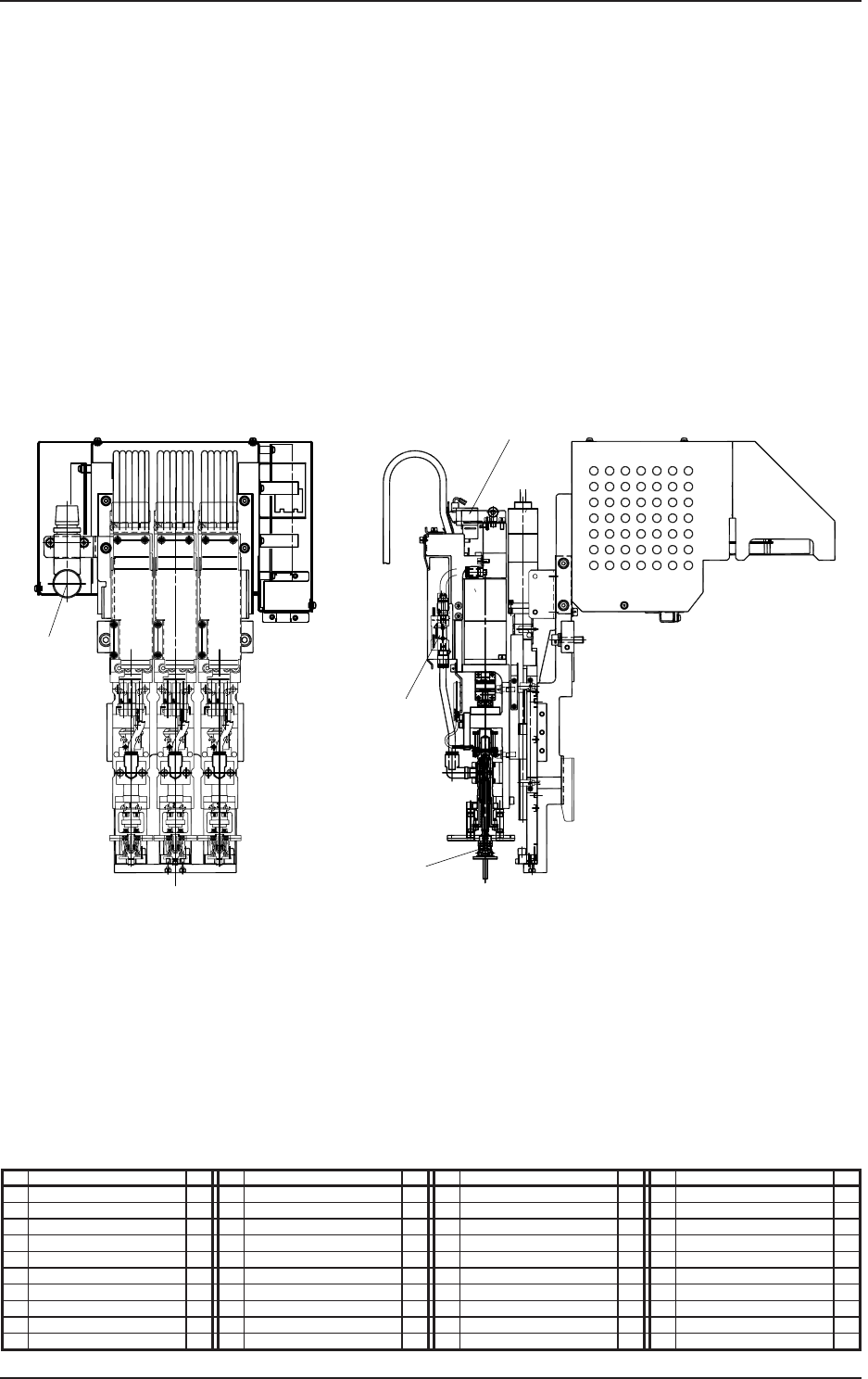

5OM-1604
1-19
气路图及实际贴装图
1011-002-(2091603G00)
多功能安装头部 ( 实际贴装图 )
NOZZLE1 NOZZLE2 NOZZLE3
7
10
11
12
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
7 Regulater 1
10 Solenoid Valve Unit 3
11 Vacuum Sensor 3
12 Vacuum Filter 3
