5OM-1604
1-9
气路图及实际贴装图
1011-002
5OM-1604
1-10
气路图及实际贴装图
1011-002-(309160320C)

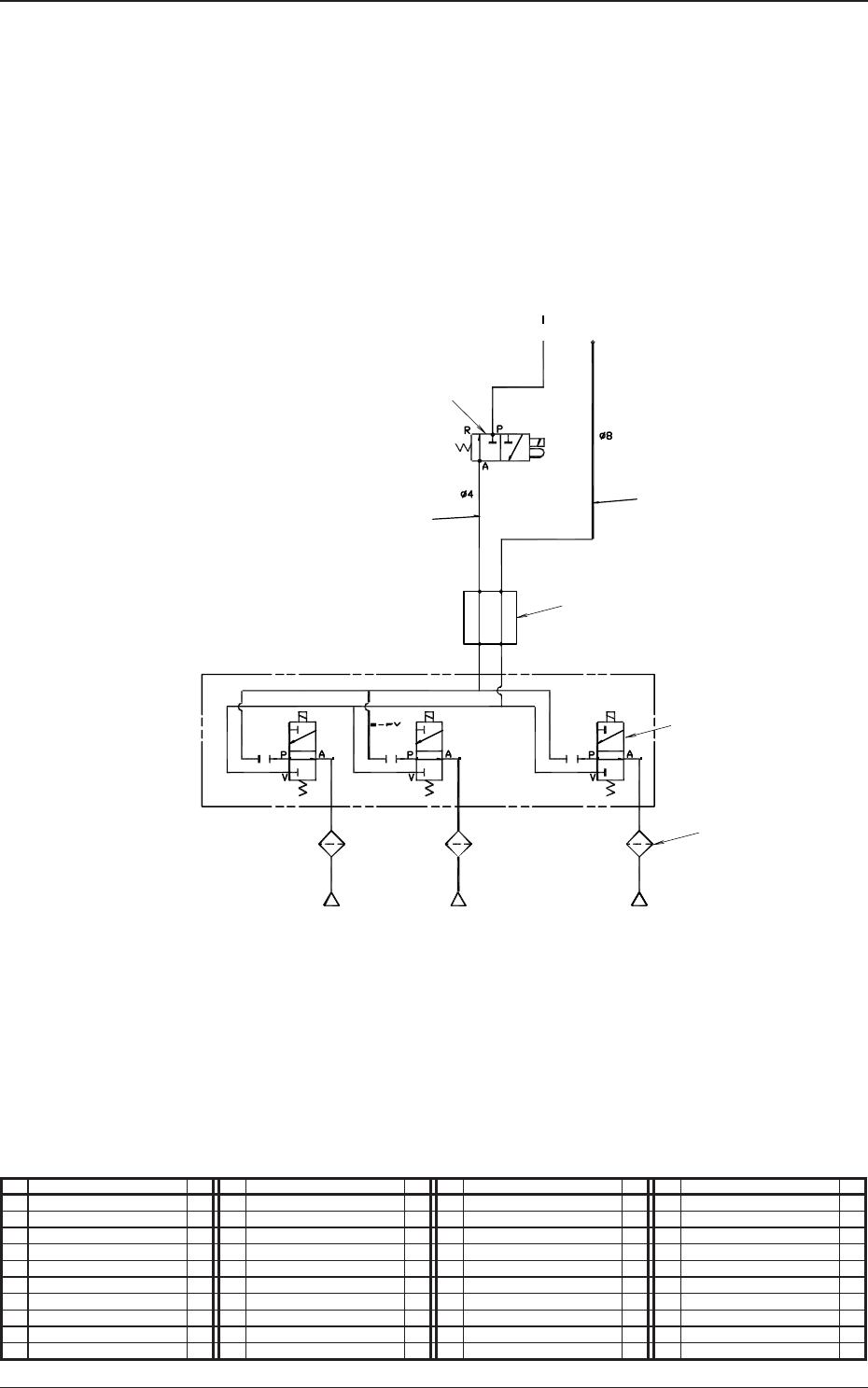

高速安装头部 ( 气路图 )
1
3
2
4
6
5
From Main Body
Robot Cable
Nozzle1 Nozzle2 Nozzle3
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
4 1
2 Tube
φ
8 1
3 Solenoid Valve 1
4 Rotary Joint 1
5 Solenoid Valve 15
6 Filter 15
5OM-1604
1-11
气路图及实际贴装图
1011-002-(309160320C)

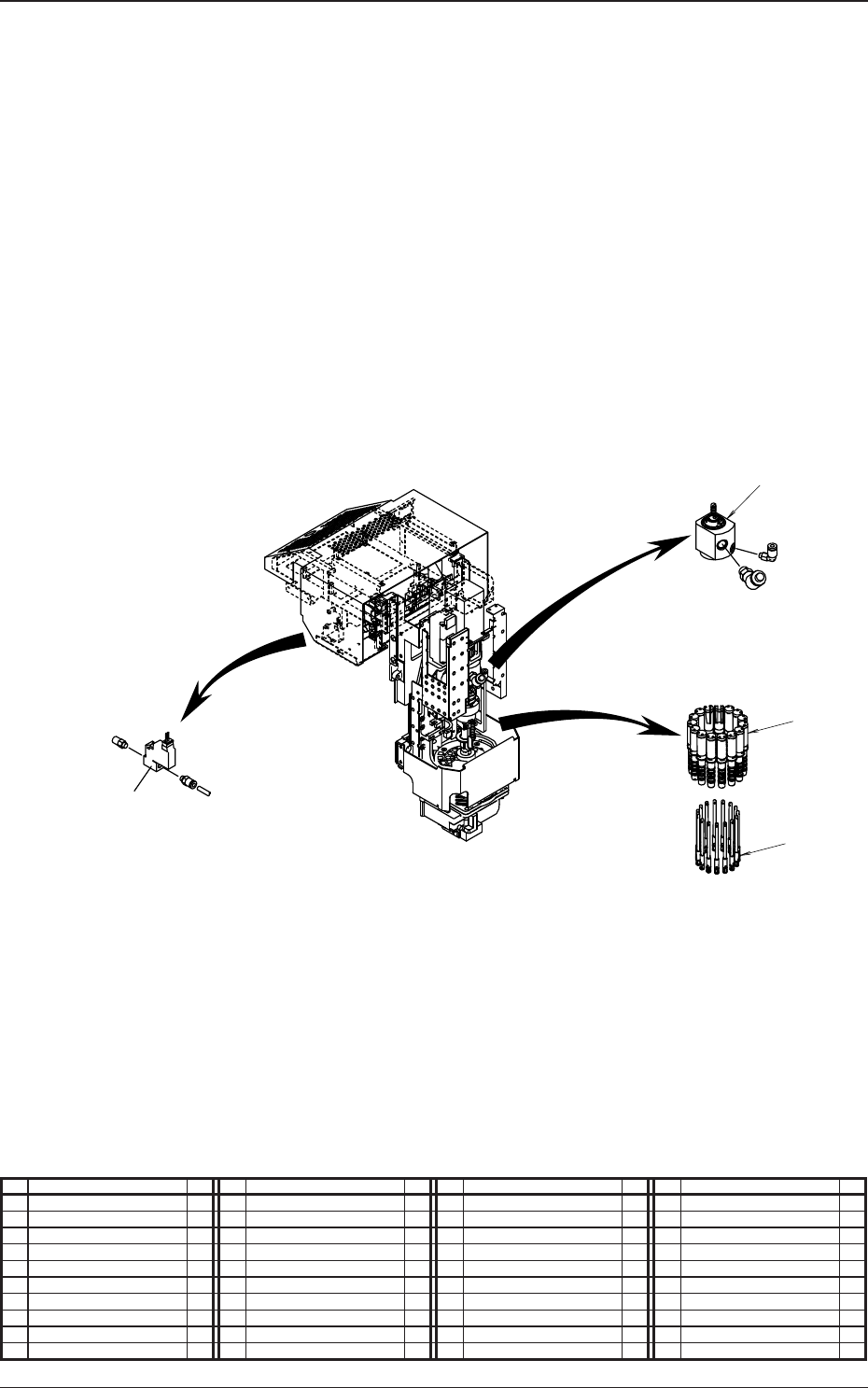

高速安装头部 ( 实际贴装图 )
3
5
4
6
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Solenoid Valve 1
2 Rotary Joint 1
3 Solenoid Valve 15
4 Filter 15
