12 SS-1189 Visual Field Approx. 12 × 12 mm Window Size Max. 10.0 × 10.0 mm Recognition (Process) Time Approx. 0.06 seconds / mark (incl. the time to capture an image) 4. PEC Recognition Photoimage Front Lighting System (…
11
SS-1189
3.2 Electrical Specifications

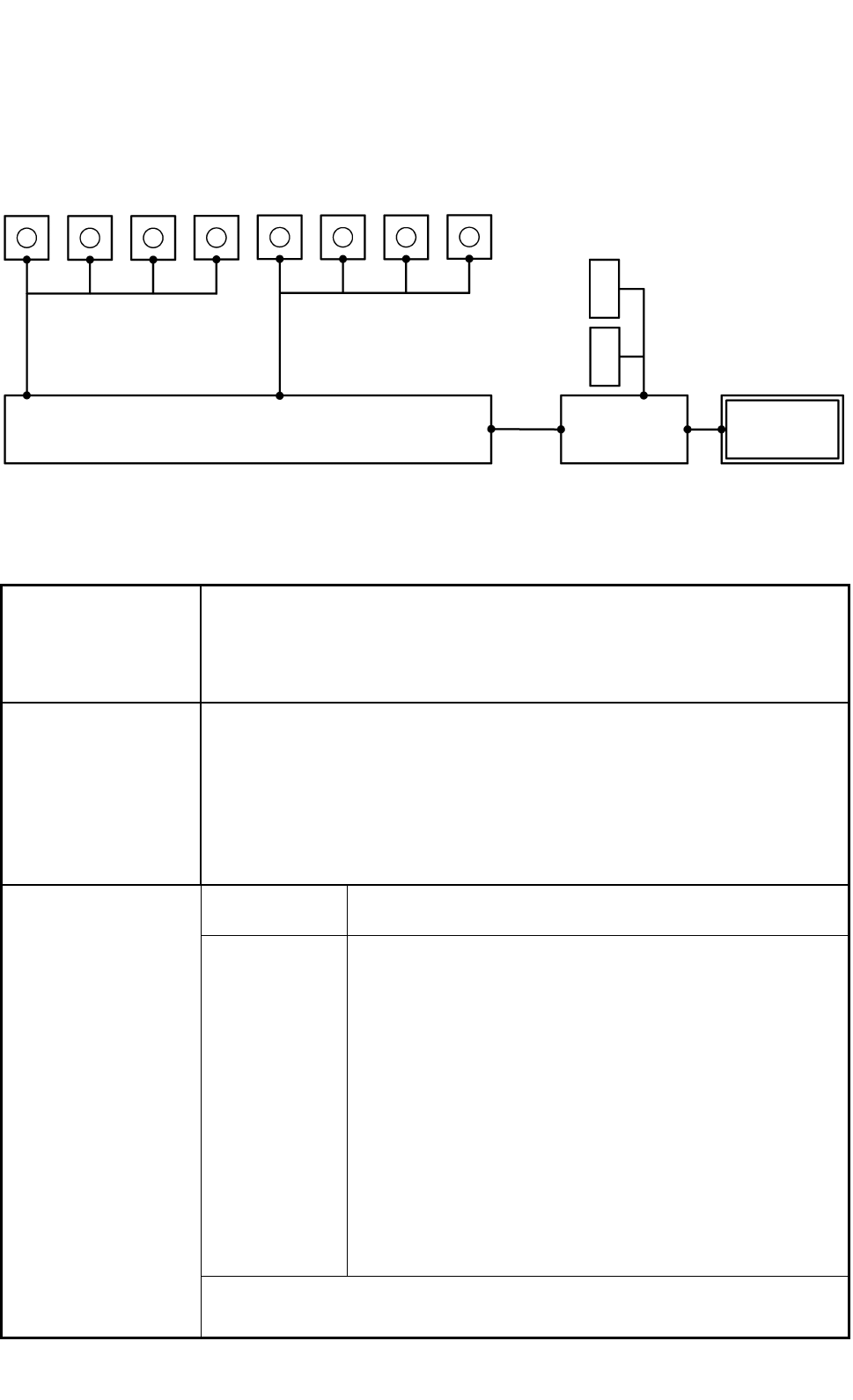

3.2.1 Control Configuration
Comera for Component
Recognition
Camera for P.E.C.
Recognition
Recognition Processor
Main Machine
Controller
Main Machine
of GXH
Monitor can be used both as operation
and recognition
(fitted with a touch screen)
Front Side
Rear Side
L
C
D
L
C
D
1
2
3
4
1
2
3
4
Fig. 7
3.2.2 Electrical Specifications
1. Memory Capacity
of Pattern Program
Data
Max. Number of Steps : 20,000 steps/ model
Max. Memorized Number of Models : 500 models
Note : The above numbers may be limited according to the capacity of the
pattern program data per model.
2. Edit, Input System
and Output System
of Pattern Program
Data
• Pattern program data editing is possible, using the touch screen, the keyboard,
and the pointing device of the main machine.
• Pattern program data can be edited with the network terminal (Option).
• Data can be entered through the local area network (Ethernet) running from
the storage unit of the network terminal (Option).
• Data Reading Floppy Disk (Option)
• Data Transfer Storage of Network Terminal (Option)
Visual Field φ 62 mm
The dimension in Y direction must be 46.5 mm.
Photoimage Front Lighting System
(Direct Recognition of Component by Front Lighting)
Note : Some limitation is imposed, depending on the types
of components.
Back Lighting System
(Recognition by Component Silhouette)
Note : Some limitation is imposed, depending on the types
of components.
In the back lighting system, specified nozzle are
required for the middle-size odd-shaped components
and the multifunctional nozzle on the multifunctional
head.
3. Component
Recognition
Note : A proper camera is automatically selected according to the shape and
size of components.
0707-002
12
SS-1189
Visual Field
Approx. 12 × 12 mm
Window Size
Max. 10.0 × 10.0 mm
Recognition
(Process) Time
Approx. 0.06 seconds / mark
(incl. the time to capture an image)
4. PEC Recognition
Photoimage Front Lighting System
(Recognition of Fiducial Mark by Front Lighting)
("Normal" or "Reverse" can be selected for each mark.)
5. Setting of Fiducial
Mark
Put fiducial marks on two or three places of PCB (2 fiducial marks required for
each unit PCB of a multi-unit PCB)
By recognizing the fiducial marks using the PEC recognition camera, positional
deviation covering the whole area of PCB and expansion of printed patterns on
PCB can be corrected. When the 2-point recognition mode is selected, put
fiducial marks diagonally on two places of PCB for better recognition accuracy.
In case of 3-point recognition mode, put two fiducial marks diagonally and one
fiducial mark close to one of the remaining corners.
Fiducial Marks
Size : 0.5 to 3.0 mm or less
Through
Hole
s
Size : 0.5 to 3.0 mm or less
Shapes
Pad Marks
Size : 0.5 to 3.0 mm or less
Material
• Copper Leaf
• Ni Plating
• Solder Plating
• Solder Leveler
• Au Plating
6. Fiducial Marks
Notes : (a) A through hole or a pad mark should have only one land which is
directed in increments of 45°.
(b) The fiducial mark should make ample contrast with the
surroundings.
(c) A test may be required when the fiducial mark cannot be
recognized because of the large warpage of the PCB.
(d) Anything like a pattern similar to a fiducial mark should not exist in
the designated window. If exists, it may cause a false recognition.
The shape (a cutout, a punched hole) of the PCB, the light reflected
from a structure, or the light emitted from the external elements
may sometimes interfere with the recognition.
7. Power Supply
200 ± 20 V AC, 3-Phase, 50/60 Hz
Connected to the power supply unit (3-phase 4-wire system).
(One of the four wires is used as a ground wire.)
8. Apparent Power Approx. 12.5 kVA
0707-002
Others
Others
13
SS-1189
9. Power
Consumption/
Hour
Approx. 3.9 kWh
