SS-1189

• The bank feeder change carts made it possible to reduce the feeder setup

time.

Fig. 2

• The tape splicing function is adopted to keep the machine running for

continuous production.

• The PCB Y position can be optimized to reduce the loss in cooperative

actions of the confronting beam.

PCB Flow Direction: From Left to Right

Fig. 3

• The PCB support pins can be exchanged collectively, improving the

internal setup performance.

• The internal optimization function made it possible to re-generate the

pattern program data according to the circumstantial changes for the

machine.

0402-003 Tg0911-WO-SP

0511-003 Tg0911-WO-SP 0707-002

Buffer

Input

Positioning

Output

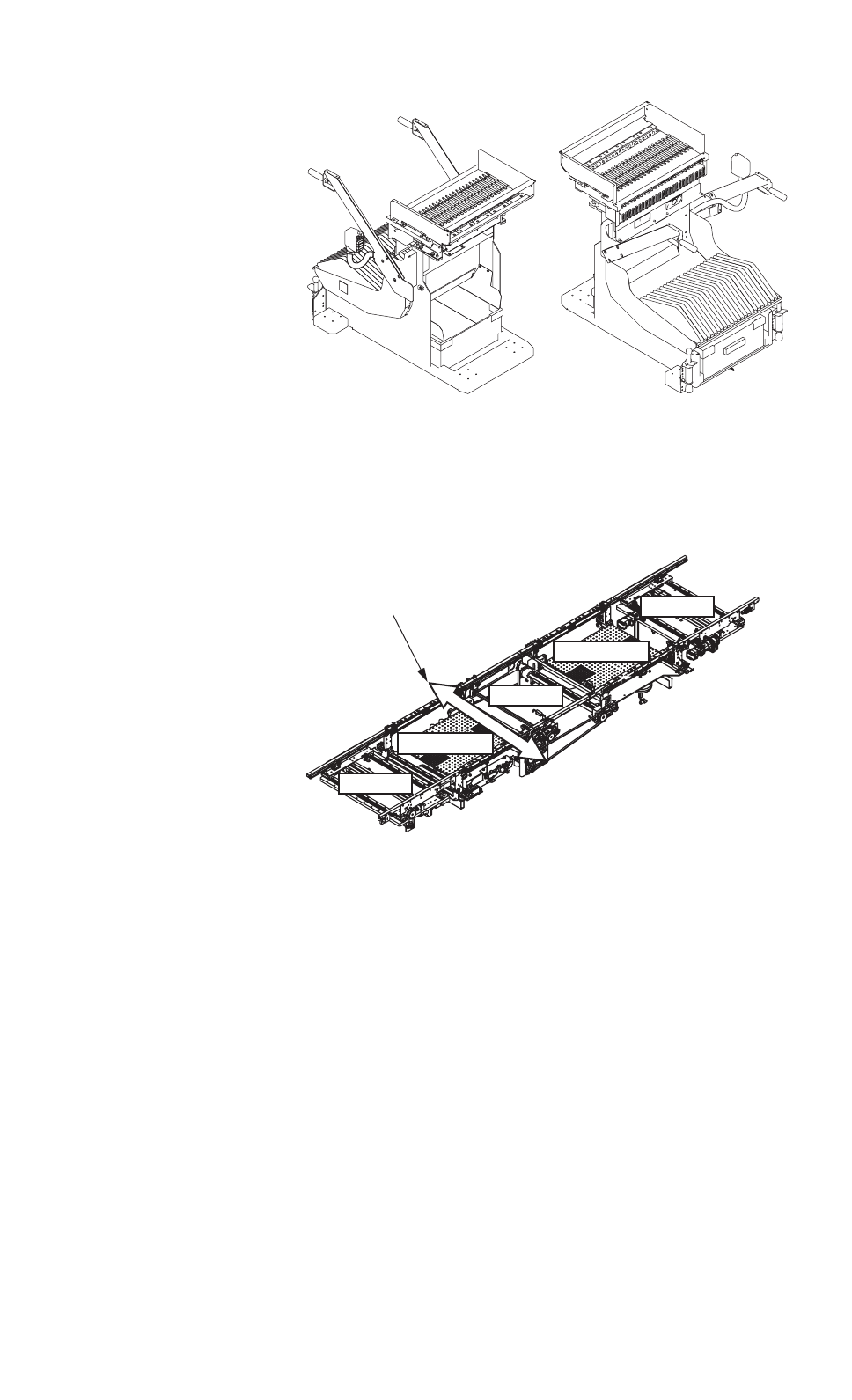

Optimization of PCB Y Position

Bank Feeder Change Cart

SS-1189

Realization of High Reliability

• Component thickness measurement

Linear measure sensor by the Component thickness measurement

• P.C.B upper surface measurement

Measure the P.C.B upper surface by the P.C.B height feed back function

• Soft placement

Soft mount nozzle to place the component lightly

• Each nozzle is provided with an electromagnetic valve to realize the

optimum control of vacuum ON/OFF actions.

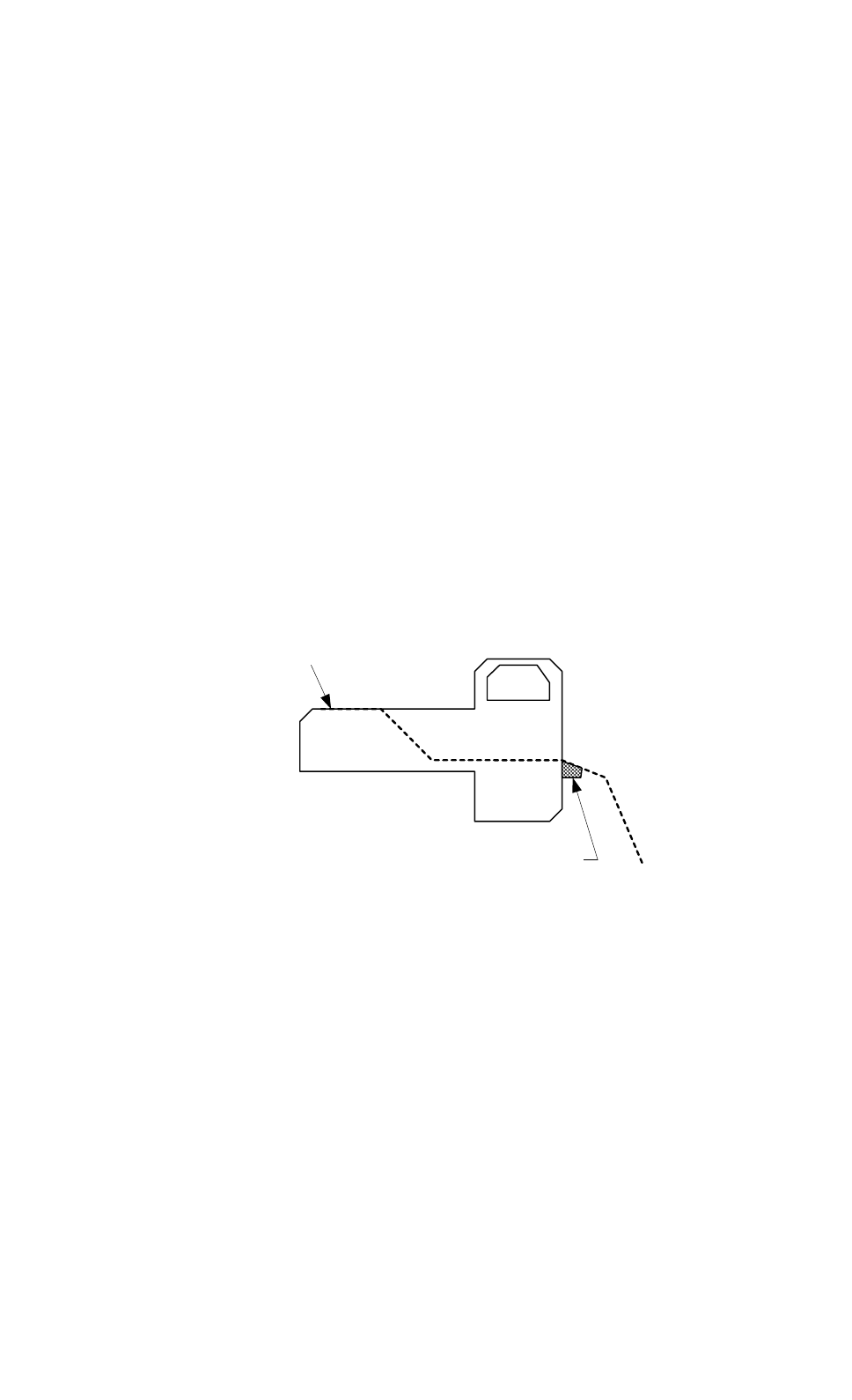

• The following effects can be expected by using the tape feeder provided

with a joint detection unit.

Preventing the mis-placement of spliced and replenished components

Eliminating pickup errors caused due to component shortage

Establishing traceability under component replenishment (tape splicing)

Correcting the count (the number of remaining components)

Operating Condition

Applicable Feeders : GD-18080, GD-18081, GD-18082

GD-12161, GD-24321, GD-44561

Operation Mode : "Enable" for "Component Remain Mode"

Component ID Lookup : Used together with the ACV system (option)

※ It is also possible to use the tape feeders for GXH-1 series

However the cycle time of component pick-up is longer than one for the

GXH-3 series tape feeders

Tape feeder provided

with a joint detection unit

Vacuum point

0707-002

SS-1189

High Flexibility Function

• The optional multi-functional heads for head modules will make it possible

to mount larger varieties of components.

Technology of High Precision Component Placement

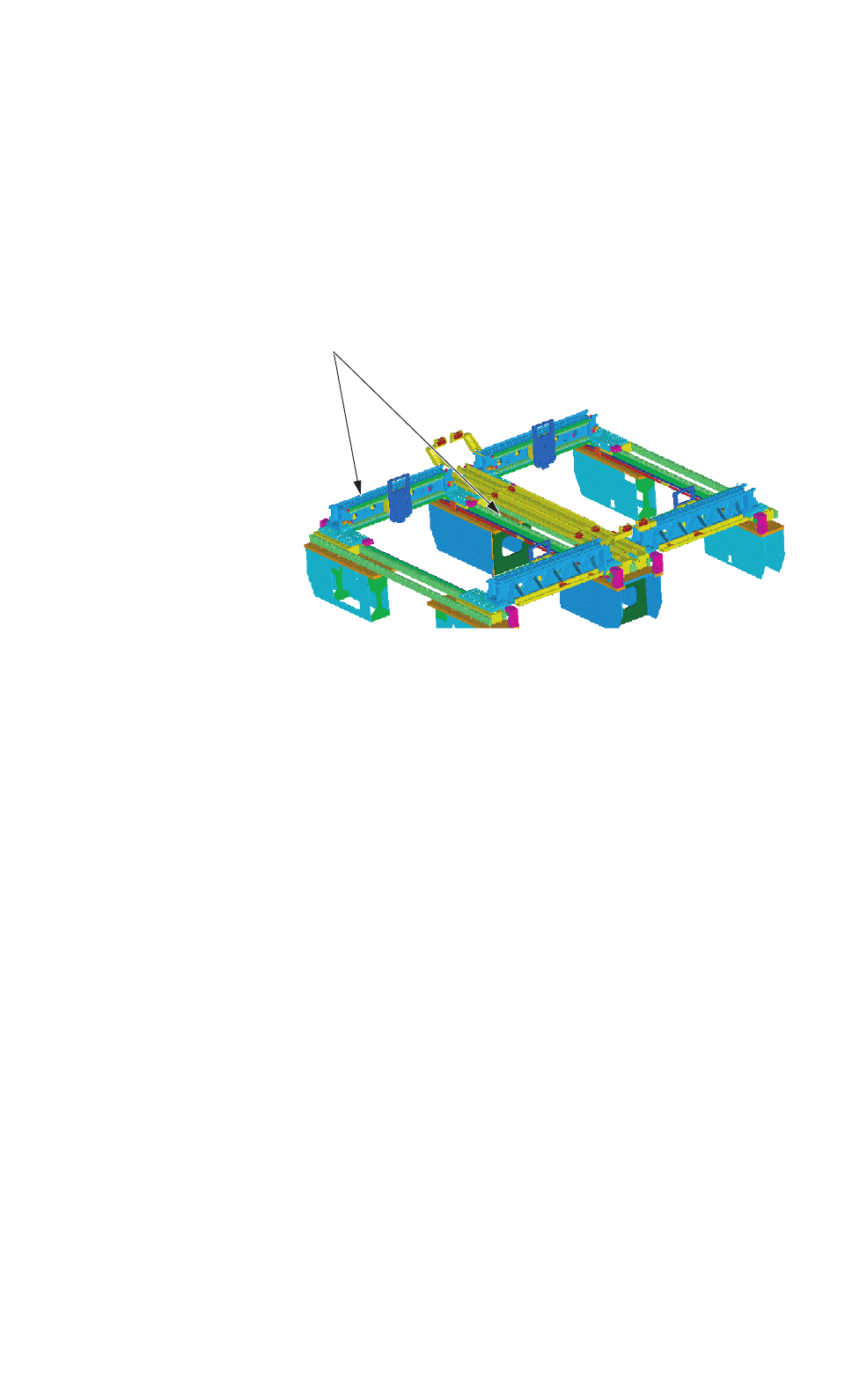

• Both X and Y axes are provided with linear motors and scales to realize the

high-speed・highly accurate component positioning.

Adoption of Linear Motors for X/Y Beam Driving

Fig. 5

• Servomotors are used to drive the head, making it possible to control the

head position with the encoder.

• A highly accurate mounting is always maintained by the automatic offset

teaching function, the self-calibration system, etc.

Comfortable Operation Environment

• A new operation environment is constructed and the self-diagnosis function

is enhanced, realizing the comfortable operation environment.

• When the machine was designed, the setup and maintenance work was

taken into consideration.

• The enhanced production support software realizes high productivity.

Other Functions

Standard Function

• Component Pick-Up Error Automatic Recovery Function

• Pick-up Location Teaching Function

• Pick-up Priority Function

• Alternate Function at Component Supply Section

• Programming Sorting Function
