Vision Sensor Technology
2D Coplanarity Laser Module
Description
Coplanarity of connections
on a component means that
all connections lie on a level,
the so-called placement
plane. This level is created
from the height information
from the coplanarity mea-
surement. This ensures that
the same soldering condi-
tions apply for all connec-
tions.
Measuring principle
Measurement of the heights
of the connections occurs
contact-free according to the
principle of laser-triangula-
tion. For the 2D method, a
point laser beam scans the
component. The reflected
light from the laser is pro-
jected onto a sensor. In this
way the height information
for the connections is
obtained from the reflected
light from the laser.
Restrictions
• The component must
have a minimum of two
and a maximum of four
rows of gull-wing leads.
• The row of leads should
be located orthogonally to
each other.
• The leads should be
trained orthogonally to the
row of leads.
• The ends of the leads lie
on a straight line.
• Measurement of compo-
nents with just one row of
leads is not possible.

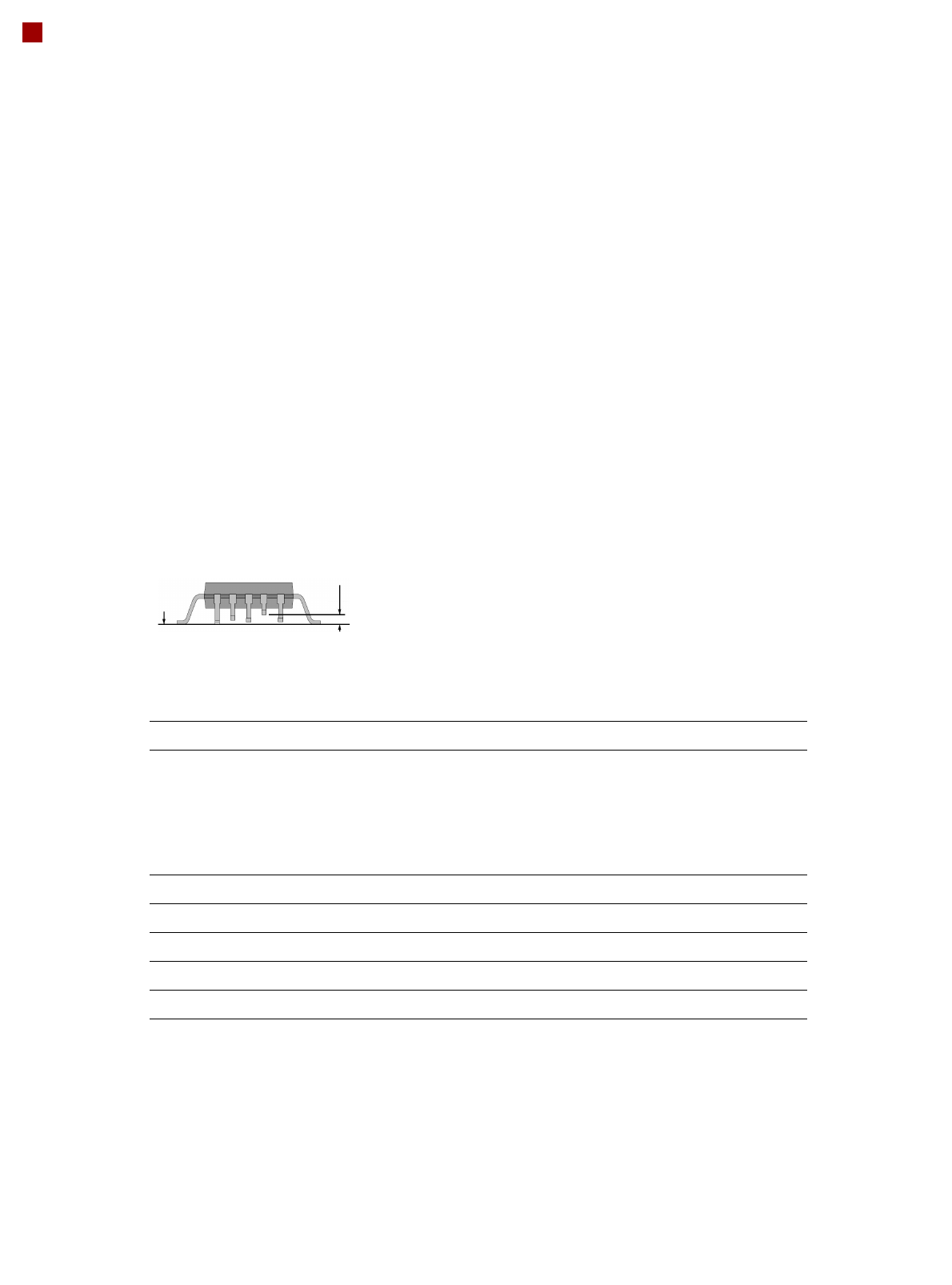

Place-
ment
level
Deviation from
coplanarity
Technical data
Components Gullwing
Accuracy ± 18.5 µm (3 (reference component)
± 24.7 µm (4
± 30.5 µm (3 (components up to 32 mm)
± 40.7 µm (4
± 31.3 µm (3 (components up to 55 mm)
± 41.7 µm (4
Max. component size 55 x 55 mm²
Min. lead pitch 300 µm
Max. component height 25 mm
Positioning option Location 3
Placement head type TwinHead
35
SIPLACE Software
SIPLACE offers holistic solu-
tions based on modular soft-
ware tools for SMT machine,
line and production manage-
ment: the SIPLACE soft-
ware suite.
Product definition, optimi-
zation and line control
Fast, fault-free introduction
of products and optimum uti-
lization of production lines
are essential to maximize
production output. The pro-
grams from the SIPLACE
software suite allow you to
easily program products,
fine-tune the programs you
have created and then find
the balance for them within
your SMT production lines.
Production monitoring &
process control
To achieve the production
targets that are set, it is
important to constantly moni-
tor and check the production
facilities. The SIPLACE soft-
ware suite contains monitor-
ing products tailored to suit
the user group. These signal
immediately if limits are
exceeded on the machine or
the production line.
Set-up verification &
traceability
Set-up errors lead to series
errors. The user-friendly
SIPLACE software programs
help you to avoid such
errors, and thus ensure high
quality in your electronics
production.
The benefits of the
SIPLACE software suite at
a glance:
• Fast programming and
error detection
• Reduces changeover
times and stoppages
• Ensures optimum utiliza-
tion of your production
line's productivity
• Real-time information
from the production area
• Incredibly fast distribution
of information
• Optimum use of resources
• Timely notification when
production materials need
to be re-ordered
• Coordination of mainte-
nance
Example times for SIPLACE Pro
Average time for programming a PCB 10 minutes
Minimum line optimization time < 1 minute
36
SIPLACE Software
SIPLACE software product Standard Option
Product definition,
optimization and
line control
SIPLACE Pro
A single application for all programming tasks
X
SIPLACE CAD
Fast and easy data conversion
X
SIPLACE SiCluster
Fully automatic product grouping
X
SIPLACE EDM
Straightforward data management for placement programs
X
Production moni-
toring & process
control
SIPLACE OIS
Operator Information System
X
SIPLACE Explorer
Line monitoring system
X
SIPLACE Maintenance Manager
Intelligent software for coordinating maintenance
X
Set-up verification
& traceability
SIPLACE Setup Center
Avoids set-up errors with reliable set-up verification
X
SIPLACE Traceability
Traceability of the placement processes
X

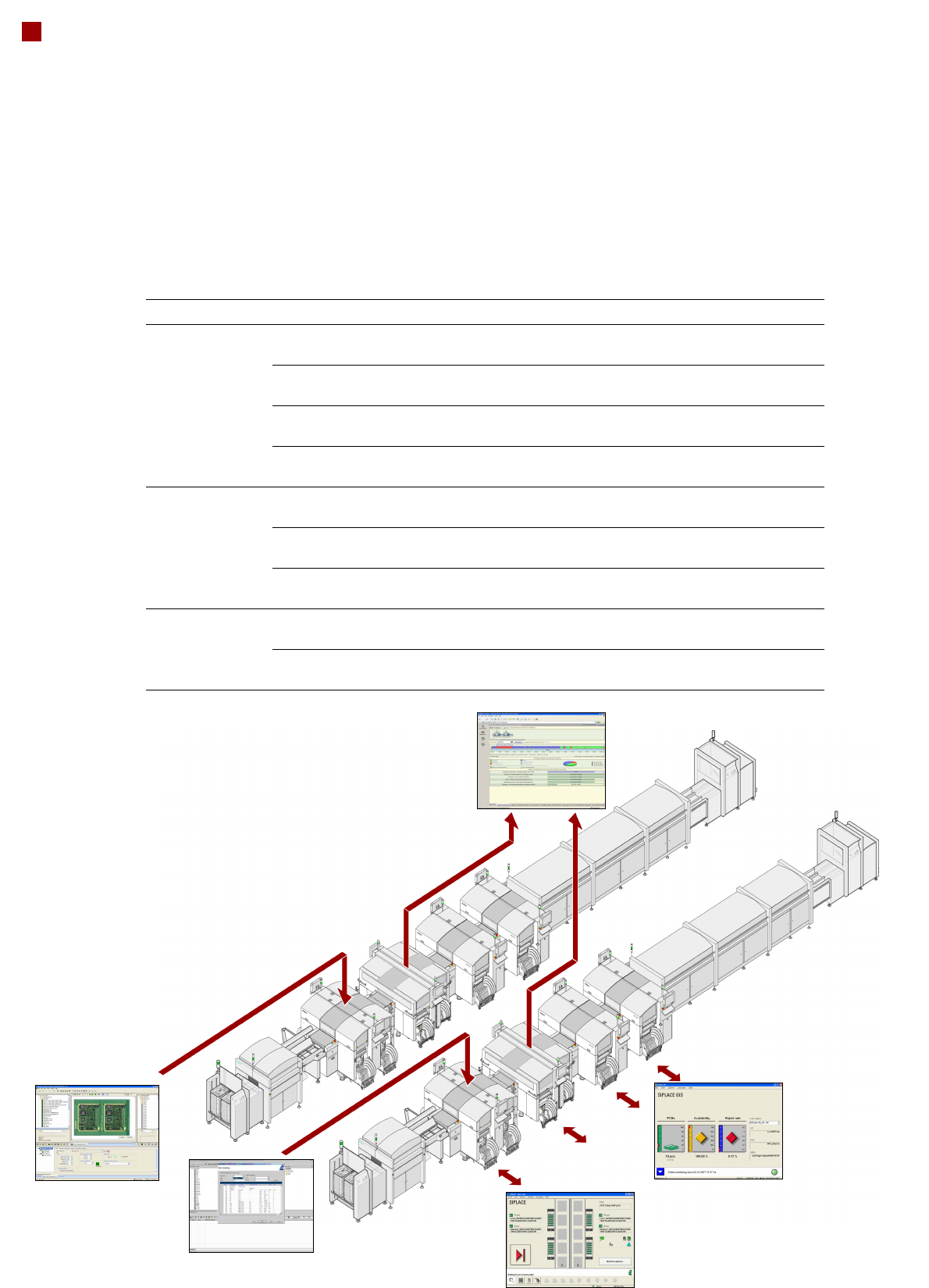

Production monitoring:
SIPLACE Explorer
Product definition:
SIPLACE Pro
Station
monitoring:
SIPLACE OIS
Station control:
SIPLACE station software
Product definition:
SIPLACE Pro
