5 Uninstallation Installation and Configuration Guide SIPLACE Explorer
5.1 Start Modify Dialog Edition 05/2009 EN
106
5.1 Start Modify Dialog
→ Open the SIPLACE Explorer 2.6 - InstallShield Wizard via the Windows menu
Start → Programs → SIPLACE Explorer 2.6 → Modify-Uninstall.
→ The SIPLACE Explorer 2.6 InstallShield Wizard will be prepared.
5
Fig. 5 - 1 SIPLACE Explorer 2.6 - install shield wizard
→ The welcome screen will appear. Select the process you wish to perform.
Installation and Configuration Guide SIPLACE Explorer 5 Uninstallation
Edition 05/2009 EN 5.2 Modify
107
5.2 Modify
5
Fig. 5 - 2 SIPLACE Explorer 2.6 - install shield wizard
→ Click on Modify and then on Next to continue.
→ You will see the Select Features dialog box.
5
Fig. 5 - 3 SIPLACE Explorer 2.6 - install shield wizard
→ Now select the features you wish to remove, by disabling the relevant checkbox next to the
feature(s). The checkbox must be enabled if you wish to install the feature.
→ Once you have selected the required installation option, click on the Next button to continue.
5 Uninstallation Installation and Configuration Guide SIPLACE Explorer
5.2 Modify Edition 05/2009 EN
108
→ Uninstallation will be performed. The Setup Status dialog box shows you which features will
be uninstalled or installed.
5

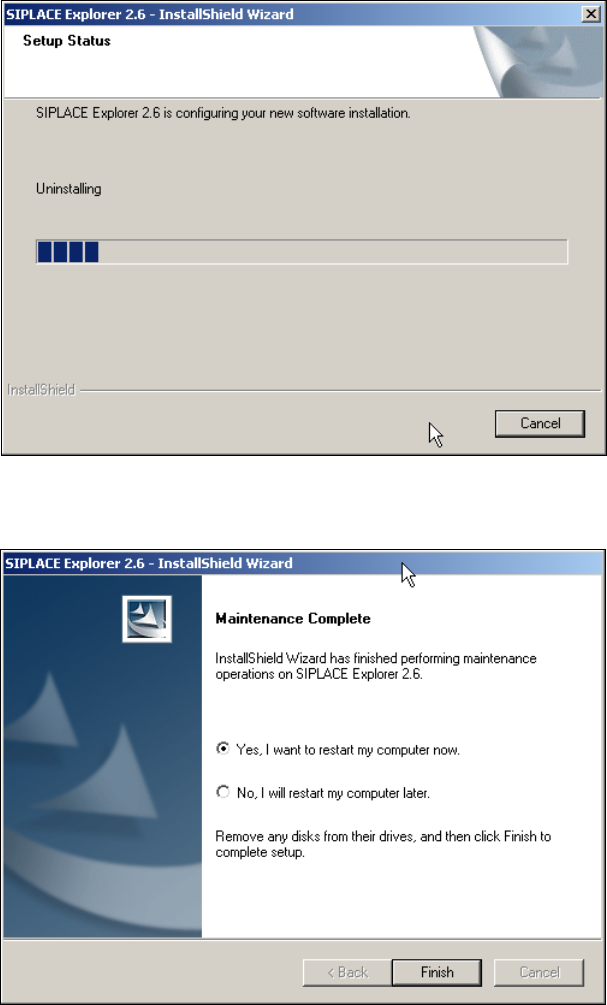

Fig. 5 - 4 SIPLACE Explorer 2.6 - install shield wizard
→ SIPLACE Explorer 2.6 uninstallation/installation has been completed.
5
Fig. 5 - 5 Modify completed
→ Click on Finish to close the SIPLACE Explorer 2.6 - InstallShield Wizard.
