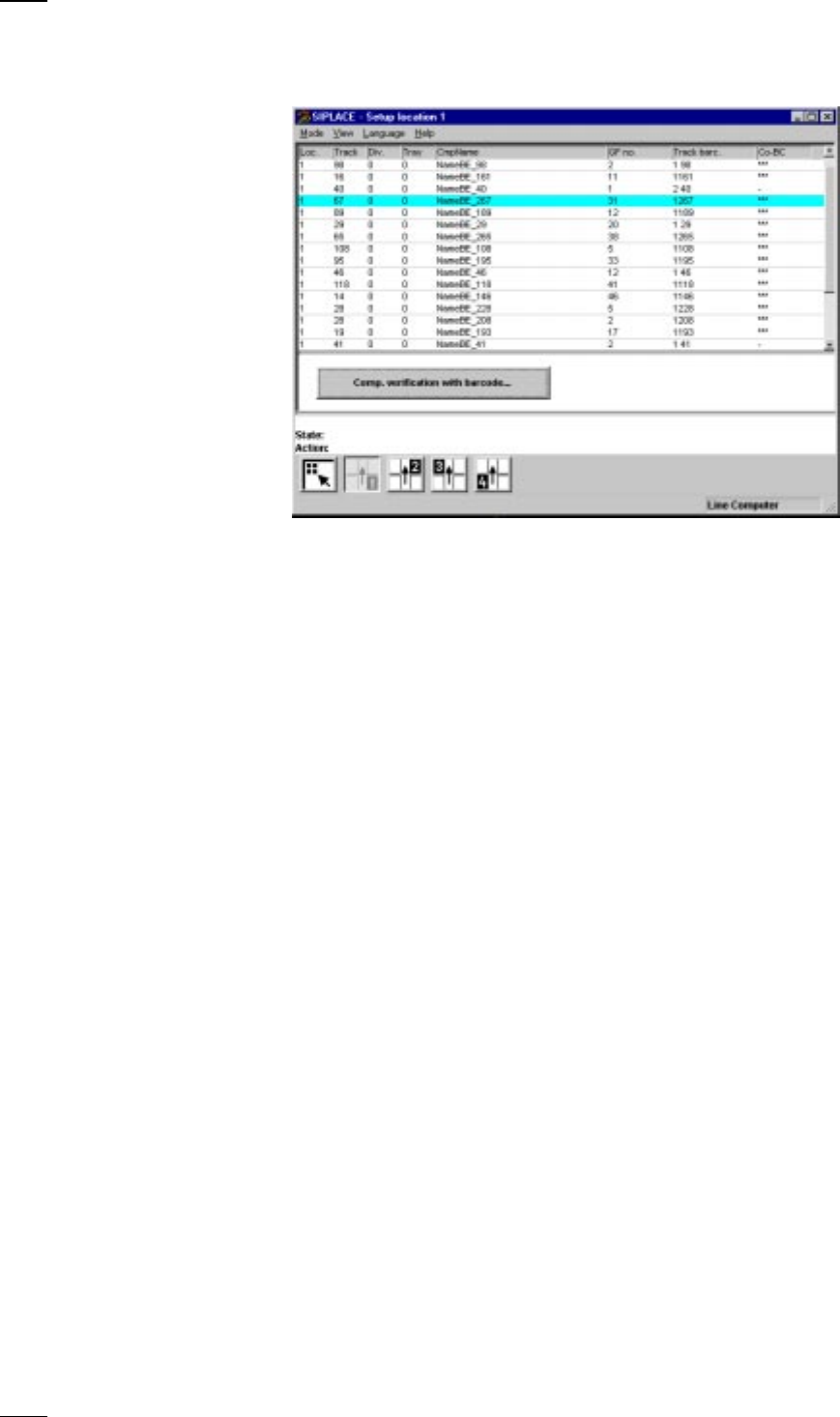

’Setup’ menu

For a given cluster and a given setup you can use this menu to display the

setup for each location.

Loc: Location number

Track: Track number of the corresponding component feeder

Div: Feeder division assigned to the component

Tray: Displays the component‘s tray number (1 - 28) in the wafflepack changer

(on the 80F placement system only)

CmpName: Name of the component

GF no.: Package form number of the component

Track barcode: Track barcode of the component

CO-BC: Component barcode

If a component barcode has been specified, *** will be found in this col-

umn and it will be possible to access the Component verification with bar-

code menu. If a minus sign appears in the column, this means that no

barcode has been allocated to the component. The 'Component verifica-

tion with barcode' button cannot be used.

↑ UM 4.1

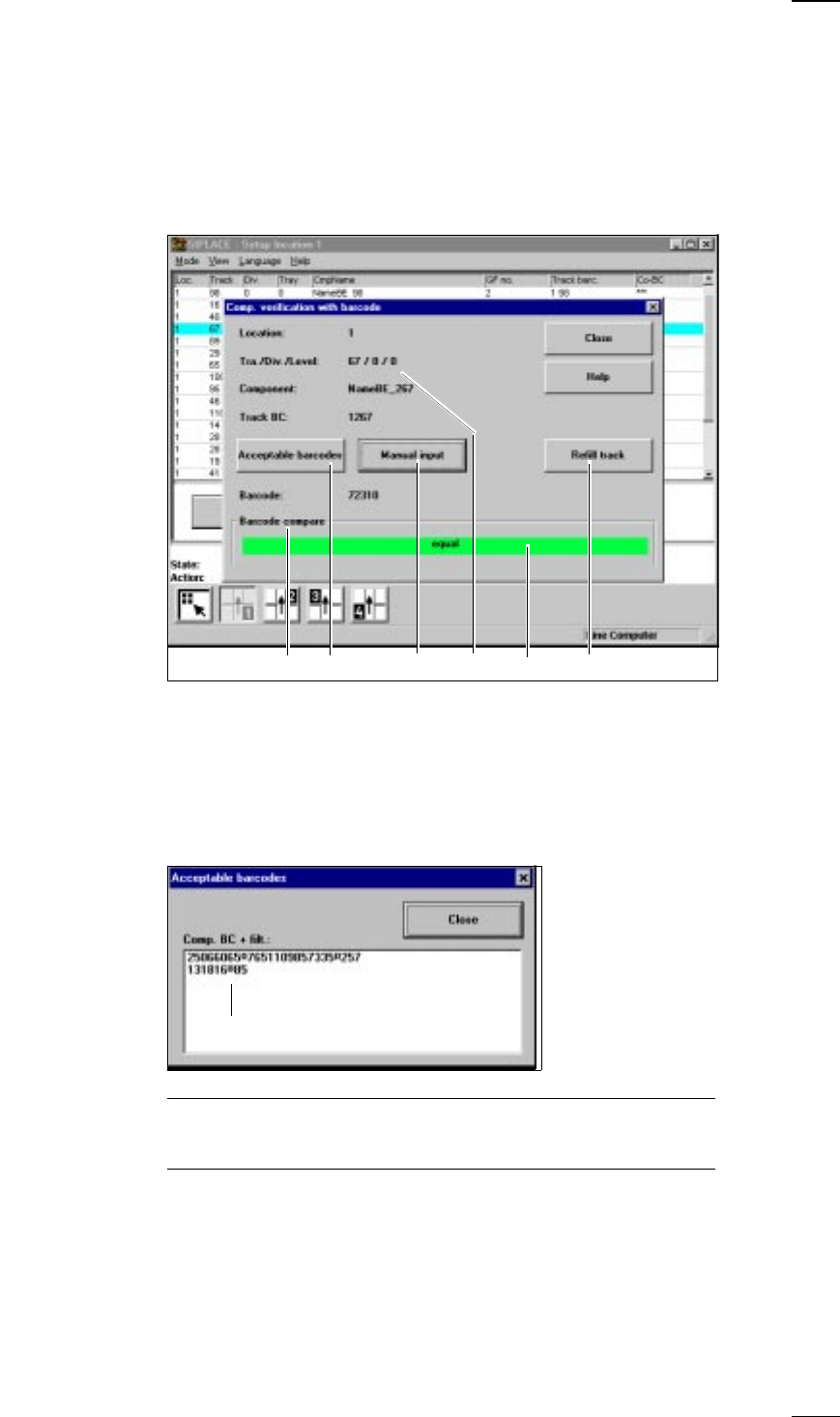

Component verification with barcode’ menu

The Component verification with barcode menu cannot be accessed

↑ UM 4.1.2 unless you have configured the Component verification with barcode

option in the machine options and a track barcode has been defined for

the component.

The barcode can be

– read off from the reel with the barcode pen or

– entered manually via the Manual input button.

The data for the selected track are displayed here.

Manual input

You can enter the barcode manually. The barcode you have entered is

compared with the configured data and the result shown in the Barcode

compare window. The result displayed is either ’same’ or ’different’

Acceptable barcodes

When you click on this button a display box will be displayed which con-

tains a list of (currently) 6 acceptable barcodes.

NOTE

If one position in the barcode is an asterisk (*), this position will not be

included in the barcode comparison.

Compare barcode

The result of the barcode comparison is either same or different

g Set track full

If the barcode read in is the same as the barcode stipulated and if the

track is empty, click on the Set track full button or use the component bar-

code reader to read the RET barcode on the barcode strip.

adfs g

Filter location

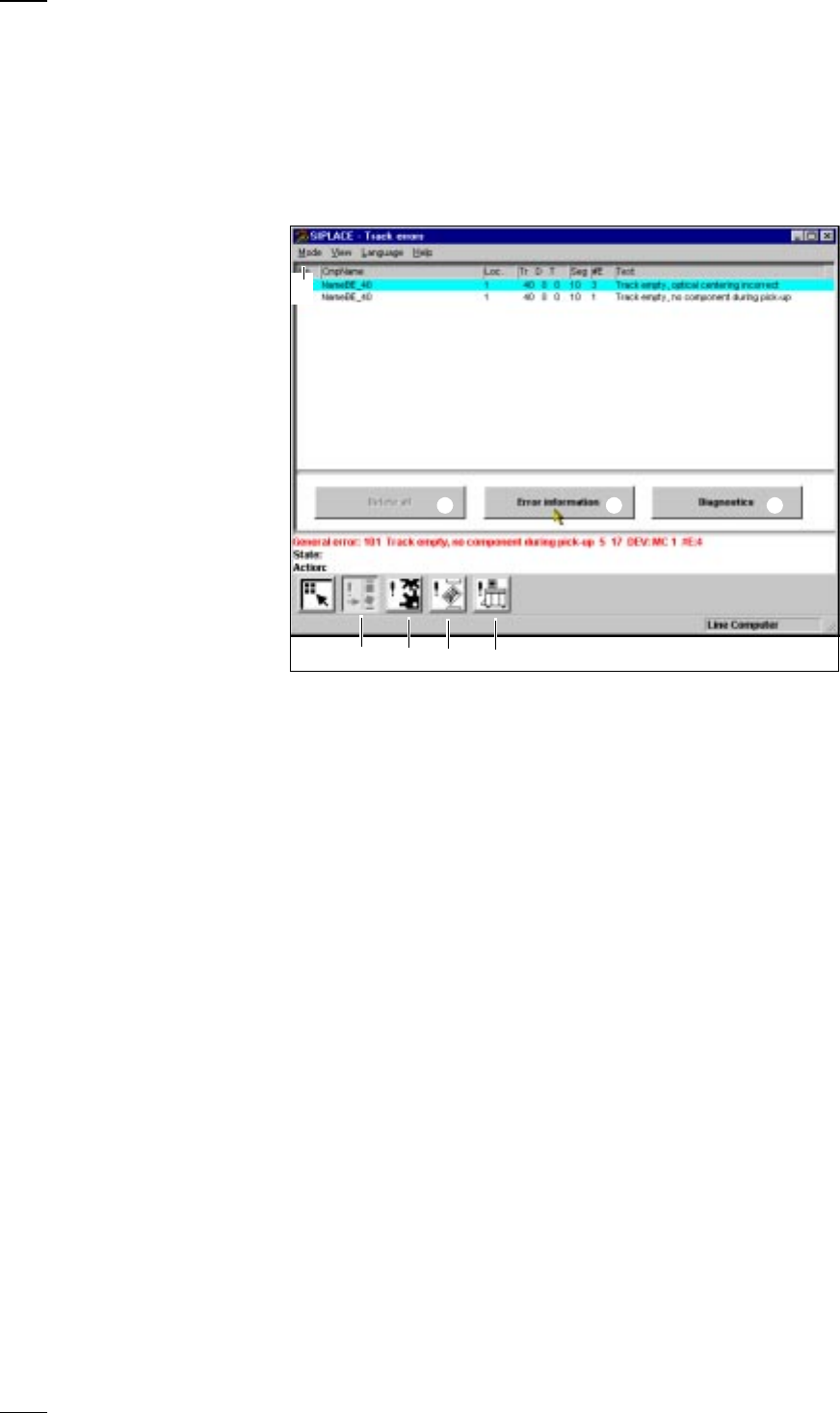

’Display errors’ menu

From the Error handling menu you can access the lists corresponding to

↑ UM 4.2 the following error types:

– Track errors

– Machine errors

– Transport errors

– General errors

The top line will always show the last error to occur.

Button for accessing the track errors menu

Button for accessing the machine errors menu

Button for accessing the transport errors menu

Button for accessing the general errors menu

List of errors with title bar

Key to the abbreviations in the title bar:

No.: Error number

CmpName: Name of the component

Loc.: Component location

Tr/D/T: Track / division / tray

Seg: Number of the segment which was used for placing the component

#E: Error counter - The error counter shows how often this error has already

occured.

Text: Explanatory text

The following abbreviations may also be encountered with other

error types:

DEV.: The originator of the error message, e.g. gantry 1, etc.

Transp.: Conveyor belt affected:

1 = Standard conveyor

2 = 2nd conveyor when the twin conveyor option has been installed

Info 1 or 2: Information of relevance to Siemens only.

Diagnostics

Select one particular error line in the list and click on Diagnostics. The

diagnostics program will be started.

Error information

Additional information concerning the marked errors is displayed by the

information and help system.

k Delete all

Click on this button to delete all the errors of the same type. If a track is

empty, it must be filled before deleting.

hjk
