8 Tg0969-PM-SO

4. Description of Operation Windows

4.1 Save Operation of Recognized Image

••

• Sheet Layout

When the [Recog Image Save] button is pressed in the "Cmpnt Recog

Test" tab sheet, the following sheet appears.

Fig. 3 "Recog Image Save" Sheet

*1 Data Save

Enter a file name of the data to be saved and press the [FD Save]

button. The recognized image is saved on a floppy disk in the speci-

fied save mode.

0310-001

4. Description of Operation Windows

9 Tg0969-PM-SO0310-001

5. "FILE OPN." Window (Submenu)

••

• Window Layout

When the [FILE OPN.] button on the submenu bar is pressed in the

"MAINT." window, the following window (submenu) opens.

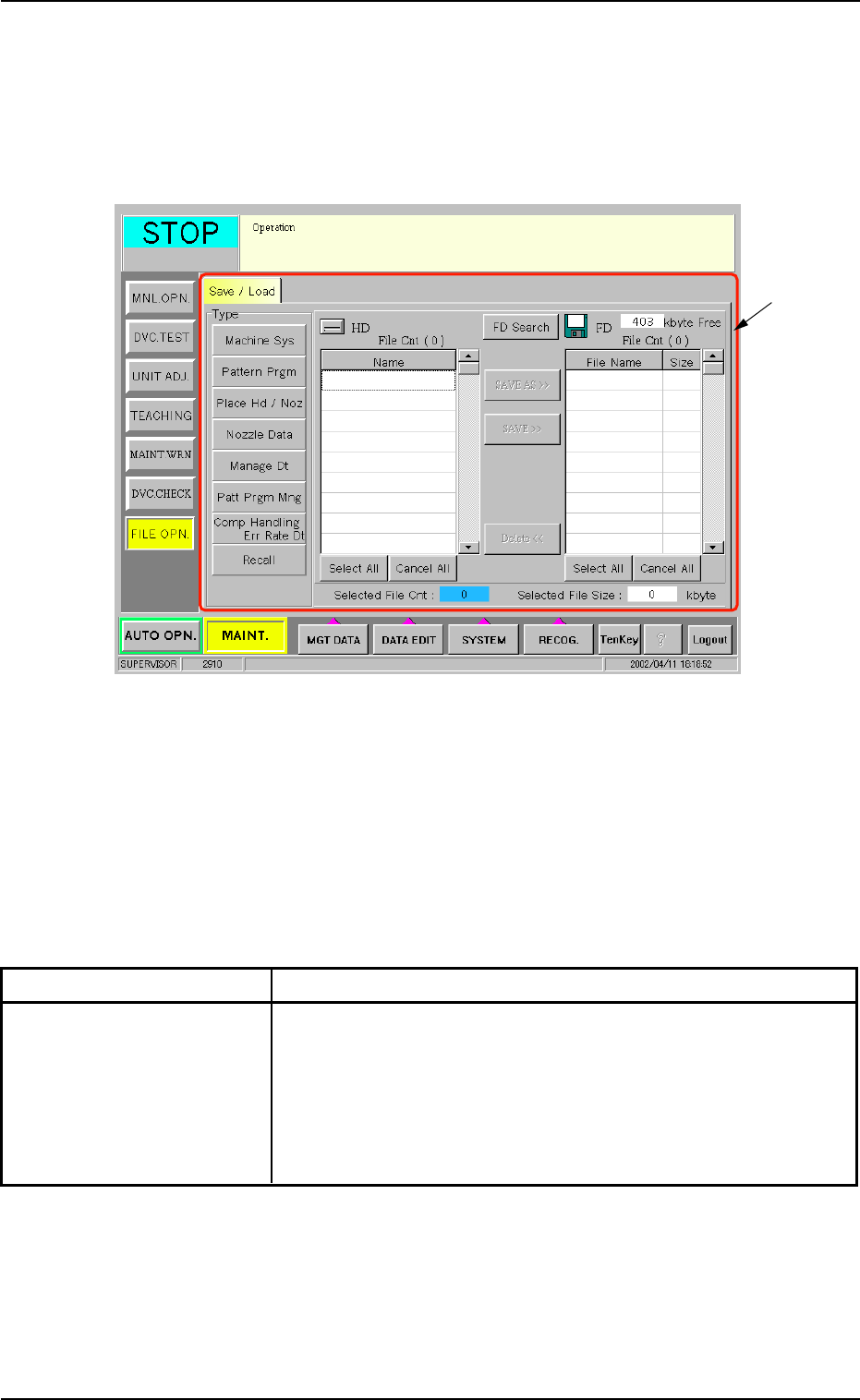

Fig. 4 "FILE OPN." Window (Submenu)

••

• Window Composition

*1 Tab and Tab Sheet

The "FILE OPN." window (submenu) is provided with the following

tab.

Table 1

Tab Description

Save / Load This tab sheet enables the operator to save the placement data

on a 3.5-inch floppy disk in the drive of the front service panel

or load the required data from the floppy disks (where the ma-

chine system data, the pattern program data, the placement

head/nozzle data, the nozzle data, etc., are saved) to the hard

disk of the machine.

10 Tg0969-PM-SO0310-001

5.1 "Save / Load" Tab

The corresponding tab sheet enables the operator to save or load the

placement data from the floppy in the drive of the front service panel.

••

• Sheet Layout

When the [Save / Load] tab is pressed in the "FILE OPN." window

(submenu), the following tab sheet appears.

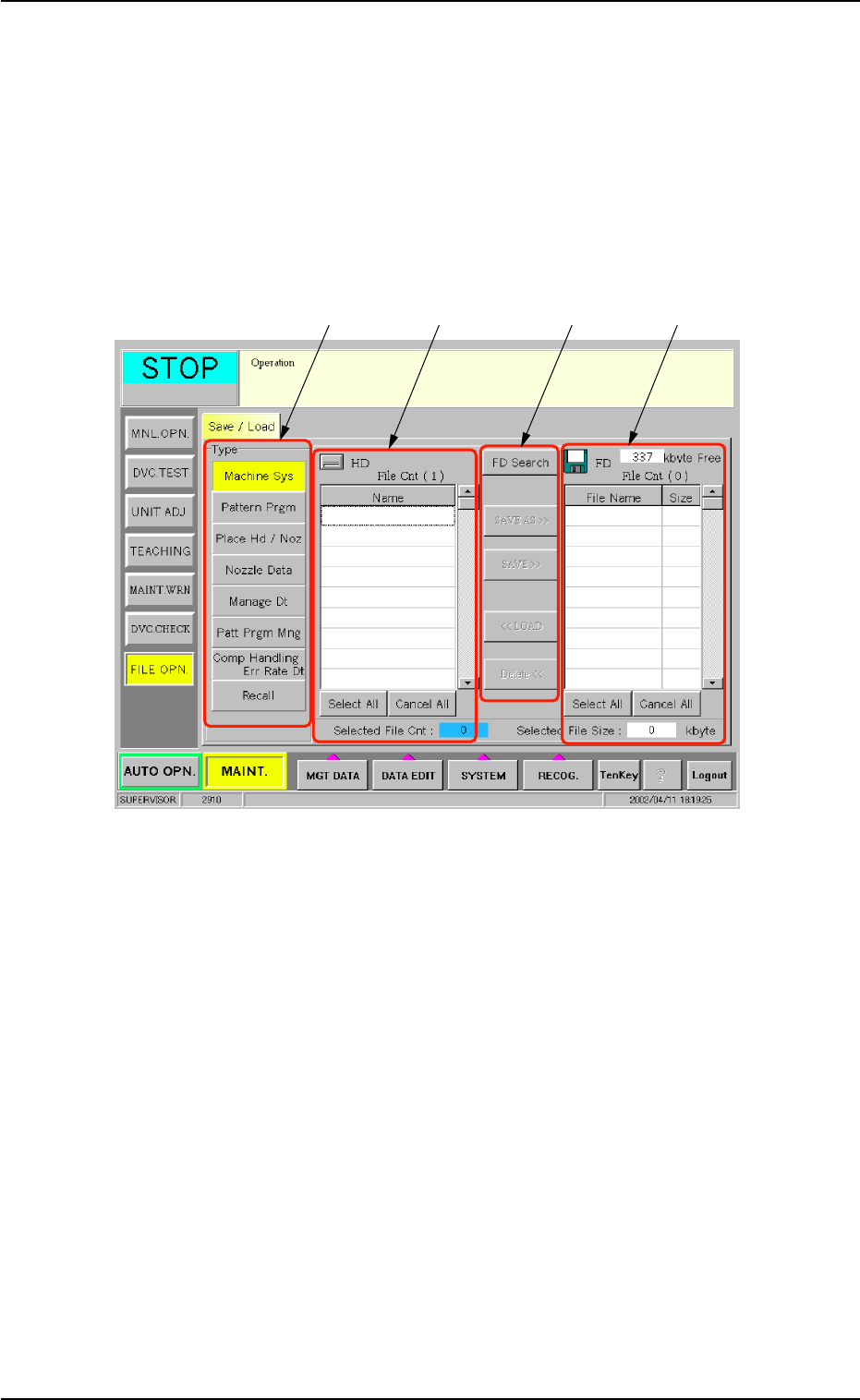

Fig. 5 "Save / Load" Tab Sheet

••

• Sheet Composition

*1 "Type" Group Box

The following buttons are provided in this group box.

[Machine Sys] Button : When pressed, this button enables the

operator to save the machine system

data on a floppy disk or load the data

from the corresponding floppy disk to the

hard disk of the machine.

[Pattern Prgm] Button : When pressed, this button enables the

operator to save the pattern program

data on a floppy disk or load the data

from the corresponding floppy disk to the

hard disk of the machine.
