Contents
Page
0310-001 3 Tg0969-PM-SO
Before Use ................................................................................................... 1
Contents ....................................................................................................... 3
1. Scope ..................................................................................................... 4
2. Service Panel ......................................................................................... 5
3. Control Box ............................................................................................ 6
4. Description of Operation Windows ........................................................ 8
4.1 Save Operation of Recognized Image .............................................. 8
5. "FILE OPN." Window (Submenu)........................................................... 9
5.1 "Save / Load" Tab ............................................................................. 10
6. Materials ................................................................................................. 19
6.1 Parts Locations ................................................................................. 19
Service Panel .................................................................................... 19
Control Box ....................................................................................... 20
6.2 Cord Connection Diagrams .............................................................. 21
Cord Connection Diagrams (Main Machine)..................................... 21
Connection Materials 2 ..................................................................... 22
4 Tg0969-PM-SO0310-001
1. Scope
1. Scope
FDD (Floppy Disk Drive) and CD-ROM Drive are Installed in the main
machine.
These enhances operation and management.
FDD (Floppy Disk Drive)
• Various Data can be saved on a floppy disk.
CD-ROM Drive
• This is used to upgrade the system program.
5 Tg0969-PM-SO0404-003

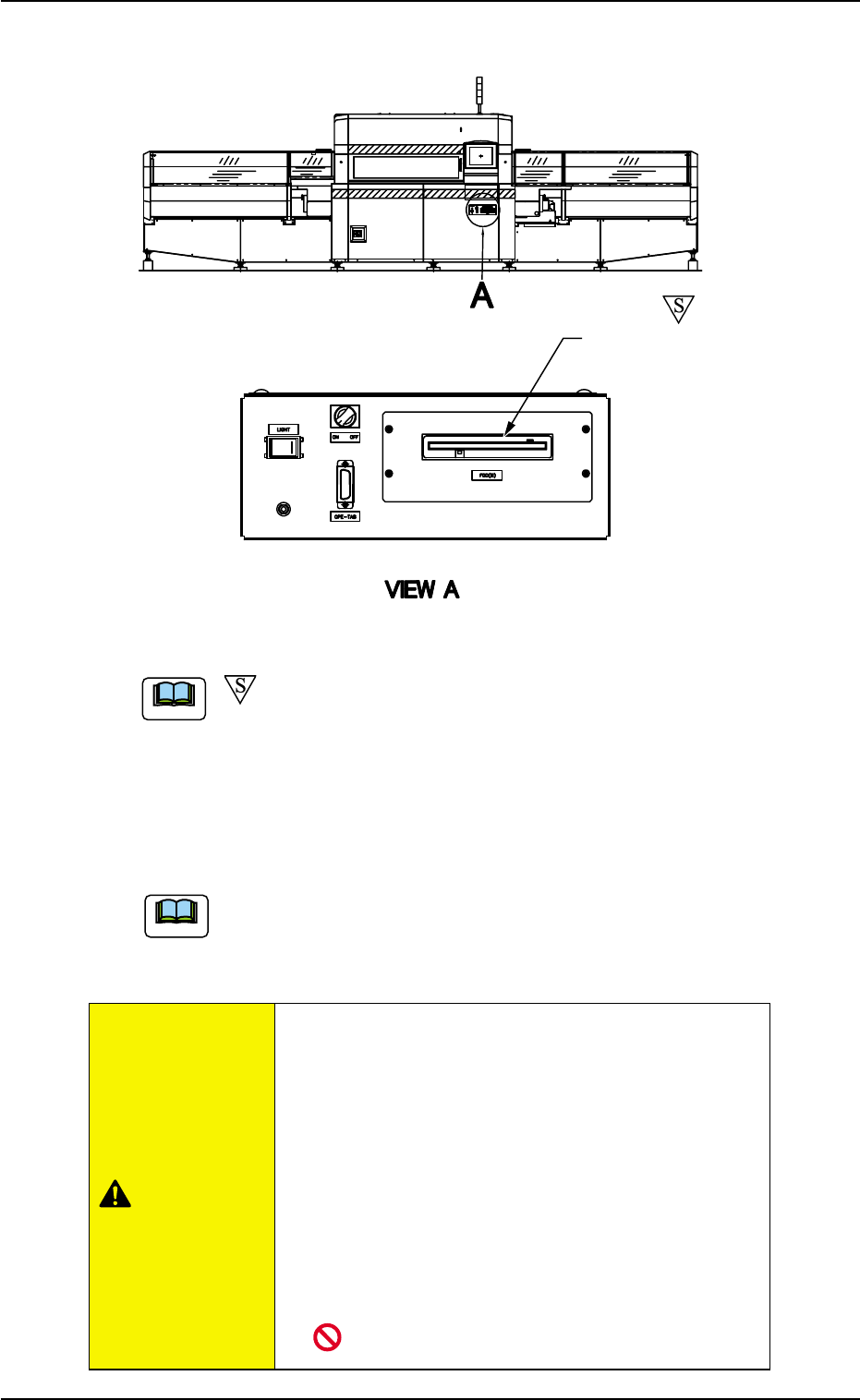

2. Service Panel
CAUTION
2. Service Panel
Fig. 1
Floppy Disk Drive
The device data, the pattern program data, etc., can be saved on a
floppy disk.
The data on the floppy disk can also be loaded onto the machine.
Use the floppy disk (FD) which has been standard formatted
(not quick formatted) with Windows 98, Windows NT,
Windows 2000, or Windows XP.
Note
• Do not use the floppy disk drive for any func-
tions other than the specified ones.
Otherwise, the machine may break down because
the program may be corrupted due to computer vi-
ruses or worms or may be changed in the hard disk
of the machine.
• Do not press the eject button of the disk drive
when the access lamp is ON. Otherwise, the data
may be corrupted, causing the machine to break
down.
-marked area is specially specified.
Note
Floppy Disk Drive
(B-DRIVE)
