SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50138
11/13
3.6. Schedule Task Result Display at the time of the movement
abnormality
When the following abnormities are detected during an execution of Schedule Task, it stops
with errors immediately. In this case, results list dialog is not displayed.
< About movement abnormal. >
- When the nozzle change failed.
- When the nozzle dropped to cleaning blow unit.
- When the system error occurred. (Es error)
etc.
If there is a nozzle with Schedule Task completed, only a result of the nozzle is displayed.
(The result is not displayed even on the Schedule Task monitor screen, when the Schedule
Task is canceled or emergency stop.)
when a movement abnormity occurs, remove the cause displayed on the error screen.
And then, operate those units of the each tab on the [unit] screen if it is possible to do by hand
in order to confirm a normalcy movement.
In addition, execute Schedule Task by the manual operation, and confirm a normal finish.
Refer to "3.4 Schedule Task manual operation from the Schedule Task monitor" for the
manual execution of the Schedule Task.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50138
12/13
4. Setting
4.1. Setting of the Schedule Task result display function
Set [Machine (VmSpec)] - [Specification Information] - [Schedule Specification].
The setting of this function can be edited only when "Check Item" of "Schedule
Specification" is selected to "Vacuum Check" or "Nozzle Check" or "Shaft Cleaning Blow".

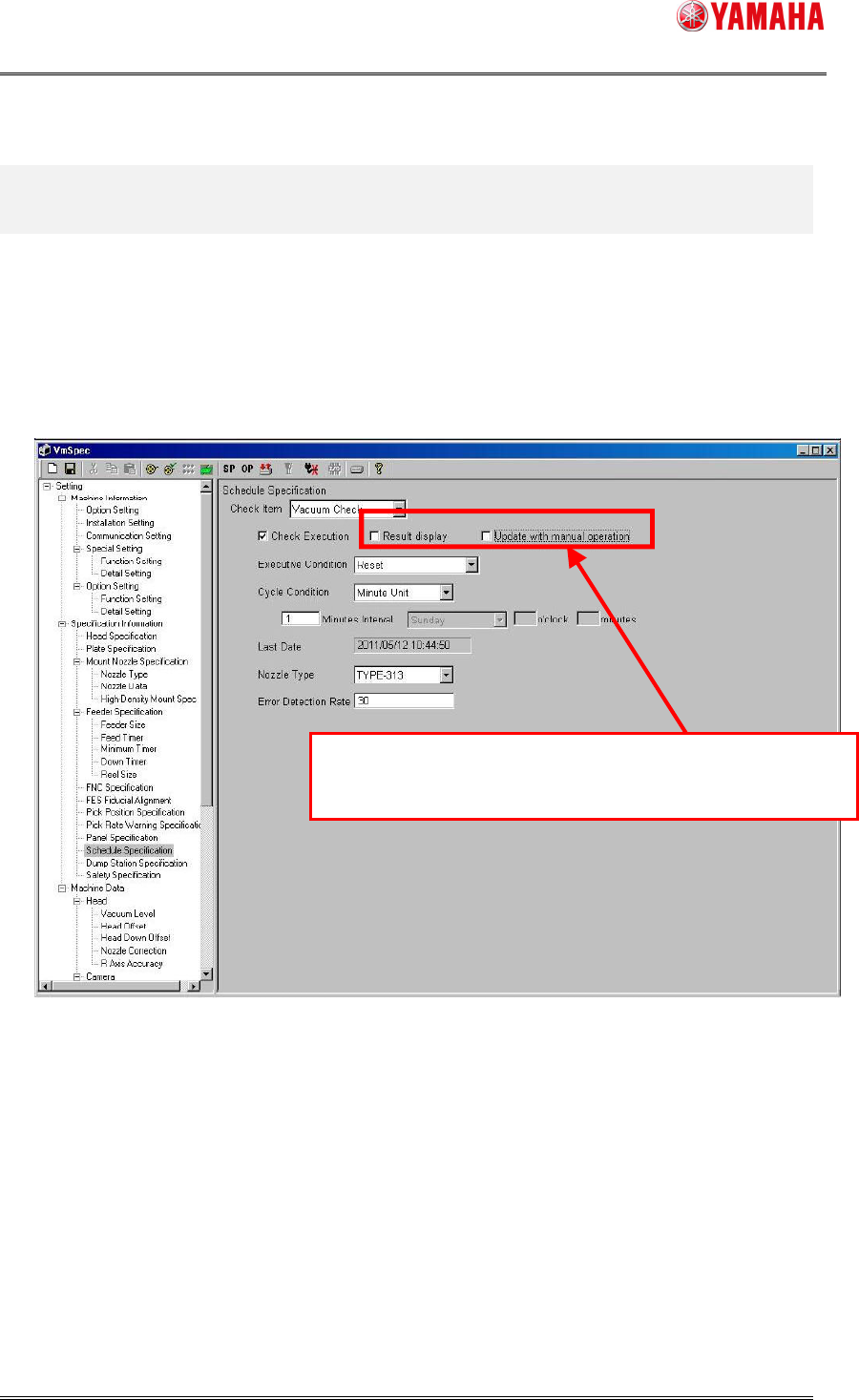

Fig.3.7 Schedule specification screen
Set the Schedule Task result display function.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50138
13/13

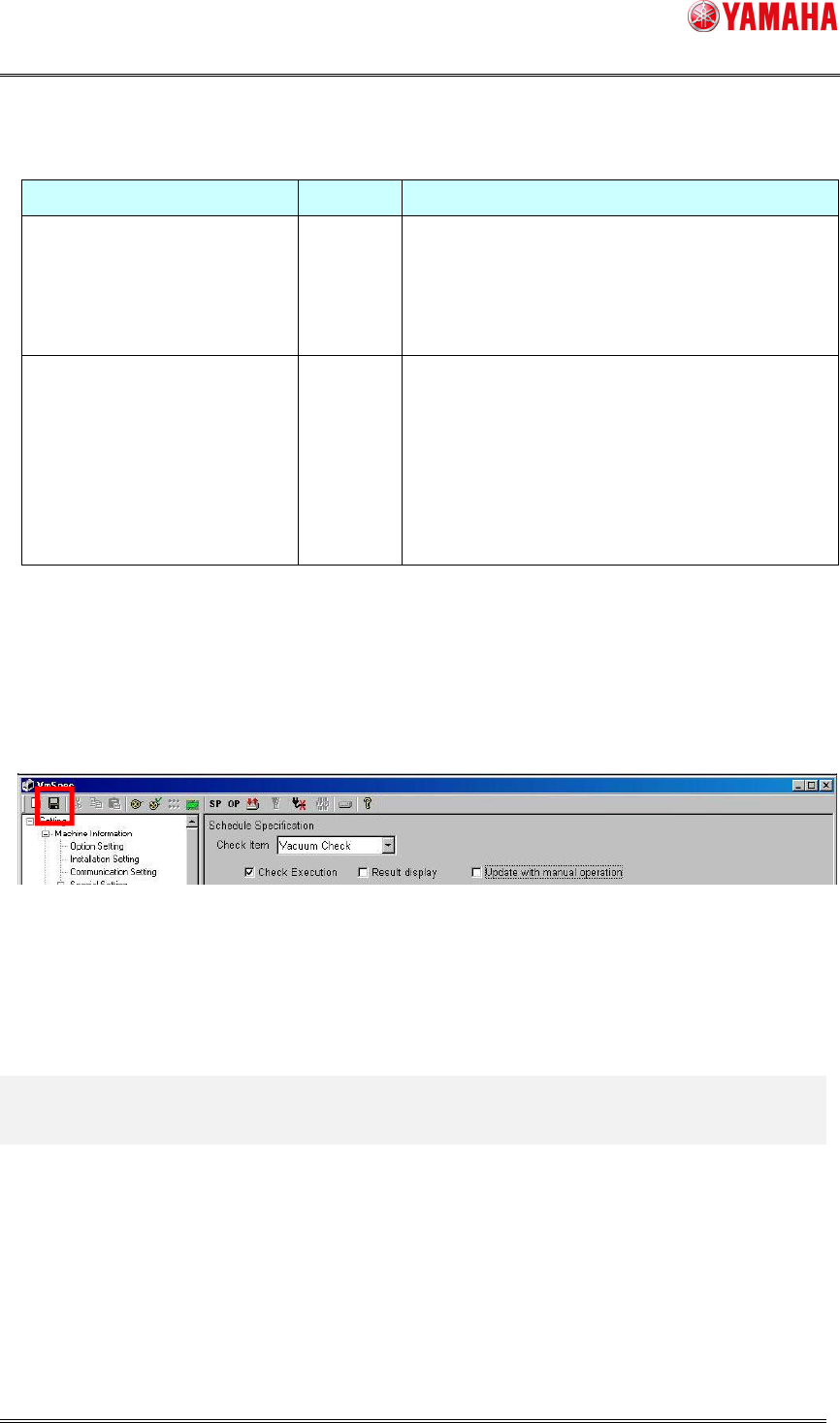

[ Setting Items ]
Setting items Default Remarks
Result display “OFF” In the case of "OFF"
Schedule Task result is not displayed.
In the case of "ON"
Schedule Task result is displayed.
Update with manual operation “OFF” In the case of "OFF"
“Schedule Task Last Date” is not updated when
manual operation.
In the case of "ON"
“Schedule Task Last Date” is updated when manual
operation.
(Attention 1)
Click the "Save” button on [Machine (VmSpec)], after you change the setting. And reload
board data again.
5. Limitations
There are no limitations.
