CHAPTER 5 MACHINE PC
INTRODUCTION The Machine PC Enclosure houses the electronics cards and devices used to
control machine functions such as running the operator interface (the MMI),
interfacing with the NextMove multi-axis controller and communicating with
peripheral devices.
Elements The main elements of the machine PC enclosure are:
• PCA 6180 Single Board Computer (SBC) Processor Card
• NextMove 8-Axis Control Card
• Vision Card (in two positions Gold Camera option only)
• Vision PC Adaptor Card
• 4 Channel RS232 Comms Card (not fitted in all machines)
• PCIB 40 (AutoFlex Tooling Option)
• Backplane
• Hard Disk Drive (HDD)
• Floppy Disk Drive (FDD)
• CD ROM Drive
• Power Supply Unit
Card Position Card slots in the enclosure are numbered according to the slot nomenclature
on the PC backplane.
Card Configuration Jumper links fitted to cards configure them to the required function. The required
link connections are illustrated for each card.
CAUTION
ANTI-STATIC HANDLING.
Standard precautions must be adhered to when
handling electronic cards and configuring and inserting into the enclo-
sures.
0$&+,1(3&
02'8/(29(59,(:
5.2 Technical Reference Manual Chapter Issue 3 May 03
MODULE OVERVIEW

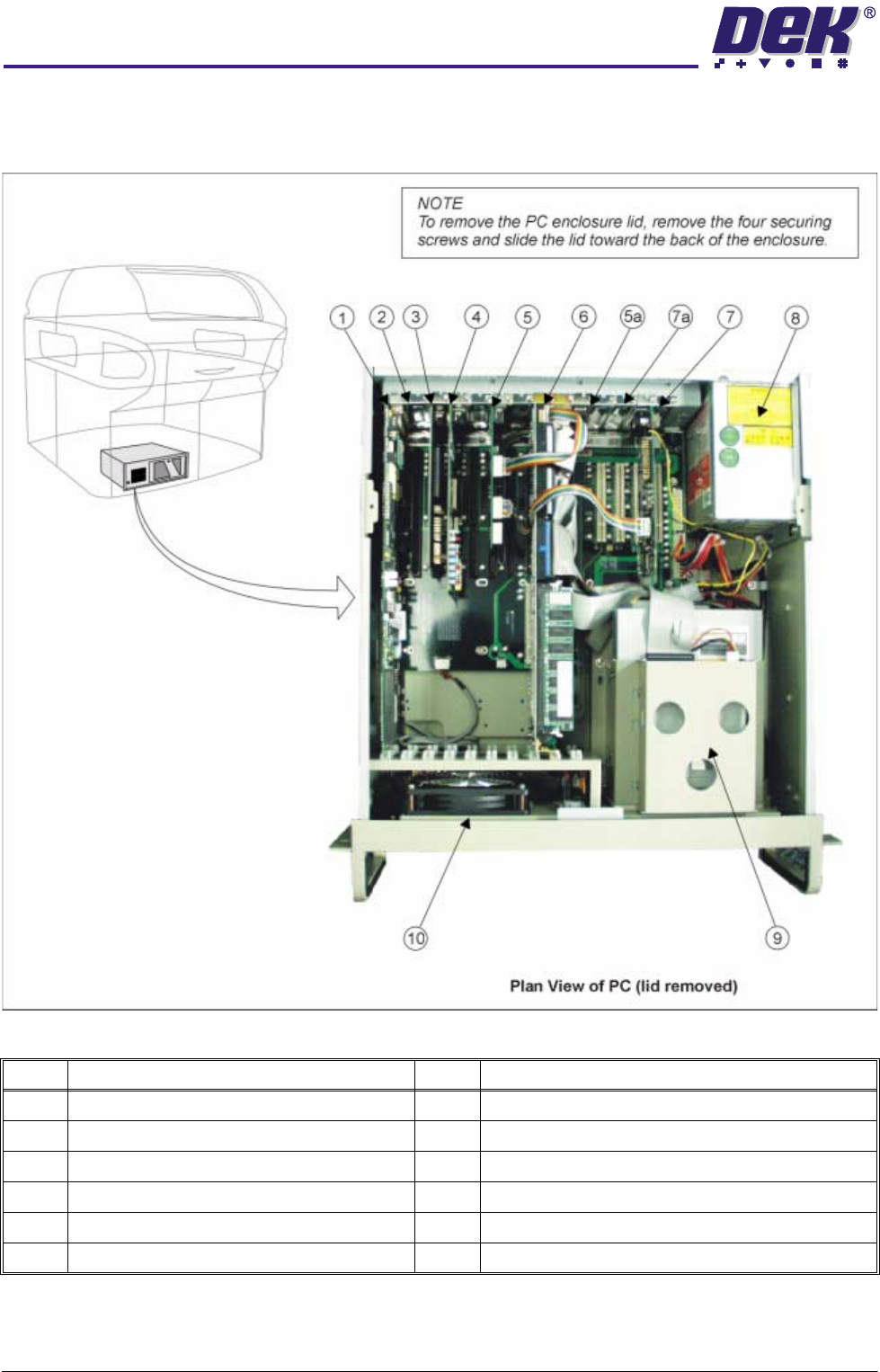

Figure 5-1 PC Enclosure Layout
Item Description Item Description
1 NextMove Machine Control Card 6 SBC - Single Board Computer Card
2 PCIB 40 (AutoFlex Tooling Option) 7 Vision Card
3 2 Port Comms Card (Not Fitted) 7a Vision Card (Gold Camera Option)
4 4 Port Comms Card (Not Fitted In All Machines) 8 Power Supply Unit
5 Vision Adaptor Card (Pt. No 181014) 9 Floppy Disk Drive, CD Drive & Hard Disk Drive
5a Vision Adaptor Card (Pt. No 155543) 10 Cooling Fan
0$&+,1(3&
02'8/(29(59,(:
Chapter Issue 3 May 03 Technical Reference Manual 5.3

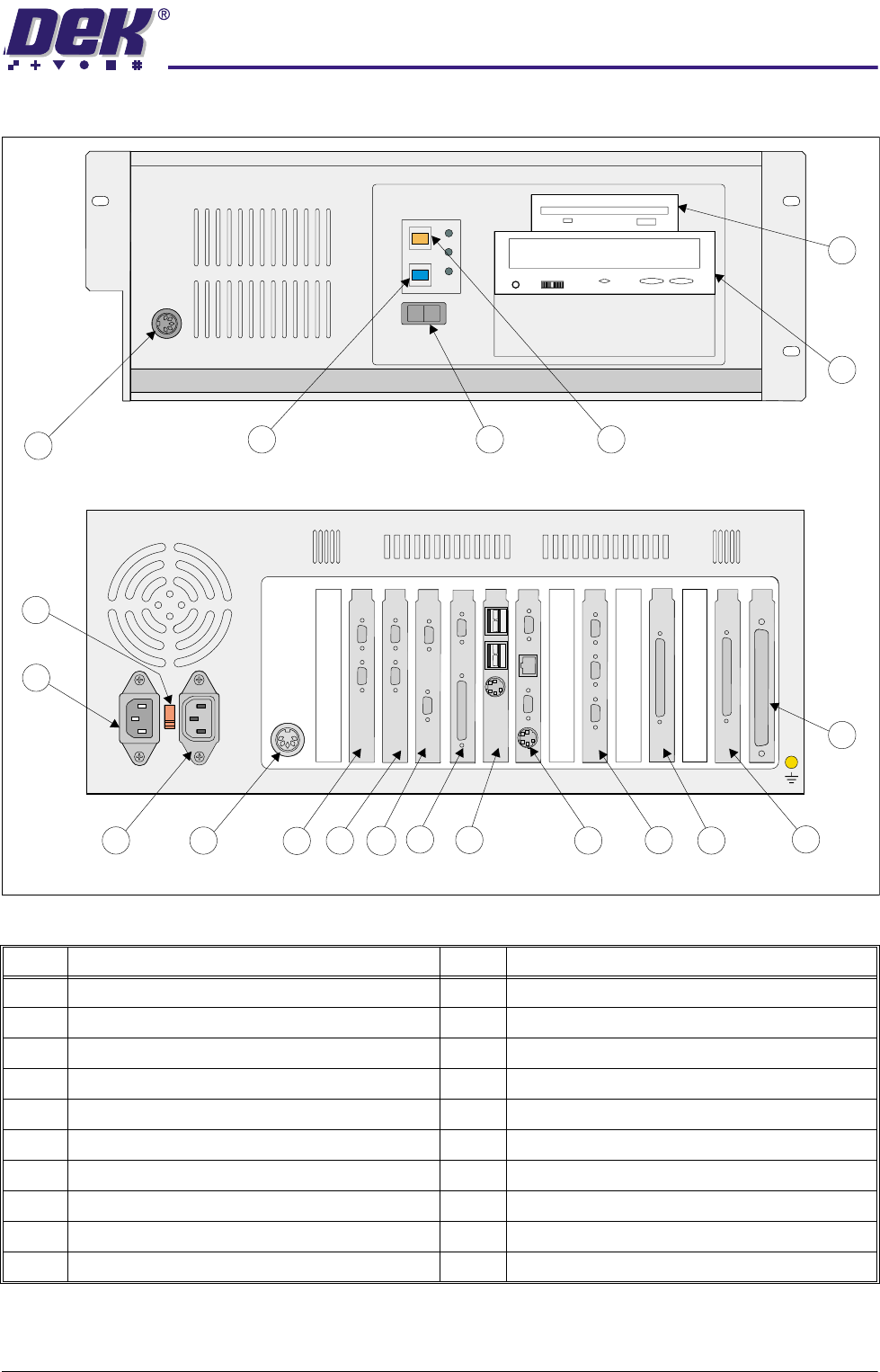

Figure 5-2 PC Front and Rear Panels
Item Description Item Description
1 Floppy Disk Drive 10a Vision Adaptor Card (Pt. No 155543)
2 CD ROM Drive 11 SBC - Single Board Computer Card
3 Reset Switch 12 SBC - USB & Mouse Breakout Panel
4 Mains Power On/Off Switch 13 Parallel Printer Port Breakout Panel
5 Keyboard Locked Switch 14 Vision Card (Gold Camera Option)
6 Front Keyboard / Mouse Connector 15 Vision Card
7 NextMove Machine Controller Card 16 Rear Keyboard/Mouse Connector
8 PCIB40 I/O Card (AutoFlex Tooling Option) 17 Mains Output Connector (Monitor)
9 4 Port Comms Card (Not Fitted In All Machines) 18 Mains Input Connector
10 Vision Adaptor Card (Pt. No 181014) 19 Mains Input Voltage Selection Switch
PC Enclosure Front Panel
(control panel door removed for access)
230V
ISA 2
ISA 1
PCI 1
ISA 3
ISA 4
ISA 5
ISA 6
ISA 7
ISA 8
ISA 9
ISA 10
PCI 2
PCI 3
PCI 4
17
18
7
10
10a
PC Enclosure Rear Panel
15
13
12
11
14
16
9
8
INDUSTRIAL COMPUTER 610
A
DV
ANTECH
O
I
POWER
H.D.D
KB-LK
3SW2
3SW3
3SW1
3LP1
3LP2
3LP3
6
2
1
5 4
3
RESET
KB-LK
19
