0$&+,1 (3& 1(;7 029 ( Chapter Issue 3 May 03 Technical Reference Manual 5.13 NEXTMOVE NextMove is insta lled in the PC enclosure. However , NextMove is a motion controll er and i ts f unctions are describ ed ful…
0$&+,1(3&
3&(1&/2685(
5.12 Technical Reference Manual Chapter Issue 3 May 03
PNP / PCI Configuration
PC Health Status
Frequency/Voltage Control
Menu Sub Menu
Parameter Setting Parameter Setting
PNP OS Installed No
Reset Configuration Data Disabled
IRQ Resources IRQ-3 Assigned to PCI/ISA PnP
IRQ-4 Assigned to PCI/ISA PnP
IRQ-5 Assigned to Legacy ISA
IRQ-7 Assigned to PCI/ISA PnP
IRQ-9 Assigned to Legacy ISA
IRQ-10 Assigned to PCI/ISA PnP
IRQ-11 Assigned to PCI/ISA PnP
IRQ-12 Assigned to PCI/ISA PnP
IRQ-14 Assigned to PCI/ISA PnP
IRQ-15 Assigned to Legacy ISA
DMA Resources DMA-0 Assigned to PCI/ISA PnP
DMA-1 Assigned to PCI/ISA PnP
DMA-3 Assigned to PCI/ISA PnP
DMA-5 Assigned to PCI/ISA PnP
DMA-6 Assigned to PCI/ISA PnP
DMA-7 Assigned to PCI/ISA PnP
PCI/VGA Palette Snoop Disabled
Parameter Setting
CPU Warning Temperature Disabled
Parameters Setting
Auto Detect DIMM/PCI Clk Enabled
Spread Spectrum Disabled
CPU Clock Ratio X 3
0$&+,1(3&
1(;7029(
Chapter Issue 3 May 03 Technical Reference Manual 5.13
NEXTMOVE NextMove is installed in the PC enclosure. However, NextMove is a motion
controller and its functions are described fully in the Machine Controller chapter
of this manual.
The NextMove card sits on the ISA Bus and is itself controlled by the central
processor unit (CPU) in the PC enclosure. This arrangement allows the CPU
to control functions such as the operator interface (the MMI) and provide
general housekeeping functions along with general PC control whilst the Next-
Move card, with its own on-board CPU specifically controls all machine motion.
0$&+,1(3&
9,6,21&$5'
5.14 Technical Reference Manual Chapter Issue 3 May 03
VISION CARD
The card, fitted to slot PCI 3, is a complete vision system, it utilizes the machine
CPU and Memory as its controller.
The card takes the incoming signal from the camera, processes and returns a
fiducial location coordinate to the alignment algorithm.
NOTE
A second vision card is fitted to slot PCI 2 for the gold camera option. 3SK30
is used for the second vision card. The gold camera option is not fitted to all
machines.

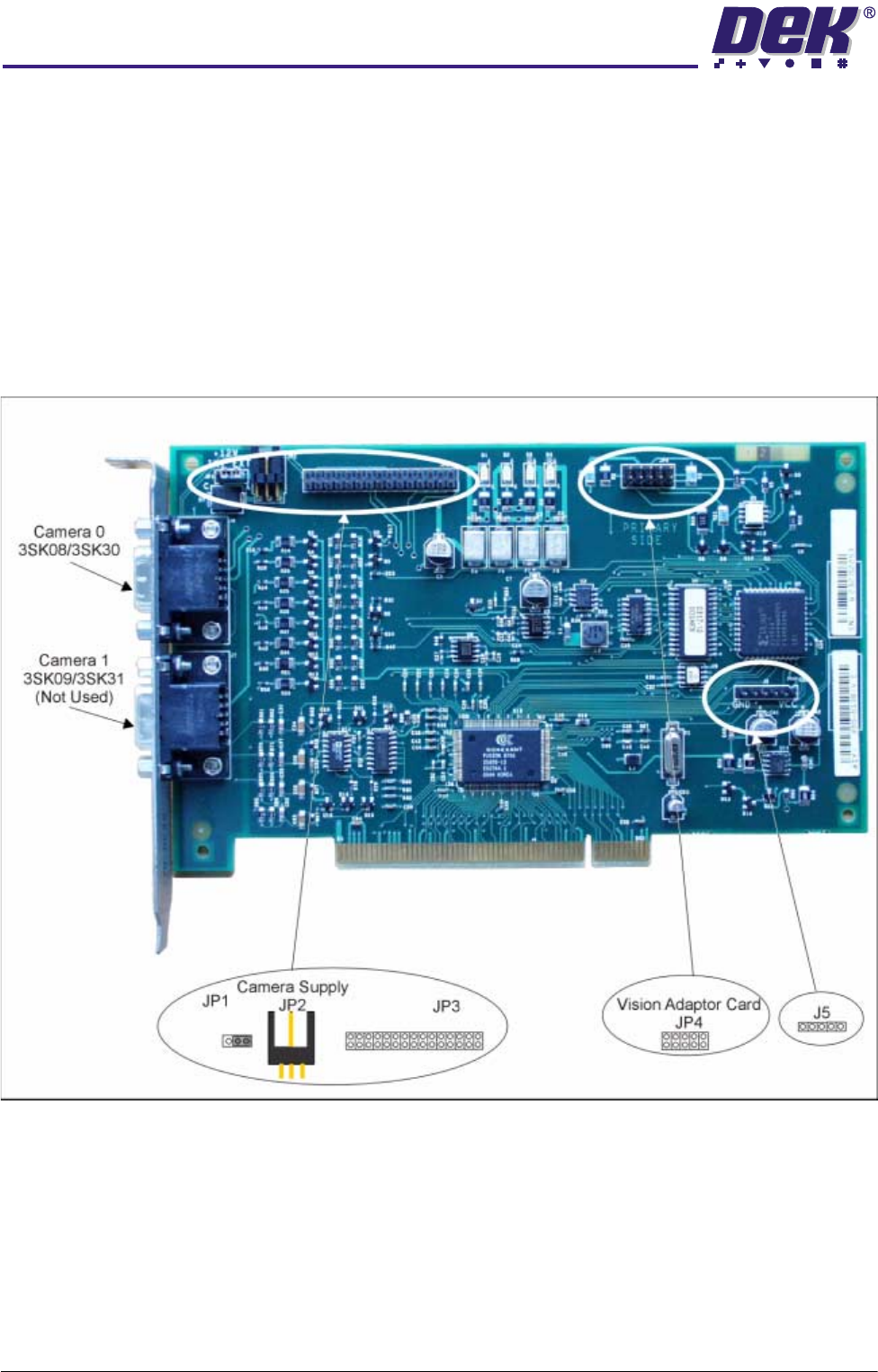

Figure 5-6 Vision Card Layout
