0$&+,1 (3& 02'8/( 29(59,(: Chapter Issue 3 May 03 Technical Reference Manual 5.3 Figure 5-2 PC Front and Rear Panels Item Descriptio n Item Description 1 Floppy Disk Dri ve 10a Vi sion Adap tor Card (Pt. N…
0$&+,1(3&
02'8/(29(59,(:
5.2 Technical Reference Manual Chapter Issue 3 May 03
MODULE OVERVIEW
Figure 5-1 PC Enclosure Layout
Item Description Item Description
1 NextMove Machine Control Card 6 SBC - Single Board Computer Card
2 PCIB 40 (AutoFlex Tooling Option) 7 Vision Card
3 2 Port Comms Card (Not Fitted) 7a Vision Card (Gold Camera Option)
4 4 Port Comms Card (Not Fitted In All Machines) 8 Power Supply Unit
5 Vision Adaptor Card (Pt. No 181014) 9 Floppy Disk Drive, CD Drive & Hard Disk Drive
5a Vision Adaptor Card (Pt. No 155543) 10 Cooling Fan
0$&+,1(3&
02'8/(29(59,(:
Chapter Issue 3 May 03 Technical Reference Manual 5.3
Figure 5-2 PC Front and Rear Panels
Item Description Item Description
1 Floppy Disk Drive 10a Vision Adaptor Card (Pt. No 155543)
2 CD ROM Drive 11 SBC - Single Board Computer Card
3 Reset Switch 12 SBC - USB & Mouse Breakout Panel
4 Mains Power On/Off Switch 13 Parallel Printer Port Breakout Panel
5 Keyboard Locked Switch 14 Vision Card (Gold Camera Option)
6 Front Keyboard / Mouse Connector 15 Vision Card
7 NextMove Machine Controller Card 16 Rear Keyboard/Mouse Connector
8 PCIB40 I/O Card (AutoFlex Tooling Option) 17 Mains Output Connector (Monitor)
9 4 Port Comms Card (Not Fitted In All Machines) 18 Mains Input Connector
10 Vision Adaptor Card (Pt. No 181014) 19 Mains Input Voltage Selection Switch
PC Enclosure Front Panel
(control panel door removed for access)
230V
ISA 2
ISA 1
PCI 1
ISA 3
ISA 4
ISA 5
ISA 6
ISA 7
ISA 8
ISA 9
ISA 10
PCI 2
PCI 3
PCI 4
17
18
7
10
10a
PC Enclosure Rear Panel
15
13
12
11
14
16
9
8
INDUSTRIAL COMPUTER 610
A
DV
ANTECH
O
I
POWER
H.D.D
KB-LK
3SW2
3SW3
3SW1
3LP1
3LP2
3LP3
6
2
1
5 4
3
RESET
KB-LK
19
0$&+,1(3&
(/(&75,&$/6&+(0$7,&
5.4 Technical Reference Manual Chapter Issue 3 May 03
ELECTRICAL SCHEMATIC

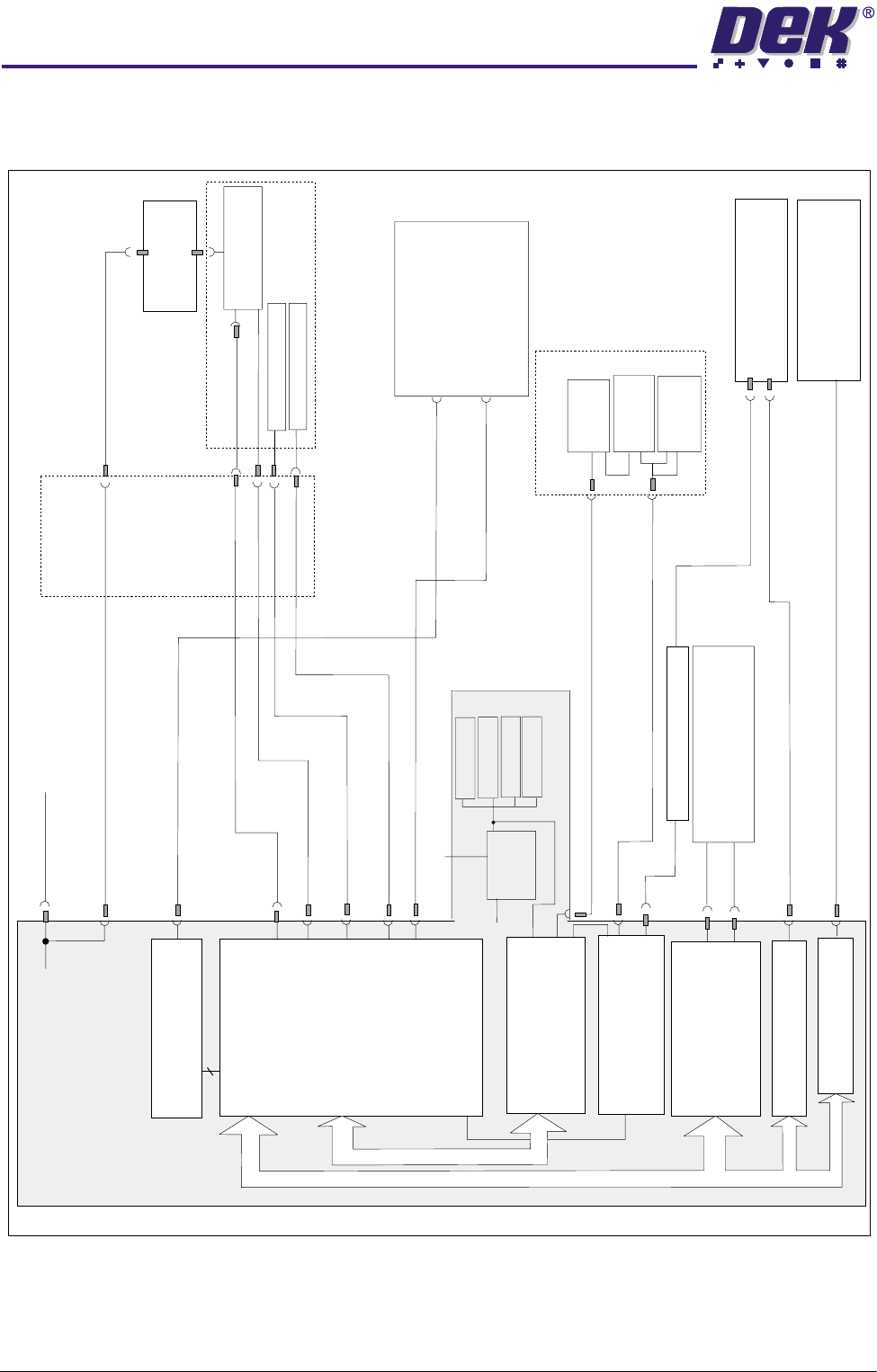

Figure 5-3 PC External Connections - Green Camera
Control Enclosure
Autoflex Enclosure
(option)
Vision PC Adaptor
4 Channel RS232
Comms Card
ISA 10
ISA 9
PC Enclosure
Drg 160991
ISA 1
Camera Module
Camera
Upper
Lighting
Lower
Lighting
Vision Card
Rear Service Panel
RJ45 Ethernet
LAN Port
Host Comms
Parallel Printer
PCIB40
ISA Bus
PCA 6180 SBC
Parallel Printer
CN7 SVGA
CN11 Keyboard
CN33 PS2/Mouse
CN9 COM 1 RS232
COM 2 RS232
HDD
FDD
FAN
CD Drive
Mains In
PSU
ISA 5
ISA 7
PCI 3
24V Strobe Trigger
NextMove Card
PCI Bus
Stencil Barcode Reader
Remote Barcode Reader
(options)
Parallel Printer Exp
n
CN8 Host Comms LAN
CN 4
ISA 3
3SK06
3SK05
3SK04
3SK07
3SK02
3SK08
3SK10
3SK12
3SK16
3PL11
3PL19
3PL20
M19PL26
M19PL16
3PL03
(Not In All Machines)
25
JP2 Camera Supply
JP4 Power & Trigger
CAM0 Pwer & Video
PL1
PL3
SK1 Camera Lighting
PL2 Camera Lighting
Supply & Trigger
COM5
COM6
(AutoFlex Tooling Option)
10SK17
6SK13
6SK09
10SK13
PSU
Mouse options
Keyboard Options
MMI
Display Monitor
14PL02
14SK04
14SK05
14SK06
3SK23
Mains In
Mains Out
3PL01
Monitor Panel
14SK01
