Required Steps before using Support Media 07/2013 Edition
38
The window should look like the following.

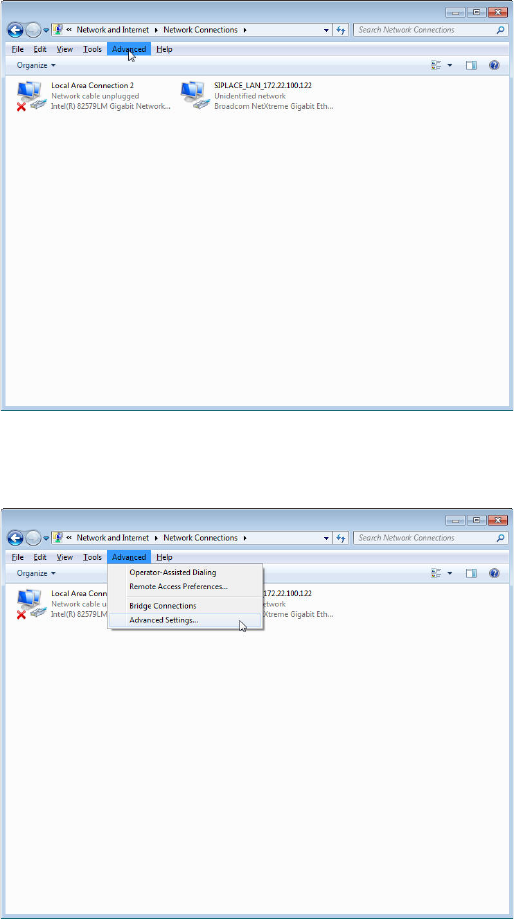

Figure 8-10: Network Connections window with ALT key pressed and “Advanced” selected
► Click the item Advanced in the menu bar.
Figure 8-11: Selecting Advanced Settings from Network Connections
► Click the Advanced Settings… option.
Required Steps before using Support Media 07/2013 Edition
39
A window similar to the following opens.
Figure 8-12: Advanced Network Settings with SIPLACE_LAN network connection selected
► In the upper area, select the network connection for which you want to change the order.
► Click the appropriate arrow button to move the connection up/down in the order.
Figure 8-13: Advanced Network Settings with Network Connections order changed
► After you’ve changed the order complying with your wishes, click the OK button to apply the
setting.
Required Steps before using Support Media 07/2013 Edition
40
