REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-08804 HMSBRV2 1
2 401-08805 HMSBRB 1
3 401-46354 HMSCABLEASM 2
4 SL-6030892-TN SCREWM3L=8 2
5 SM-6032502-TN SCREWM3L=25 2
6 HX-0029400-00 FIXEDBASE 1
7 SM-4040601-SC SCREWM4X0.7L=6 1
8 SL-6030692-TN SCREWM3L=6 2
9
#01
401-08805 HMSBRB 1
- -

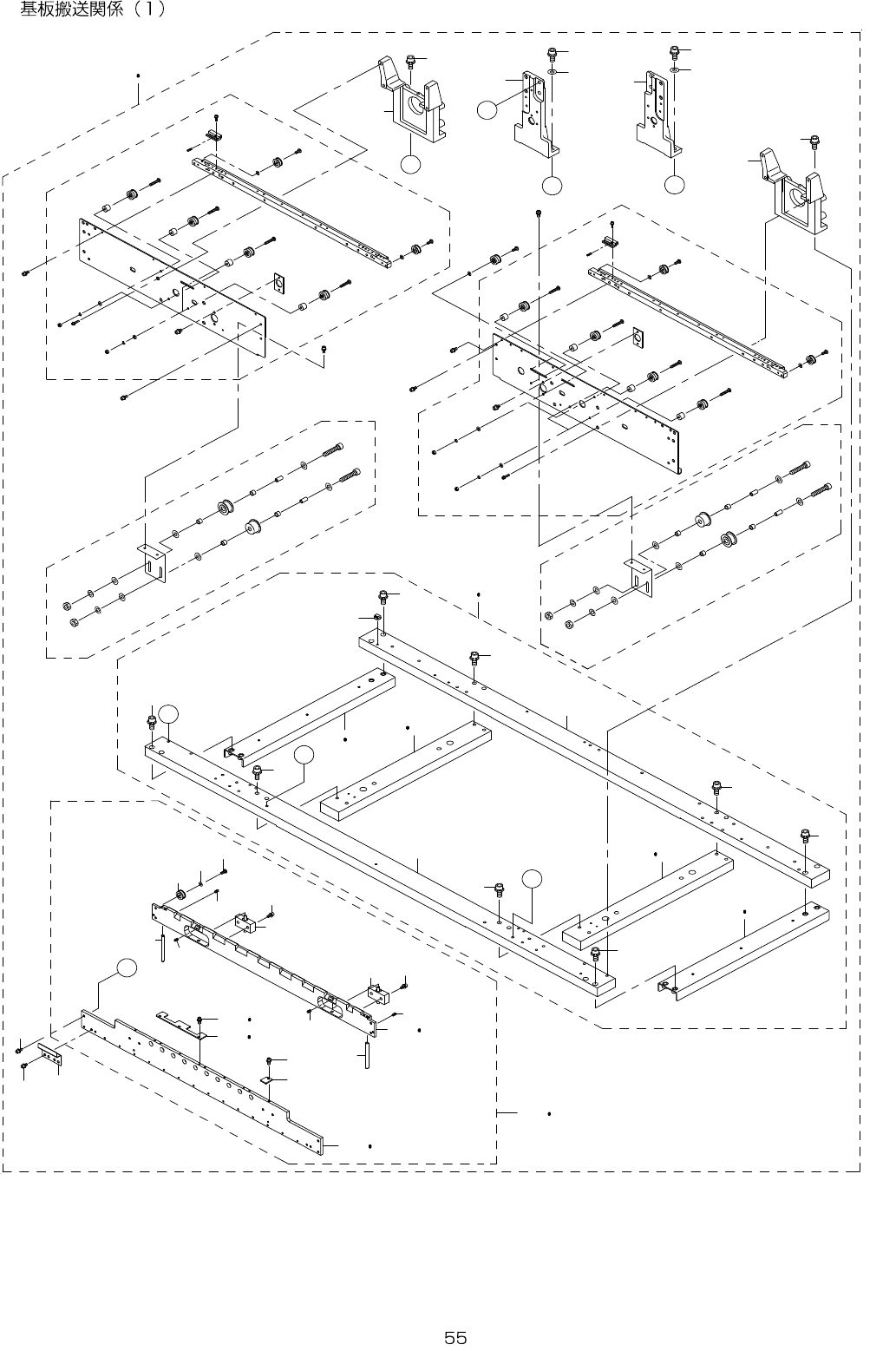

28.PWBCONVEYORCOMPONENTS(1)
3 4
1 8
4 0
1 6
1 7
1 5
4 0
D
C
B
A
4 1
4 1
2 0
1 9
1 2
4 3
4 2
C
2 1 2 2
1 1
3 3
3 3
5
6
7 8
9 1 0
9 1 0
7 8
3 2
3 7
2 7
2 4
2 4
D
B
A
1 4
3 6
3 5
3 4
3 2
3 7
2 7
1 1
1 2
1 2
1 2
1 1
1 2
1 1
3 8
2 8 2 9
3 0 3 1
4 4
2 3 3 9
1 3
2 5 2 6
- -

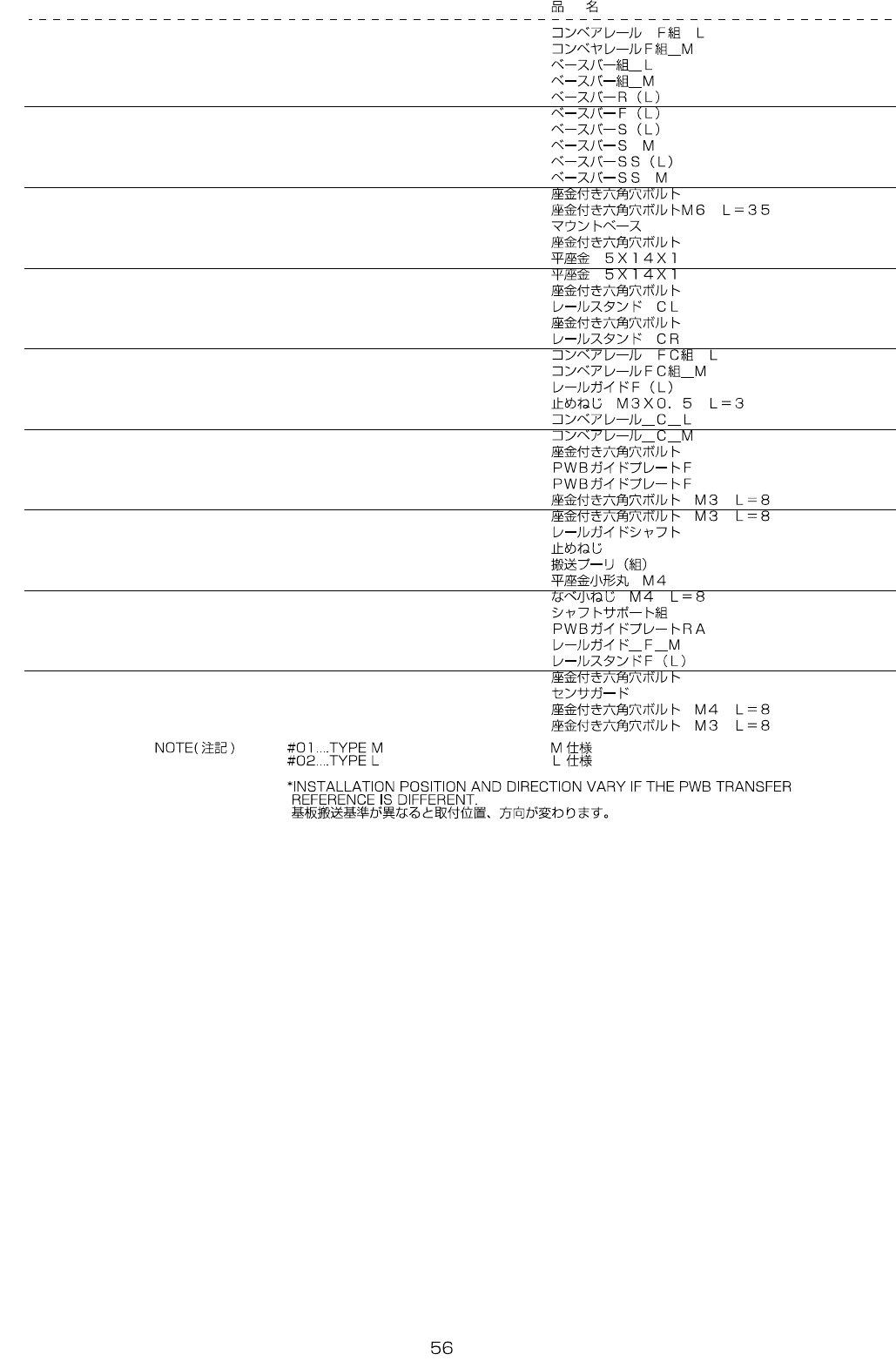

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#02
401-46985 CONVEYOR_RAIL_F_ASM_L 1
2
#01
401-46971 CONVEYOR_RAIL_F_ASM_M 1
3
#02
401-47029 BASE_BAR_ASM_L (1)
4
#01
401-47028 BASE_BAR_ASM_M (1)
5 400-01038 BASEBARR(L) (1)
6 400-01039 BASEBARF(L) (1)
7
#02
400-70087 BASEBARS(L) (2)
8
#01
401-10094 BASEBARSM (2)
9
#02
400-00996 BASEBARSS(L) (2)
10
#01
401-10095 BASEBARSSM (2)
11 SL-6084092-TN BOLT (8)
12 SL-6063592-TN SCREW (8)
13 HX-0070600-0A MOUNTBASE (4)
14 SL-6041292-TN SCREW (4)
15 WP-0501046-SC WASHER5X14X1 (2)
16 WP-0501046-SC WASHER5X14X1 (2)
17 SL-6052092-TN SCREW (2)
18 400-00802 RAILSTANDCL (1)
19 SL-6052092-TN SCREW (2)
20 400-00805 RAILSTANDCR (1)
21
#02
401-46986 CONVEYOR_RAIL_FC_ASM_L (1)
22
#01
401-46974 CONVEYOR_RAIL_FC_ASM_M (1)
23 400-01043 RAILGUIDF(L) (1)
24 SM-8030302-TP SCREWM3X0.5L=3 (2)
25
#02
401-47010 CONVEYOR_RAIL_C_L (1)
26
#01
401-47009 CONVEYOR_RAIL_C_M (1)
27 SL-6041092-TN SCREW (8)
28
#02
E2123-721-000 PWBGUIDEPLATEF (4)
29
#01
E2123-721-000 PWBGUIDEPLATEF (2)
30
#02
SL-6030892-TN SCREWM3L=8 (12)
31
#01
SL-6030892-TN SCREWM3L=8 (6)
32 400-00812 RAILGUIDESHAFT (2)
33 SM-8040602-TP SCREWM4X0.7L=6 (2)
34 E2111-715-0A0 CONVEYORPULLEYASM. (4)
35 WP-0430800-SC WASHERM4 (4)
36 SM-4040855-SC SCREW (4)
37 E4105-729-0A0 SHAFTSUPPORTBASM. (2)
38
#01
E2124-721-000 PWBGUIDEPLATERA (4)
39
#01
401-46995 RAIL_GUIDE_F_M (1)
40 400-46032 RAILSTANDF(L) (2)
41 SL-6052092-TN SCREW (4)
42
#01
401-14733 SENSORGUARD (1)
43
#01
SL-6040892-TN SCREWM4L=8 (2)
44
#01
SL-6030892-TN SCREWM3L=8 (4)
